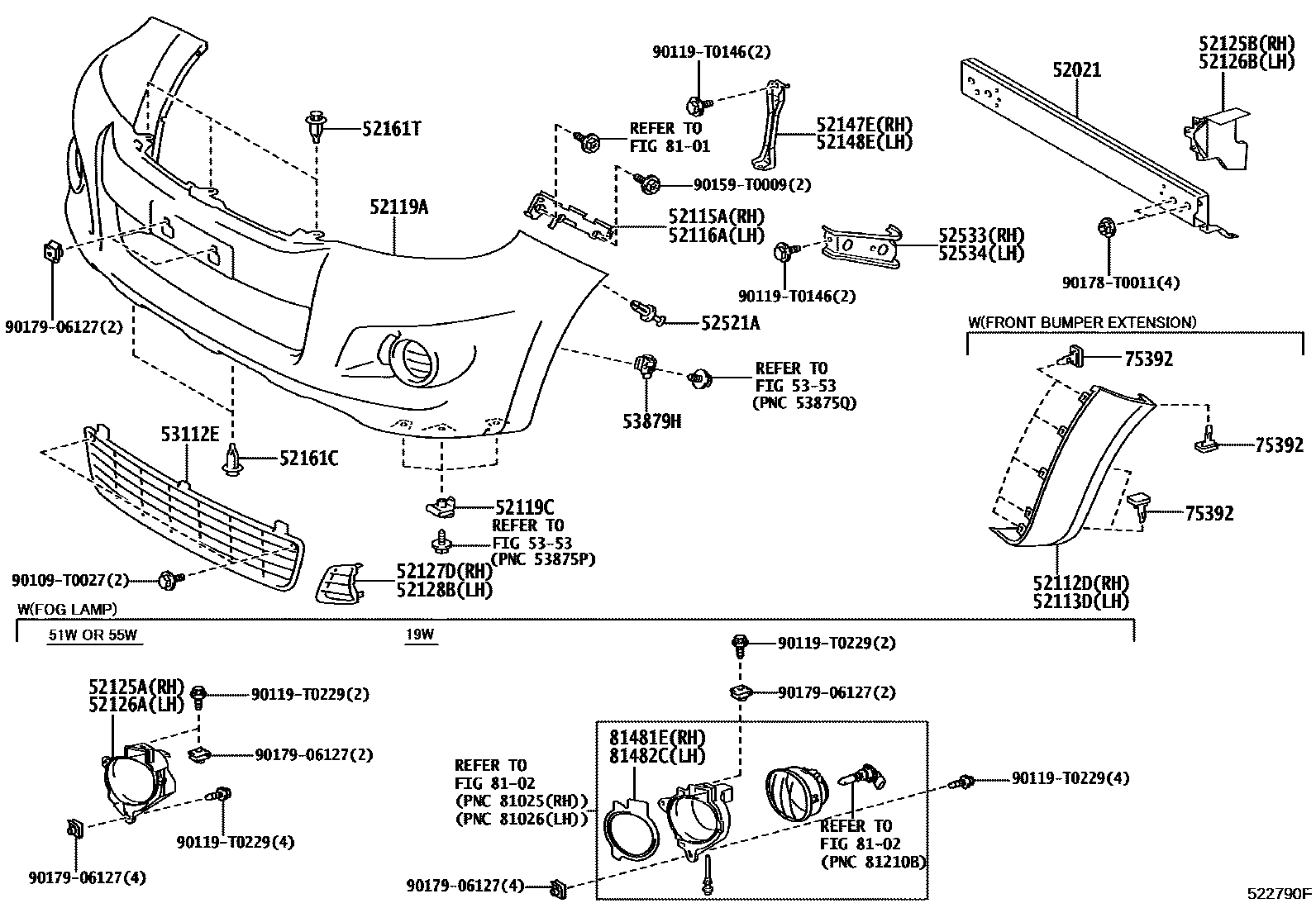

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0K022 · 52021-0K030 |
| 52112D | Front bumper right extension | 52112-0K150 · 52112-0K160 · 52112-0K170 |
| 52113D | Front bumper left extension | 52113-0K140 · 52113-0K150 · 52113-0K160 |
| 52115A | Front bumper right side bracket | 52115-0K060 · 52115-0K070 |
| 52116A | Front bumper left bracket | 52116-0K060 · 52116-0K070 |
| 52119A | front bumper cover | 52119-0K280 · 52119-0K290 · 52119-0K980 · 52119-0K981 · 52119-0M912 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05138 |
| 52125A | Right fog light mounting bracket | 81481-0K050 |
| 52125B | Front bumper reinforcement right extension section | 52125-0K010 |
| 52126A | Left fog light mounting bracket | 81482-0K040 |
| 52126B | Front bumper reinforcement left extension section | 52126-0K010 |
| 52127D | Front bumper right hole cover | 52127-0K030 |
| 52128B | Front bumper left hole cover | 52128-0K030 |
| 52147E | Front bumper right side mounting support | 52147-0K040 · 52147-0K100 |
| 52148E | Front bumper left side mounting support | 52147-0K040 · 52147-0K100 |
| 52161C | front bumper insert | 52161-0K050 |
| 52161T | front bumper insert | 52161-0K040 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-0K050 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52533-0K050 |
| 53112E | No. 1 radiator lower grille | 53112-0K050 · 53112-0K060 · 53112-0K070 |
| 53879H | Front fender lining fixing parts | 53879-0K010 |
| 75392 | External protective strip fixings | 75392-0K010 · 75392-35220 |
| 81481E | Right fog light cover | 81481-0K080 |
| 81482C | Left fog light cover | 81482-0K060 |
