Toyota HILUX 车架 — Figure 5151

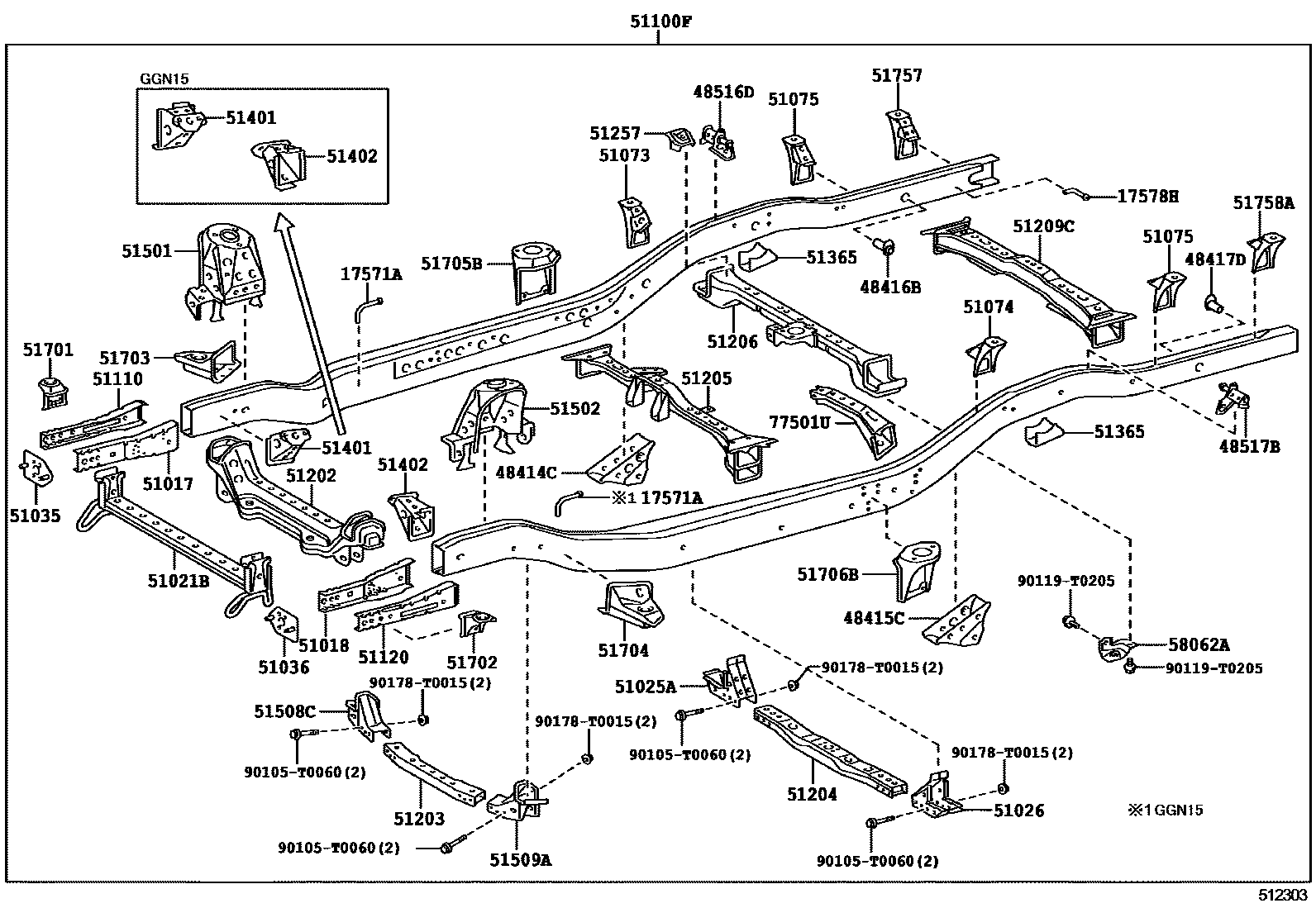

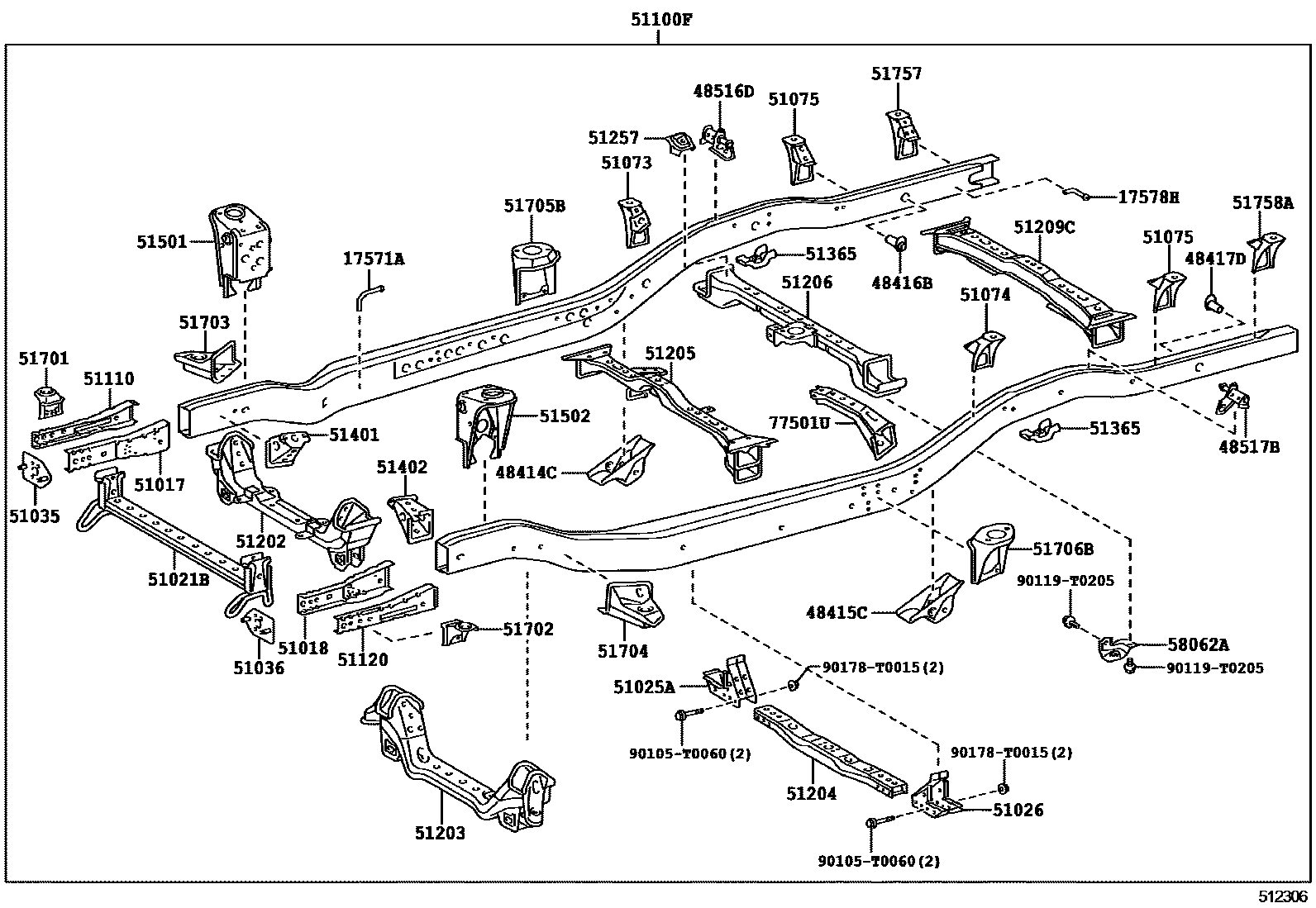

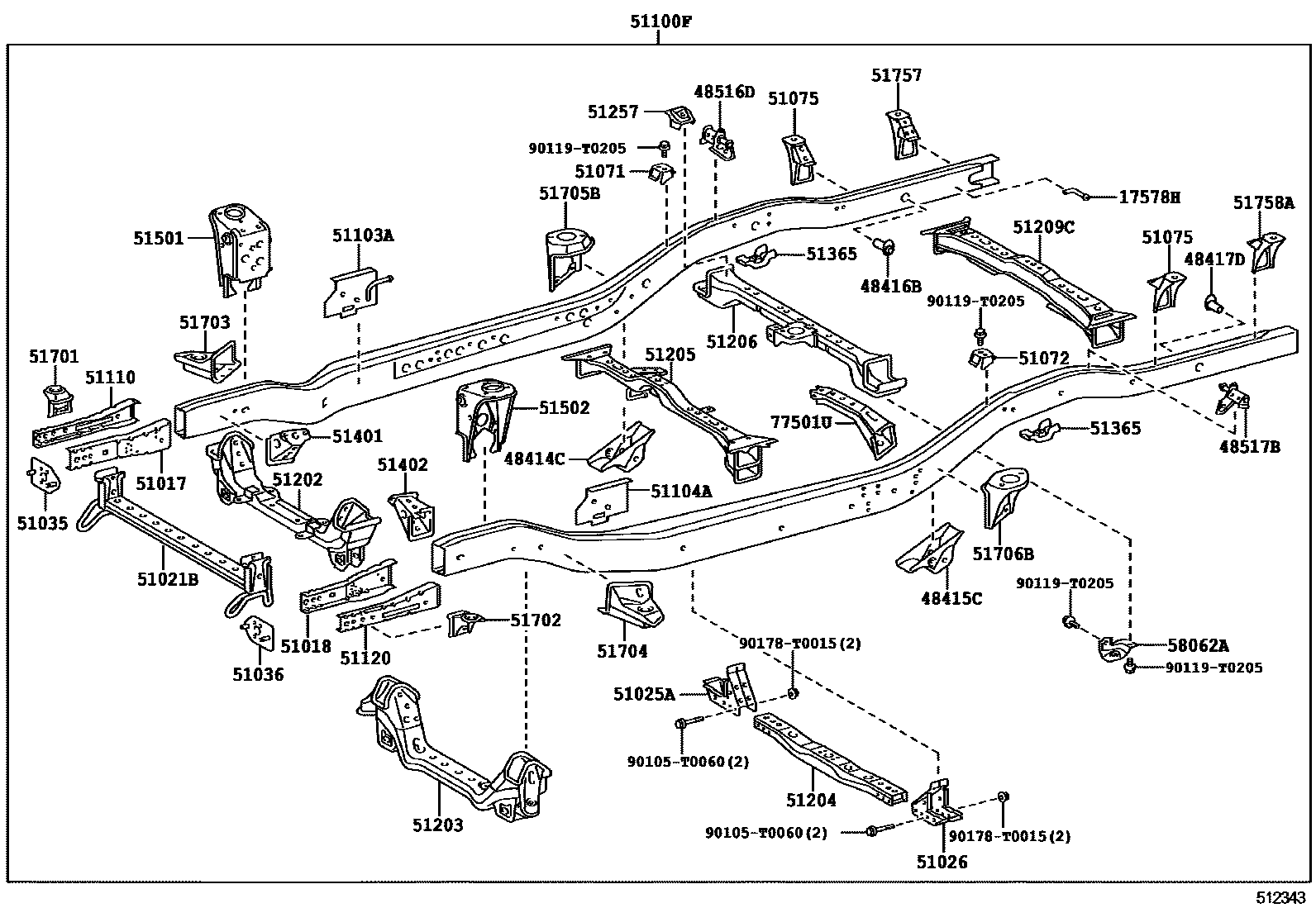

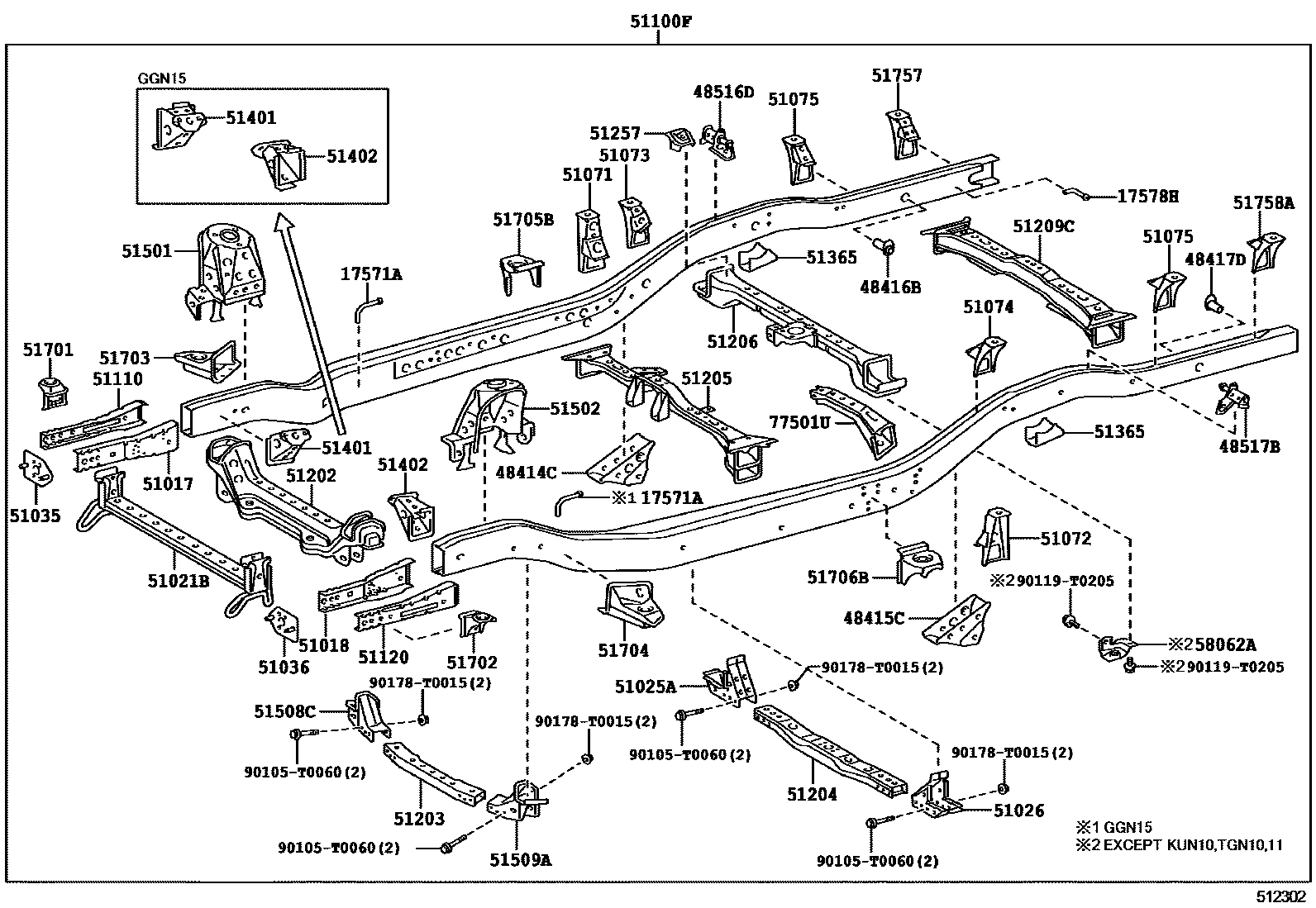

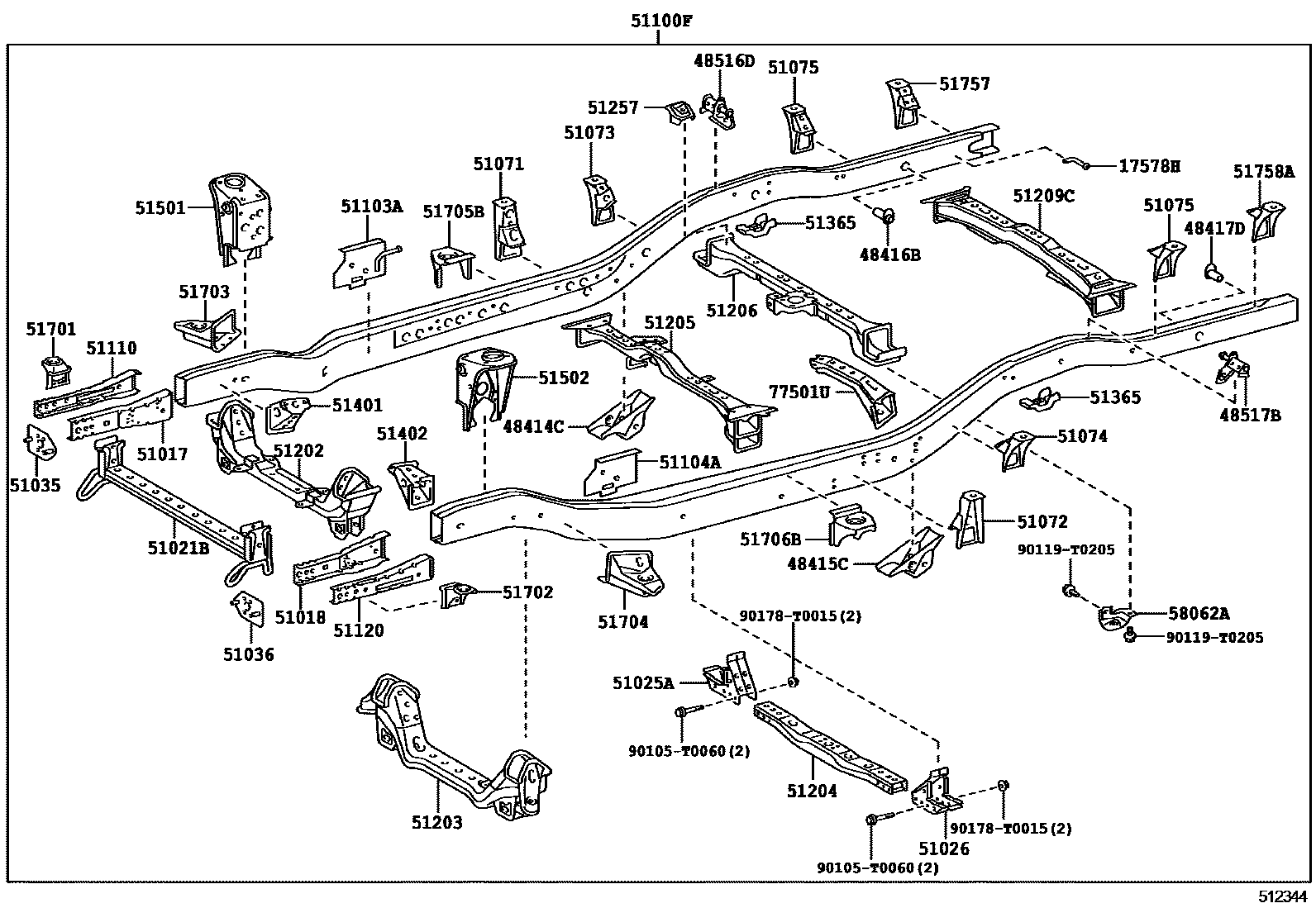

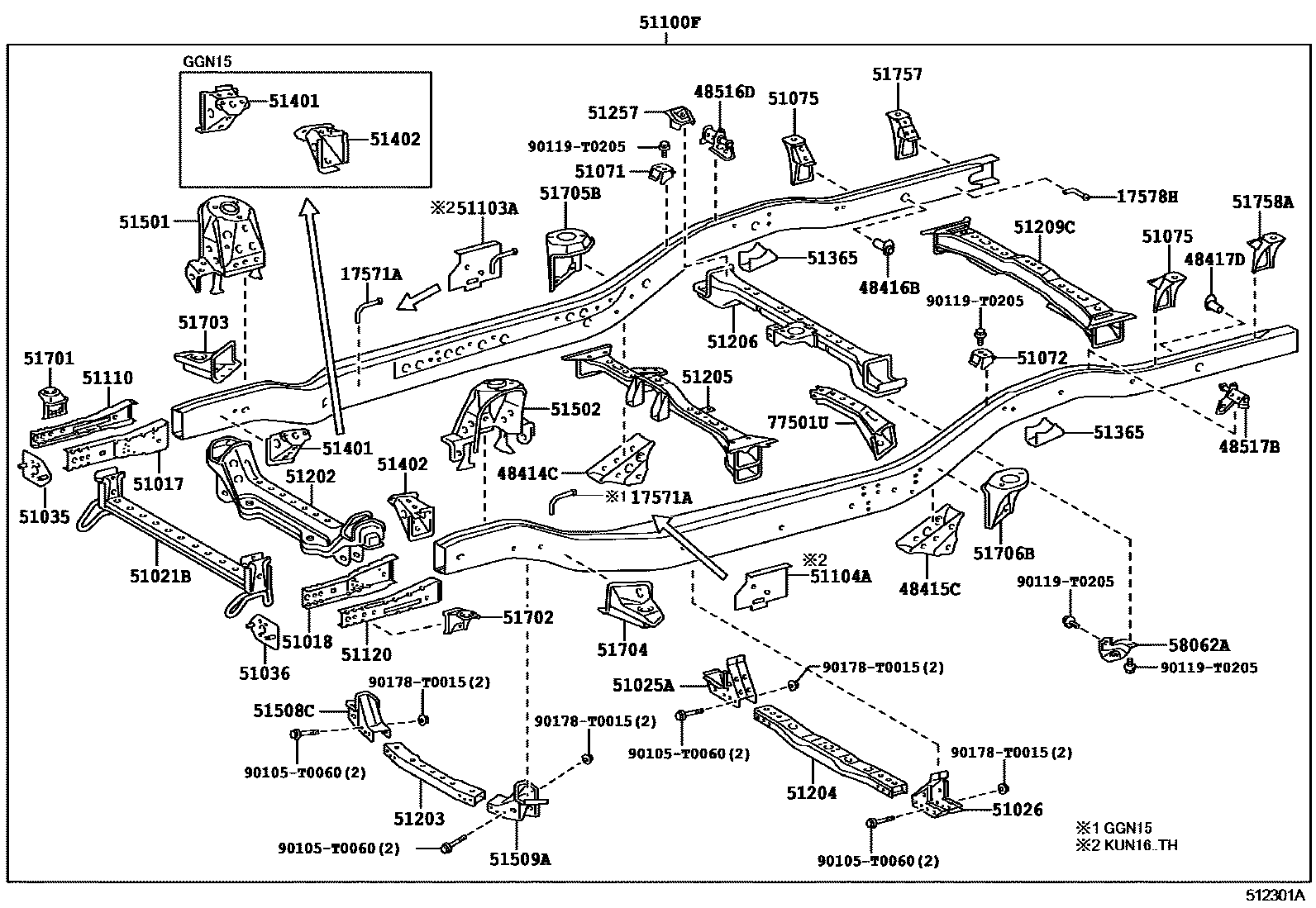

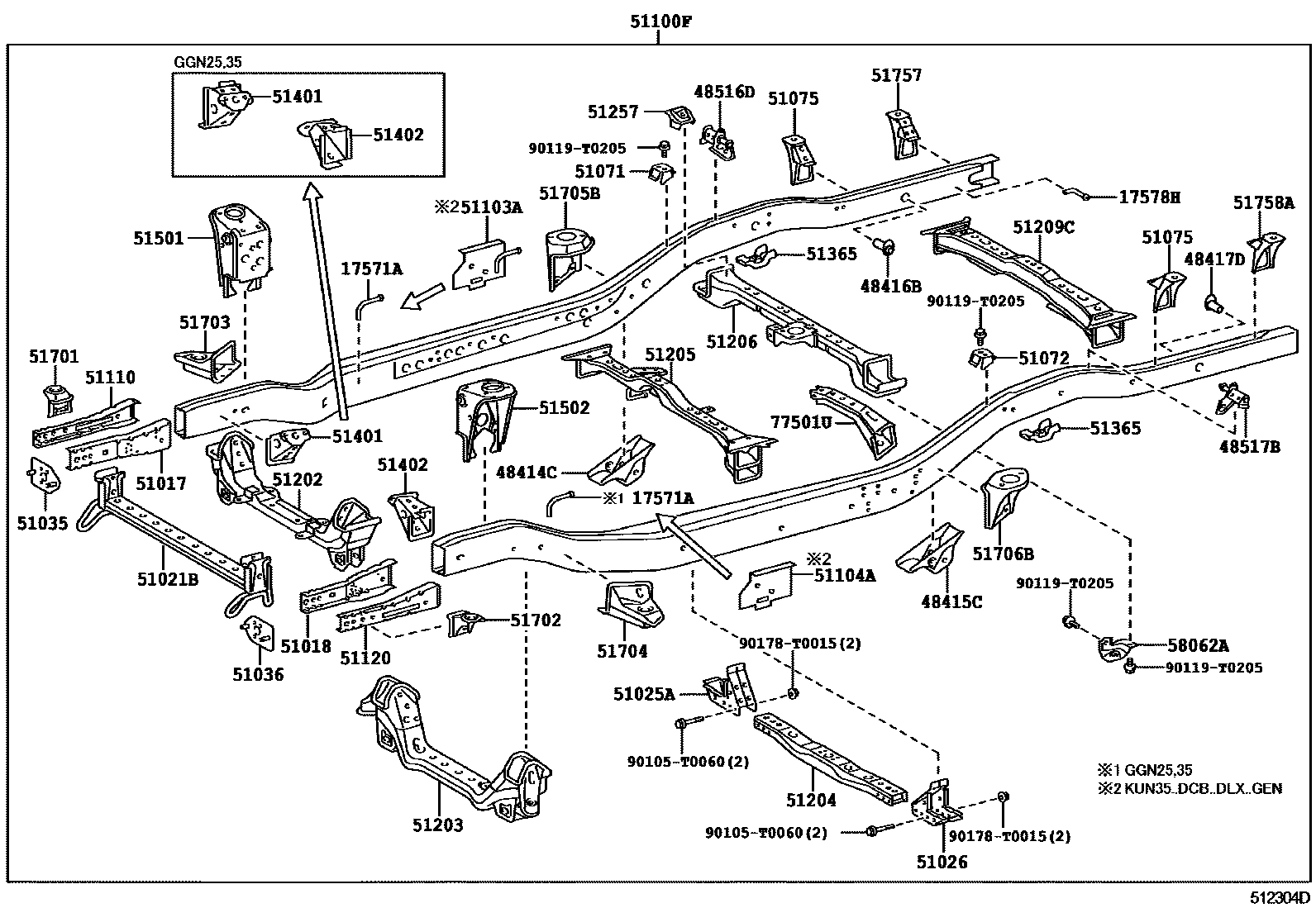

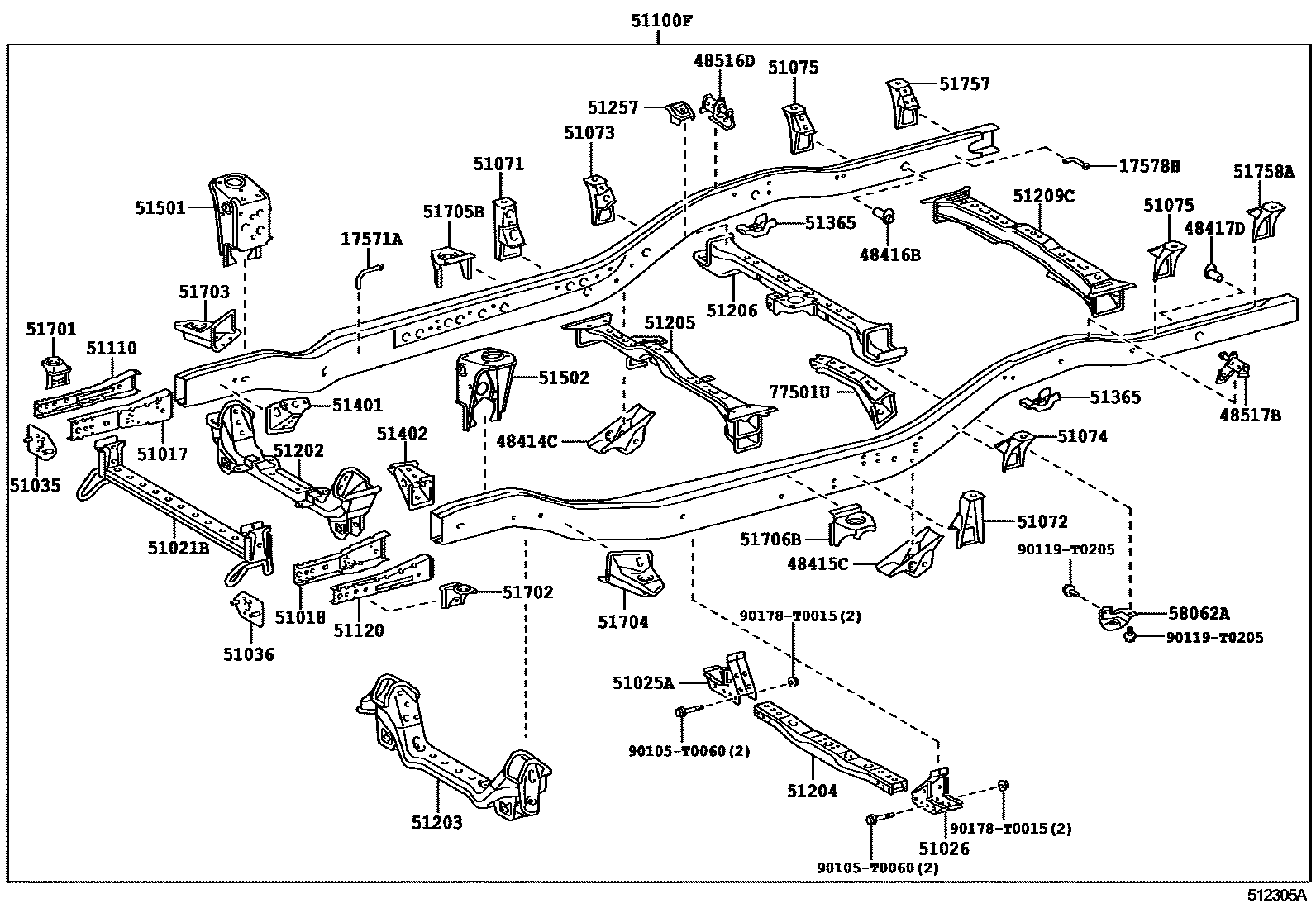

Toyota HILUX EPC diagram 5151, 车架, with 9 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17571A | No. 9 exhaust pipe bracket | 17571-0L010 |
| 17578H | No. 10 exhaust pipe bracket | 17505-0L010 |
| 48414C | Right No. 3 spring bracket | 48404-0K010 · 48404-0K020 · 48404-0K030 · 48404-0K040 |
| 48415C | No. 3 spring bracket on the left | 48407-0K010 · 48407-0K020 · 48407-0K030 · 48407-0K040 |
| 48416B | Right No. 4 spring bracket | 48405-0K010 |
| 48417D | No. 4 spring bracket on the left | 48405-0K010 |
| 48516D | Right rear shock absorber upper bracket sub-assembly | 48505-0K010 |
| 48517B | Left rear shock absorber upper bracket sub-assembly | 48505-0K010 |
| 51017 | Right longitudinal beam No. 1 reinforcement sub-assembly | 51017-0K010 · 51017-0K020 |
| 51018 | Left longitudinal beam No. 1 reinforcement sub-assembly | 51018-0K010 · 51018-0K020 |
| 51021B | Frame auxiliary cross member sub-assembly | 51021-0K010 · 51021-0K020 |
| 51025A | Frame No. 3 beam right side bracket sub-assembly | 51025-0K010 · 51025-0K020 · 51025-0K030 |
| 51026 | Frame No. 3 crossbeam left side bracket sub-assembly | 51026-0K010 · 51026-0K020 · 51026-0K030 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-0K010 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-0K010 |
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-0K010 · 51071-0K020 · 51071-0K030 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-0K020 · 51072-0K010 · 51072-0K030 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-0K010 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-0K010 |
| 51075 | Right rear body No. 3 mounting bracket sub-assembly | 51075-0K010 |
| 51100F | Frame sub-assembly | 51001-0K013 · 51001-0K023 · 51001-0K062 · 51001-0K073 · 51001-0K093 · 51001-0K103 · 51001-0K122 · 51001-0K133 · 51001-0K153 · 51001-0K182 · 51001-0K193 · 51001-0K213 · 51001-0K233 · 51001-0K312 · 51001-0K313 · 51001-0K314 · 51001-0K334 · 51001-0K335 · 51001-0K354 · 51001-0K372 · 51001-0K373 · 51001-0K374 · 51001-0K375 · 51001-0K404 · 51001-0K405 · 51001-0K441 · 51001-0K442 · 51001-0K443 · 51001-0K451 · 51001-0K452 · 51001-0K453 · 51001-0K461 · 51001-0K462 · 51001-0K463 · 51001-0K471 · 51001-0K472 · 51001-0K473 · 51001-0K481 · 51001-0K482 · 51001-0K483 · 51001-0K493 · 51001-0K532 · 51001-0K552 · 51001-0K562 · 51001-0K603 · 51001-0K604 · 51001-0K652 · 51001-0K653 · 51001-0K654 · 51001-0K674 · 51001-0K694 · 51001-0K762 · 51001-0K772 · 51001-0K783 · 51001-0K793 · 51001-0K802 · 51001-0K812 · 51001-0K823 · 51001-0K833 · 51001-0K843 · 51001-0K844 · 51001-0K854 · 51001-0K864 · 51001-0K873 · 51001-0K874 · 51001-0K884 · 51001-0K893 · 51001-0KA03 · 51001-0KA14 · 51001-0KA23 · 51001-0KA34 · 51001-0KA42 · 51001-0KA43 · 51001-0KA44 · 51001-0KA53 · 51001-0KA62 · 51001-0KB32 · 51001-0KB42 · 51001-0KB53 · 51001-0KB73 · 51001-0KC41 · 51001-0KC42 · 51001-0KC43 · 51001-0KC44 · 51001-0KE31 · 51001-0KE41 · 51001-0KE52 · 51001-0KE61 · 51001-0KE72 · 51001-0KE82 · 51001-0KE91 · 51001-0KE92 · 51001-0KF02 · 51001-0KF11 · 51001-0KF31 · 51001-0KF40 · 51001-0KF41 · 51001-0KF51 · 51001-0KF61 · 51001-0KF80 · 51001-0KF90 · 51001-0KG20 · 51001-0KG60 · 51001-0KJ00 · 51001-0KK20 · 51001-0KK30 · 51001-0KK40 · 51001-0KK80 · 51001-0KL51 · 51001-0KM70 · 51001-0KN60 · 51001-0KN70 · 51001-0KN80 · 51001-0KN90 · 51001-0KP00 · 51001-0KP10 |
| 51103A | Right rear inner gutter reinforcement sub-assembly | 510C3-0K010 |
| 51104A | Left rear inner gutter reinforcement sub-assembly | 511A2-0K010 |
| 51110 | Right longitudinal beam extension section assembly | 51110-0K010 · 51110-0K020 |
| 51120 | Left longitudinal beam extension section assembly | 51120-0K010 · 51120-0K020 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-0K031 · 51201-0K040 · 51201-0K050 · 51201-0K061 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-0K010 · 51202-0K030 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-0K010 · 51203-0K021 · 51203-0K030 · 51203-0K040 · 51203-0K051 · 51203-0K052 · 51203-0K060 · 51203-0K080 · 51203-0K090 · 51203-0K100 · 51203-0K101 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-0K020 · 51204-0K042 · 51204-0K060 · 51204-0K072 · 51204-0K100 |
| 51206 | Frame No. 5 beam sub-assembly | 51205-0K030 · 51205-0K050 |
| 51209C | Frame rear cross member sub-assembly | 51209-0K010 · 51209-0K030 |
| 51257 | Reinforcement member on the right side of No. 5 cross member of the frame | 51257-0K010 |
| 51365 | rear bumper stop | 57081-0K010 · 57081-0K020 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-0K010 · 51401-0K020 · 51401-0K030 · 51401-0K040 · 51401-0K050 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-0K010 · 51402-0K020 · 51402-0K030 · 51402-0K040 · 51402-0K050 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-0K010 · 51501-0K020 · 51501-0K030 · 51501-0K040 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-0K010 · 51502-0K020 · 51502-0K030 · 51502-0K040 |
| 51508C | Lower right control link bracket sub-assembly | 51508-0K010 |
| 51509A | Left lower arm bracket sub-assembly | 51509-0K010 |

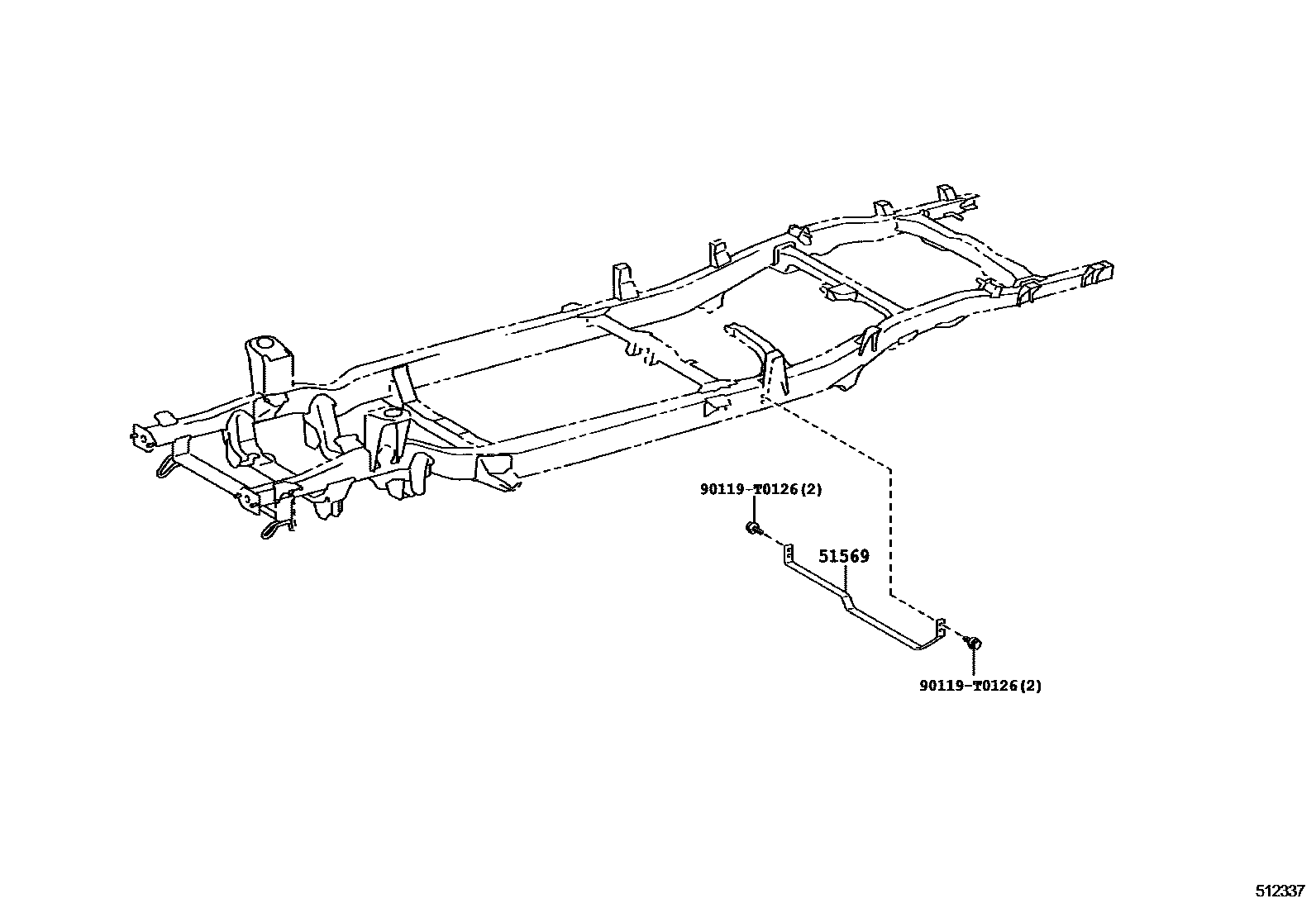

| 51569 | Drive shaft anti-collision block | 51569-0K010 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-0K020 · 51701-KK010 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-0K020 · 51701-KK010 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-0K010 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-0K010 |
| 51705B | Cab suspension No. 3 right side bracket sub-assembly | 51705-0K010 · 51705-0K020 · 51731-0K010 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51706-0K010 · 51706-0K020 · 51731-0K010 |
| 51757 | Right body No. 4 bracket | 51077-0K011 |
| 51758A | Left body No. 4 bracket | 51077-0K011 |
| 58062A | Fuel tank rear mounting bracket sub-assembly | 58062-0K010 |
| 77501U | Fuel tank bracket sub-assembly | 77501-0K010 · 77501-0K020 |
