Toyota HILUX Steering Wheel — Figure 4504

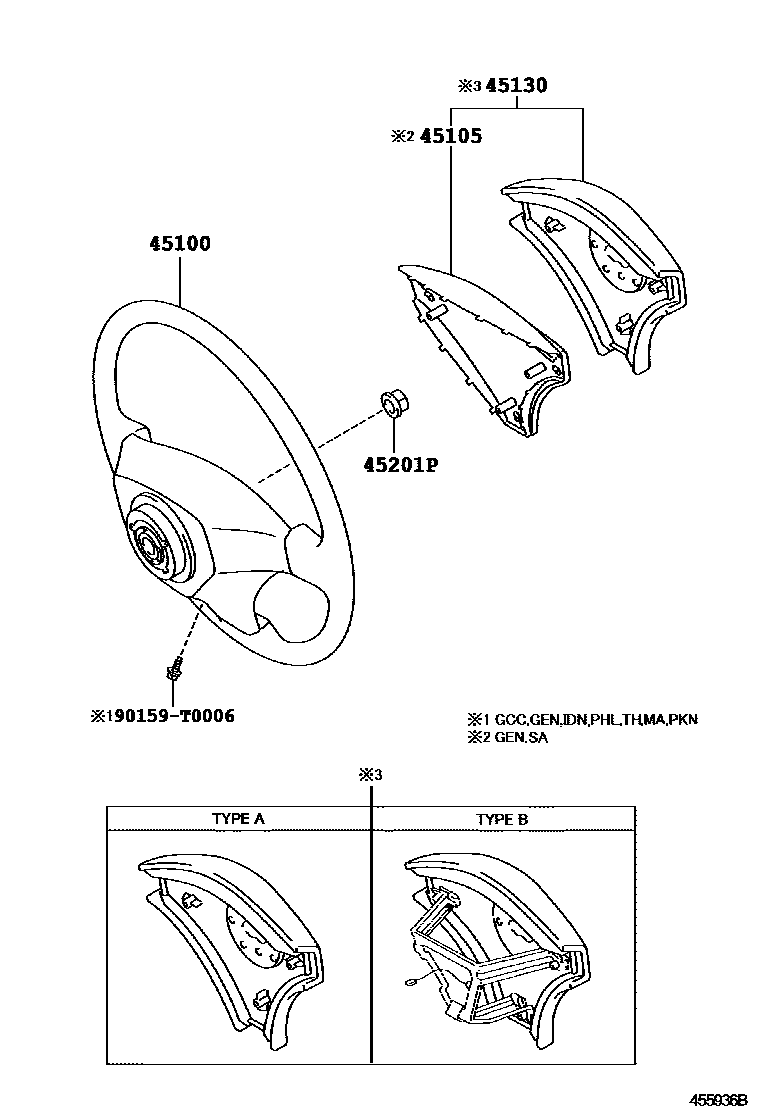

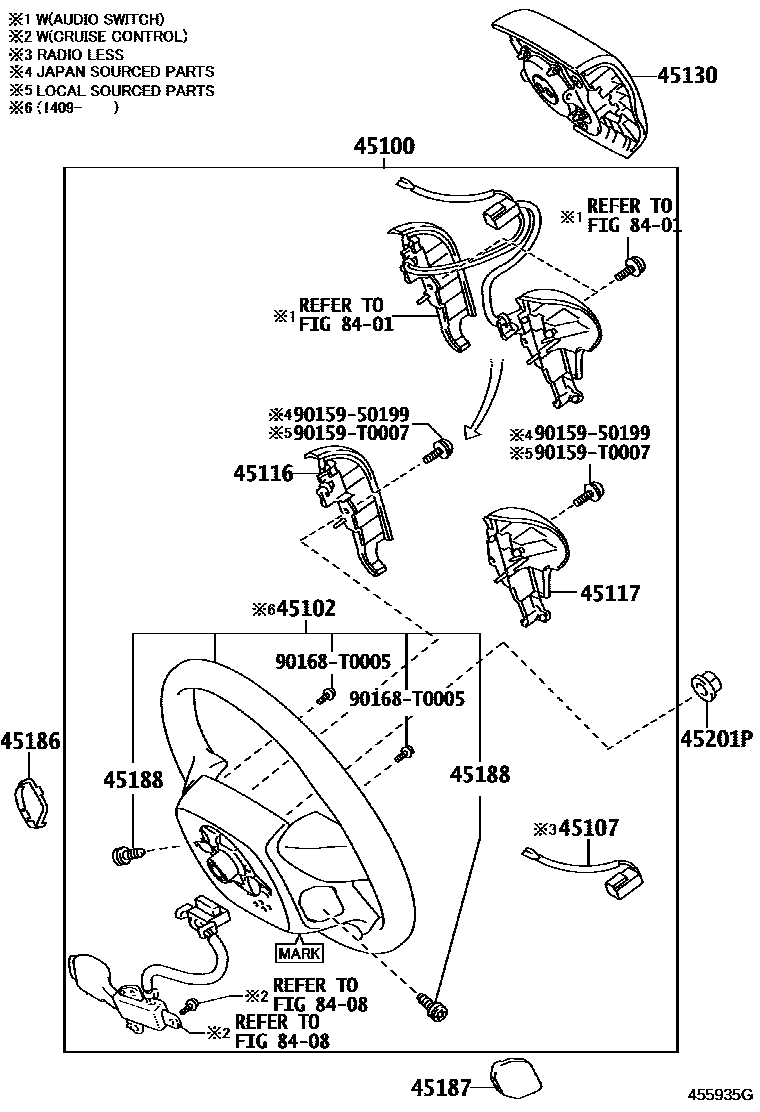

Toyota HILUX EPC diagram 4504, Steering Wheel, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-0K030 |
| 45107 | Speaker button wiring harness sub-assembly | 45107-02080 · 45107-06040 |
| 45116 | No. 1 steering wheel decorative parts | 45116-0K020 · 45116-0K090 |
| 45117 | No. 2 steering wheel decorative parts | 45117-0K020 · 45117-0K040 |
| 45188 | Steering wheel trim cover fixing screws | 45188-0K010 · 45188-60010 |
| 45201P | Steering wheel fixing nut | 90179-12071 |
