Toyota HILUX Steering Column & Shaft — Figure 4501

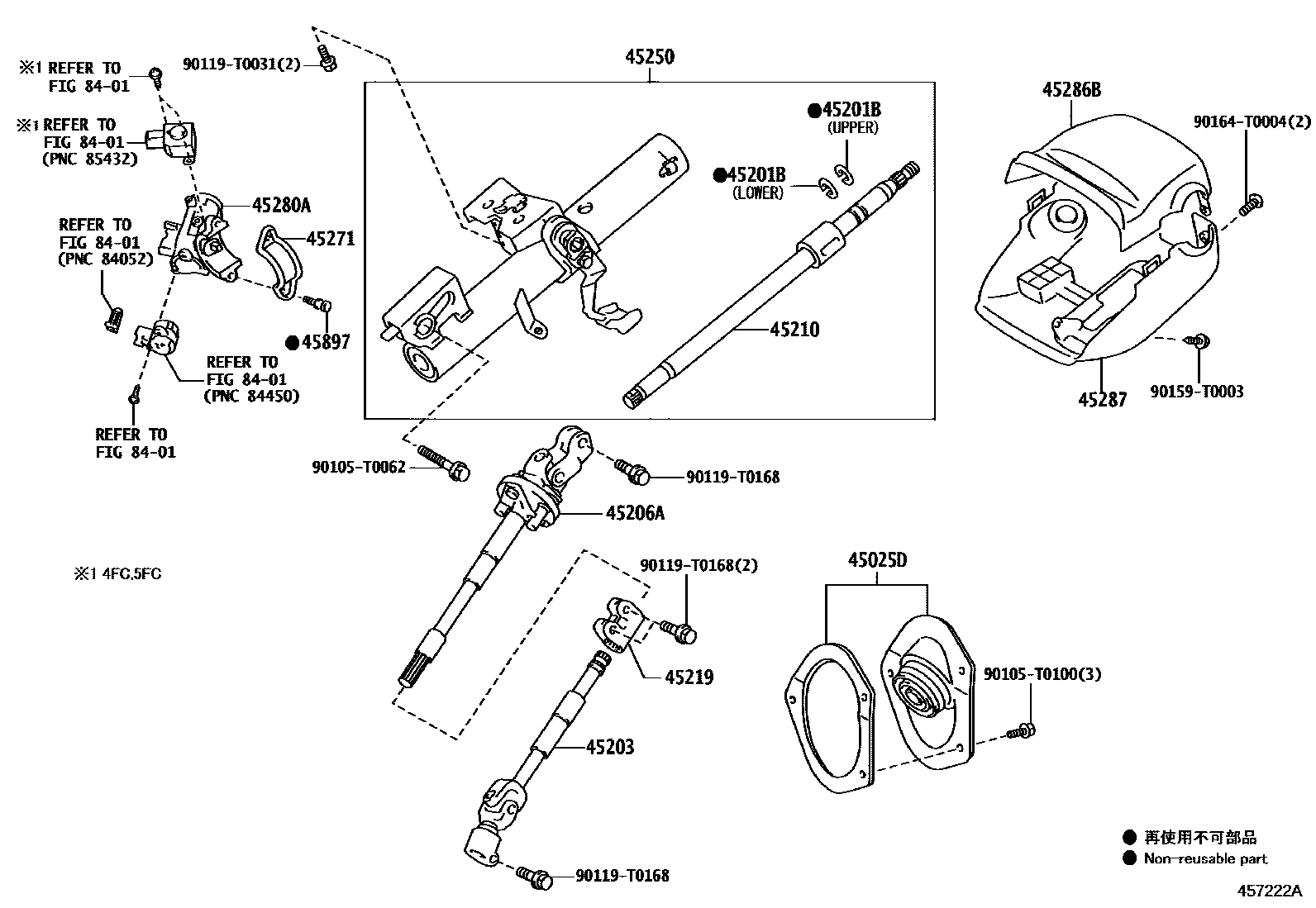

Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0K030 · 45025-0K040 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45203-0K080 · 45203-0K090 · 45203-0K100 · 45203-0K110 · 45203-0K130 |
| 45206A | Steering slip fork sub-assembly with coupling | 45206-0K040 |
| 45210 | Steering spindle assembly | 45210-0K010 |
| 45219 | steering fork | 45219-0K090 |
| 45250 | Steering column assembly | 45250-0K010 |
| 45271 | Clamp on steering column | 45271-0K010 |
| 45280A | Steering column upper bracket assembly | 45280-0K010 · 45280-0K020 · 45280-0K030 |
| 45286B | Steering column upper cover | 45286-0K010 |
| 45287 | Steering column lower cover | 45287-0K010 |
| 45897 | Steering lock fixing bolt | 45897-0K010 |
