Toyota HILUX Front Axle Hub — Figure 4303

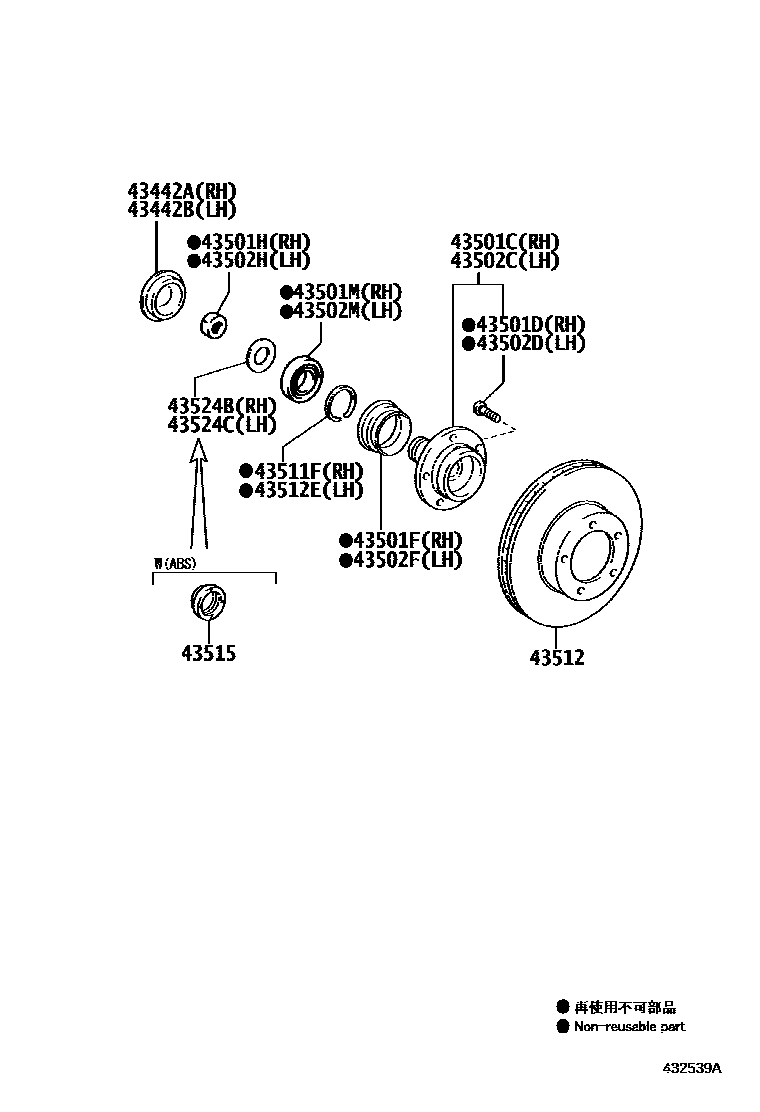

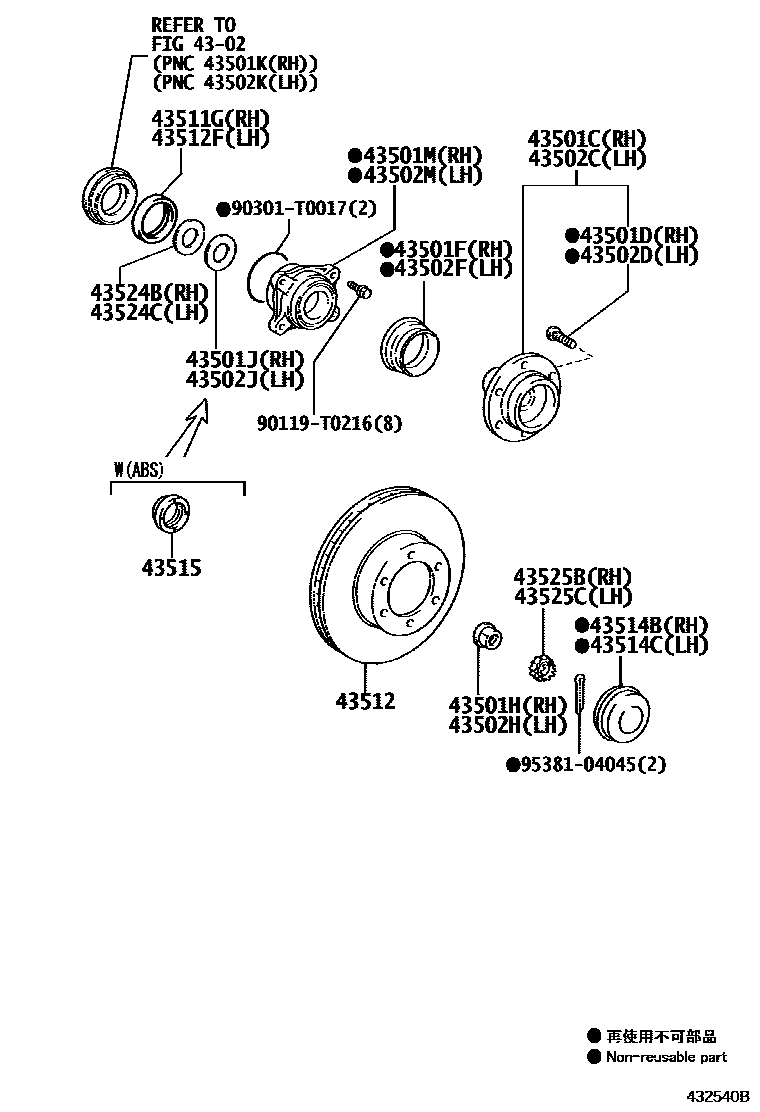

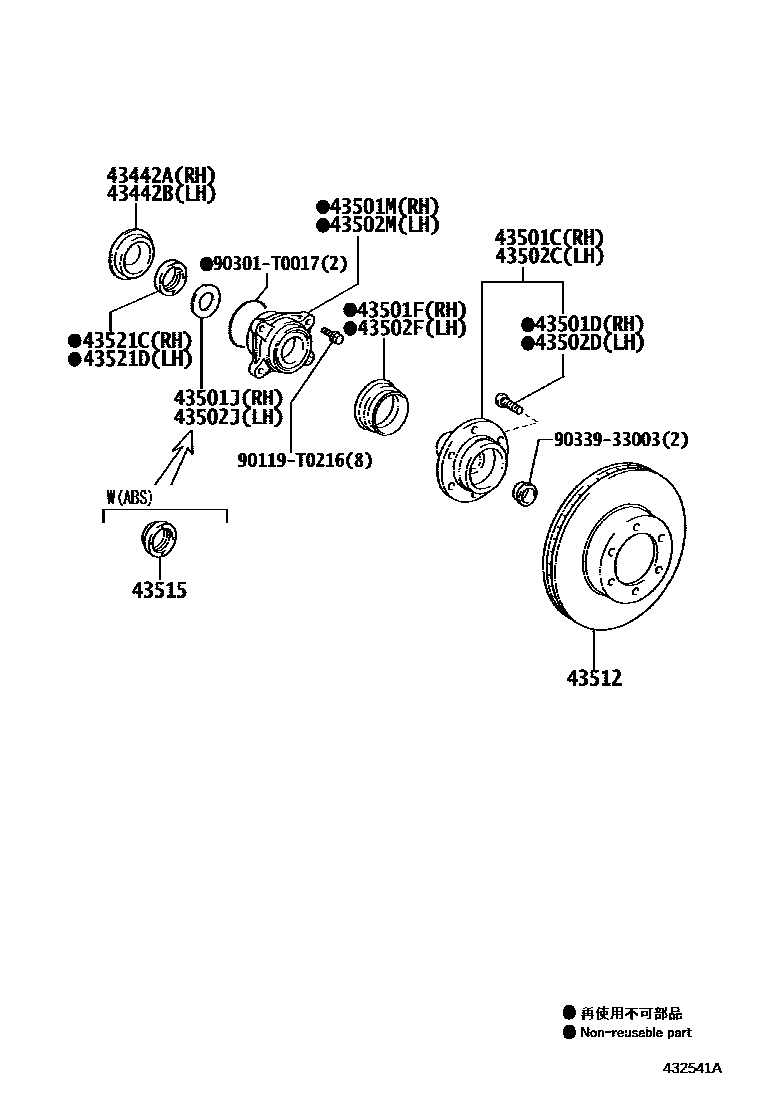

Toyota HILUX EPC diagram 4303, Front Axle Hub, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43442A | Right steering knuckle grease retaining ring inner cover | 43442-0K010 |
| 43442B | Left steering knuckle grease retaining ring inner cover | 43442-0K010 |
| 43501C | Right front axle hub sub-assembly | 43502-0K010 · 43502-0K030 · 43502-0K050 · 43502-0K090 · 43502-KK030 |
| 43501D | Hub bolt (for right front axle) | 90942-02049 · 90942-02081 |
| 43501F | Oil seal (for right front axle hub) | 90311-T0010 · 90312-T0001 |
| 43501H | Nut (for front axle right half shaft) | 90178-28002 · 90178-T0113 · 90179-24010 |
| 43501J | Spacer (for right front axle hub) | 90560-52001 · 90560-T0013 |
| 43501M | Inner bearing (for right front axle hub) | 90080-36205 · 90080-37030 · 90366-T0007 · 90369-T0003 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-0K010 · 43502-0K030 · 43502-0K050 · 43502-0K090 · 43502-KK030 |
| 43502D | Hub bolt (for left front axle) | 90942-02049 · 90942-02081 |
| 43502F | Oil seal (for left front axle hub) | 90311-T0010 · 90312-T0001 |
| 43502H | Nut (for front axle left half shaft) | 90178-28002 · 90178-T0113 · 90179-24010 |
| 43502J | Spacer (for left front axle hub) | 90560-52001 · 90560-T0013 |
| 43502M | Inner bearing (for left front axle hub) | 90080-36205 · 90080-37030 · 90366-T0007 · 90369-T0003 |
| 43511F | Hole snap ring (for right front axle hub) | 90521-T0003 |
| 43511G | External oil seal (for right front axle hub) | 90316-T0002 |
| 43512 | front brake disc | 43512-0K010 · 43512-0K060 · 43512-0K070 · 43512-0K080 · 43512-0K090 · 43512-0K100 · 43512-0K110 · 43512-0K120 · 43512-0K130 · 43512-0K140 |
| 43512E | Hole snap ring (for left front axle hub) | 90521-T0003 |
| 43512F | External oil seal (for left front axle hub) | 90316-T0002 |
| 43514B | Right front axle hub grease cap | 43514-0K010 |
| 43514C | Left front axle hub grease cap | 43514-0K010 |
| 43515 | Front anti-skid control rotor | 43515-0K010 · 43515-0K020 |
| 43521C | Right front wheel adjustment nut | 43521-35010 |
| 43521D | Left front wheel adjustment nut | 43521-35010 |
| 43524B | Right front wheel inner bearing spacer | 43524-0K010 · 43524-0K020 |
| 43524C | Left front wheel inner bearing spacer | 43524-0K010 · 43524-0K020 |
| 43525B | Right front wheel adjustment lock cover | 43525-71010 |
| 43525C | Left front wheel adjustment lock cover | 43525-71010 |
