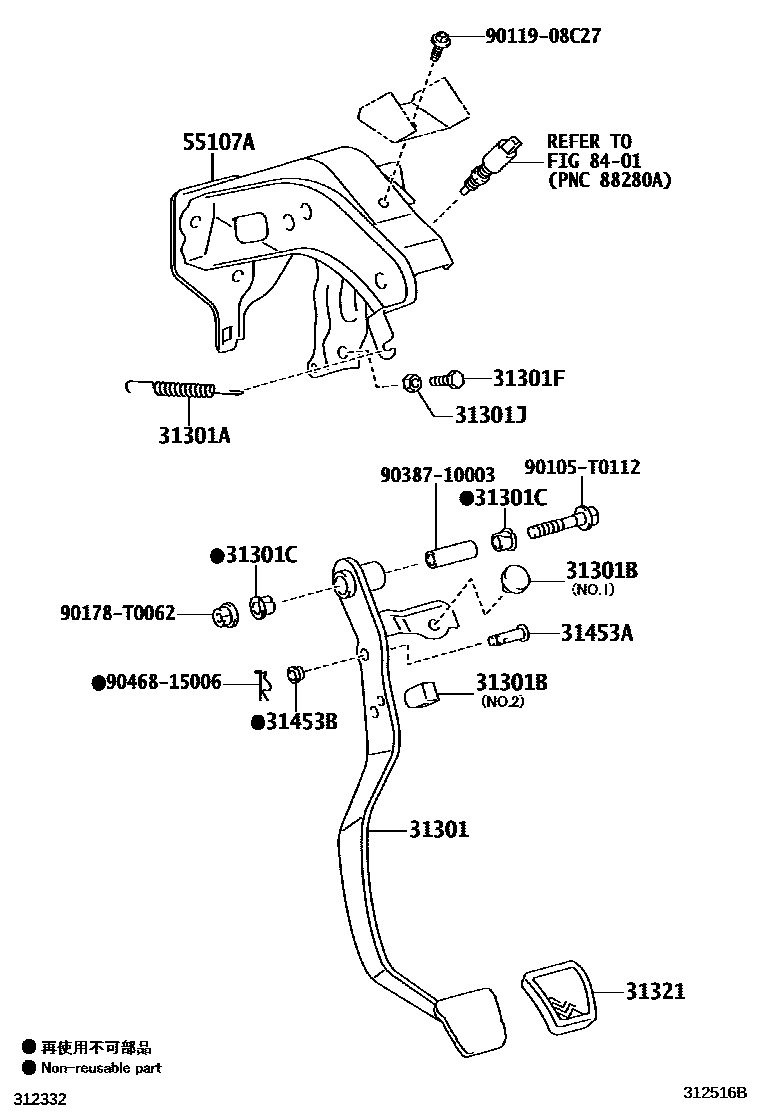

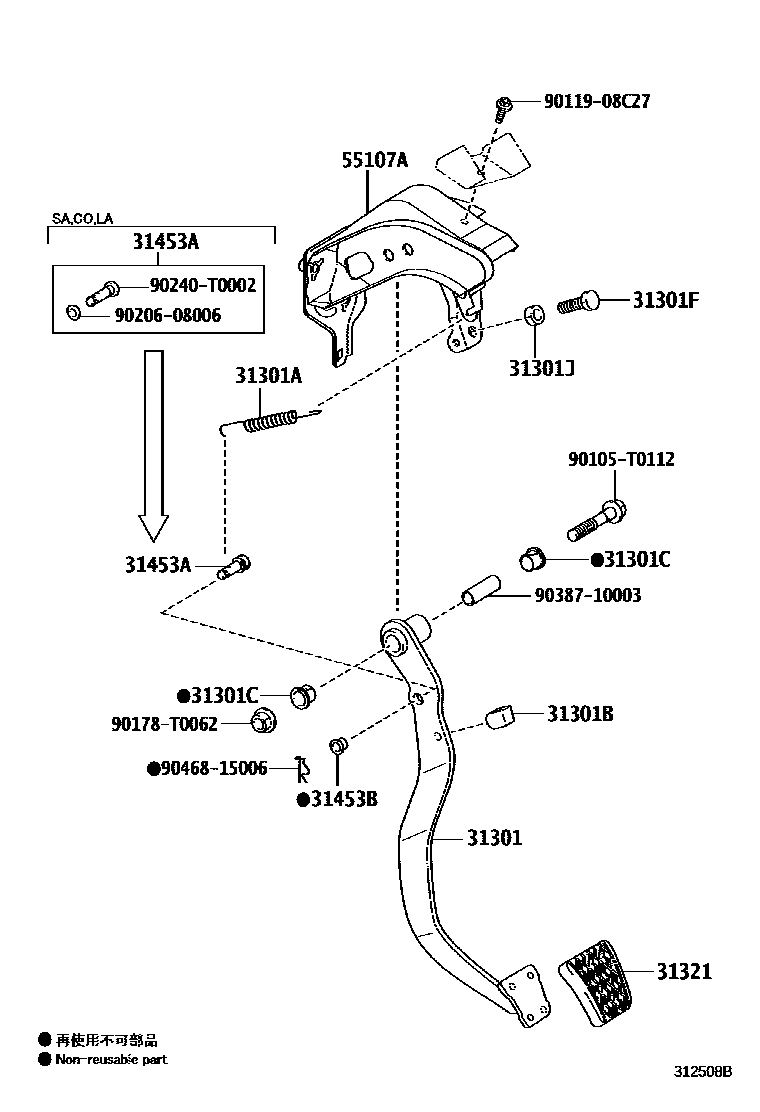

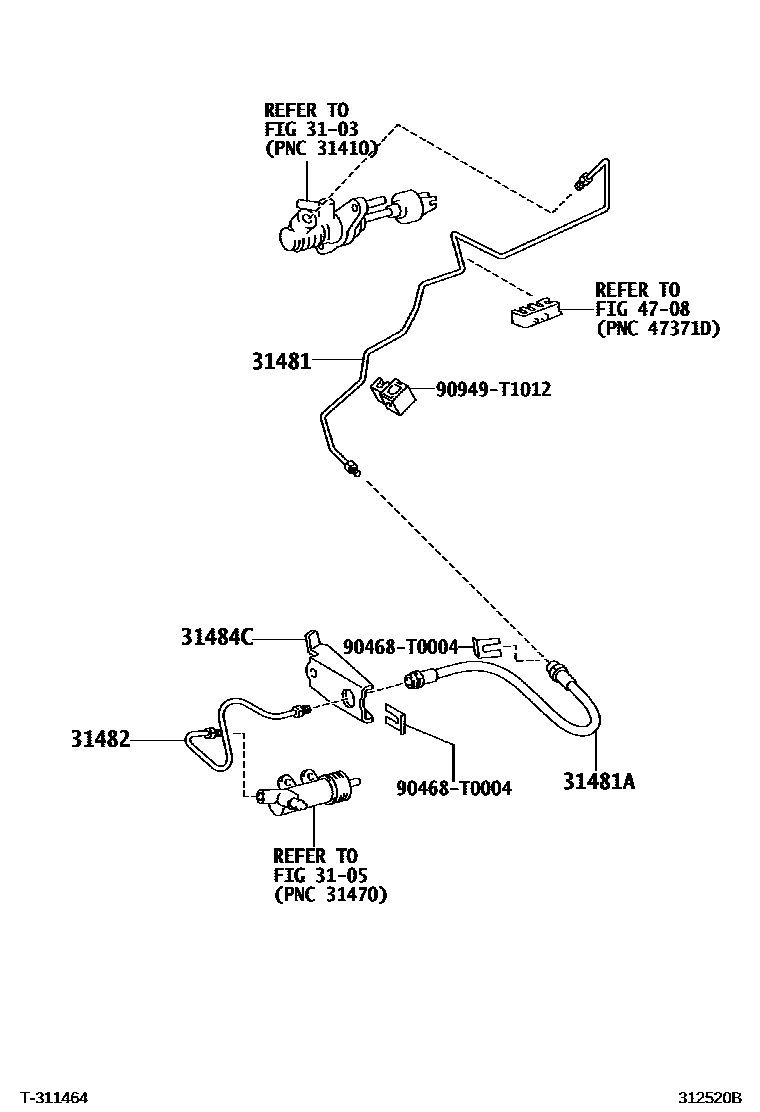

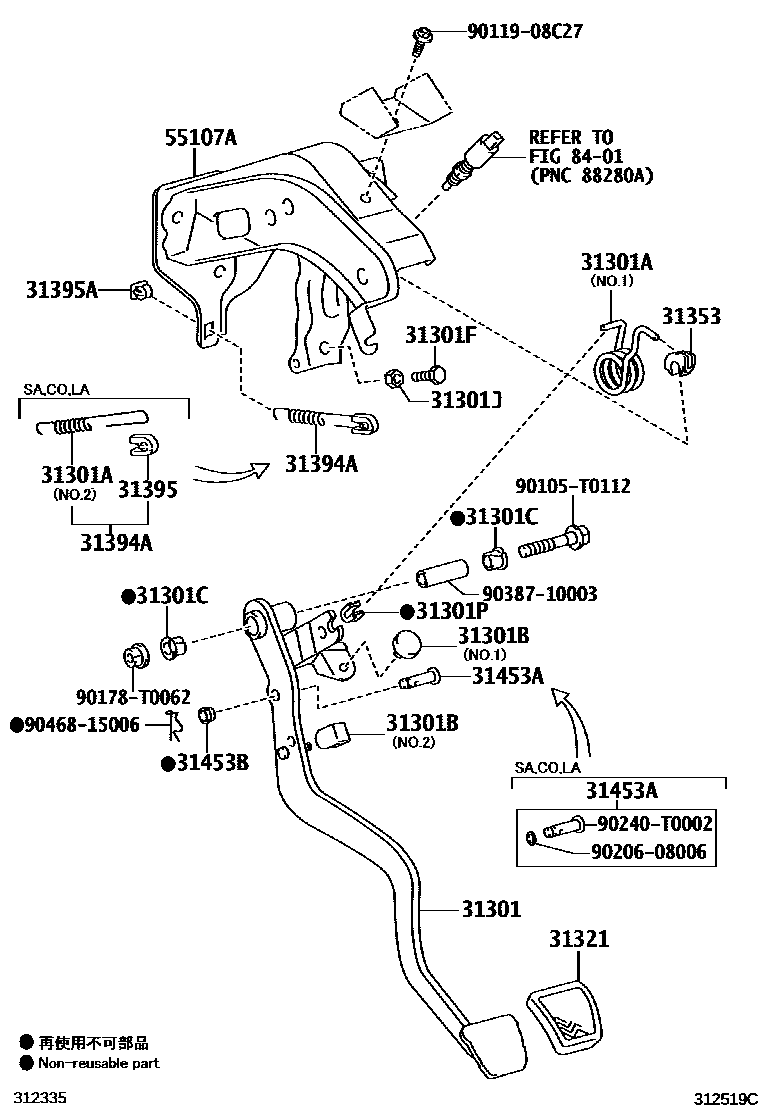

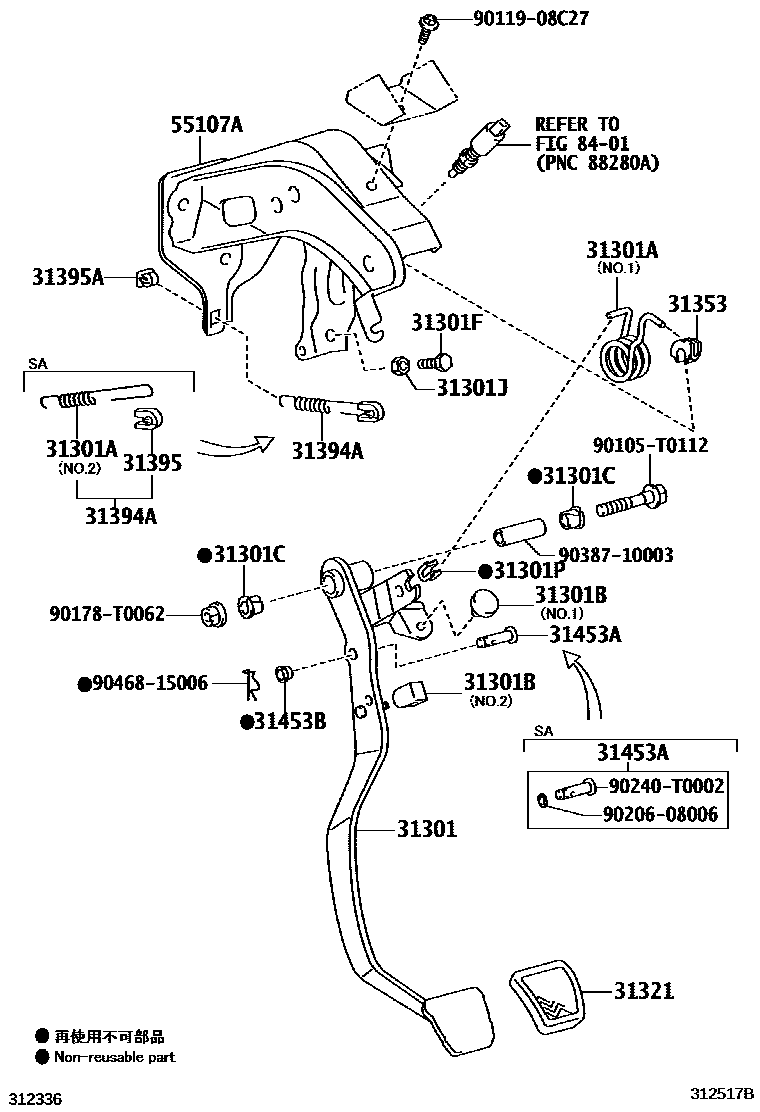

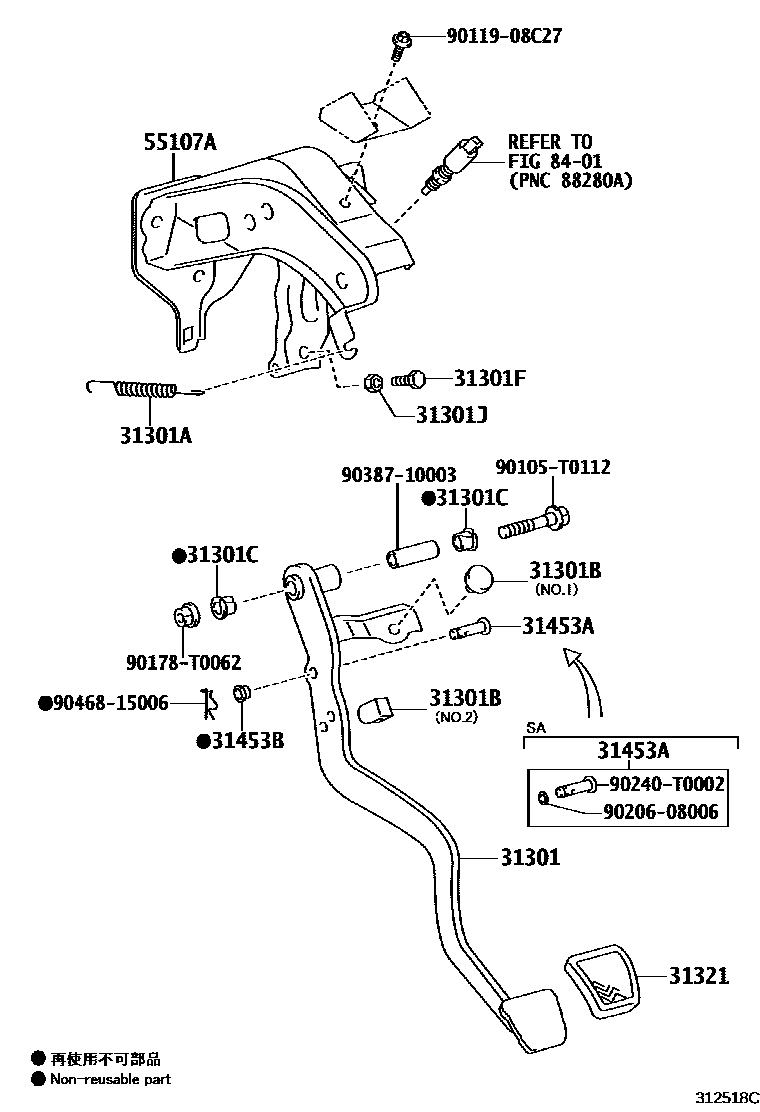

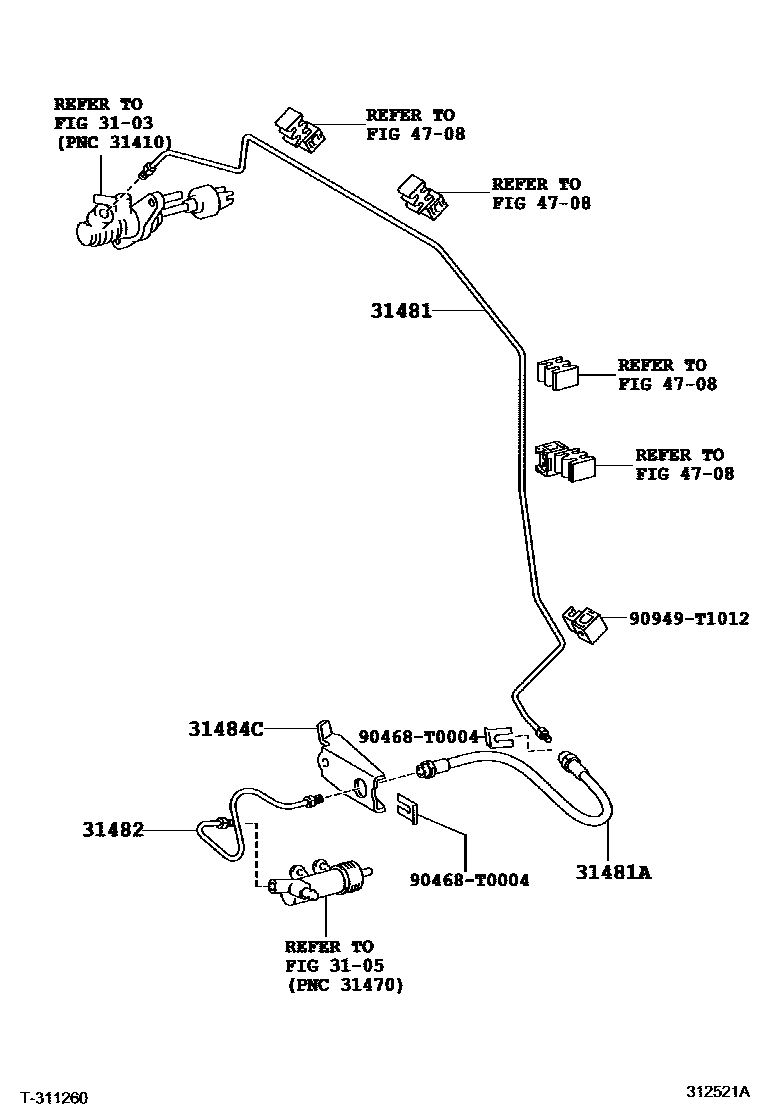

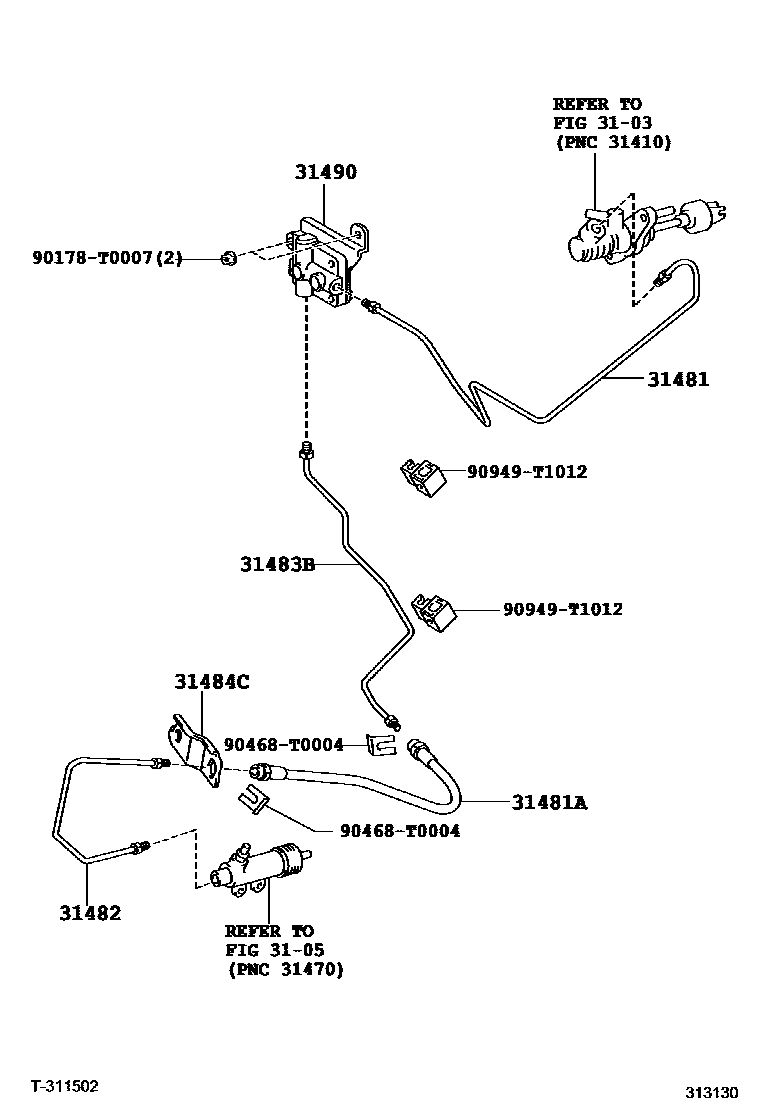

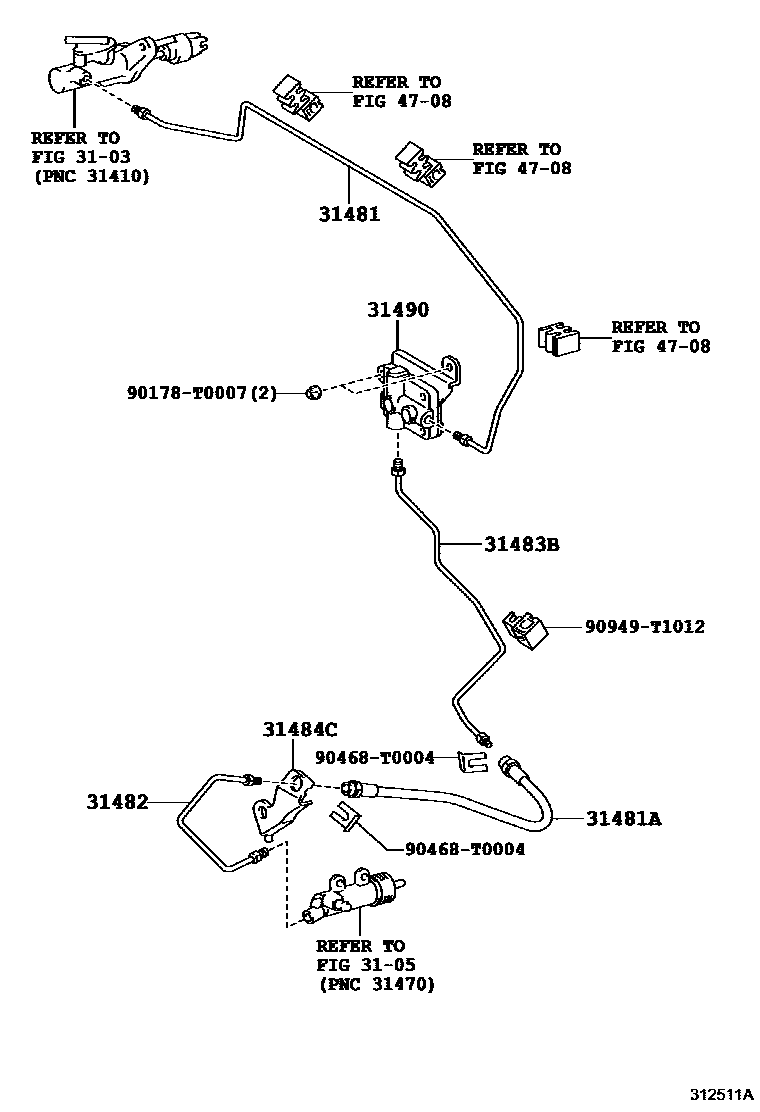

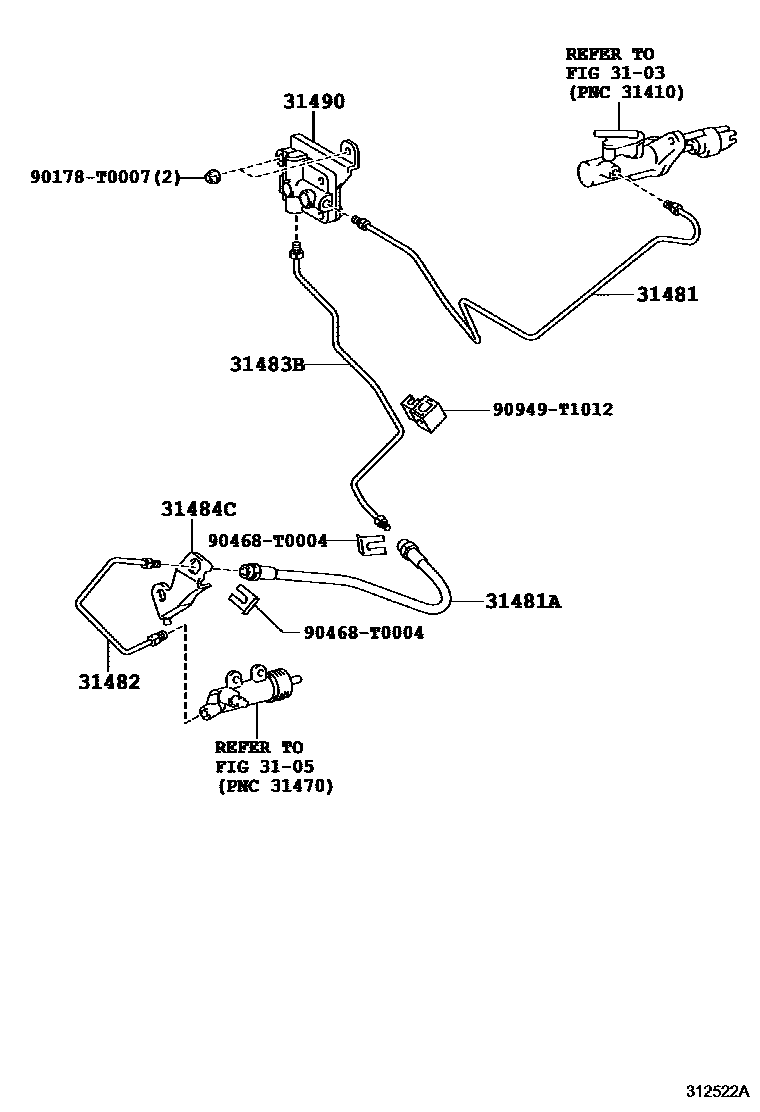

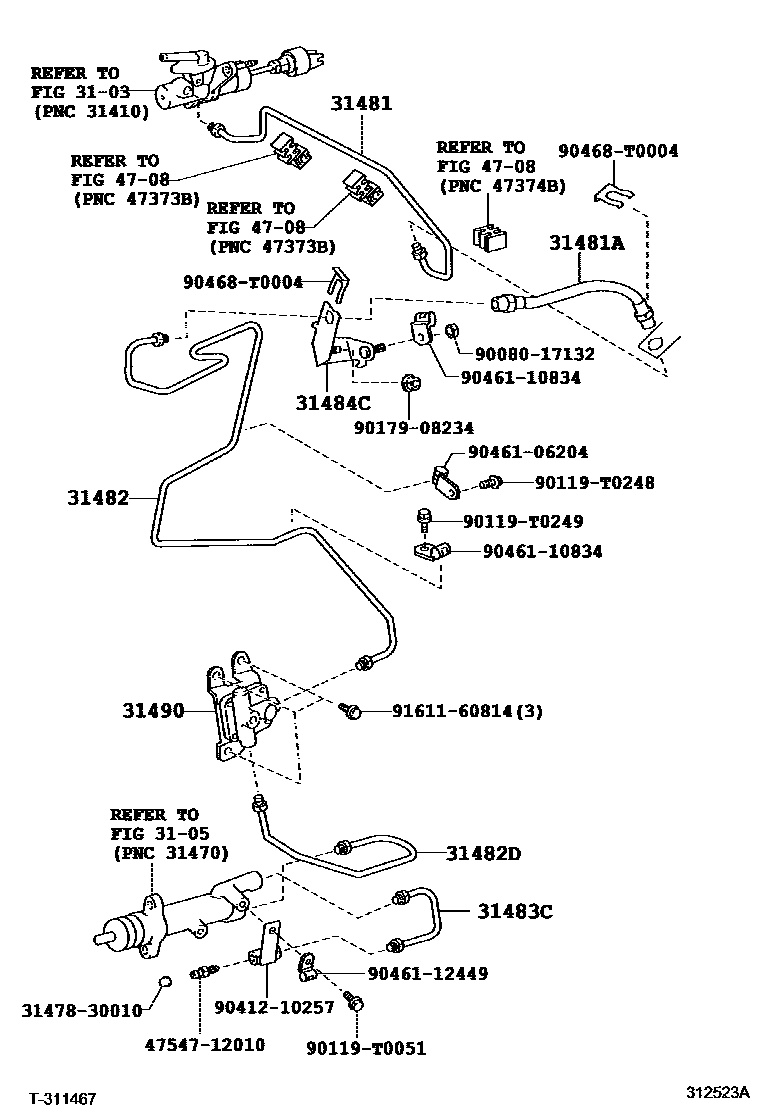

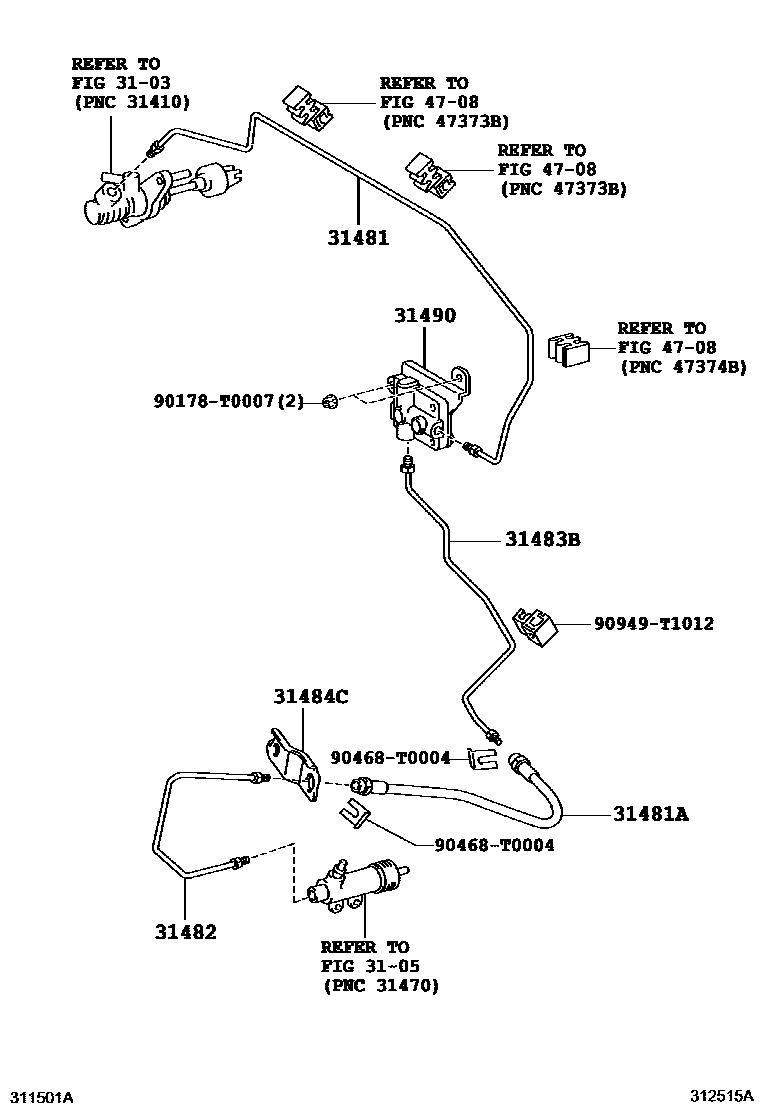

Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 12 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-0K010 · 31301-0K030 · 31301-0K050 · 31301-0K070 · 31301-0K090 · 31301-0K150 · 31301-0K160 · 31301-0K170 · 31301-0K180 · 31301-0K190 · 31301-0K200 · 31301-0K210 · 31301-0K220 · 31301-0K230 |
| 31301A | Spring (for clutch pedal) | 90507-T0001 · 90905-06079 · 90949-T3001 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 · 90541-T0004 · 90541-T0005 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 · 90101-T0005 |
| 31301J | Nut (for clutch pedal stop) | 90170-T0011 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-02010 · 31321-52010 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-25010 |
| 31395 | pedal spring hook | 31395-33010 |
| 31395A | Pedal spring hook No. 1 | 31395-33020 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-0K011 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-0K010 · 31481-0K020 · 31481-0K030 · 31481-0K040 · 31481-0K050 · 31481-0K080 · 31481-0K120 · 31481-0K130 |
| 31481A | No. 1 clutch hose | 90947-T2008 · 90947-T2010 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-0K010 · 31482-0K020 · 31482-0K040 · 31482-0K050 · 31482-0K060 · 31482-0K080 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-0K110 |
| 31483B | Accumulator to flexible hose pipe | 31483-0K010 |
| 31483C | Pipe from clutch actuator to release cylinder | 31483-0K030 |
| 31484C | No. 1 clutch tube bracket | 31484-0K010 · 31484-0K020 · 31484-0K030 · 31484-0K040 |
| 31490 | Clutch pressure accumulator assembly | 31490-0K010 · 31490-0K020 · 31490-0K040 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-0K021 · 55107-0K050 · 55107-0K060 · 55107-0K070 |
