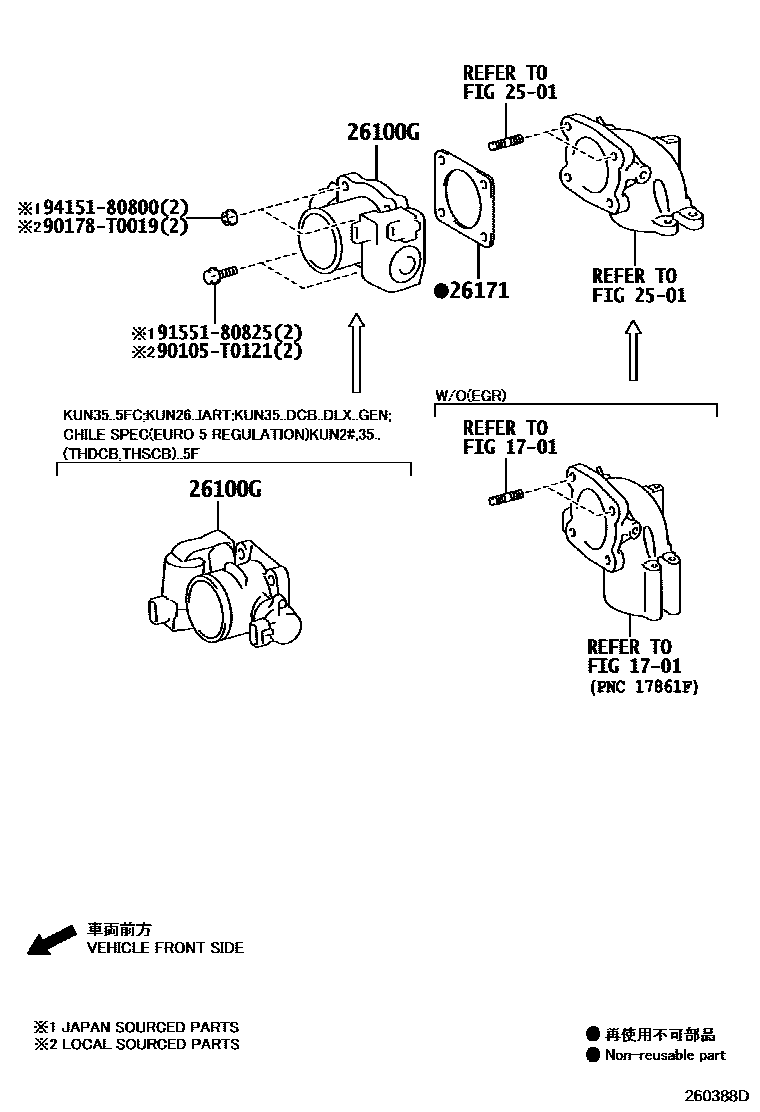

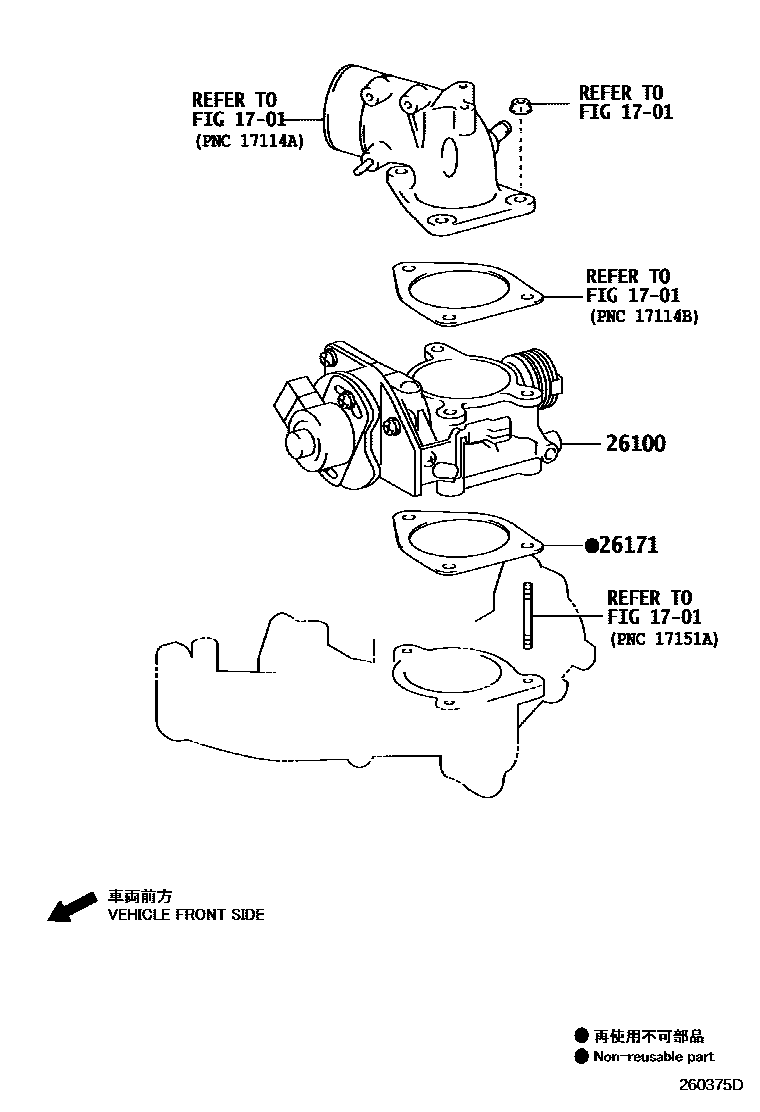

Toyota HILUX 文氏管 — Figure 2606
Toyota HILUX EPC diagram 2606, 文氏管, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 26100 | Venturi assembly | 26100-54290 |
| 26100G | Diesel engine throttle body assembly | 26100-0L010 · 26100-30070 · 26100-30080 |
| 26171 | Venturi gasket | 17116-54030 · 26171-0L020 · 26171-30020 |
