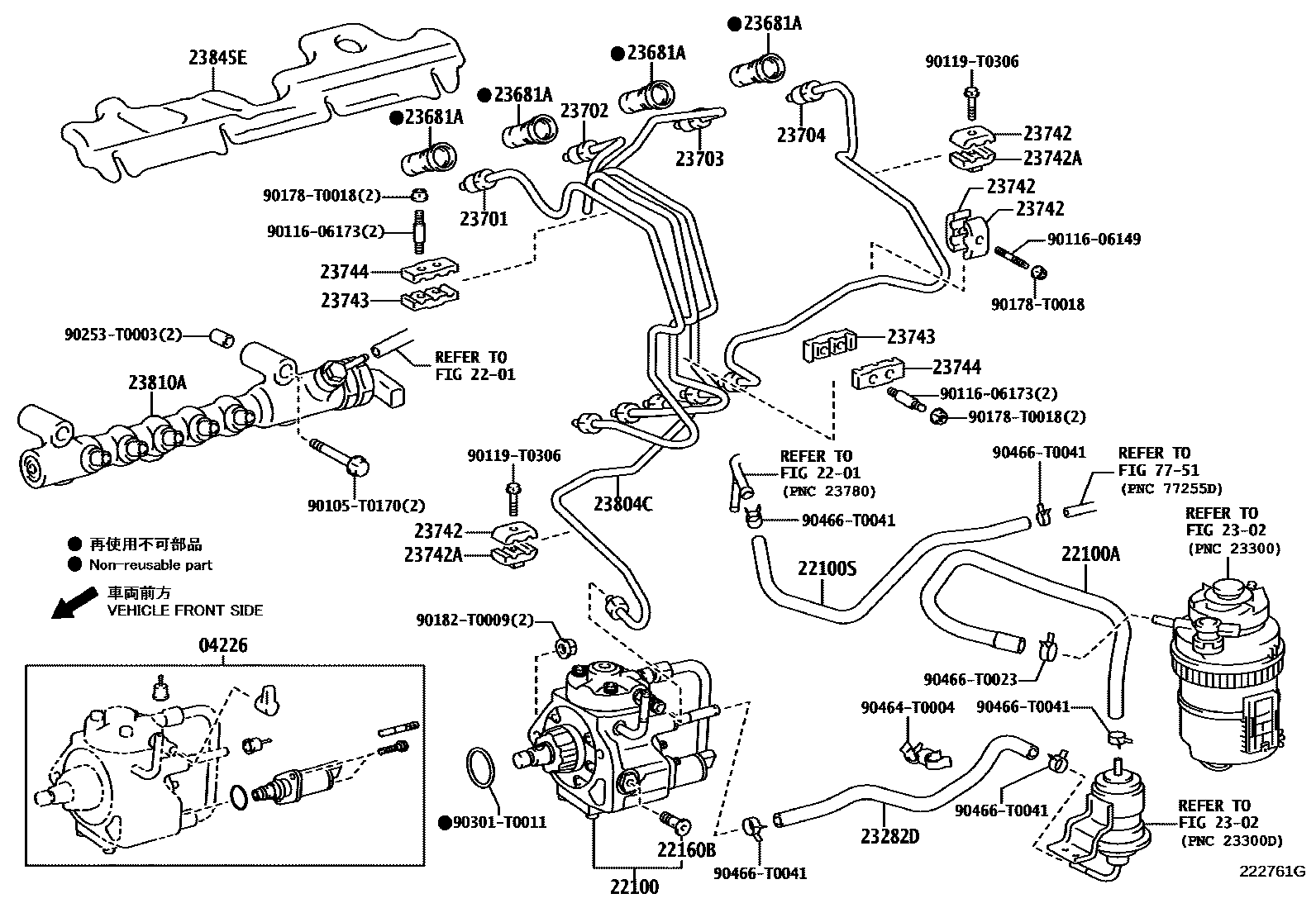

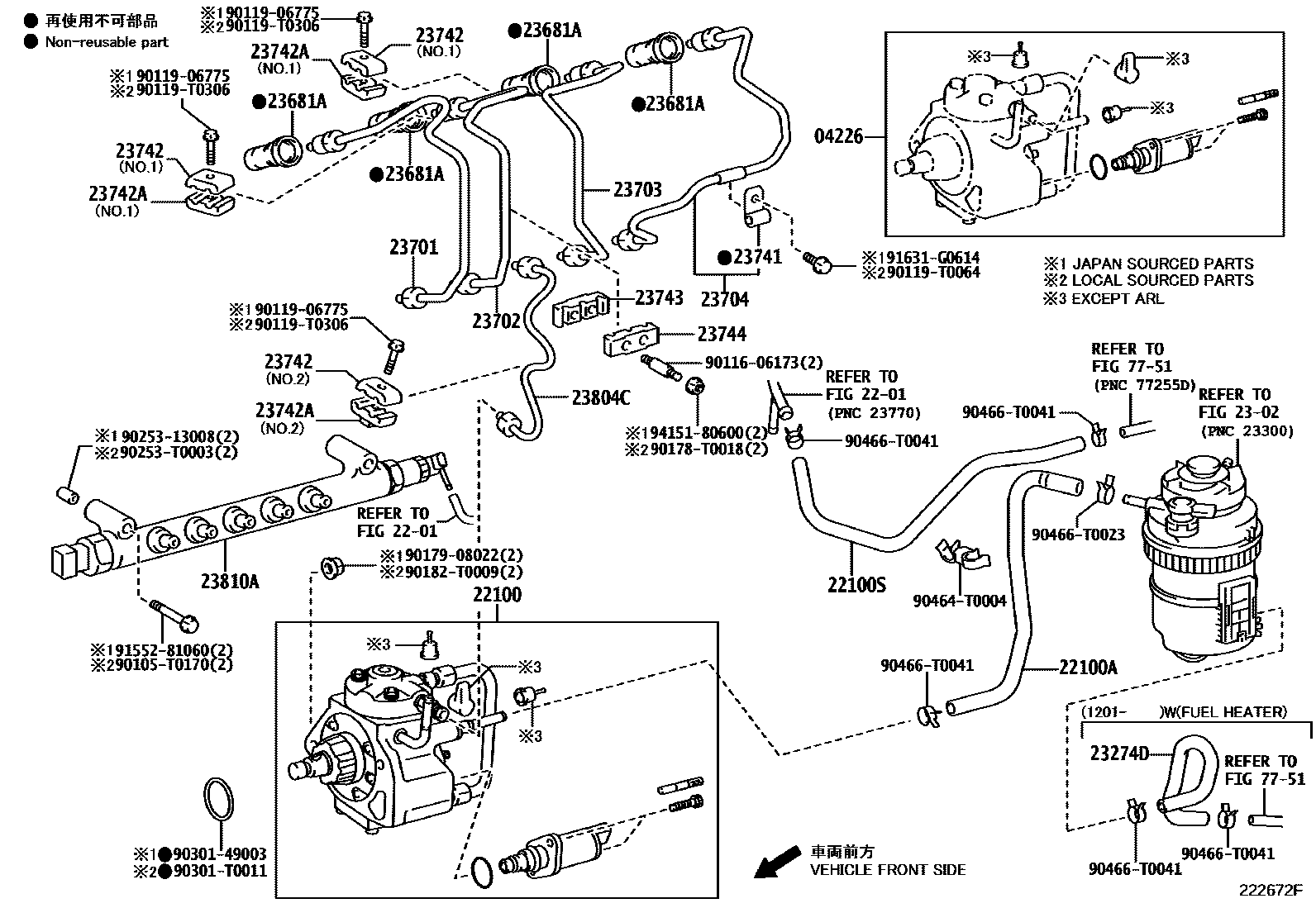

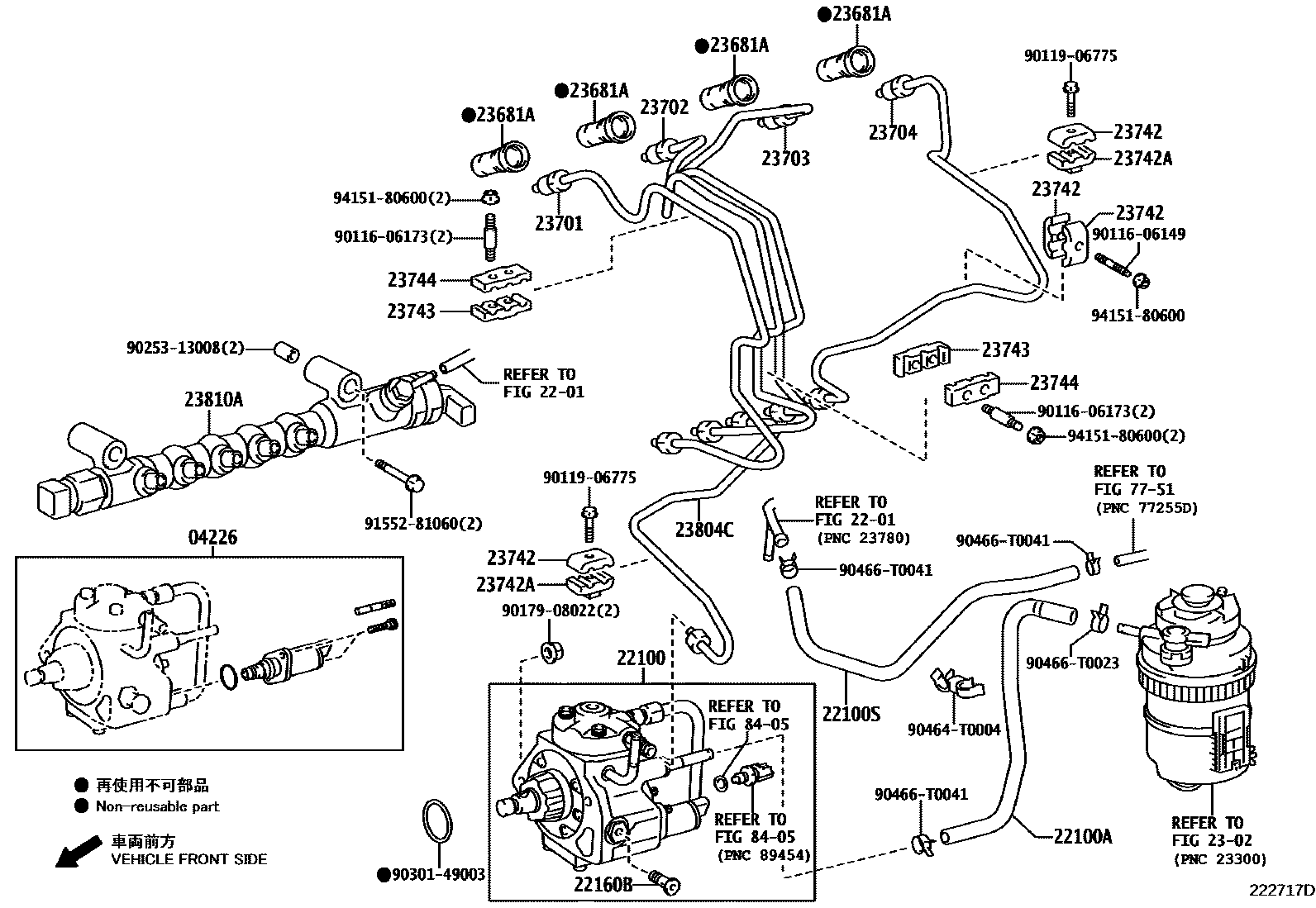

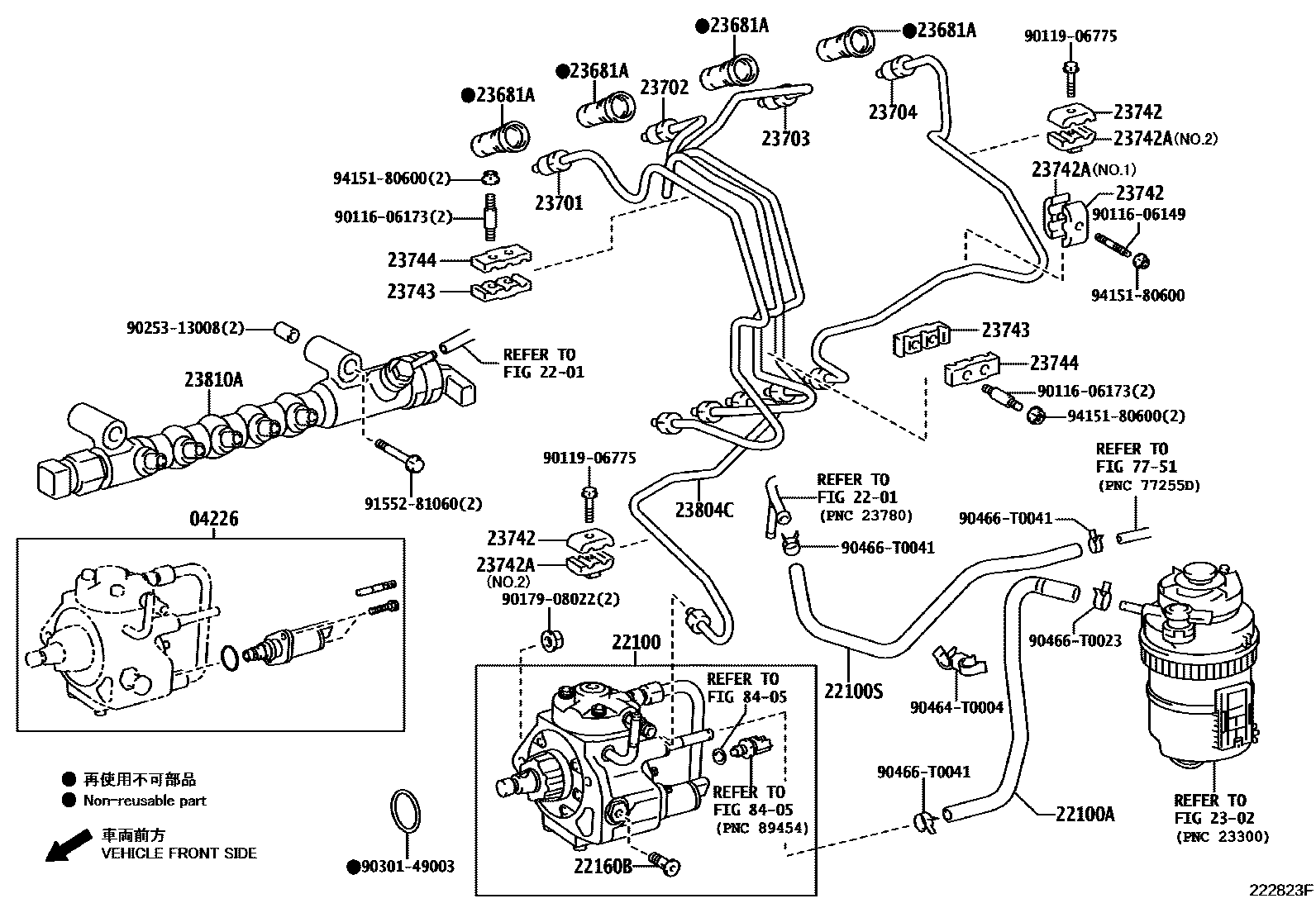

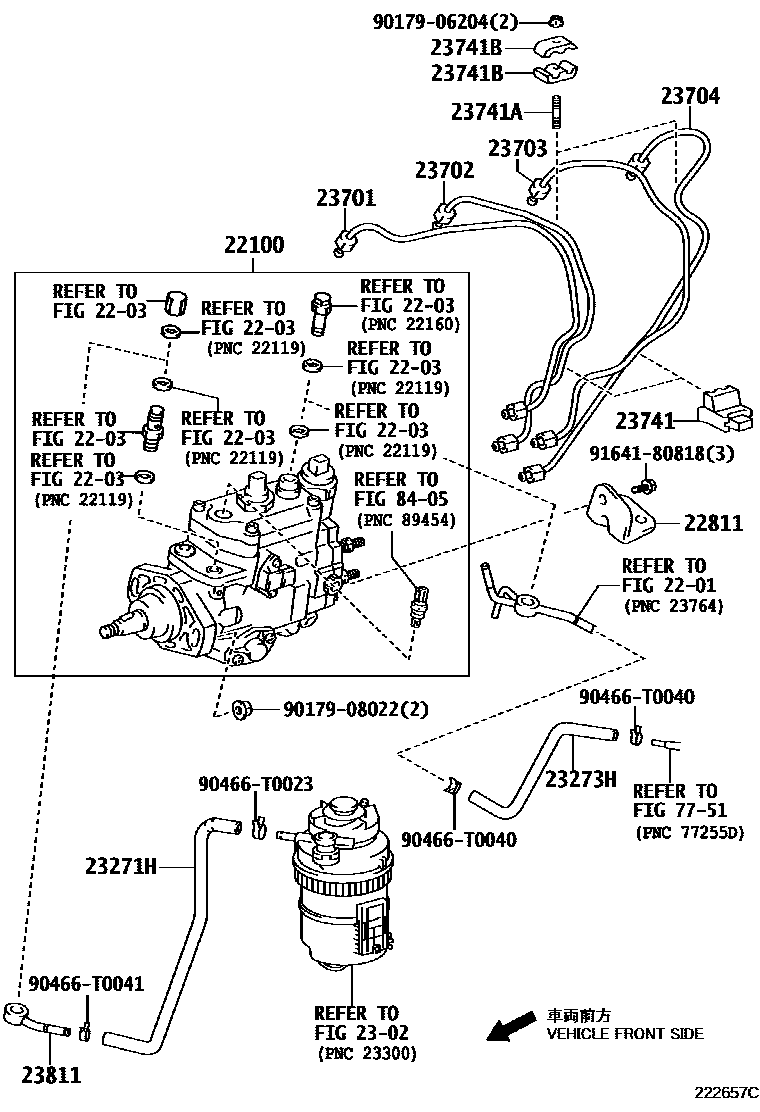

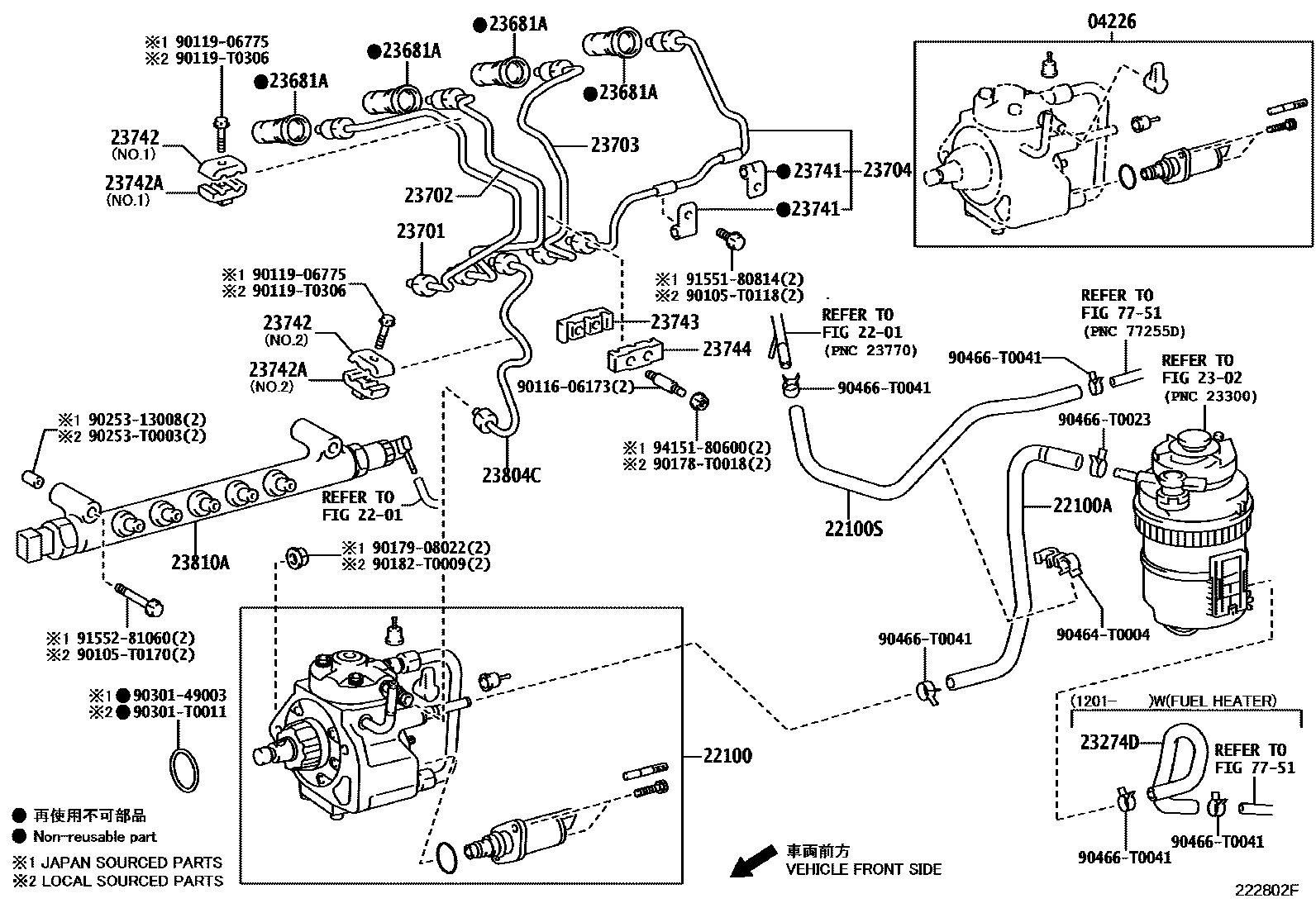

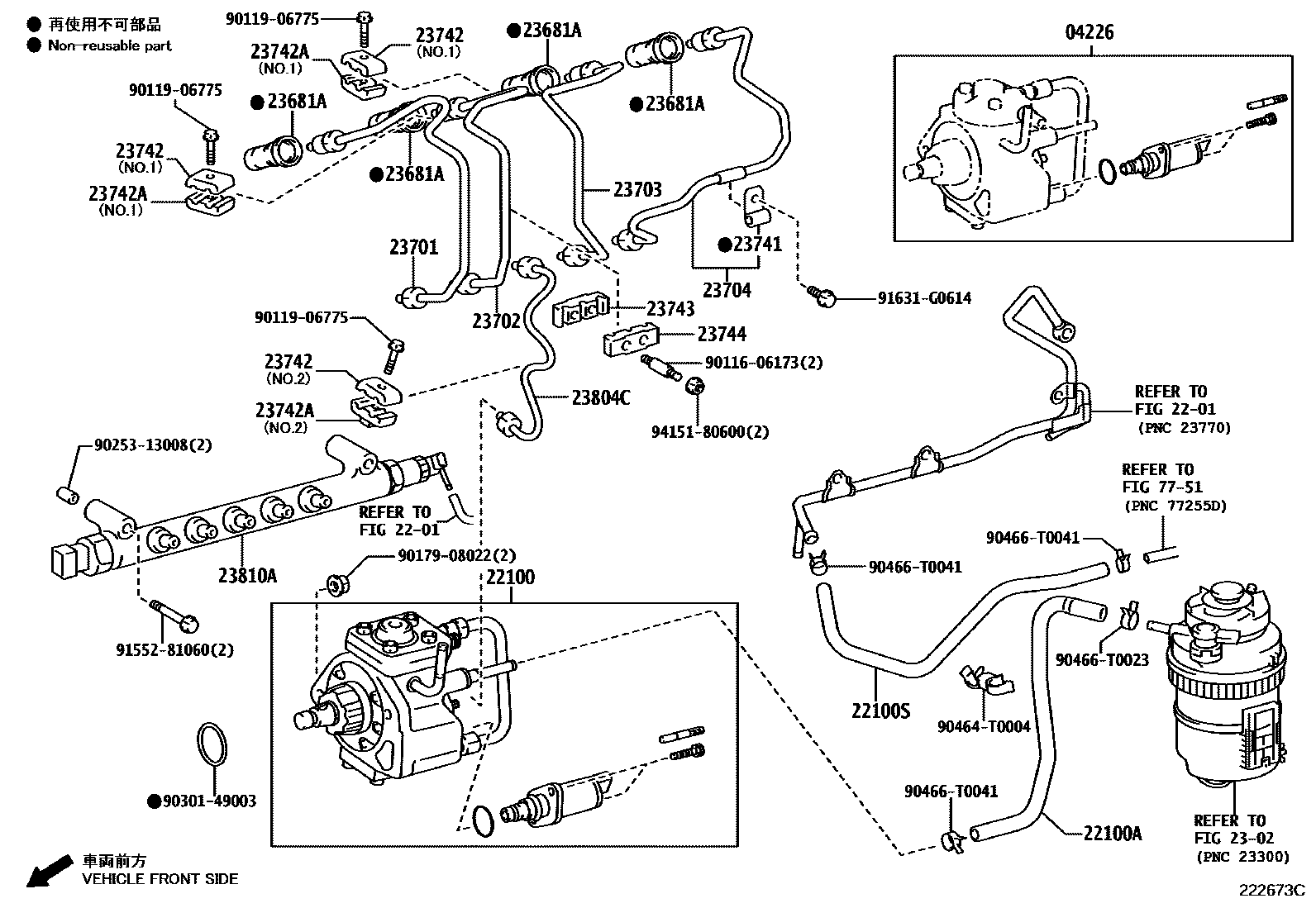

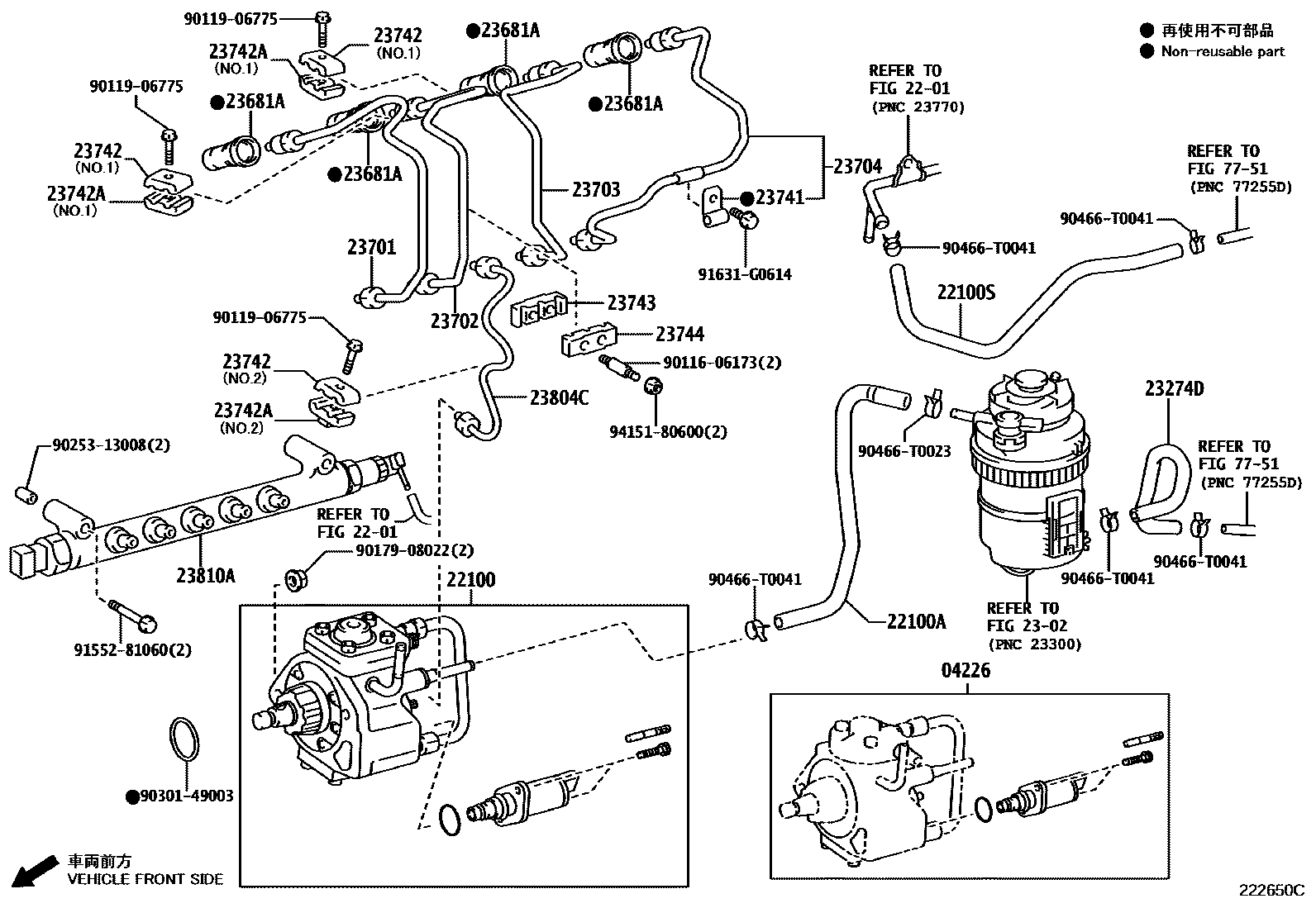

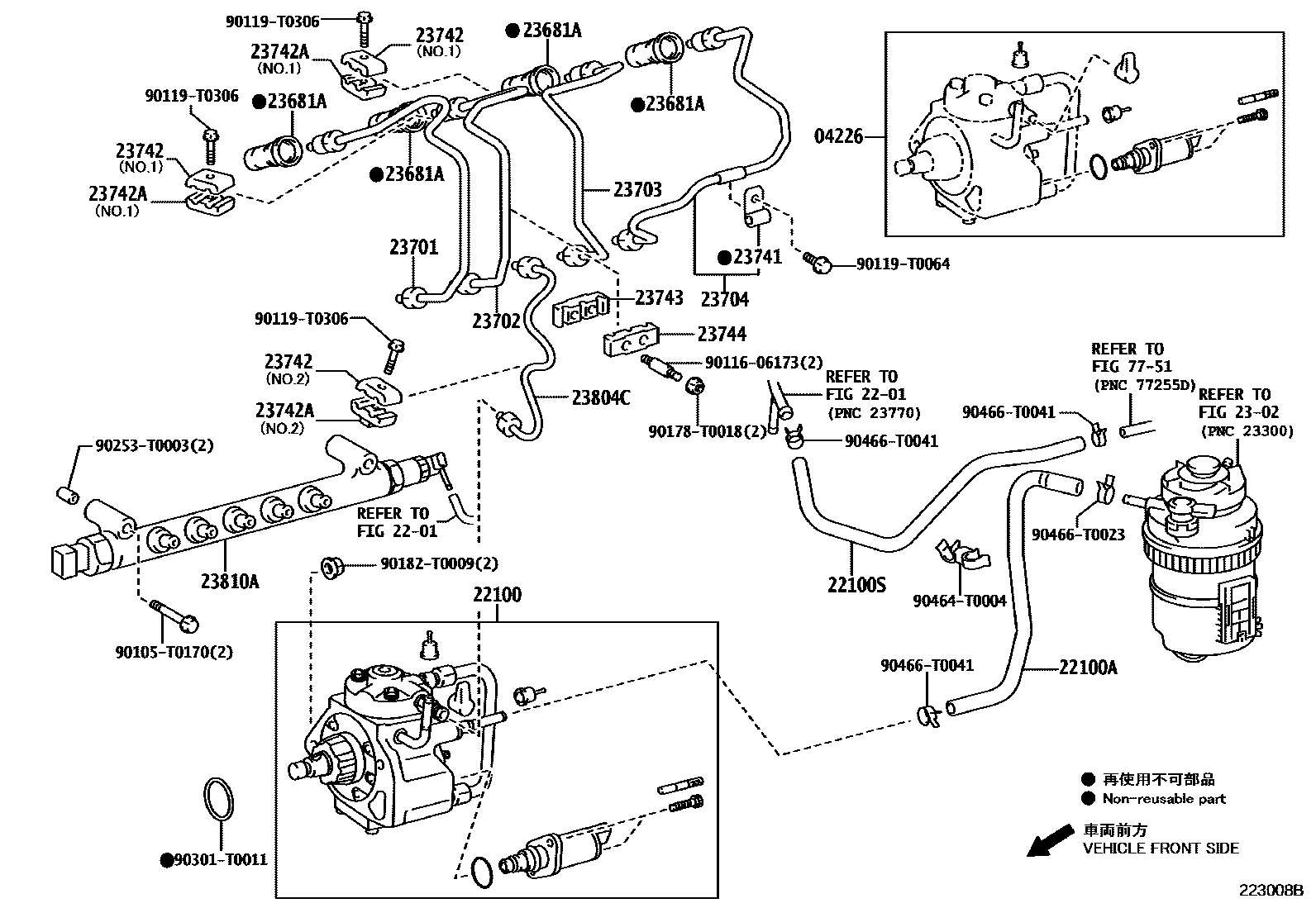

Toyota HILUX 喷油泵总成 — Figure 2202
Toyota HILUX EPC diagram 2202, 喷油泵总成, with 9 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-0L020 · 04226-30020 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0L060 · 22100-0L100 · 22100-0L101 · 22100-30090 · 22100-30160 · 22100-30161 · 22100-5D180 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-0L050 · 23271-0L060 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23273-0L150 · 23273-0L160 · 23273-0L180 · 23273-30170 · 23273-30250 · 23273-30350 |
| 22160B | screws | 22569-30150 |
| 22811 | No. 1 fuel injection pump bracket | 22811-05021 |
| 23271H | No. 1 fuel hose | 23271-05020 |
| 23273H | No. 2 fuel hose | 23273-05020 |
| 23274D | No. 3 fuel hose | 23274-0L090 · 23274-30040 |
| 23282D | No. 4 fuel hose | 23282-0L010 |
| 23681A | Injector body seal | 23681-0L010 · 23681-30010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0L010 · 23701-0L020 · 23701-30050 · 23701-30060 · 23701-30100 · 23701-54140 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-0L010 · 23702-0L020 · 23702-30050 · 23702-30060 · 23702-30100 · 23702-54140 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-0L010 · 23703-0L020 · 23703-30050 · 23703-30060 · 23703-30100 · 23703-54100 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-09015 · 23704-09040 · 23704-30090 · 23704-39055 · 23704-39075 · 23704-54100 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-0L020 · 23741-30010 · 23741-30020 · 23741-54030 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 |
| 23741B | Fuel injection pipe clamp | 23741-56010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-0L011 · 23742-0L050 · 23742-0L090 · 23742-0L110 · 23742-27010 · 23742-30010 |
| 23742A | No. 3 fuel injection pipe clamp | 23742-0L021 · 23742-0L060 · 23742-0L100 · 23742-0L120 · 23742-30020 · 23742-30030 · 23742-58020 |
| 23743 | No. 3 fuel injection pipe clamp | 23743-0L012 · 23743-0L040 · 23743-30011 |
| 23744 | No. 4 fuel injection pipe clamp | 23743-0L012 · 23743-0L040 · 23743-30011 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0L010 · 23804-30050 · 23804-30100 |
| 23810A | Common rail assembly | 23810-0L030 · 23810-0L040 · 23810-30100 · 23810-30120 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54220 |
| 23845E | Fuel pipe vibration isolation pad | 23845-30010 |
