Toyota HILUX 点火线圈和火花塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 6 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

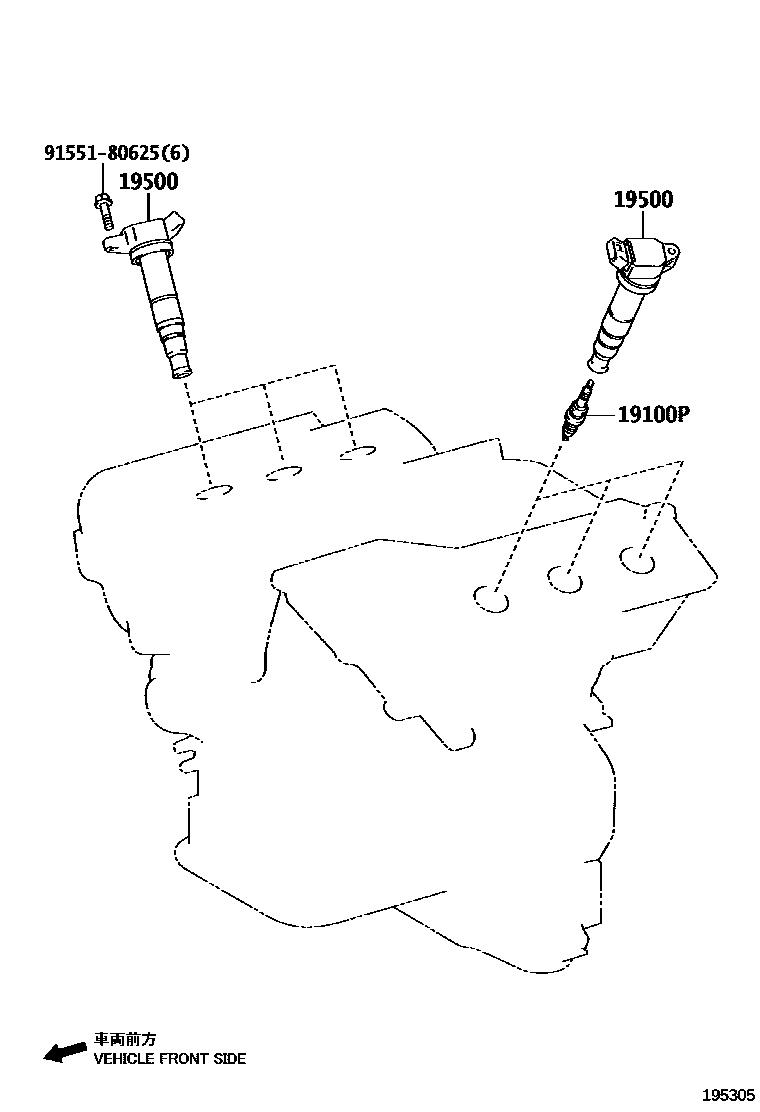

| 19100P | spark plug | 90919-01235 · 90919-01262 · 90919-01266 · 90919-01267 · 90919-T1004 |
| 19500 | Ignition coil assembly | 90919-02248 · 90919-02260 · 90919-T2008 |

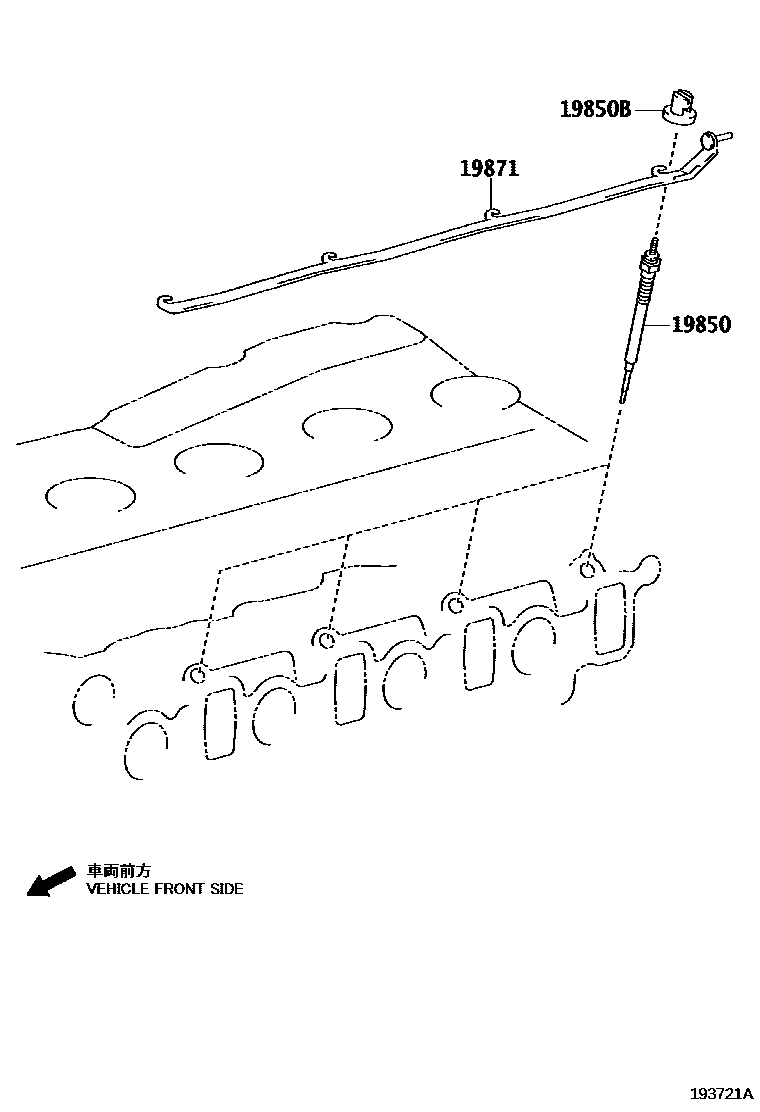

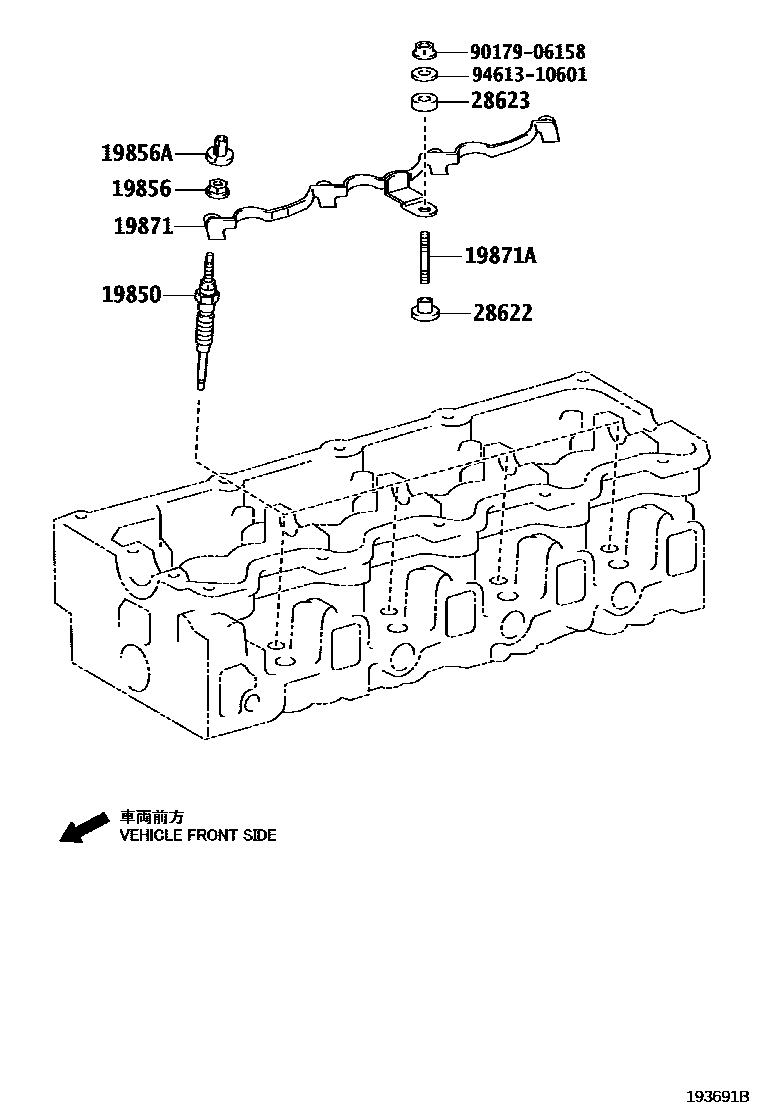

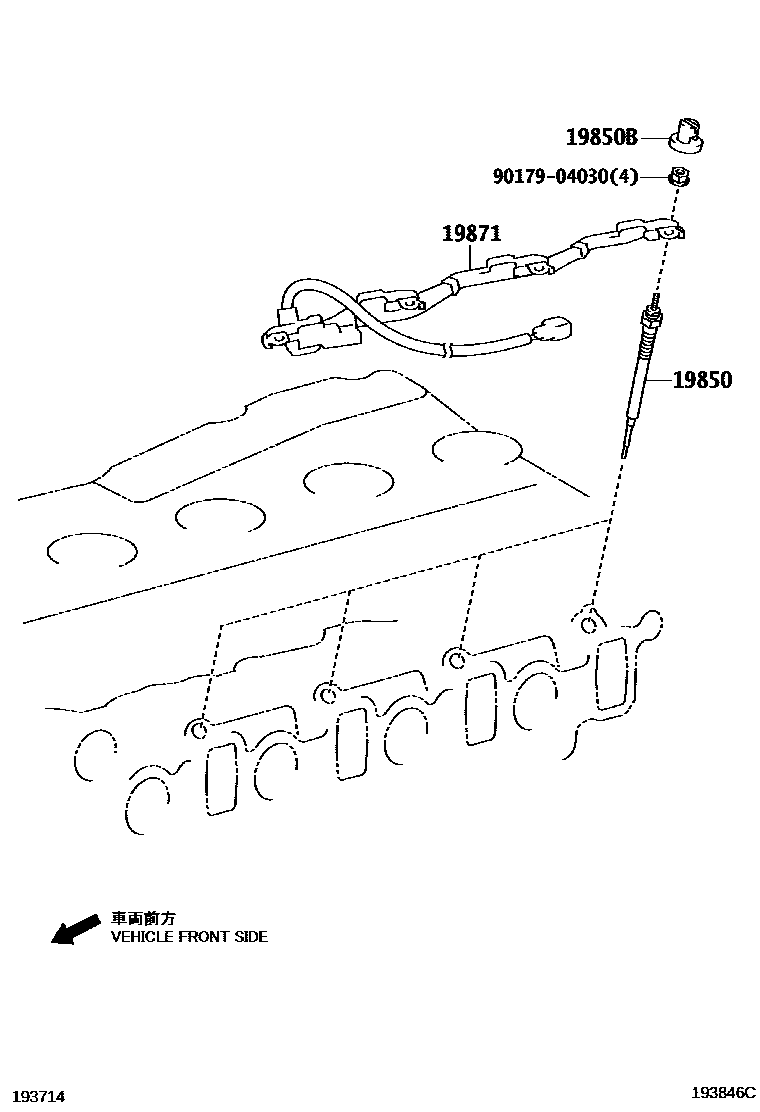

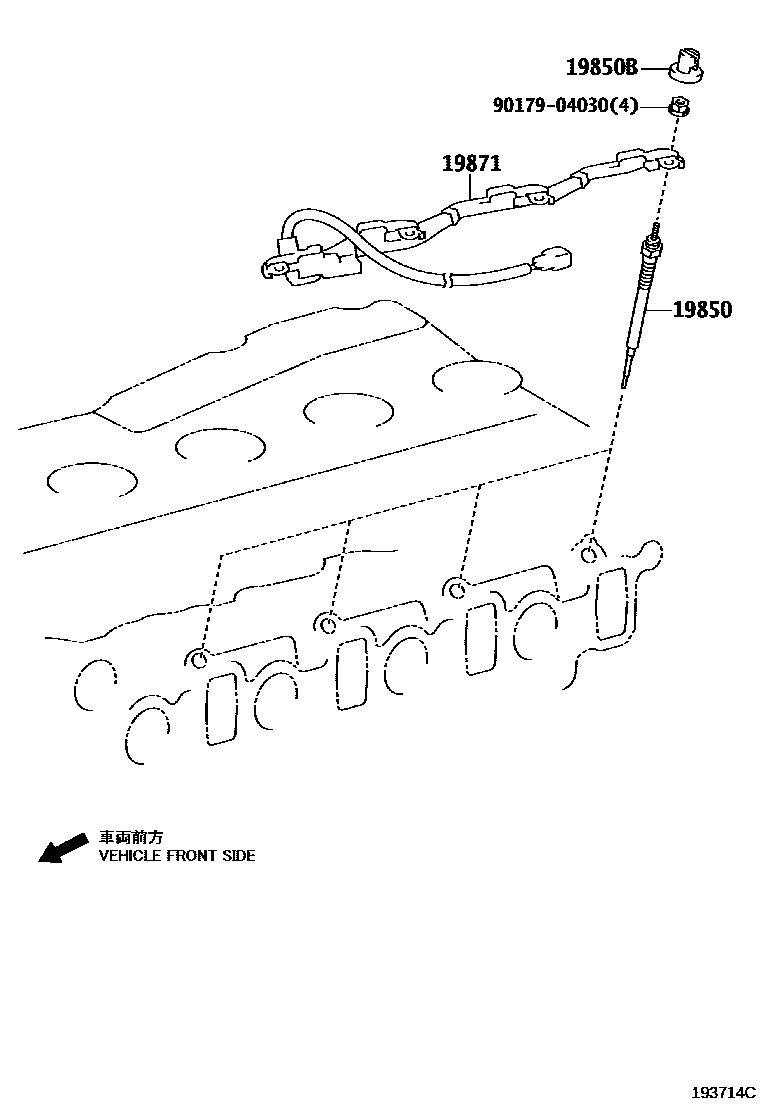

| 19850 | Glow plug assembly | 19850-0L010 · 19850-30010 · 19850-30030 · 19850-54140 |
| 19850B | Screw seal (for glow plug) | 90189-04024 · 90189-T0001 |
| 19856 | Connecting nut (for glow plug) | 90179-04030 |
| 19856A | Screw seal (for glow plug connector) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-0L011 · 19871-0L012 · 19871-30031 · 19871-30090 · 19871-54020 |
| 19871A | Stud bolts (for intake manifold to glow plug connector No. 1) | 90116-06095 |
| 28622 | No. 1 glow plug resistor insulation pad | 28622-57010 |
| 28623 | No. 2 glow plug resistor insulation pad | 28623-54010 |
