Toyota HILUX Exhaust Pipe — Figure 1702

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 5 images and 21 PNC and OE references.

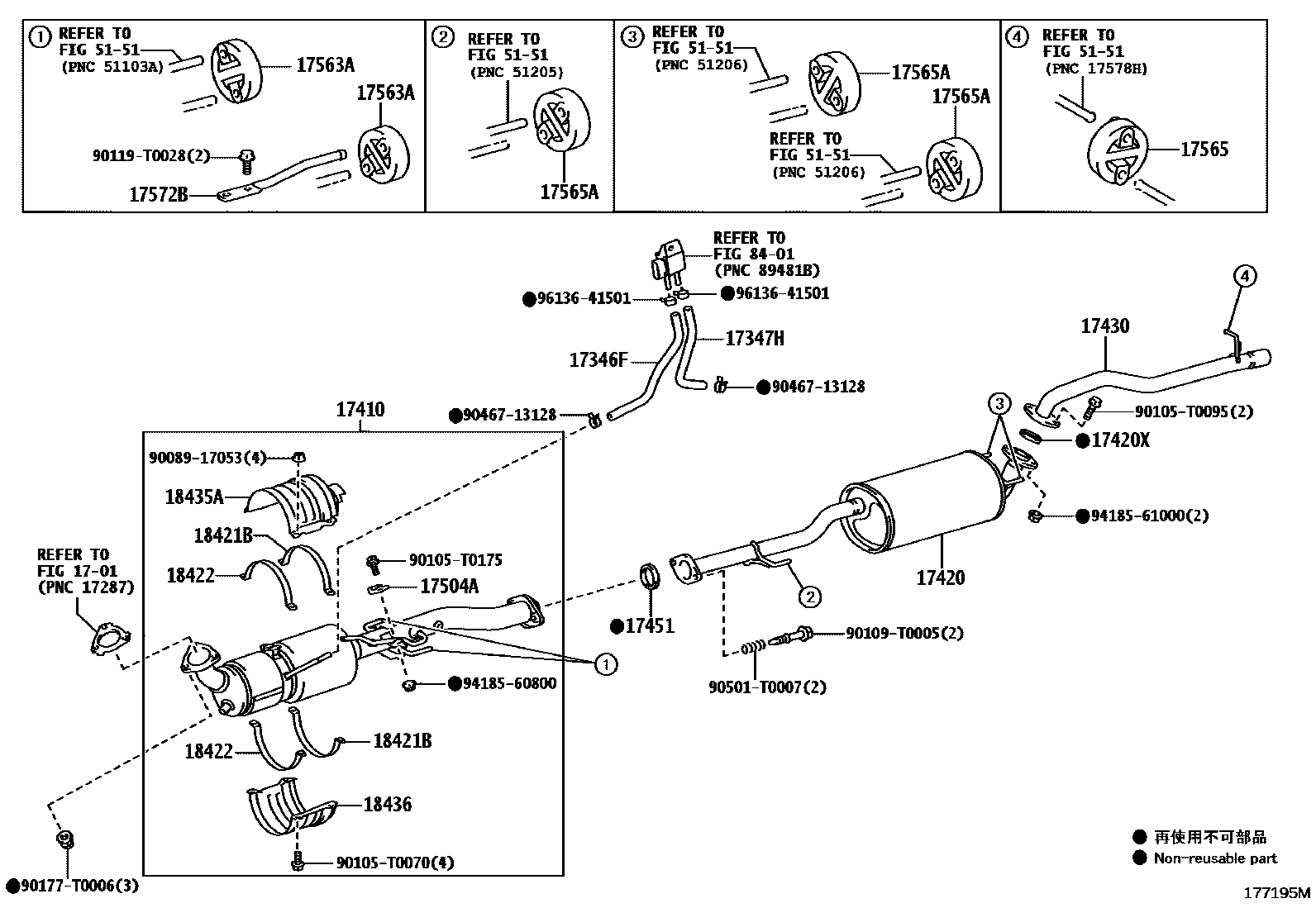

Toyota HILUX Exhaust Pipe EPC diagram — 177195M — Exhaust Pipe — 177195M (201205 – 999999)

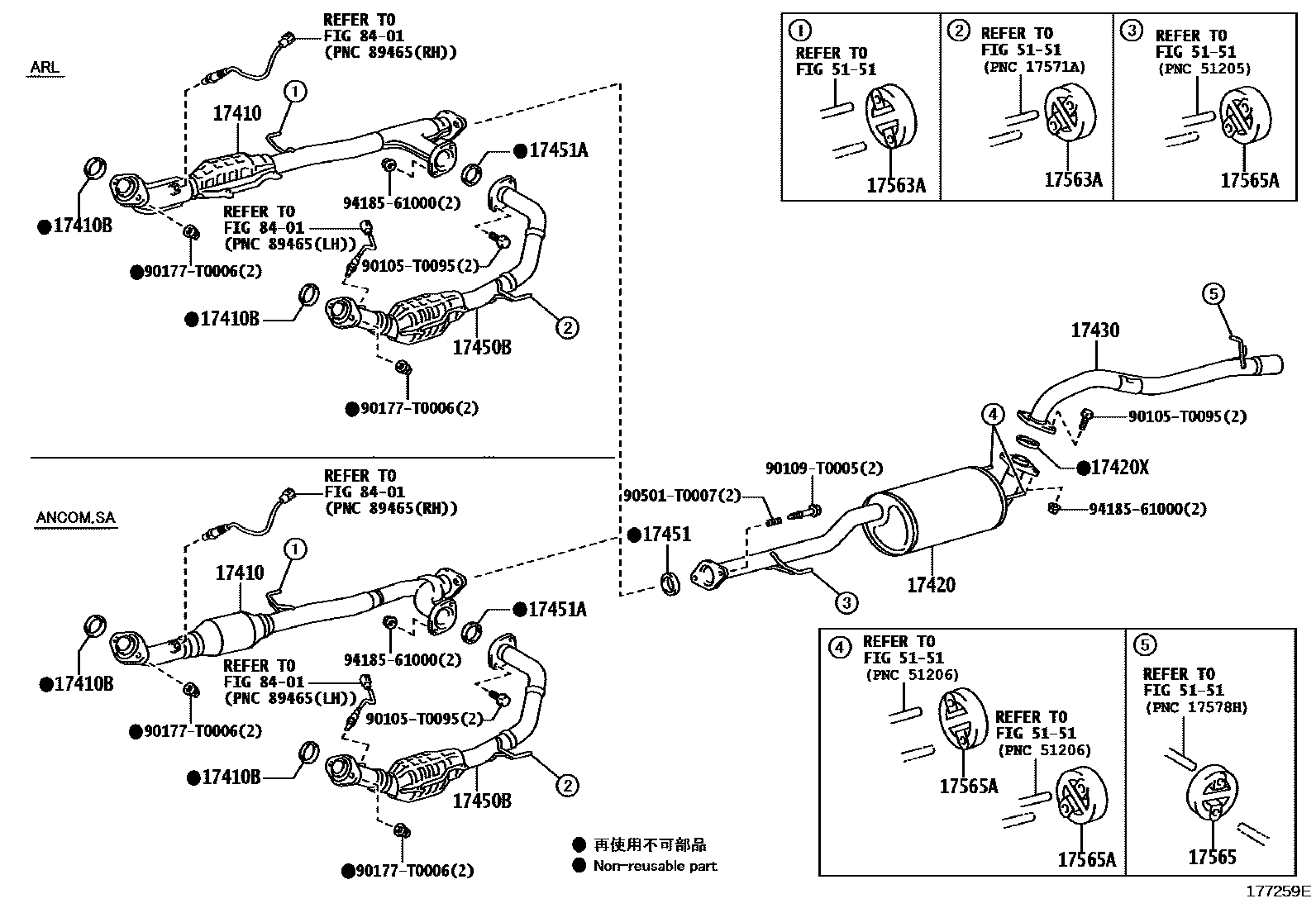

Toyota HILUX Exhaust Pipe EPC diagram — 177259E — Exhaust Pipe — 177259E (201107 – 999999)

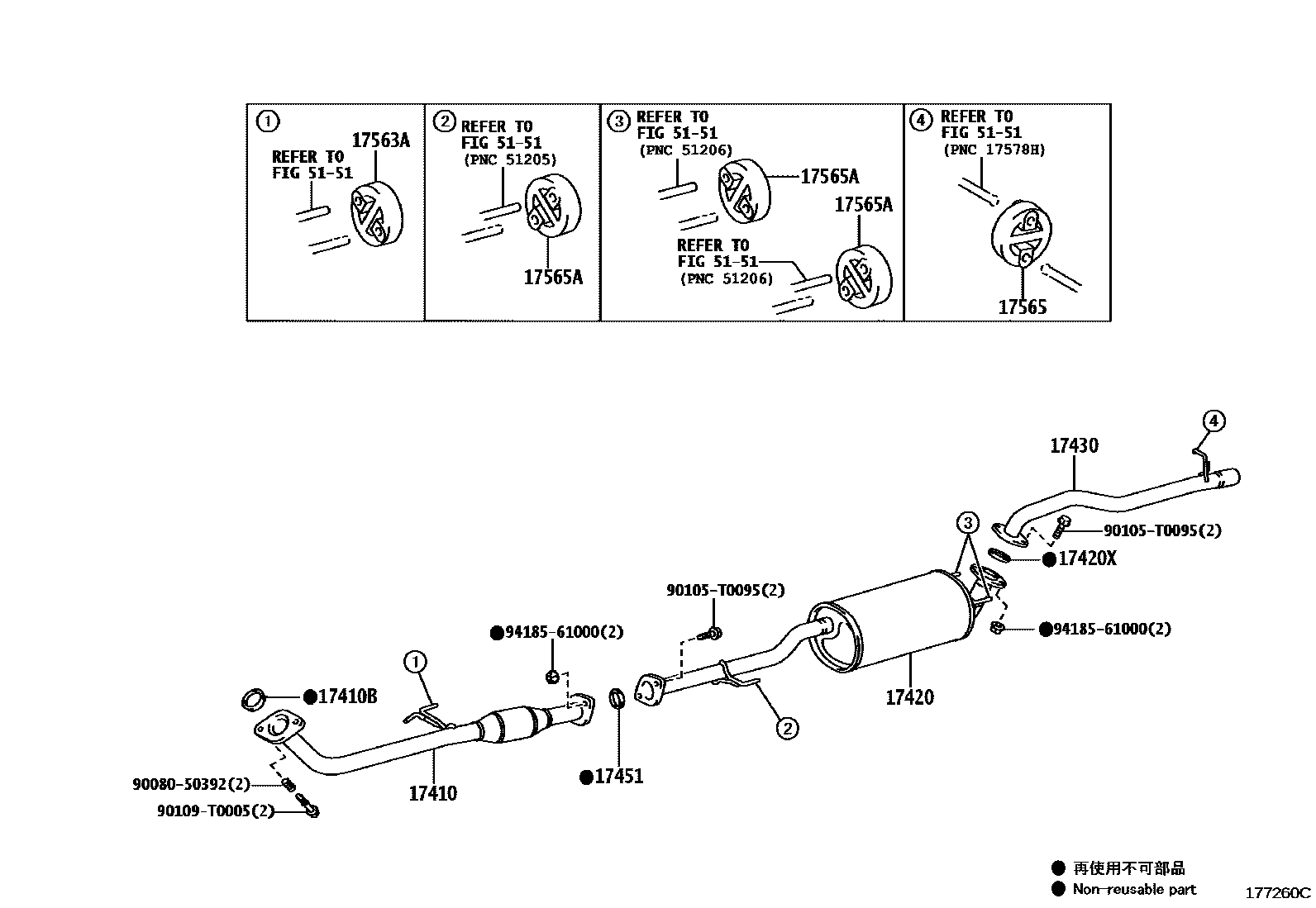

Toyota HILUX Exhaust Pipe EPC diagram — 177260C — Exhaust Pipe — 177260C (201107 – 999999)

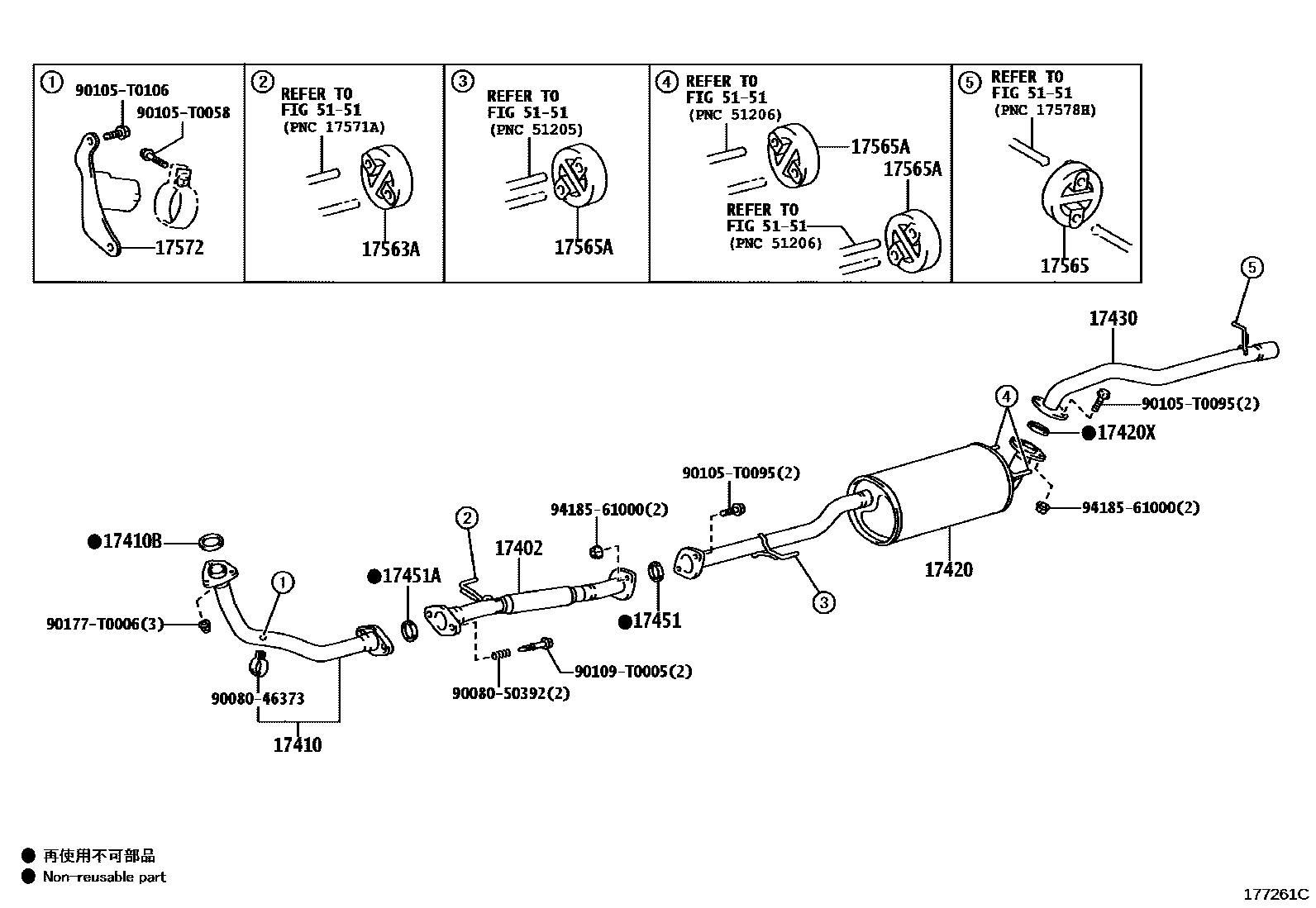

Toyota HILUX Exhaust Pipe EPC diagram — 177261C — Exhaust Pipe — 177261C (201107 – 999999)

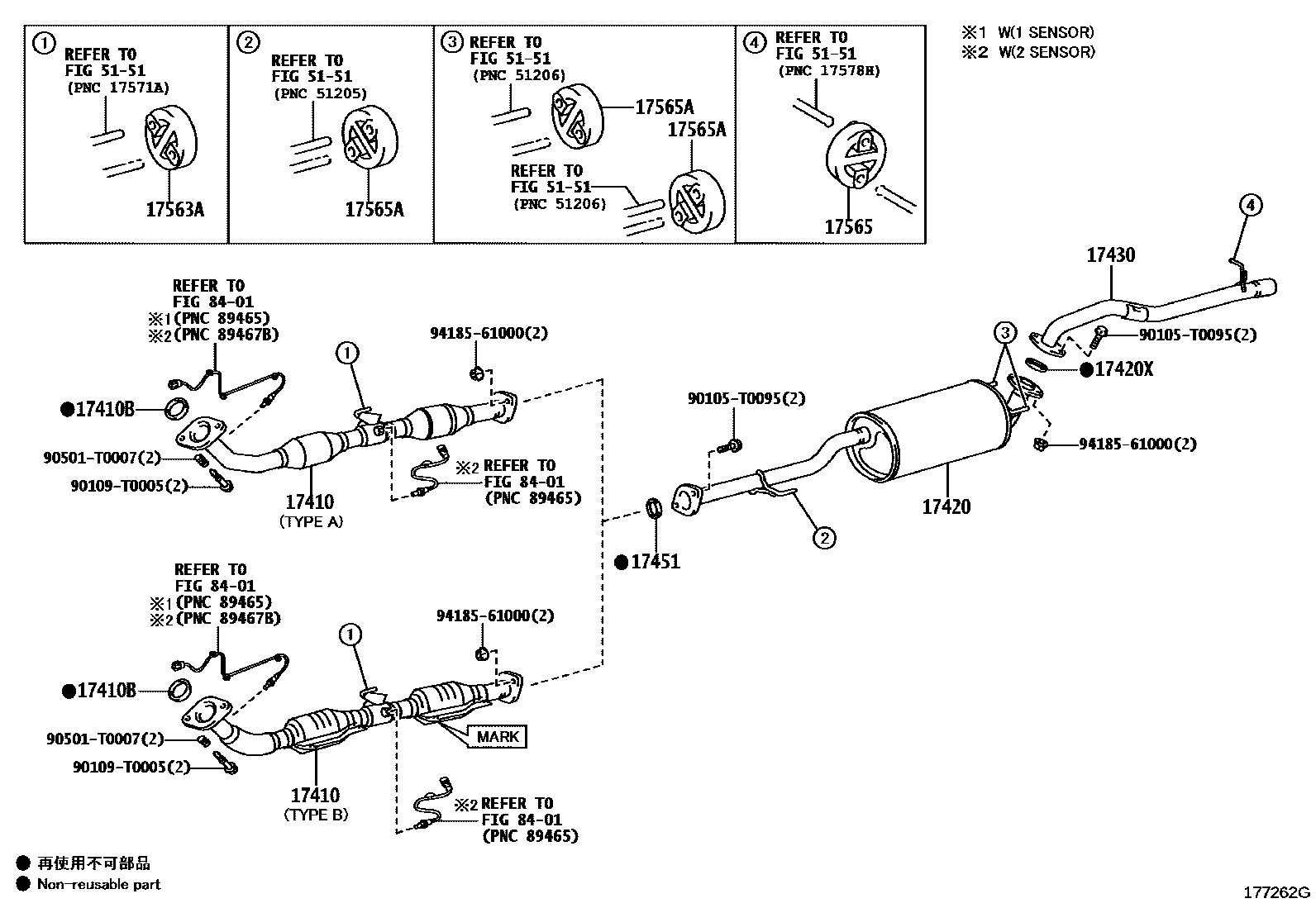

Toyota HILUX Exhaust Pipe EPC diagram — 177262G — Exhaust Pipe — 177262G (201107 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17346F	No. 6 air hose	17346-30020
17347H	No. 7 air hose	17347-30040
17402	No. 2 front exhaust pipe sub-assembly	17402-05020
17410	Front exhaust pipe assembly	17401-05110 · 17401-0C250 · 17401-0C380 · 17401-0C400 · 17401-0C440 · 17401-0C460 · 17401-0C470 · 17401-0C530 · 17401-0L030 · 17401-0L050 · 17401-0L060 · 17401-0L110 · 17401-0L120 · 17401-0L140 · 17401-0L150 · 17401-0L160 · 17401-0L170 · 17401-0P030 · 17410-0C140 · 17410-0C160 · 17410-0L040 · 17410-0P220
17410B	Exhaust pipe gasket	17451-0C010 · 17451-0L010 · 90917-T6001 · 90917-T6003
17420	Central exhaust pipe assembly	17403-0C021 · 17403-0C110 · 17403-0L061 · 17403-0L062 · 17403-0L081 · 17403-0L082 · 17403-0L091 · 17403-0L101 · 17403-0L102 · 17403-0L120 · 17403-0L121 · 17403-0P031
17420X	Center exhaust pipe liner	90917-A6002 · 90917-T6002
17430	Exhaust tailpipe assembly	17405-0L081 · 17405-0L111 · 17405-0L141 · 17405-0L142
17450B	No. 2 front exhaust pipe assembly	17450-0P060 · 17450-0P140 · 17450-0P150
17451	Exhaust pipe gasket	17451-0C010 · 90917-A6002 · 90917-T6002
17451A	No. 2 exhaust pipe gasket	17451-0C010 · 90917-T6002
17504A	Exhaust pipe clamp sub-assembly	17504-0L010
17563A	No. 3 exhaust pipe lifting lug	17565-0L040 · 17565-0M010
17565	No. 5 exhaust pipe lifting lug	17565-0L040 · 17565-0M010
17565A	No. 4 exhaust pipe lifting lug	17565-0L040 · 17565-0M010
17572	No. 1 exhaust pipe bracket	17571-05050
17572B	No. 2 exhaust pipe bracket	17572-0L020
18421B	No. 2 three-way catalytic converter protection device stay	18422-0L010
18422	No. 2 three-way catalytic converter protection device stay	18421-0L010
18435A	Integrated three-way catalytic converter protection device	18435-0L020
18436	No. 1 integrated three-way catalytic converter protection device	18445-0L010
