Toyota HILUX Engine Oil Pump — Figure 1501

Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 5 images and 20 PNC and OE references.

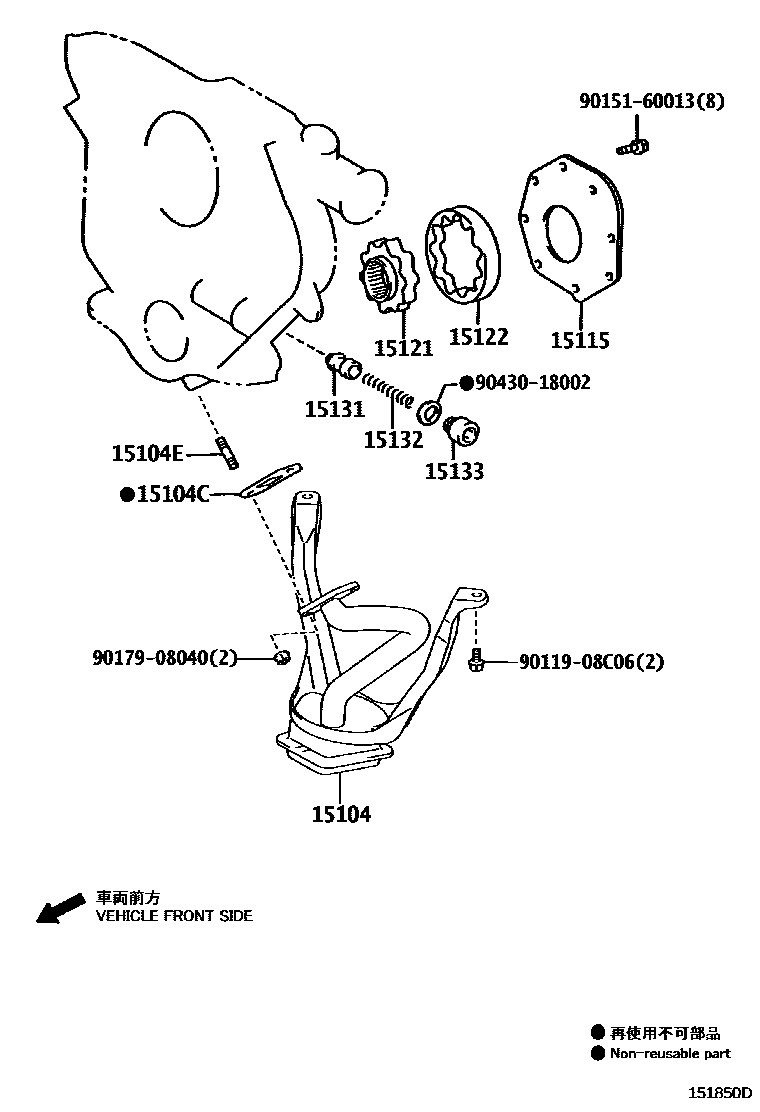

Toyota HILUX Engine Oil Pump EPC diagram — 151850D
Engine Oil Pump — 151850D (201108 – 999999)

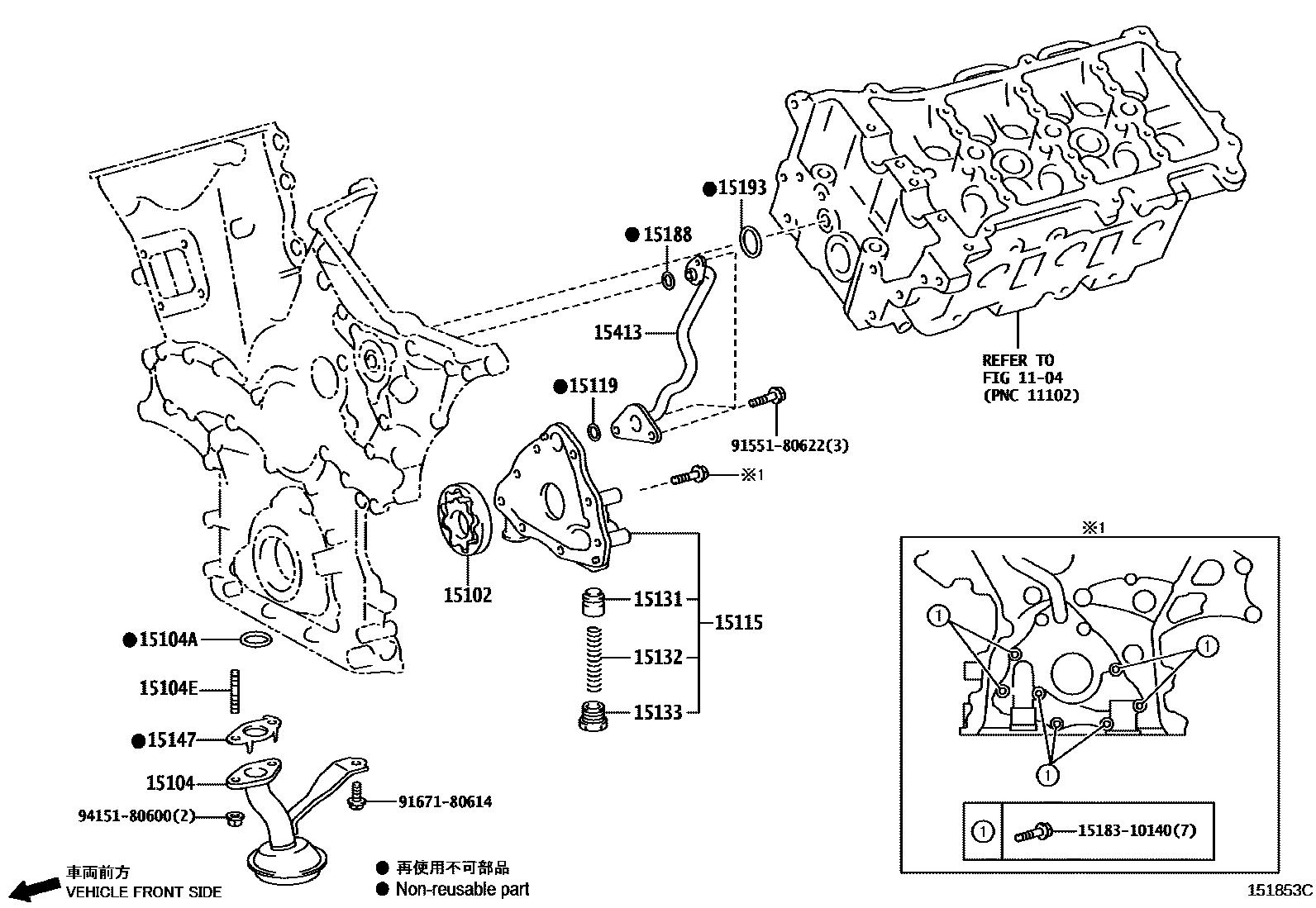

Toyota HILUX Engine Oil Pump EPC diagram — 151853C
Engine Oil Pump — 151853C (201107 – 999999)

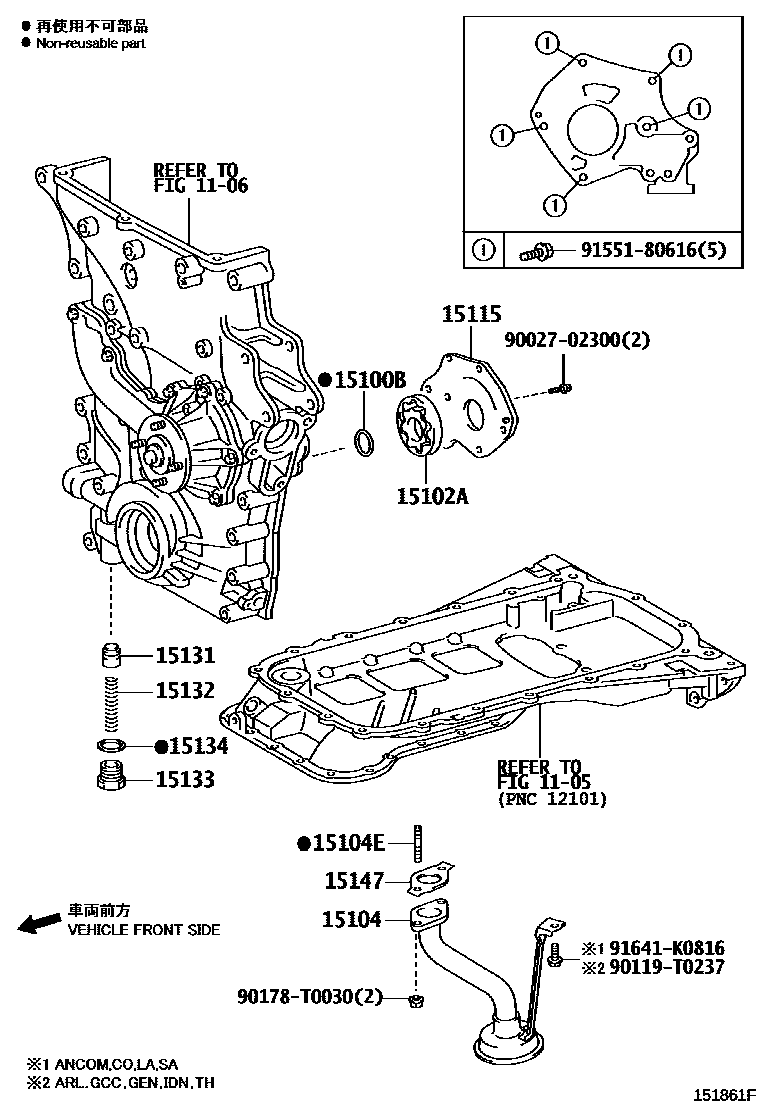

Toyota HILUX Engine Oil Pump EPC diagram — 151861F
Engine Oil Pump — 151861F (201107 – 201503)

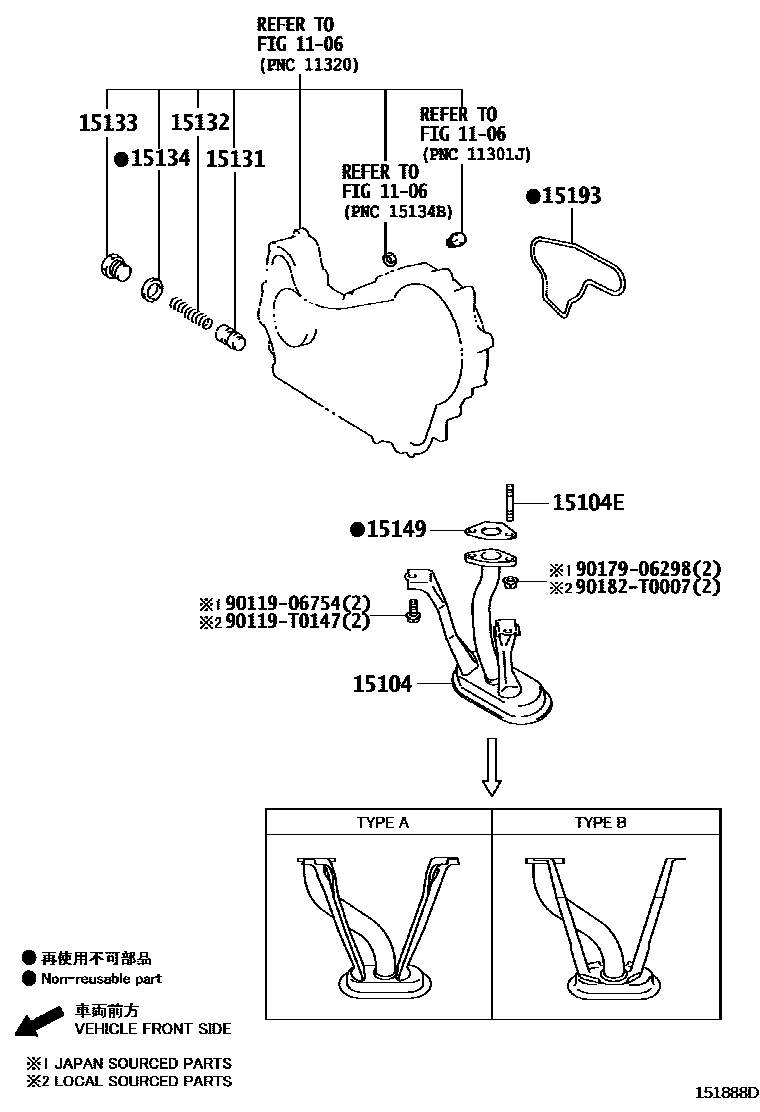

Toyota HILUX Engine Oil Pump EPC diagram — 151888D
Engine Oil Pump — 151888D (201107 – 999999)

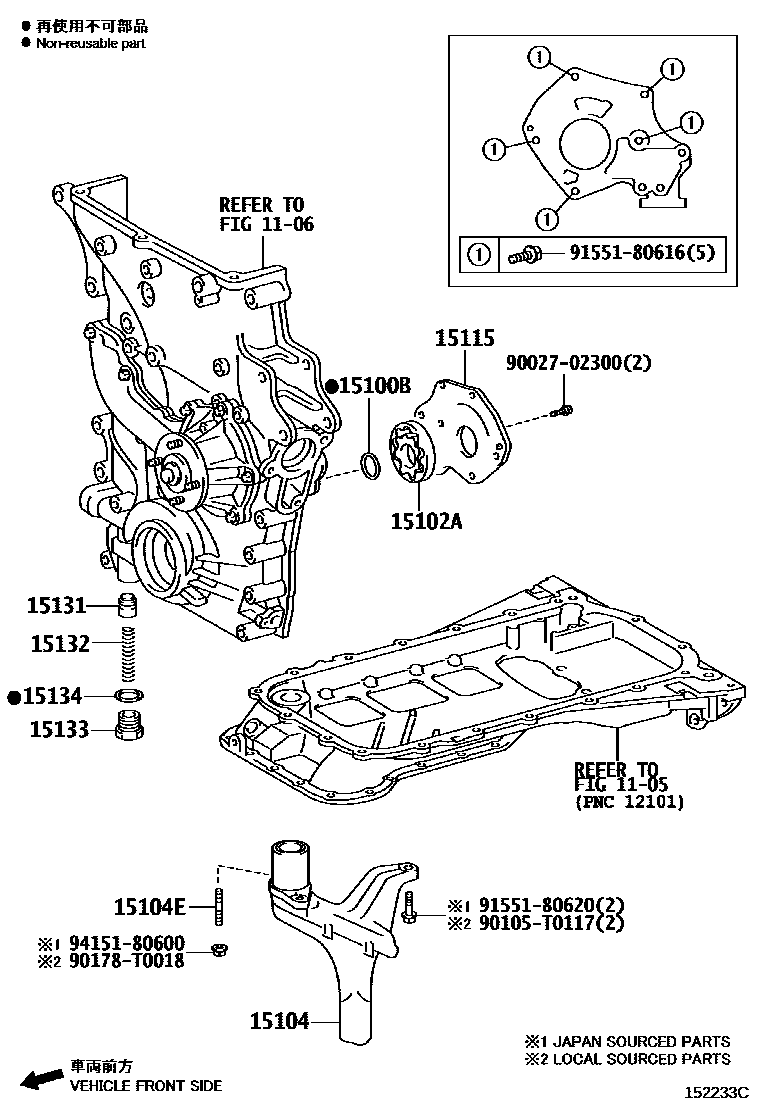

Toyota HILUX Engine Oil Pump EPC diagram — 152233C
Engine Oil Pump — 152233C (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
15100BO-ring (for oil pump)90301-T0020 · 90301-T0083
15102Oil pump rotor assembly15103-31050
15102AOil pump rotor15103-0C010 · 15103-0C020
15104Oil filter sub-assembly15104-0C010 · 15104-0C020 · 15104-0C050 · 15104-0L010 · 15104-0L011 · 15104-0L030 · 15104-30050 · 15104-31110 · 15104-54260
15104AO-ring (for oil filter)96722-24030
15104CGasket (for oil filter)15149-54030
15104EStud bolts (for oil filter)90116-06140 · 90116-T0020 · 90126-06029 · 90126-08037 · 90126-T0012 · 92122-80816
15115oil pump cover15115-0C010 · 15115-0C011 · 15115-31050 · 15115-54022
15119Oil pump cover gasket15119-31050
15121Oil pump driving gear15121-54020
15122Oil pump driven gear15122-54020
15131Oil pump pressure reducing valve15131-46040 · 15131-54010
15132Oil pump pressure reducing valve spring15132-0C010 · 15132-0L030 · 15132-17010 · 15132-46020 · 15132-54010
15133PLUG, OIL PUMP RELIEF VALVE15133-0C010 · 15133-17010 · 15133-28020 · 15133-54010
15134Oil pump pressure reducing valve gasket15134-67020
15147Oil filter gasket15147-0C010 · 15147-0C020 · 15147-46010
15149Oil filter flange gasket15149-0L010 · 15149-67010
15188oil pump gasket15188-31050
15193oil pump gasket15193-0L010 · 15193-31010 · 15193-67011
15413Oil pump outlet pipe15413-31020
