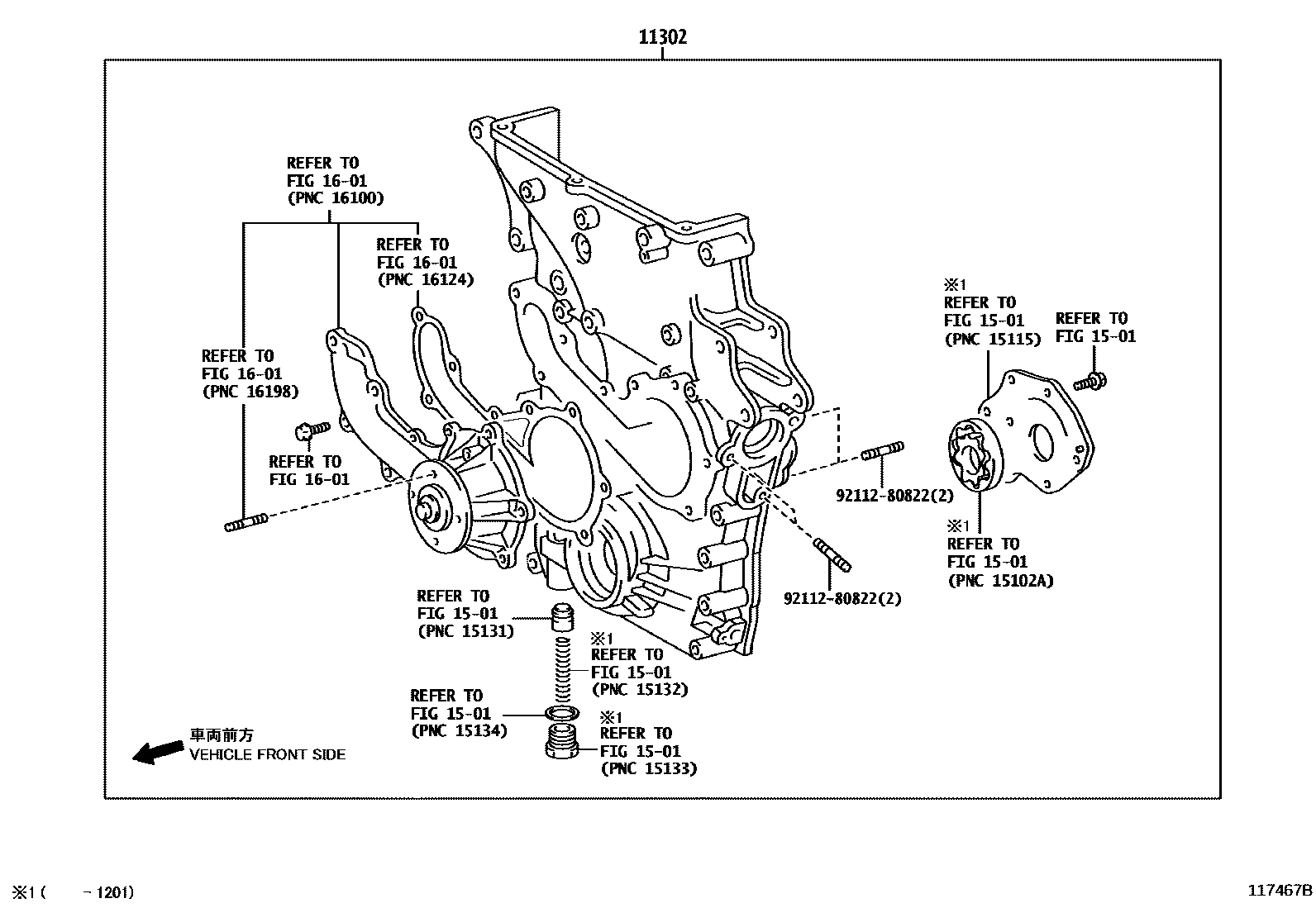

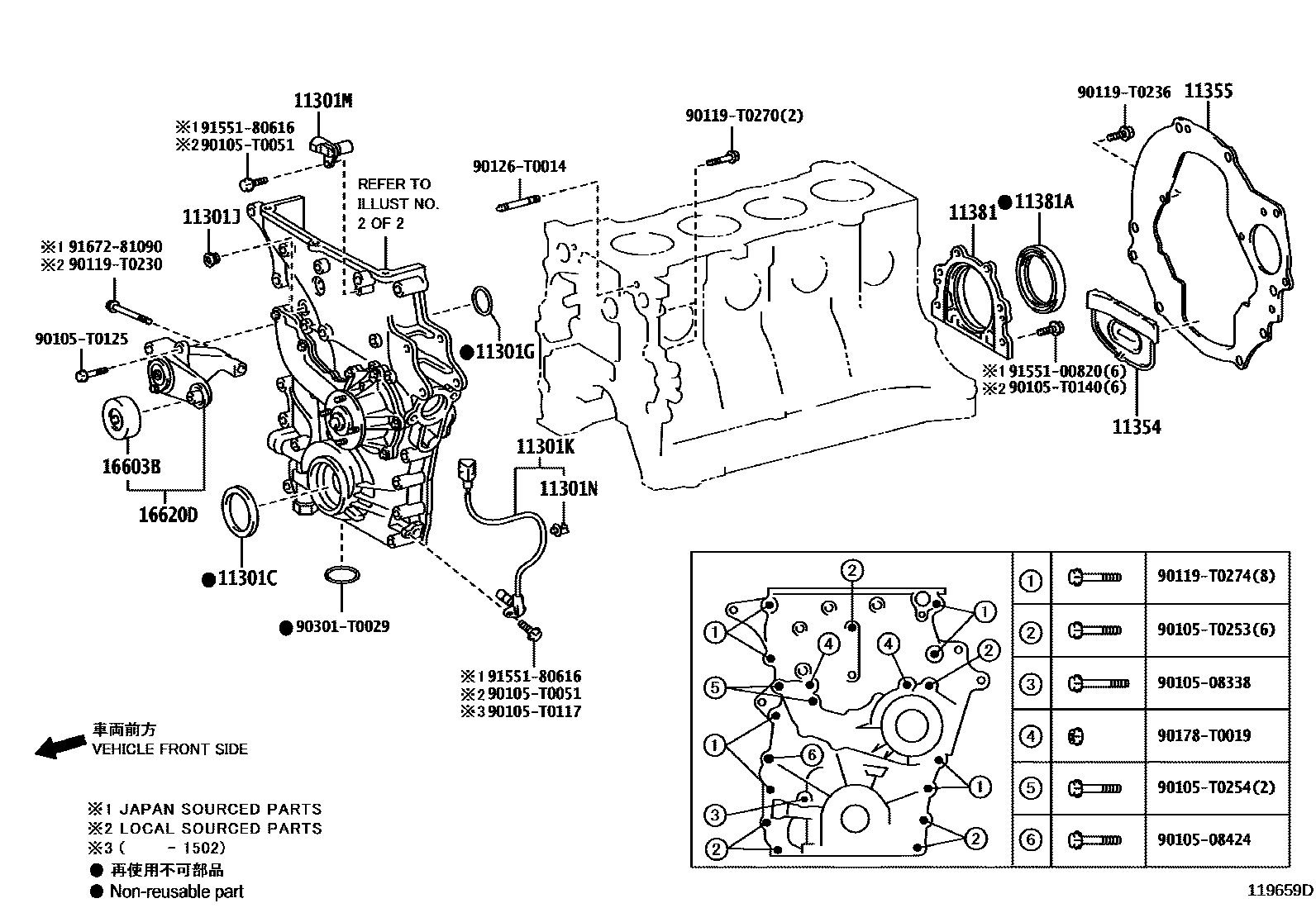

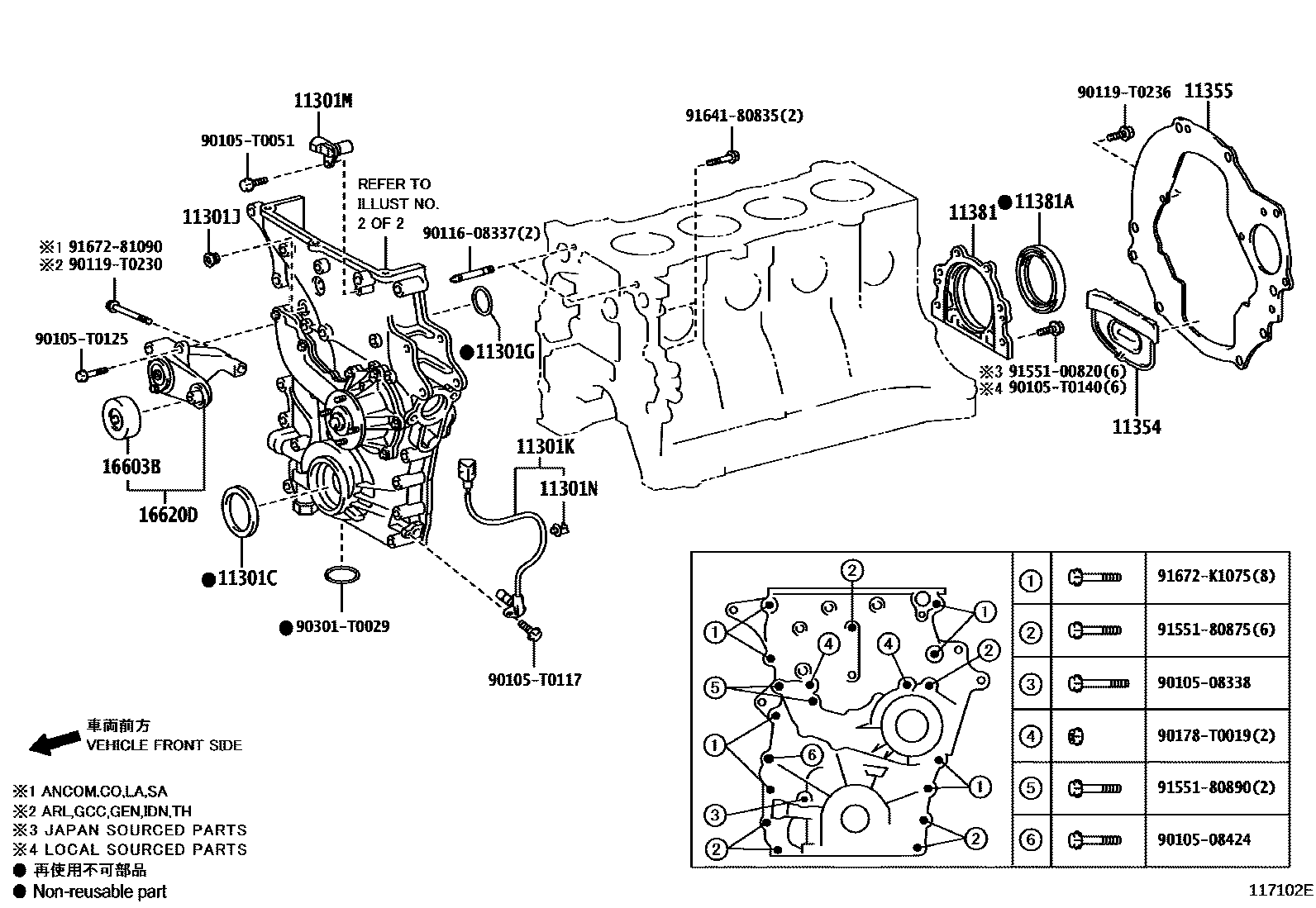

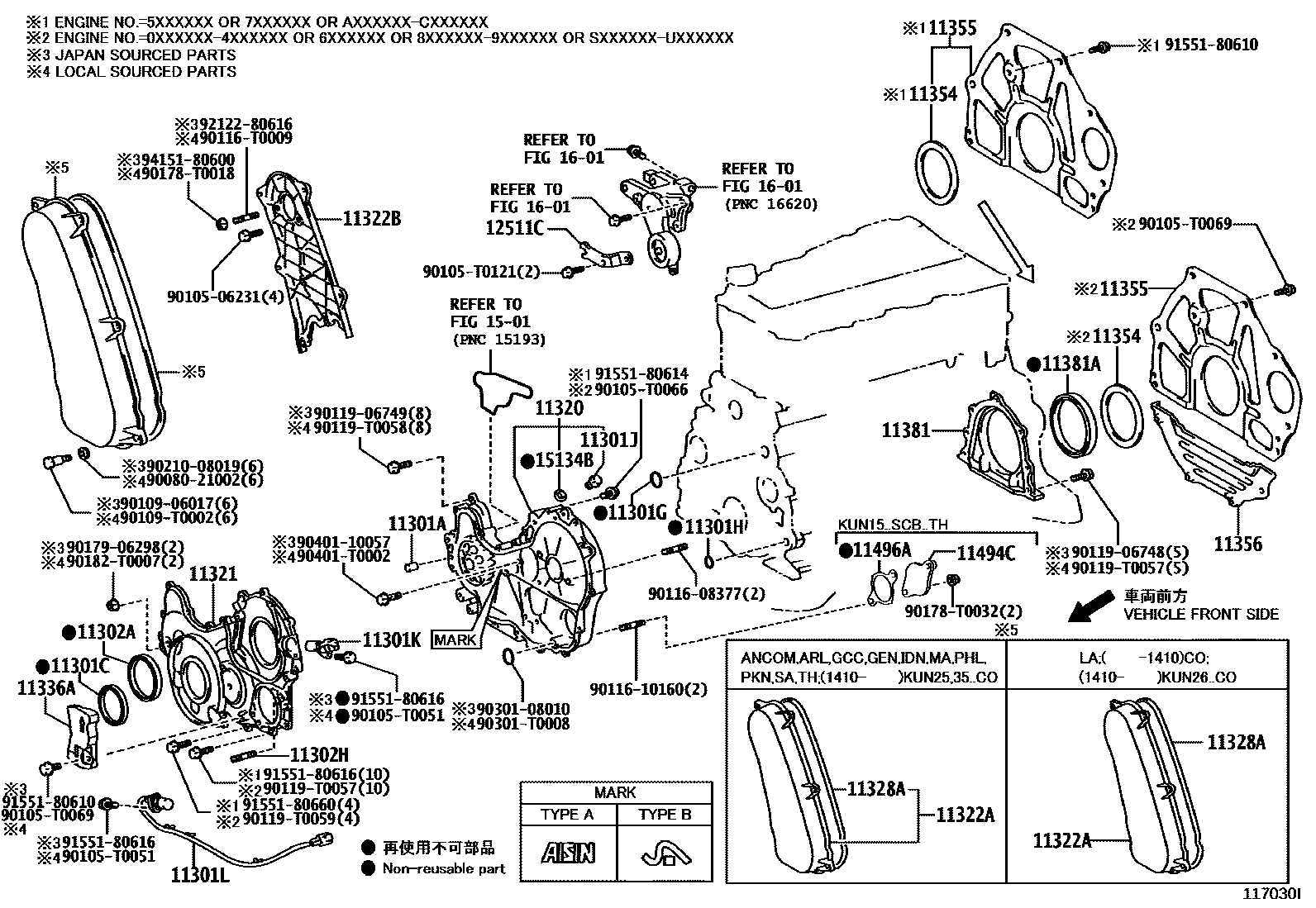

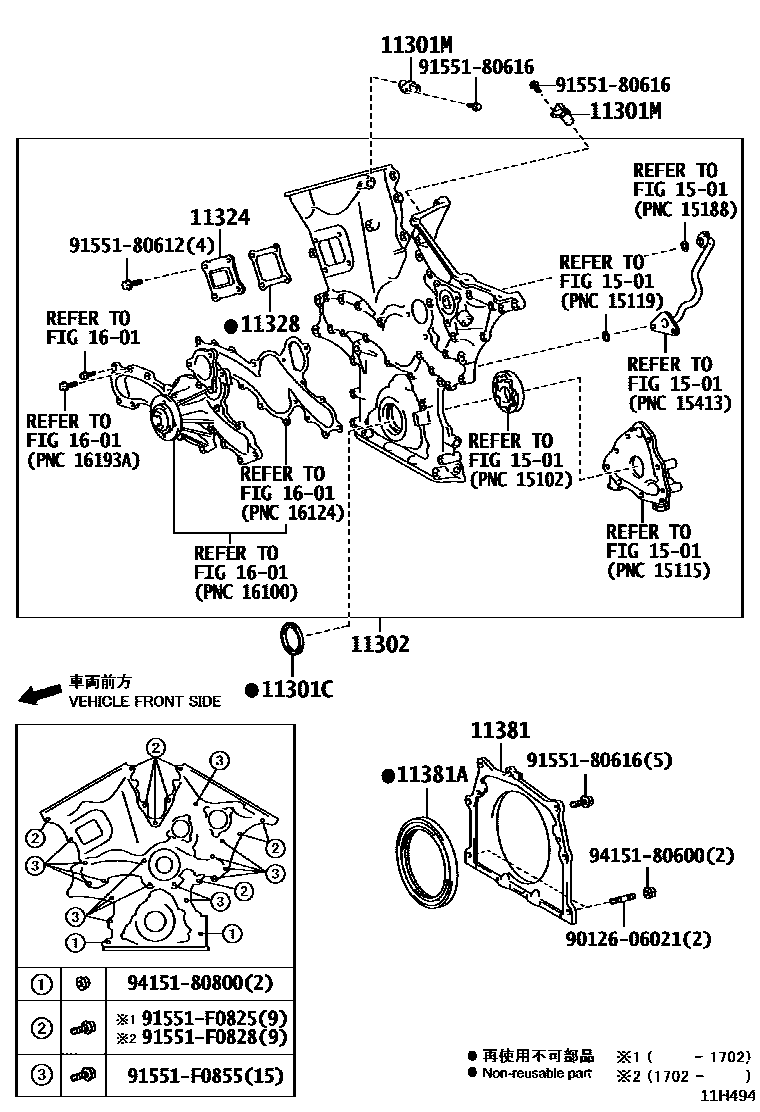

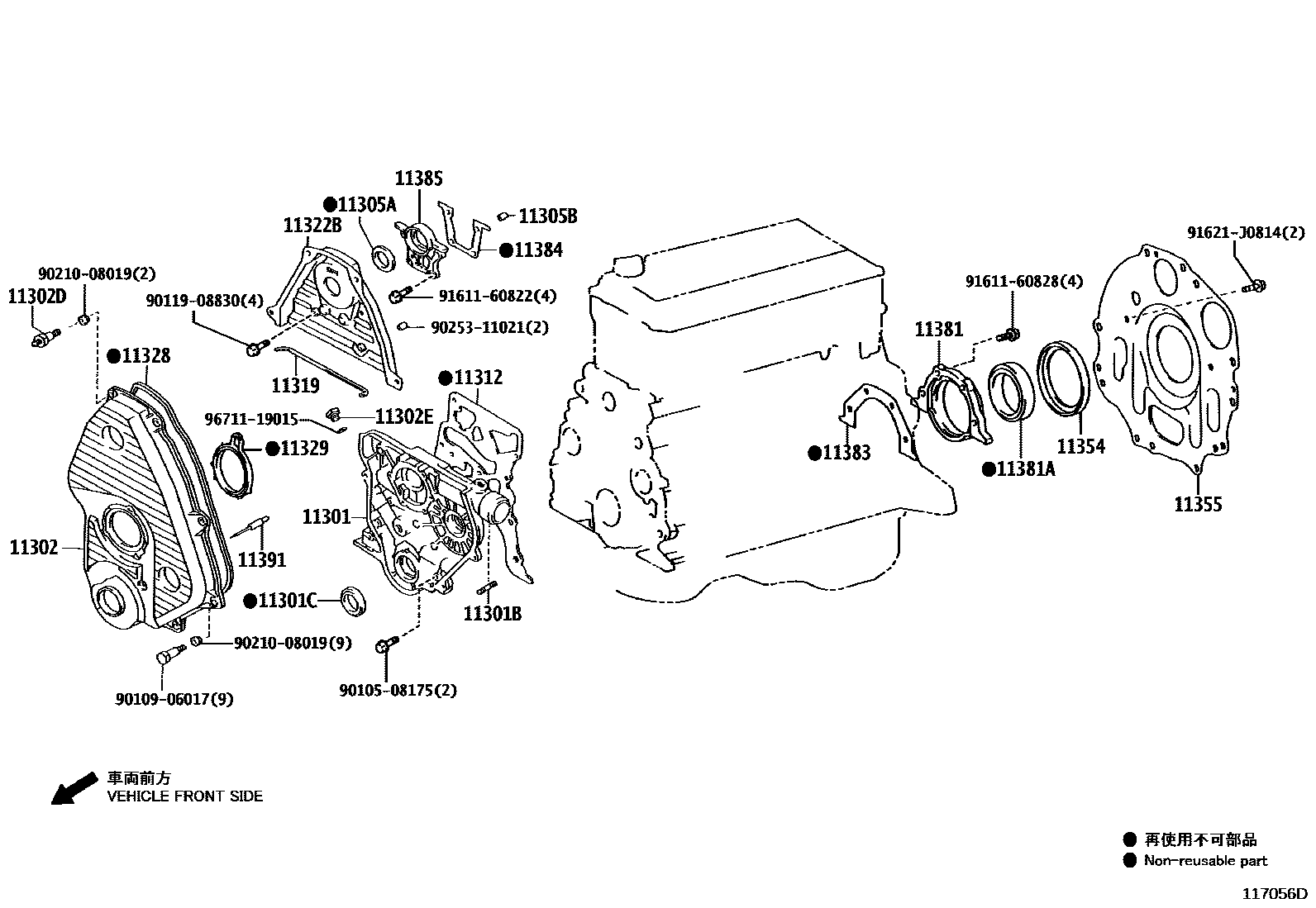

Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106
Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 6 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11311-54052 |
| 11301A | Direct sales (for timing gearbox) | 90250-08120 · 90250-T0007 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90080-31096 · 90311-42031 · 90311-42048 · 90311-50017 · 90311-50051 · 90311-T0032 · 90311-T0054 · 90311-T0060 · 90311-T0061 · 90311-T0099 |
| 11301G | O-ring (for upper timing gearbox) | 90301-22007 · 90301-T0010 · 90301-T0021 · 90301-T0085 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 90301-09018 · 90301-T0012 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-18015 · 90341-T0011 |
| 11301K | crankshaft position sensor | 90919-05025 · 90919-05059 |
| 11301L | No. 2 crankshaft position sensor | 90919-05050 |
| 11301M | Cam position sensor | 90919-05036 · 90919-05060 |
| 11301N | card holder | 90469-07018 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0C010 · 11310-0C011 · 11310-0C012 · 11310-0C021 · 11310-0C022 · 11310-0C023 · 11310-31013 · 11310-31014 · 11321-54020 · 11321-54021 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90080-31098 · 90311-65003 |
| 11302D | Studs (for timing gear cover) | 90116-06100 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 |
| 11302H | Studs (for timing gear cover) | 90116-08377 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32019 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 90253-11021 |
| 11312 | front panel gasket | 11312-54040 |
| 11319 | No. 3 timing belt cover gasket | 11319-54010 |
| 11320 | Timing gearbox assembly | 11320-0L030 · 11320-0L040 · 11320-30060 · 11320-30070 · 11320-30080 |
| 11321 | timing gearbox | 11321-0L010 · 11321-30020 |
| 11322A | No. 1 timing belt cover | 11332-0L010 · 11332-0L030 · 11332-30020 |
| 11322B | No. 2 timing belt cover | 11322-0L010 · 11322-0L030 · 11322-30010 · 11322-54033 |
| 11324 | Timing chain cover | 11324-31020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-05010 · 11328-31030 · 11328-54021 |
| 11328A | No. 1 timing belt cover gasket | 11328-30020 |
| 11329 | Timing gear rear cover gasket | 11329-05010 · 11329-54021 |
| 11336A | Timing gear cover vibration isolation pad | 11336-0L010 · 11336-30010 |
| 11354 | Flywheel housing dust seal | 11354-0C010 · 11354-0L020 · 11354-30010 · 11354-54010 |
| 11355 | rear end plate | 11355-0C010 · 11355-0C020 · 11355-0L010 · 11355-0L020 · 11355-54120 · 11355-67011 |
| 11356 | No. 2 rear end plate | 11356-0L010 · 11356-0L011 · 11356-0L020 · 11356-0L021 · 11356-0L030 · 11356-0L031 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0C011 · 11381-0C012 · 11381-0C021 · 11381-0C022 · 11381-0K010 · 11381-0L010 · 11381-31010 · 11381-54030 · 11381-67020 · 11381-75011 |
| 11381A | SEAL, ENGINE REAR OIL | 90080-31100 · 90311-85008 · 90311-85011 · 90311-95008 · 90311-95015 · 90311-99010 · 90311-T0026 · 90311-T0046 · 90311-T0058 · 90311-T0059 |
| 11383 | Engine rear oil seal seat gasket | 11383-54030 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-05010 · 11382-54020 |
| 11391 | Timing pointer | 11391-54020 |
| 11494C | Oil hole cover | 11494-0L010 |
| 11496A | Oil hole cover gasket | 11496-0L010 |
| 12511C | Generator bracket | 12511-0L010 · 12511-0L020 · 12511-0L030 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-0L030 · 15134-67010 |
| 16603B | Idler gear sub-assembly | 16603-0C020 · 16603-0C030 · 16603-0C031 · 16603-0C032 |
| 16620D | Poly V-belt tensioner assembly | 16620-0C011 · 16620-0C020 · 16620-0C021 |
