Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

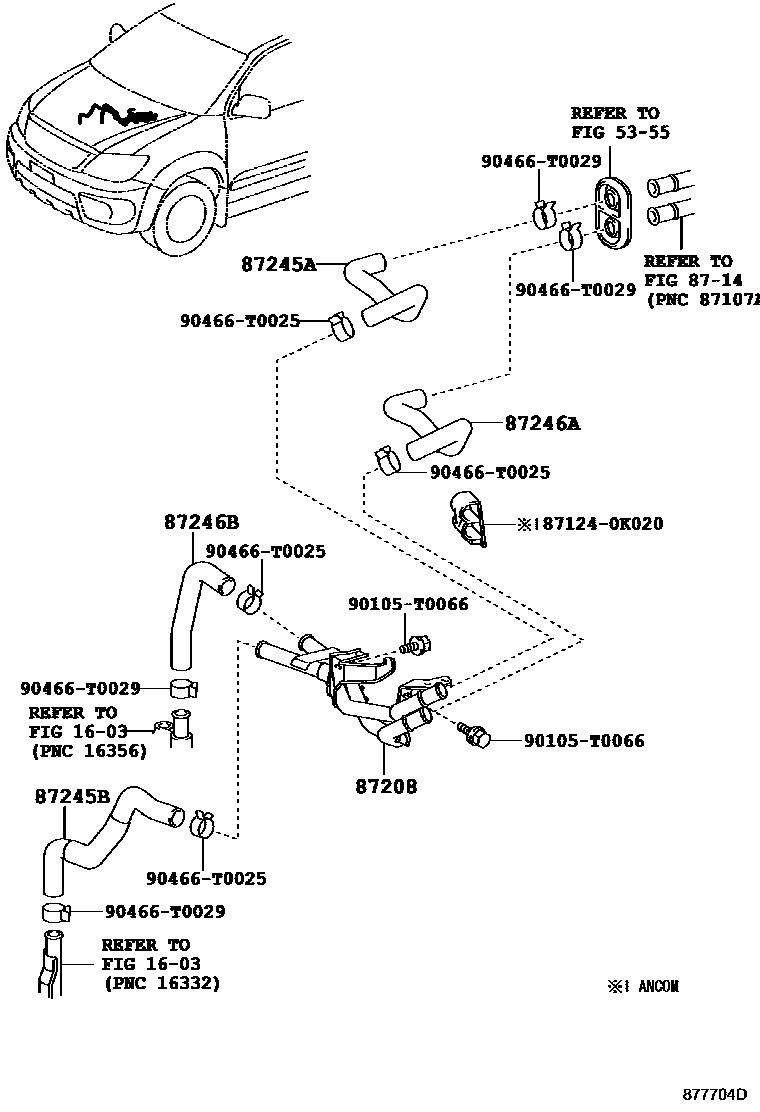

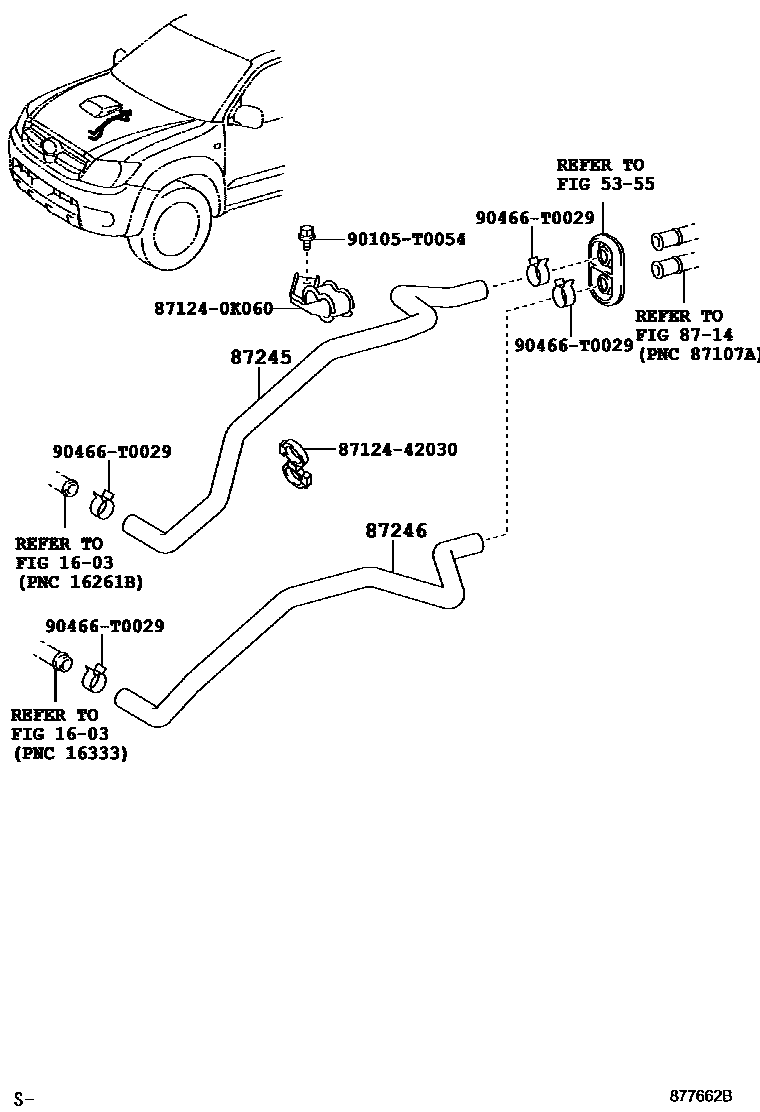

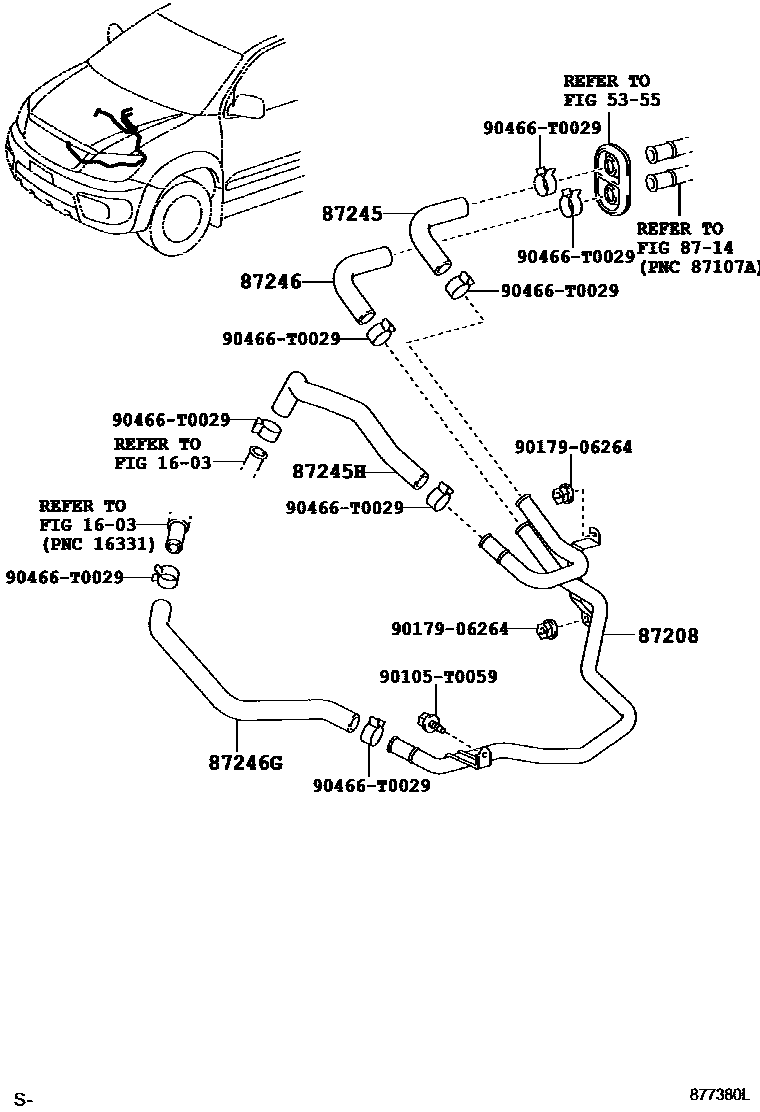

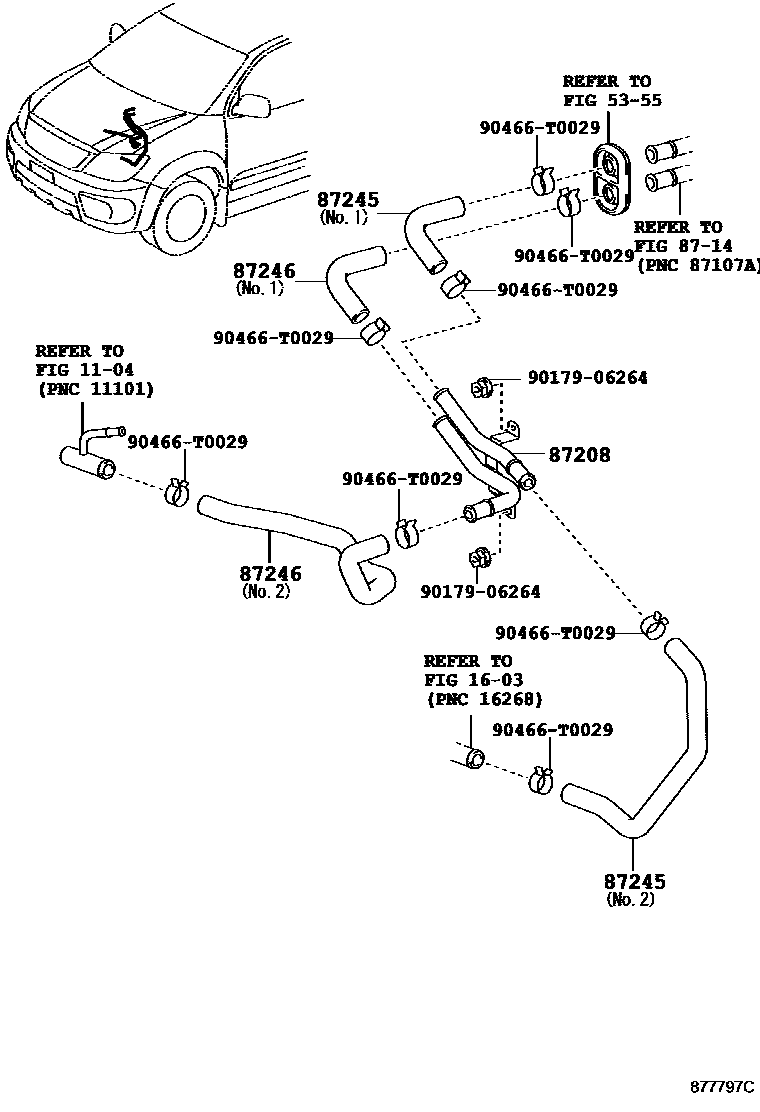

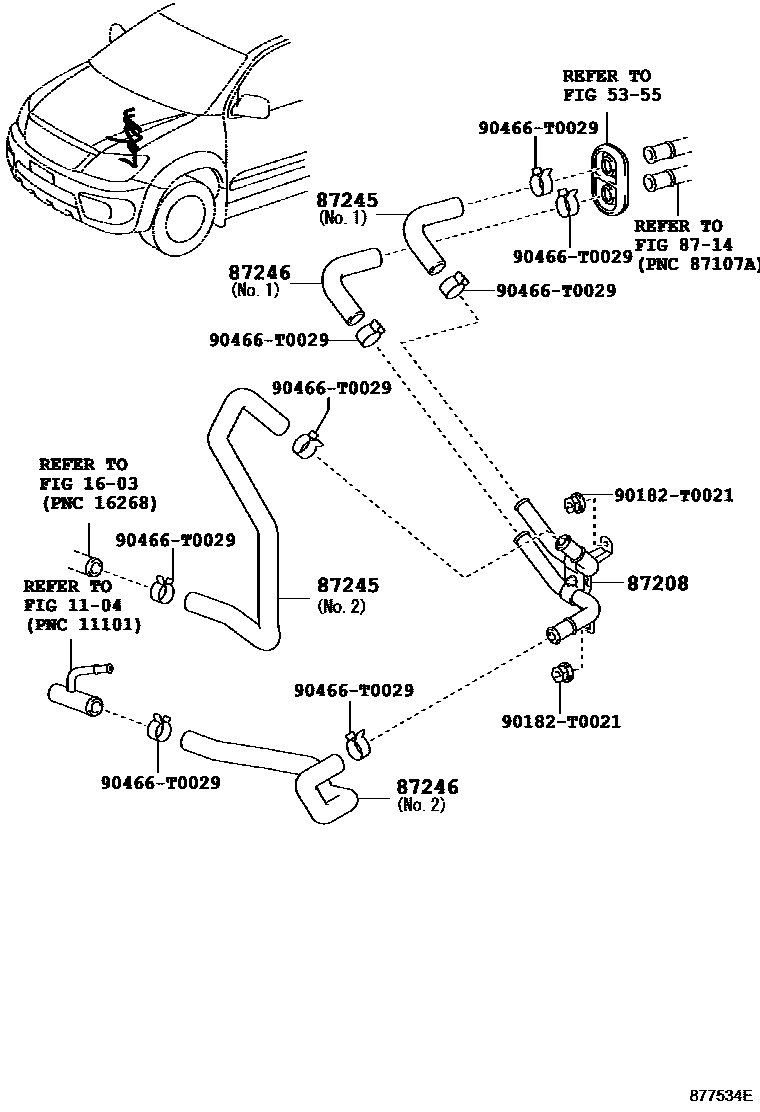

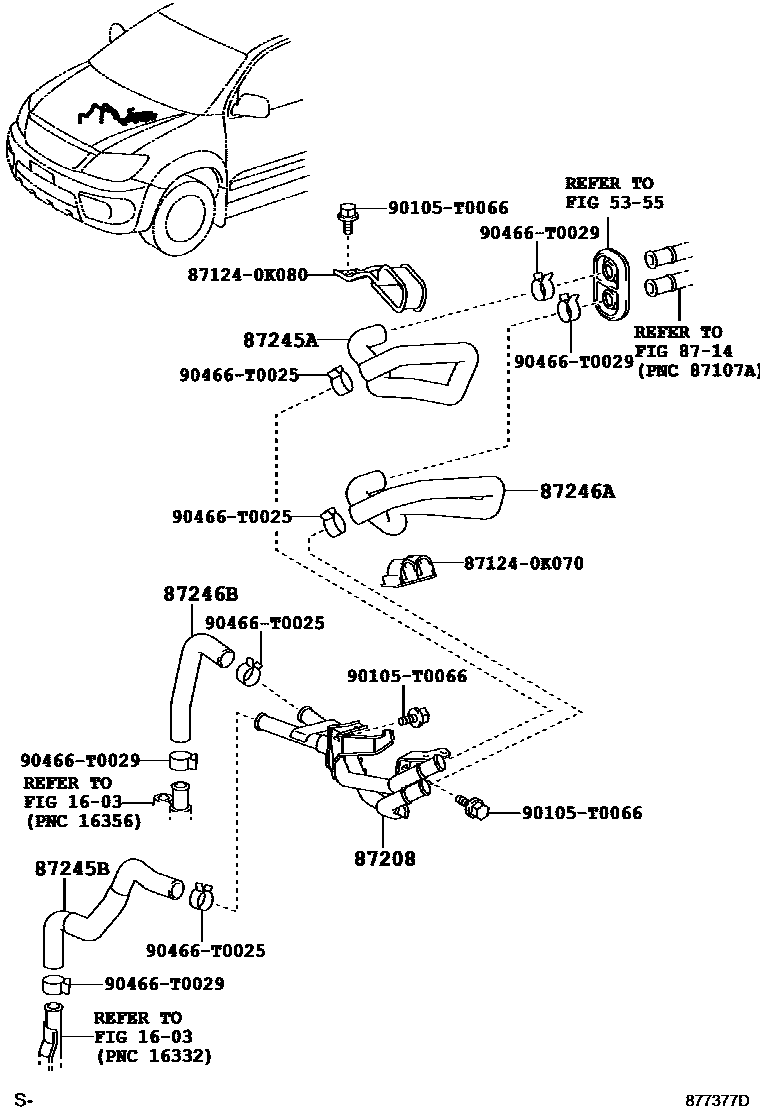

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87208 | Heater water pipe sub-assembly | 87208-0K010 · 87208-0K020 · 87208-0K030 · 87208-0K040 · 87208-0K050 · 87208-0K070 · 87208-0K080 · 87208-0K090 · 87208-0K100 · 87208-0K140 · 87208-0K200 |
| 87245 | Heater water inlet hose | 87245-0K050 · 87245-0K210 · 87245-0K220 · 87245-0K221 · 87245-0K300 · 87245-0K350 · 87245-0K410 · 87245-0K460 · 87245-0K570 · 87245-0K650 · 87245-0K830 |
| 87245A | Heater water inlet hose A | 87245-0K330 · 87245-0K610 |
| 87245B | Heater water inlet hose B | 87245-0K390 · 87245-0K600 |
| 87245H | Heater water inlet hose H | 87245-0K010 · 87245-0K030 · 87245-0K420 · 87245-0K760 · 87245-0K820 |
| 87246 | Heater outlet hose | 87245-0K040 · 87245-0K150 · 87245-0K300 · 87245-0K350 · 87245-0K400 · 87245-0K470 · 87245-0K650 · 87245-0K700 · 87245-0K830 |
| 87246A | Heater outlet hose A | 87245-0K340 · 87245-0K620 |
| 87246B | Heater outlet hose B | 87245-0K380 · 87245-0K590 |
| 87246G | Heater outlet hose G | 87245-0K310 · 87245-0K360 · 87245-0K660 · 87245-0K750 · 87245-0K840 |
