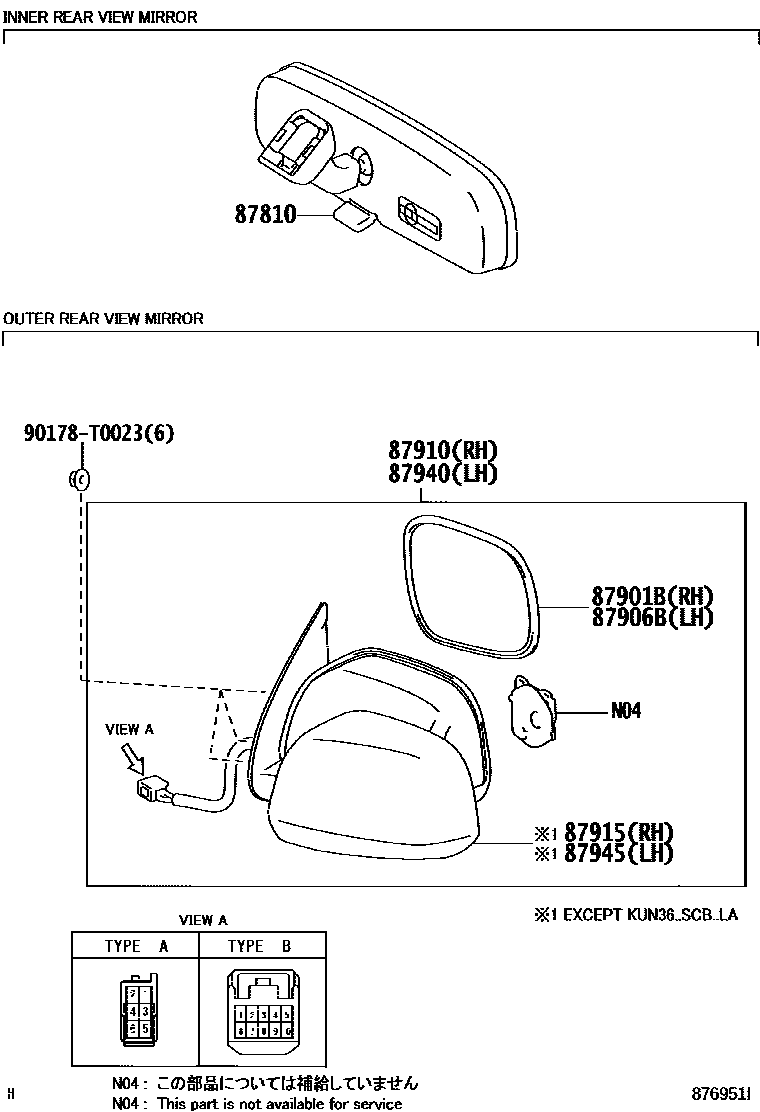

Toyota HILUX 后视镜 — Figure 8701
Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06041 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-0K010 · 87931-0K070 · 87931-0K130 · 87931-0K160 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-0K010 · 87961-0K050 · 87961-0K110 · 87961-0K140 |
| 87910 | Right exterior rearview mirror assembly | 87910-0K011 · 87910-0K012 · 87910-0K013 · 87910-0K021 · 87910-0K022 · 87910-0K023 · 87910-0K024 · 87910-0K050 · 87910-0K051 · 87910-0K061 · 87910-0K062 · 87910-0K070 · 87910-0K071 · 87910-0K081 · 87910-0K082 · 87910-0K130 · 87910-0K141 · 87910-0K142 · 87910-0K200 · 87910-0K201 · 87910-0K270 · 87910-0K271 · 87910-0K280 · 87910-0K370 · 87910-0K371 · 87910-0K410 · 87910-0K411 · 87910-0K420 · 87910-0K421 · 87910-0K422 · 87910-0K423 · 87910-0K550 · 87910-0K551 · 87910-0K560 · 87910-0K561 |
| 87915 | Right exterior rearview mirror cover | 87915-0K010 · 87915-0K030 · 87915-0K040 · 87915-0K120 |
| 87940 | Left exterior rearview mirror assembly | 87940-0K011 · 87940-0K012 · 87940-0K013 · 87940-0K021 · 87940-0K022 · 87940-0K023 · 87940-0K024 · 87940-0K030 · 87940-0K031 · 87940-0K041 · 87940-0K042 · 87940-0K050 · 87940-0K051 · 87940-0K061 · 87940-0K062 · 87940-0K110 · 87940-0K121 · 87940-0K122 · 87940-0K180 · 87940-0K181 · 87940-0K250 · 87940-0K251 · 87940-0K260 · 87940-0K350 · 87940-0K351 · 87940-0K390 · 87940-0K391 · 87940-0K400 · 87940-0K401 · 87940-0K402 · 87940-0K403 · 87940-0K530 · 87940-0K531 · 87940-0K540 · 87940-0K541 |
| 87945 | Left exterior rearview mirror cap | 87945-0K010 · 87945-0K030 · 87945-0K040 · 87945-0K120 |
