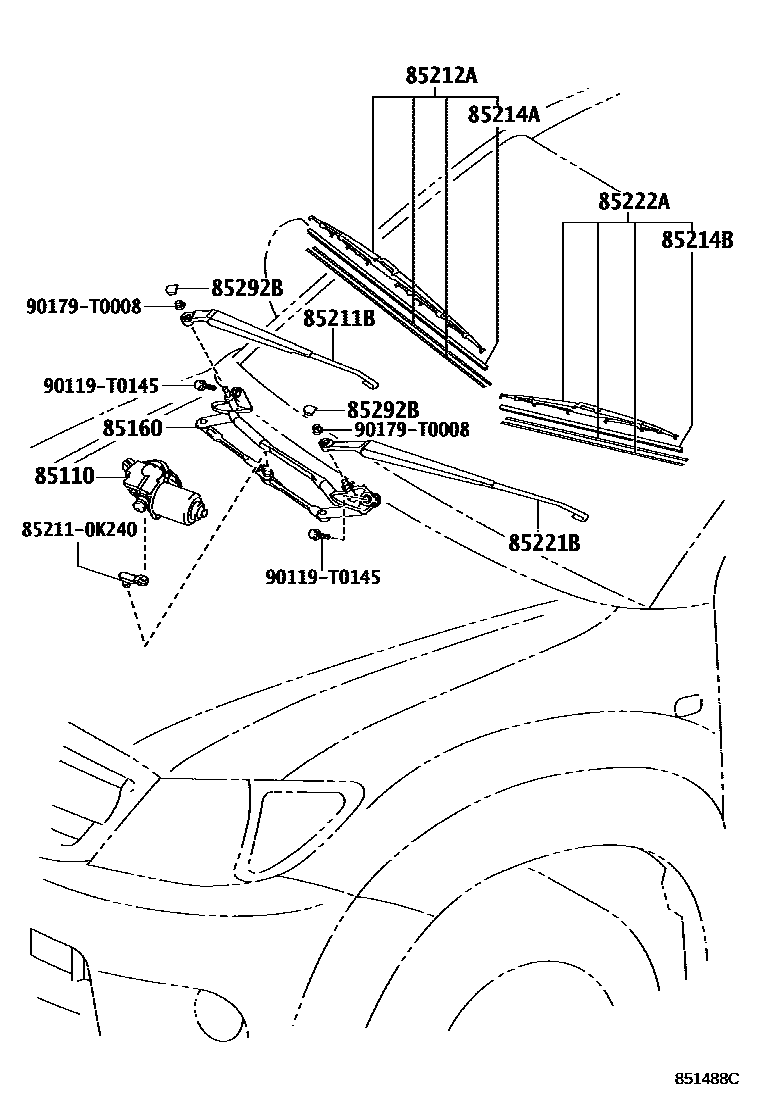

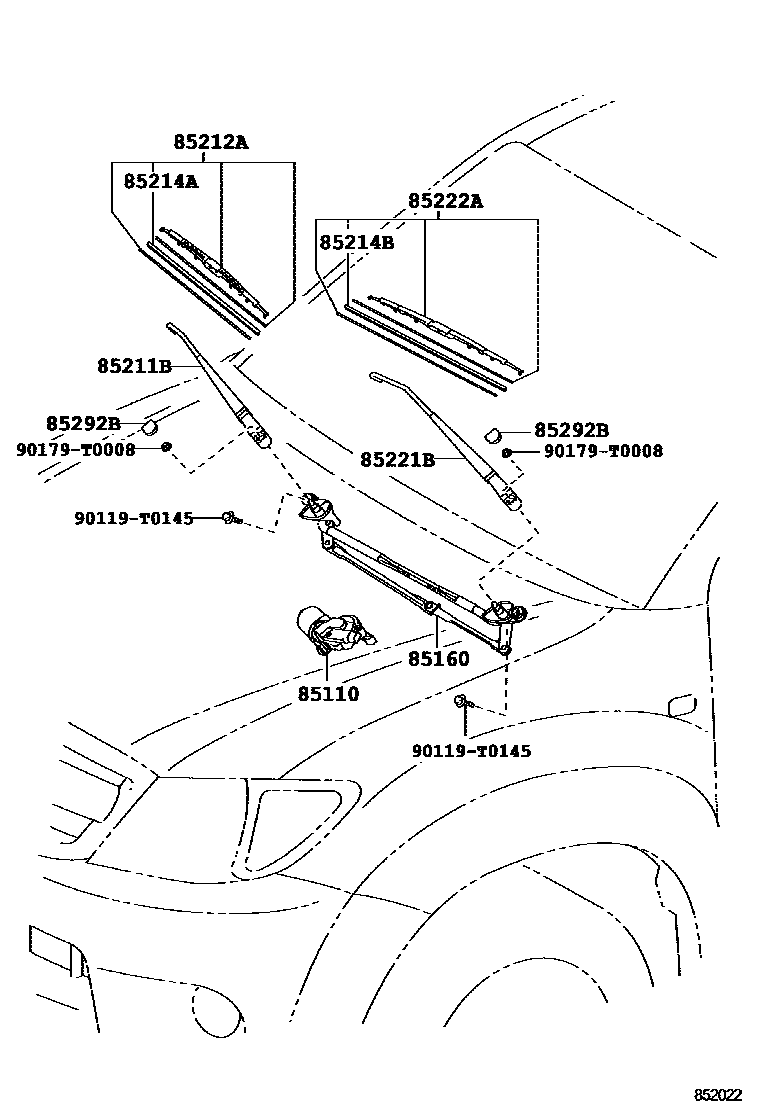

Toyota HILUX 挡风玻璃刮水器 — Figure 8501
Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0K010 · 85110-0K011 · 85110-0K020 · 85110-0K021 · 85110-0K030 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0K011 · 85150-0K021 · 85150-0K030 |
| 85211B | Right front wiper arm | 85211-0K010 · 85211-0K020 |
| 85212A | Right front wiper blade | 85212-0K010 · 85212-0K020 · 85212-0K090 · 85212-0K091 |
| 85214A | Right wiper rubber strip | 85214-0D070 · 85214-0K040 · 85214-0K050 · 85214-0K051 |
| 85214B | Left wiper rubber strip | 85214-06030 · 85214-0D070 · 85214-0K040 |
| 85221B | Left front wiper arm | 85221-0K010 · 85221-0K020 |
| 85222A | Left front wiper blade | 85222-0K010 · 85222-0K020 · 85222-0K090 |
| 85292B | Front wiper arm cap | 85292-0K030 |
