Toyota HILUX 巡航控制(自动行驶) — Figure 8408

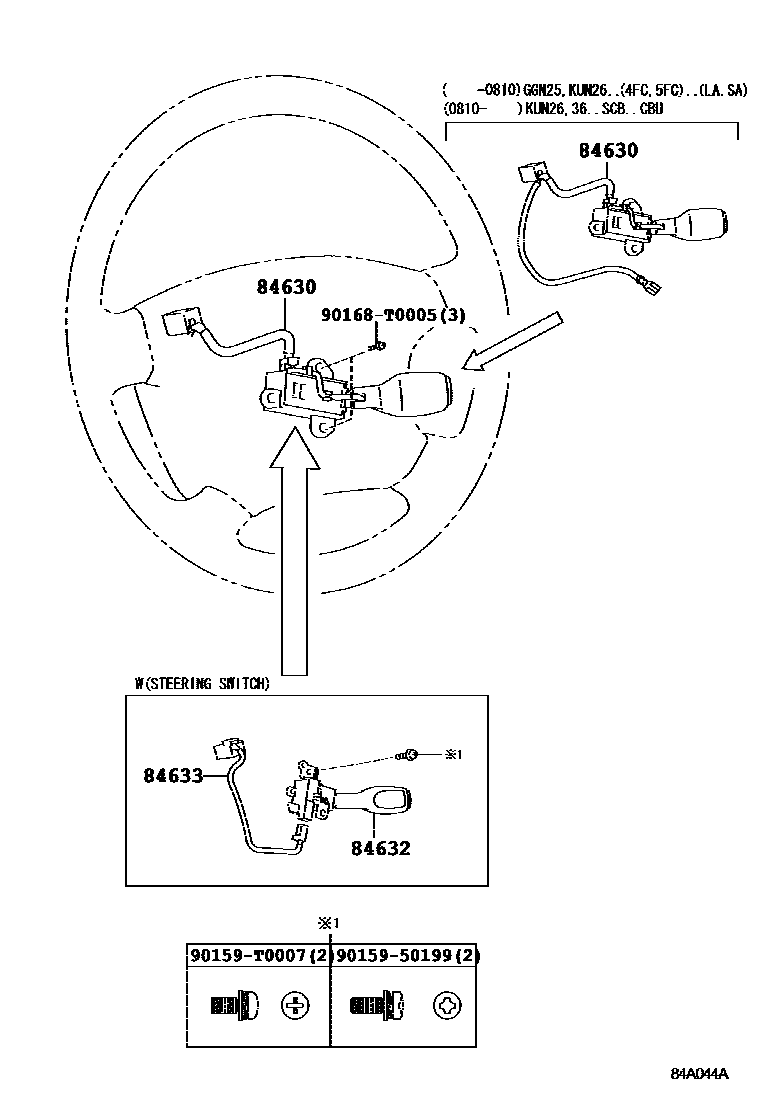

Toyota HILUX EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84630 | Cruise control main switch assembly | 84630-71010 · 84630-71030 |
| 84632 | cruise control master switch | 84632-34011 |
| 84633 | cruise control switch wiring harness | 84633-48020 |
