Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

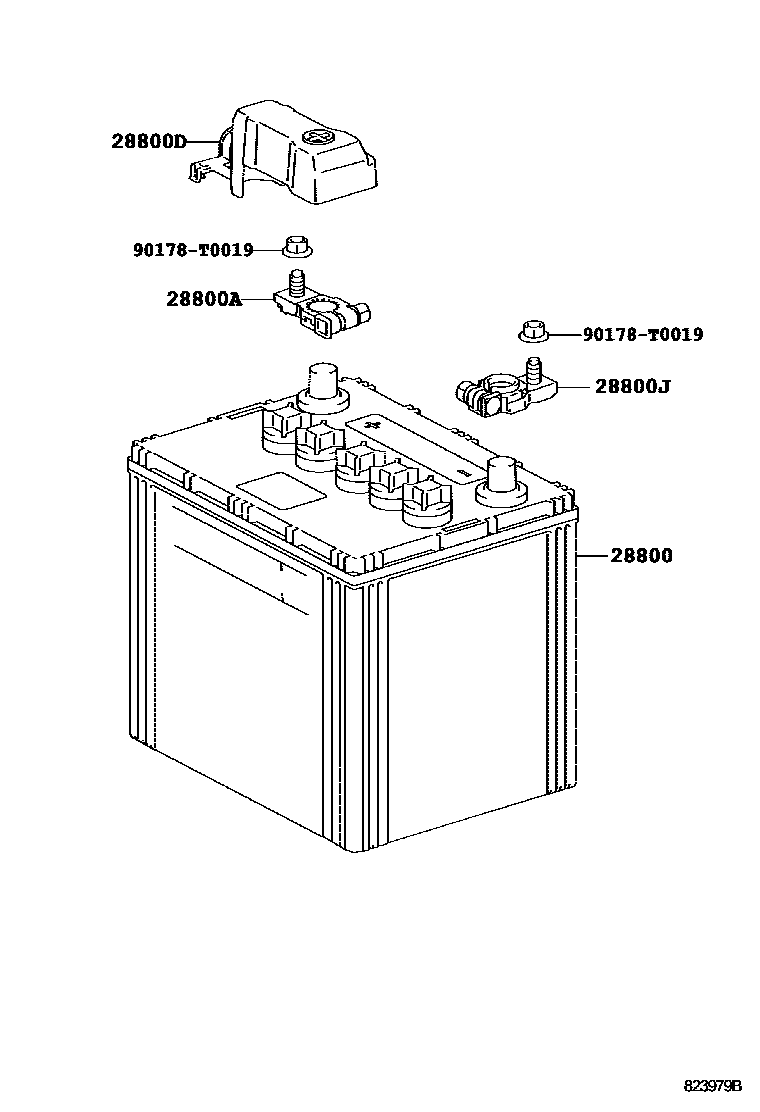

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-05080 · 28800-0C090 · 28800-0C120 · 28800-0C190 · 28800-0D110 · 28800-0L010 · 28800-0L030 · 28800-0L070 · 28800-0L120 · 28800-0L150 · 28800-0L230 · 28800-0L320 · 28800-0L360 · 28800-0L380 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05056 · 90982-05066 |
| 28800D | Connector cover (for battery terminals) | 82821-0K030 · 82821-0K040 |
| 28800J | battery negative terminal | 90982-06024 · 90982-06059 |
