Toyota HILUX 车内灯 — Figure 8121

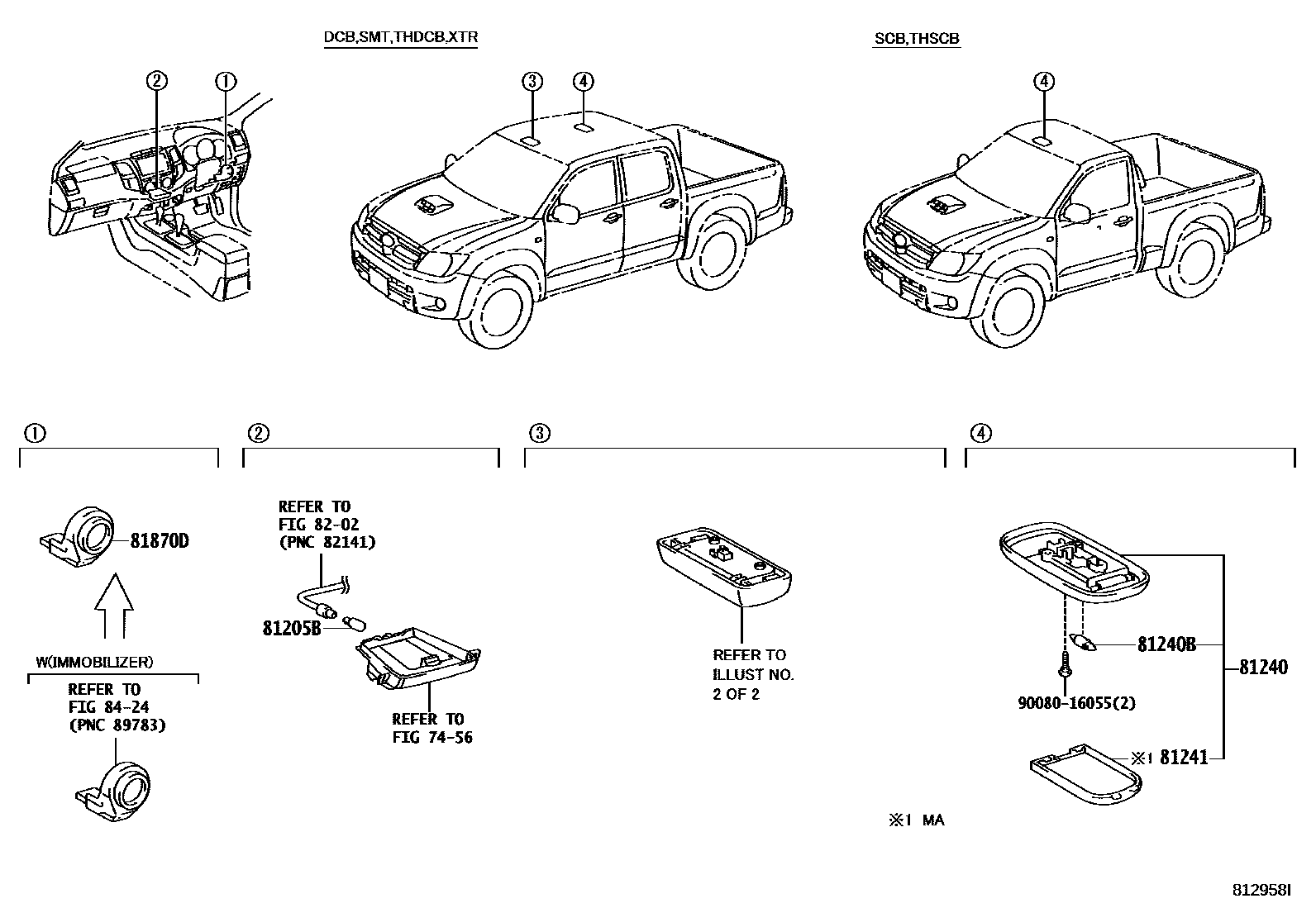

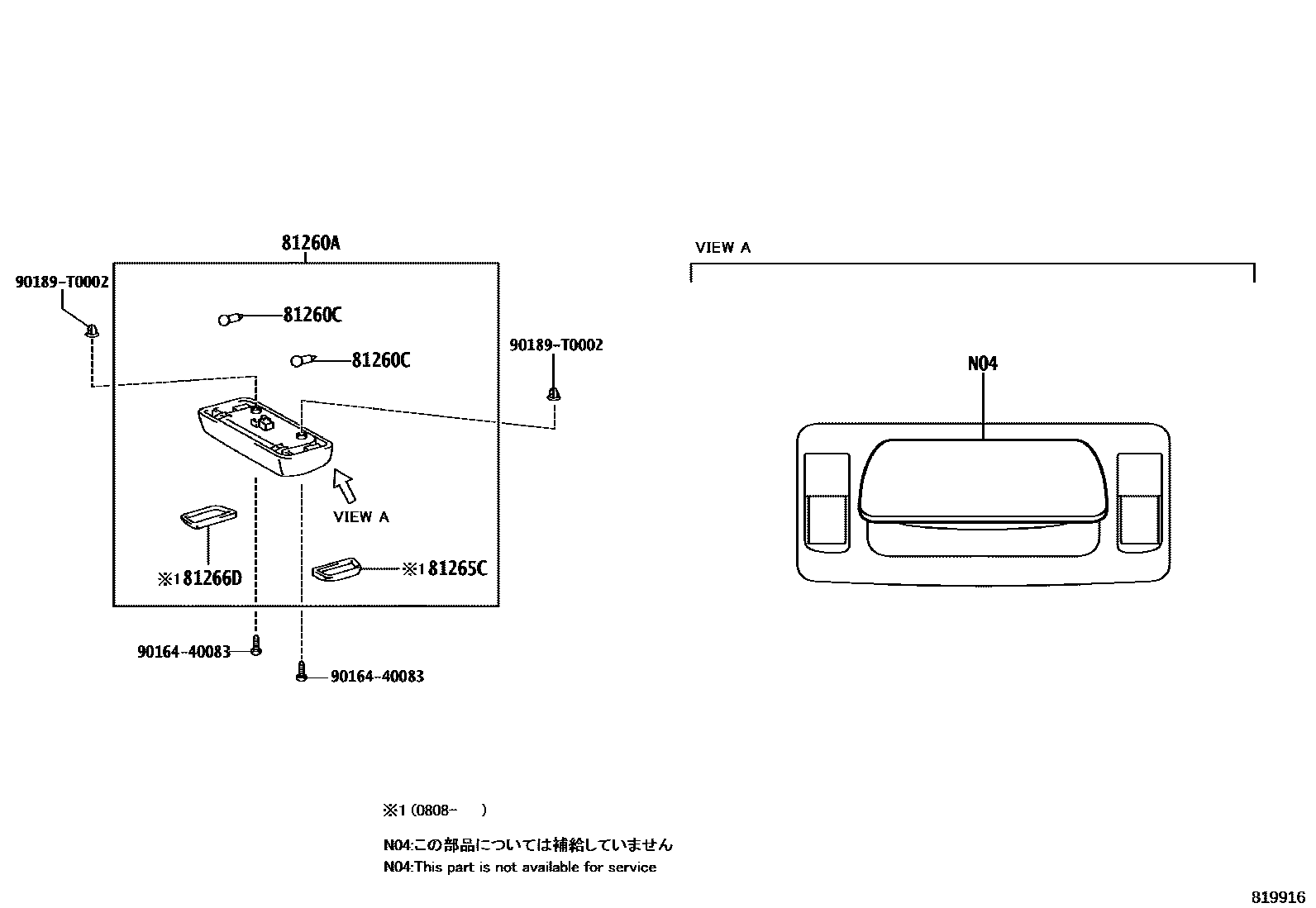

Toyota HILUX EPC diagram 8121, 车内灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11014 · 90981-TB001 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81260C | Light bulb (for reading lamp) | 90981-12020 |
| 81265C | No. 1 reading lamp shade | 81265-0K010 |
| 81266D | Reading lamp shade No. 2 | 81266-0K010 |
| 81870D | Lock core lighting assembly | 81870-0K010 |
