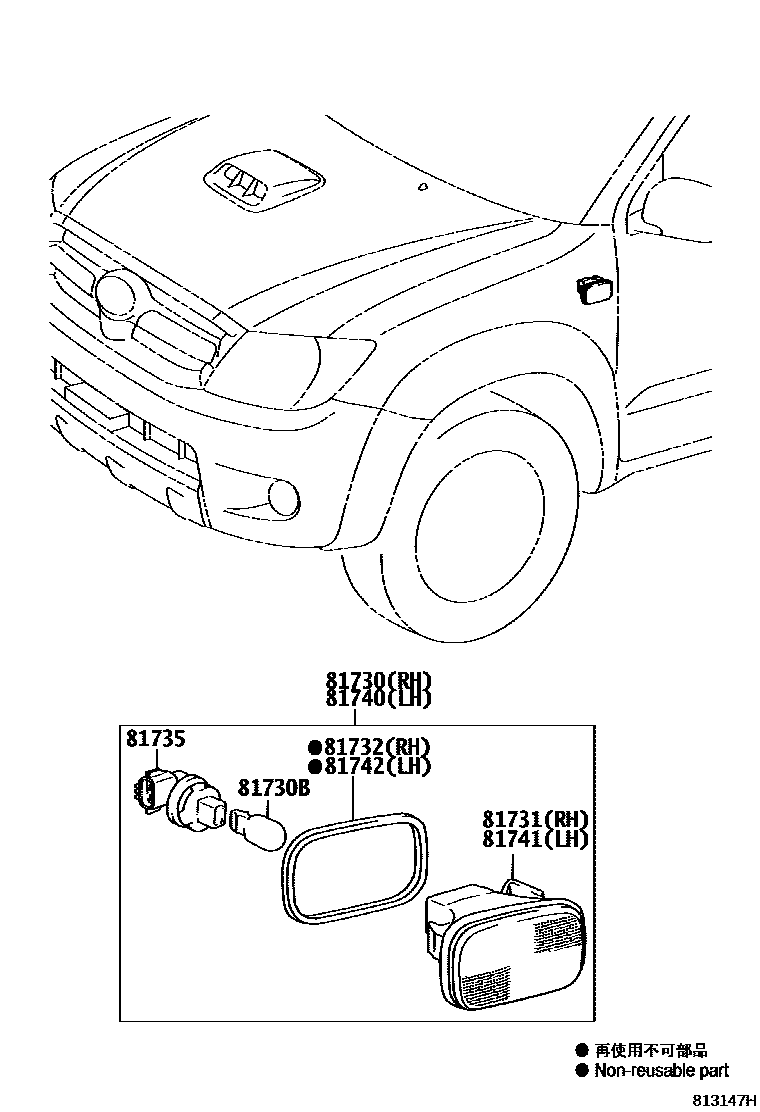

Toyota HILUX Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota HILUX EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-02040 · 81730-02050 |
| 81730B | Bulb (for side turn signal lights) | 90981-15012 |
| 81731 | Right side turn signal lamp cover | 81731-02040 · 81731-02050 · 81731-02060 |
| 81732 | Right side turn signal light housing gasket | 81732-02040 · 81732-02060 |
| 81735 | Side turn signal lamp holder and wiring harness | 90069-81032 · 90069-81041 · 90075-99012 |
| 81740 | Left side turn signal light assembly | 81730-02040 · 81730-02050 |
| 81741 | Left side turn signal lamp cover | 81731-02040 · 81731-02050 · 81731-02060 |
| 81742 | Left side turn signal light housing gasket | 81732-02040 · 81732-02060 |
