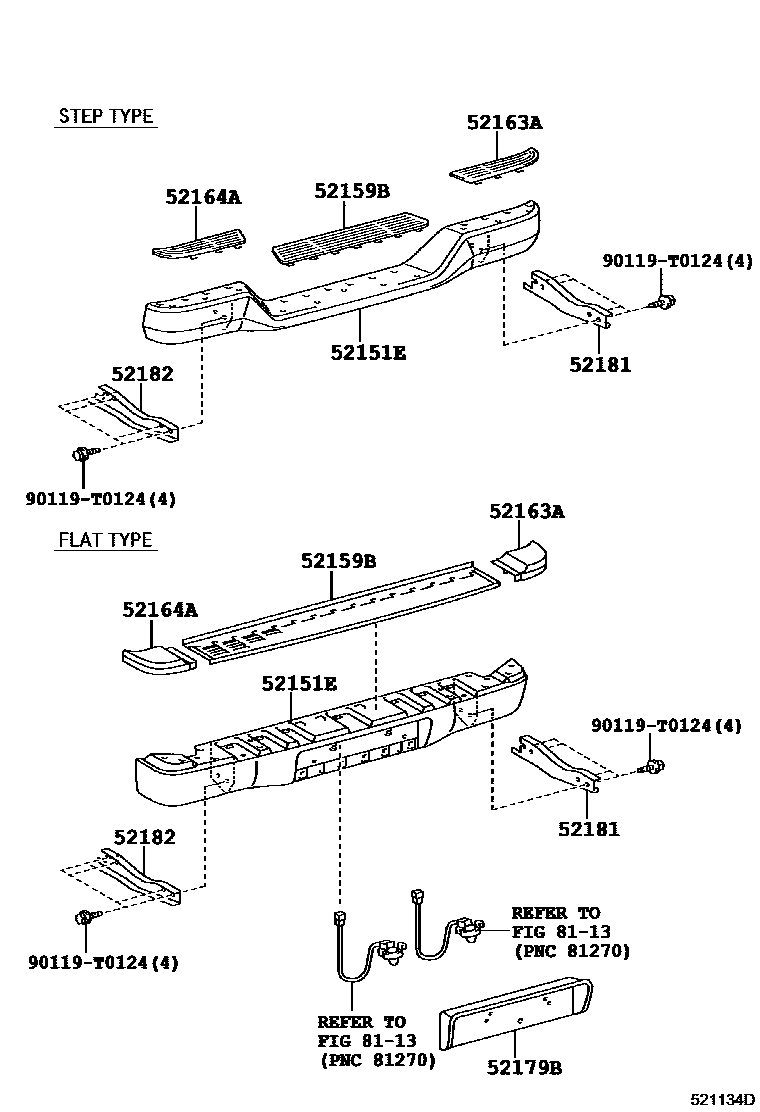

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52151E | rear bumper | 52105-04010 · 52105-04020 · 52105-04040 · 52105-04060 · 52105-0K010 · 52105-0K020 · 52105-0K021 · 52105-0K030 · 52105-0K040 · 52105-0K050 |
| 52159B | rear bumper bezel | 52159-04010 · 52159-0K010 · 52159-35030 |
| 52163A | Rear bumper right side fender | 52163-04010 · 52163-0K010 · 52163-35030 |
| 52164A | Rear bumper left fender | 52164-04010 · 52164-0K010 · 52164-35030 |
| 52179B | rear bumper panel | 52179-0K010 · 52179-0K020 |
| 52181 | Rear bumper right arm | 52181-0K010 · 52181-0K020 · 52181-0K030 |
| 52182 | Rear bumper left arm | 52182-0K010 · 52182-0K020 · 52182-0K030 |
