Toyota HILUX 前保险杠及附件 — Figure 5252

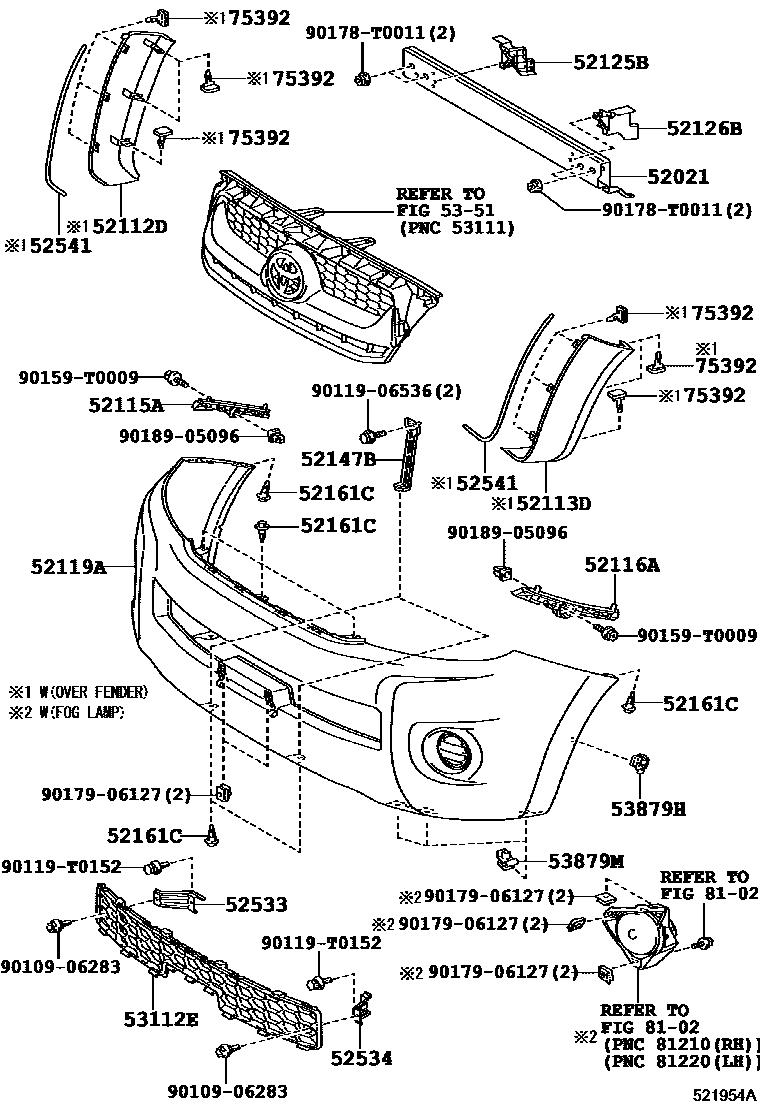

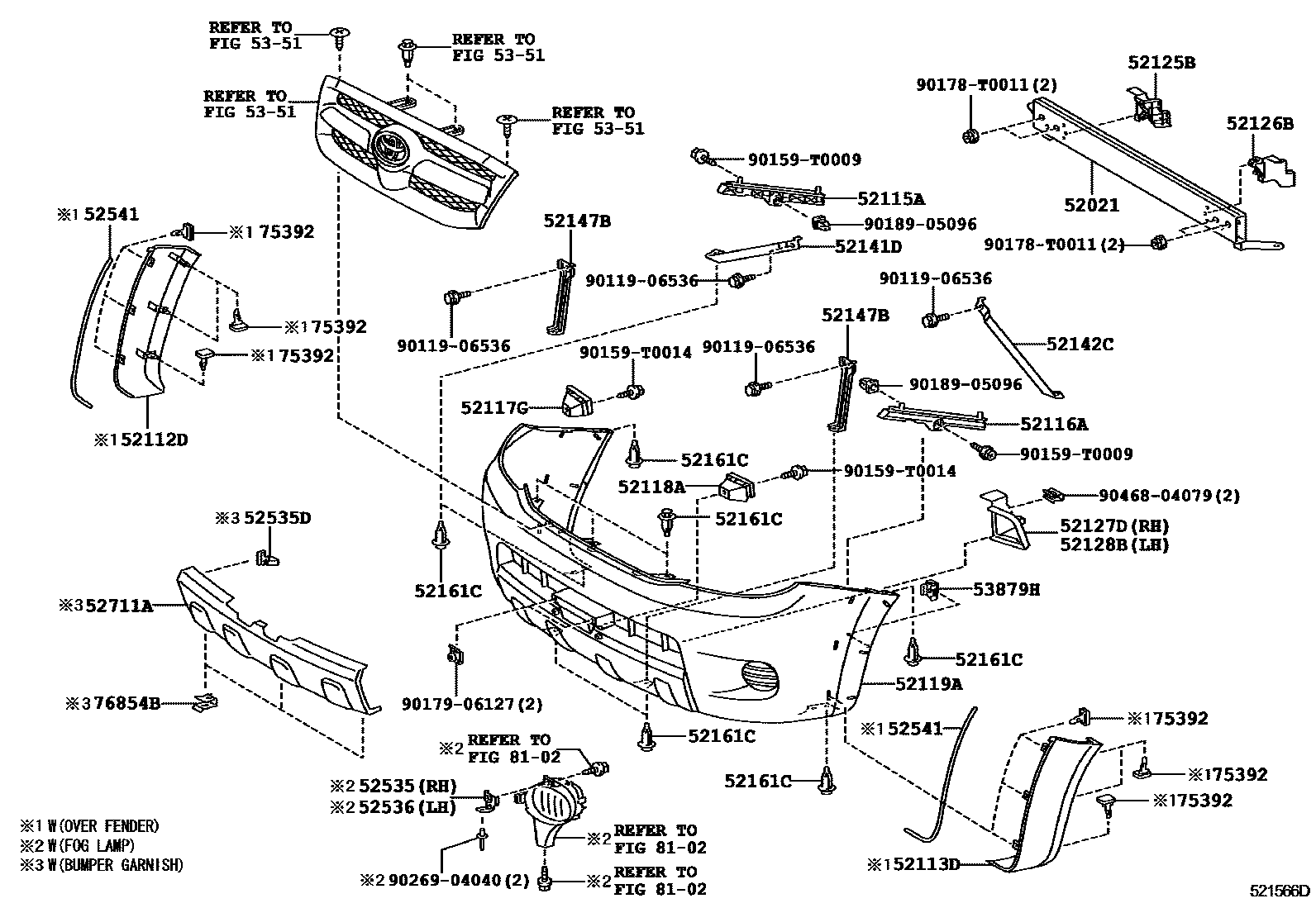

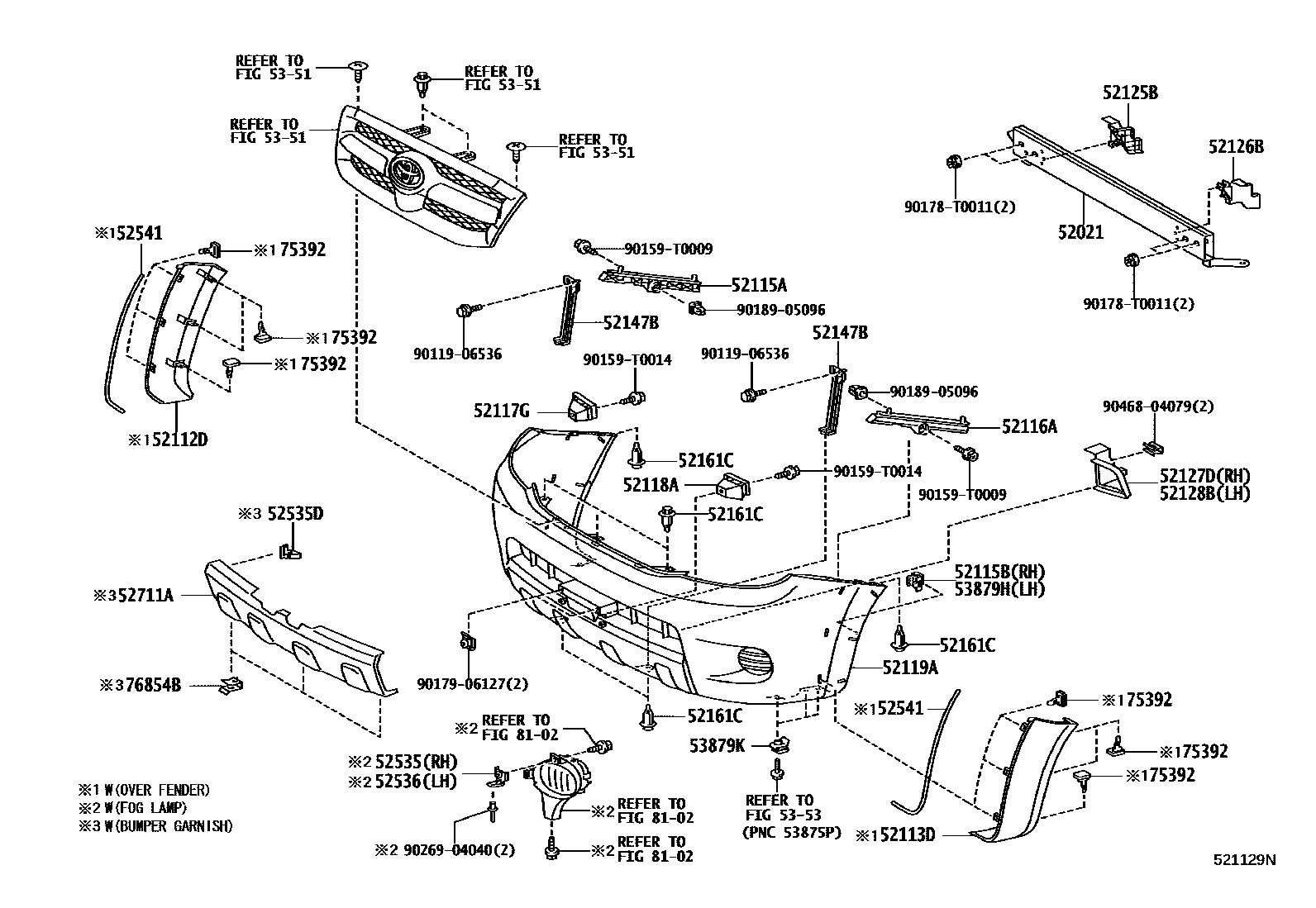

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0K020 · 52021-0K022 · 52021-0K030 |
| 52112D | Front bumper right extension | 52112-0K010 · 52112-0K011 · 52112-0K030 · 52112-0K031 · 52112-0K090 · 52112-0K110 · 52112-0K906 |
| 52113D | Front bumper left extension | 52113-0K010 · 52113-0K030 · 52113-0K040 · 52113-0K070 · 52113-0K905 |
| 52115A | Front bumper right side bracket | 52115-0K010 · 52115-0K011 · 52115-0K040 · 52115-0K041 · 52115-0K050 · 52115-0K051 |
| 52115B | Front bumper extension section No. 1 fixing piece | 52115-0P010 |
| 52116A | Front bumper left bracket | 52116-0K010 · 52116-0K011 · 52116-0K040 · 52116-0K041 · 52116-0K050 · 52116-0K051 |
| 52117G | Front bumper extension No. 2 right side liner | 52117-0K010 |
| 52118A | Front bumper extension No. 2 left side liner | 52118-0K010 |
| 52119A | front bumper cover | 52119-0K010 · 52119-0K011 · 52119-0K020 · 52119-0K021 · 52119-0K350 · 52119-0K360 · 52119-0K935 · 52119-0K936 · 52119-0K946 · 52119-0K947 · 52119-0K959 · 52119-0K960 · 52119-0K967 · 52119-0K968 · 52119-0K972 · 52119-0K974 |
| 52125B | Front bumper reinforcement right extension section | 52125-0K010 |
| 52126B | Front bumper reinforcement left extension section | 52126-0K010 |
| 52127D | Front bumper right hole cover | 52127-0K010 |
| 52128B | Front bumper left hole cover | 52128-0K010 |
| 52141D | Front bumper right side stay | 52141-0K010 |
| 52142C | Front bumper left stay | 52142-0K010 |
| 52147B | Front bumper mounting bracket | 52147-0K010 |
| 52161C | front bumper insert | 52161-0K040 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-0K030 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52534-0K010 |
| 52535 | Front bumper right side fixing bracket | 52535-0K010 |
| 52535D | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-0K010 |
| 52711A | front bumper decorative panel | 52711-71010 |
| 53112E | No. 1 radiator lower grille | 53112-0K010 · 53112-0K040 |
| 53879H | Front fender lining fixing parts | 53879-0K010 |
| 53879K | Front fender lining fixing parts | 53879-0K020 · 90467-05138 |
| 53879M | Front fender lining fixing parts | 90467-05138 |
| 75392 | External protective strip fixings | 75392-35200 |
| 76854B | No. 2 front spoiler fixing piece | 76854-44010 |
