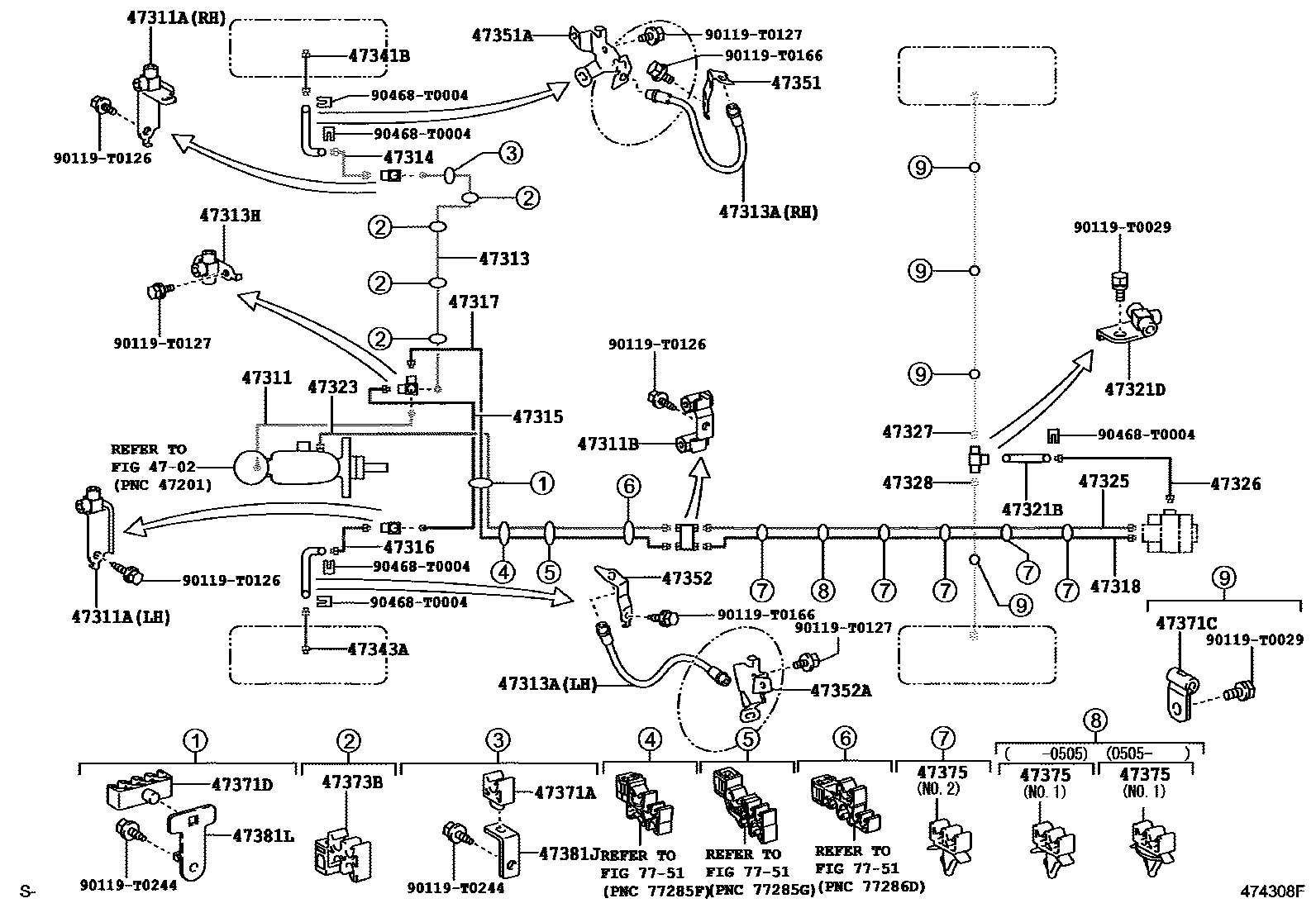

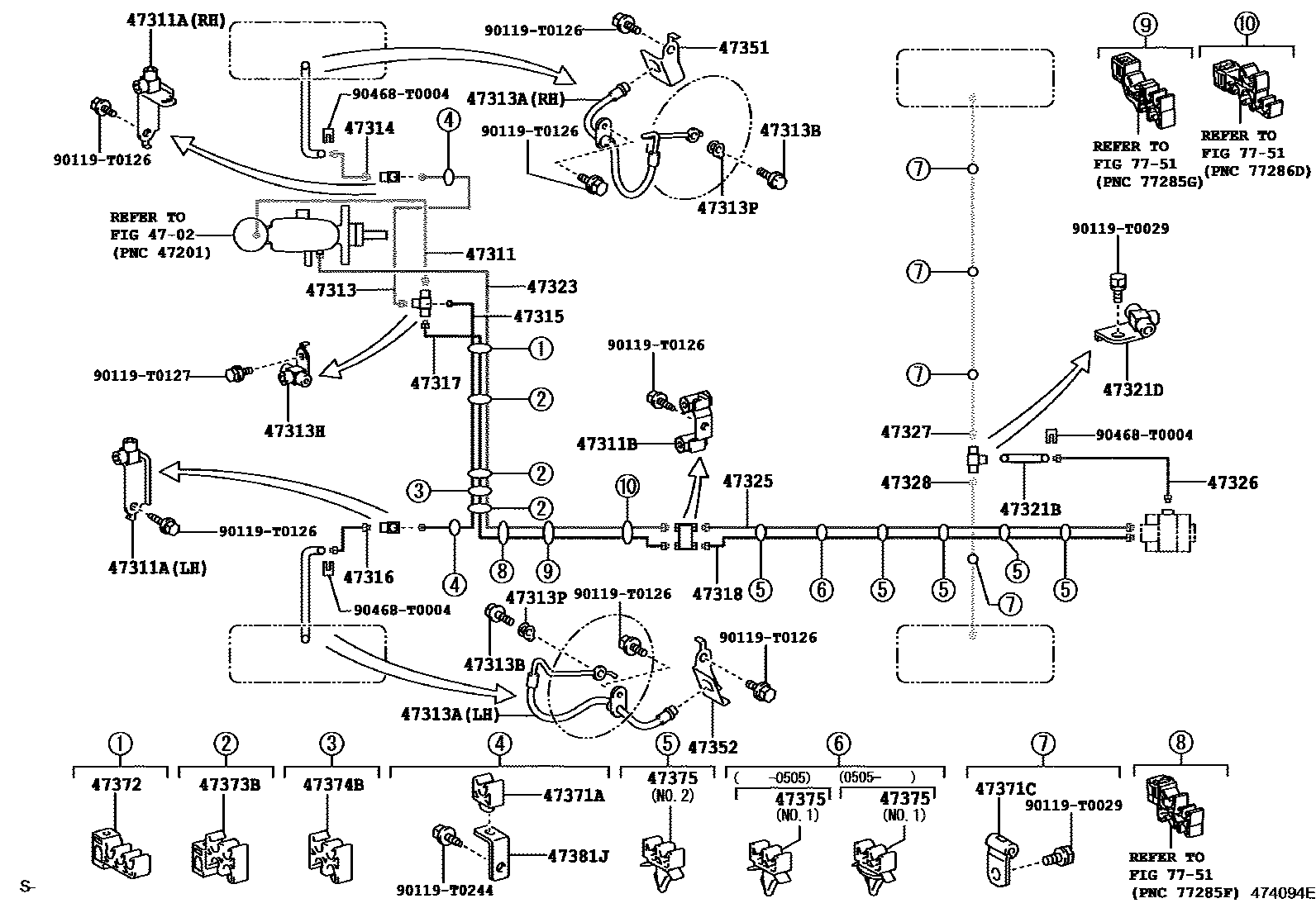

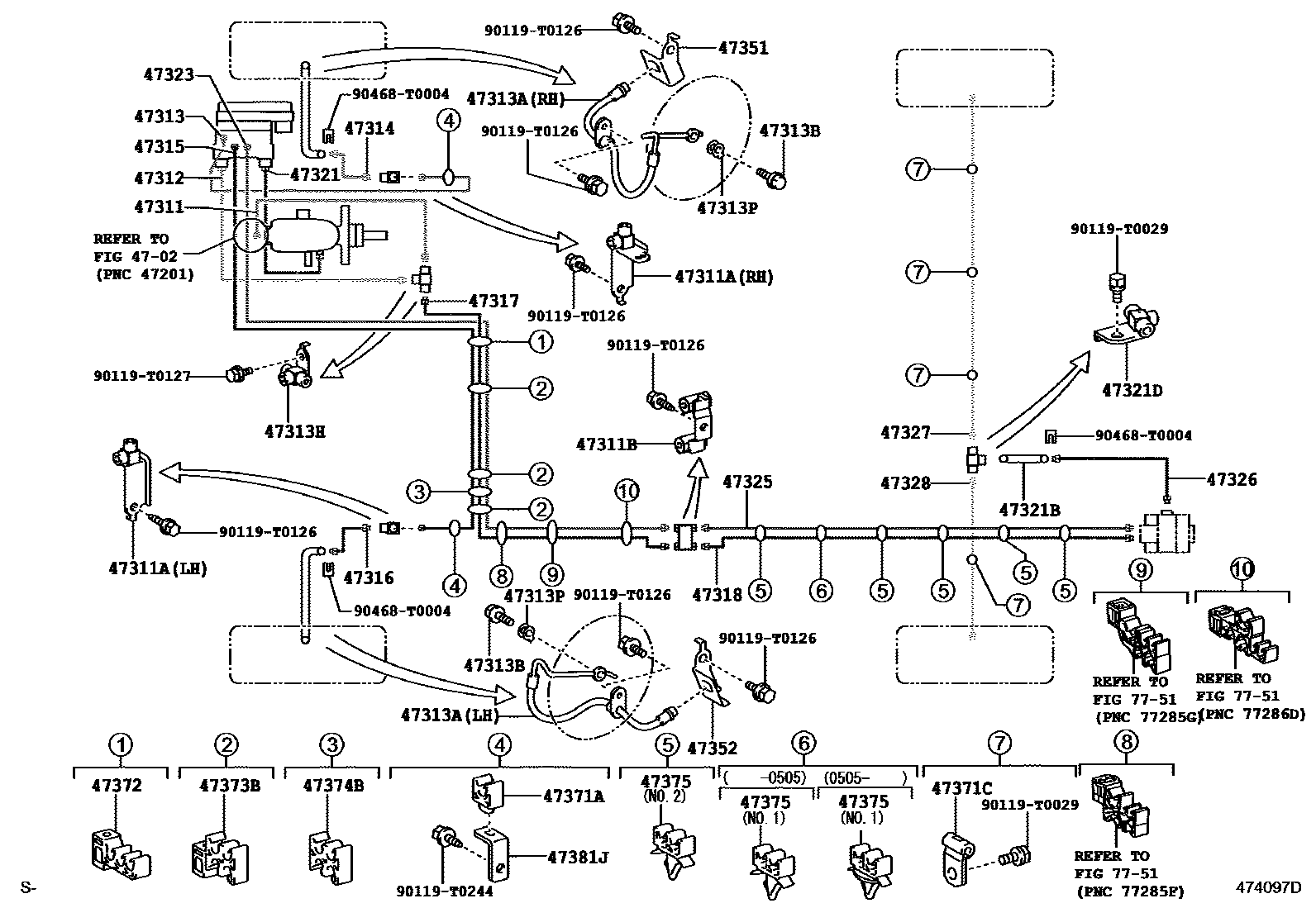

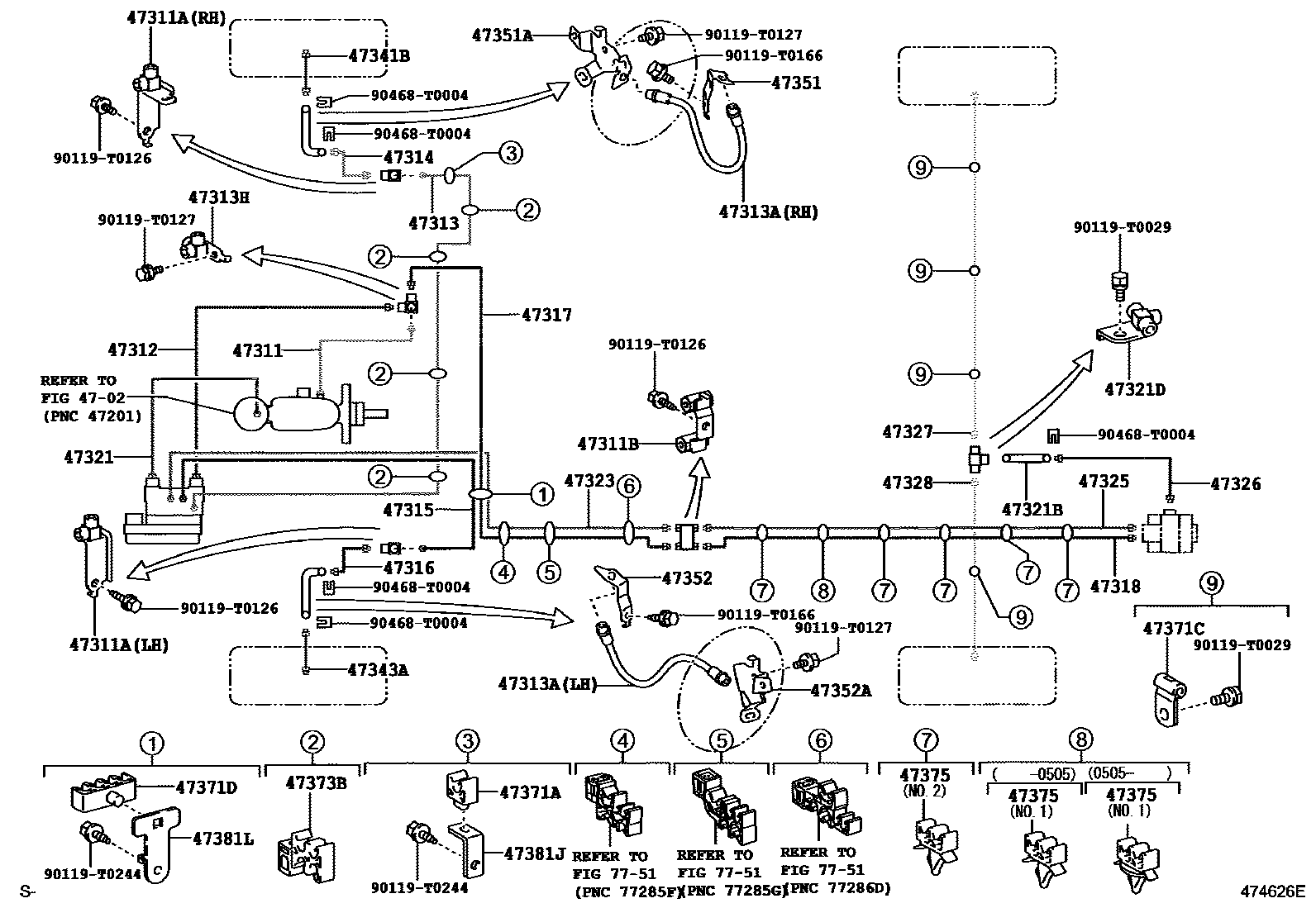

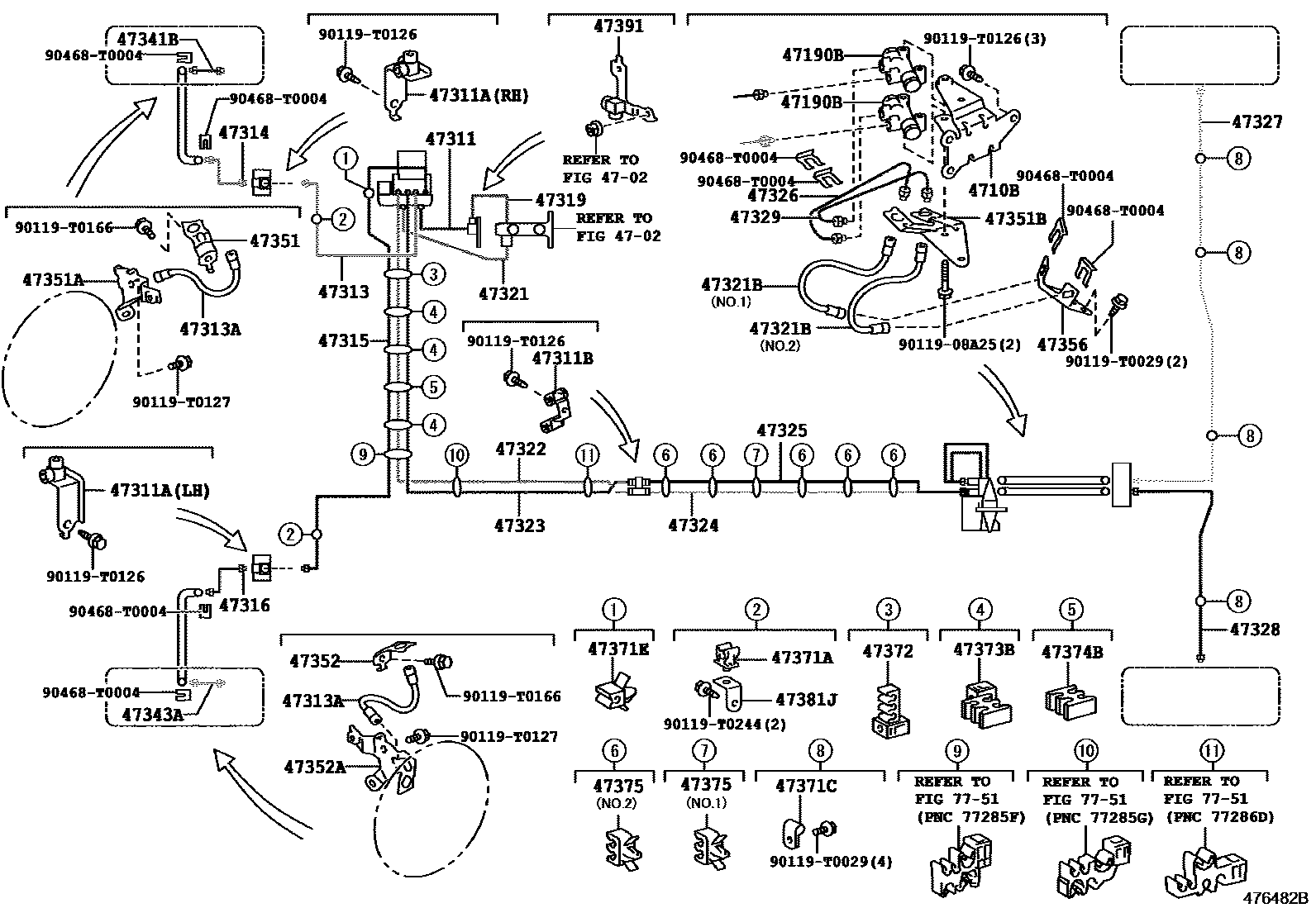

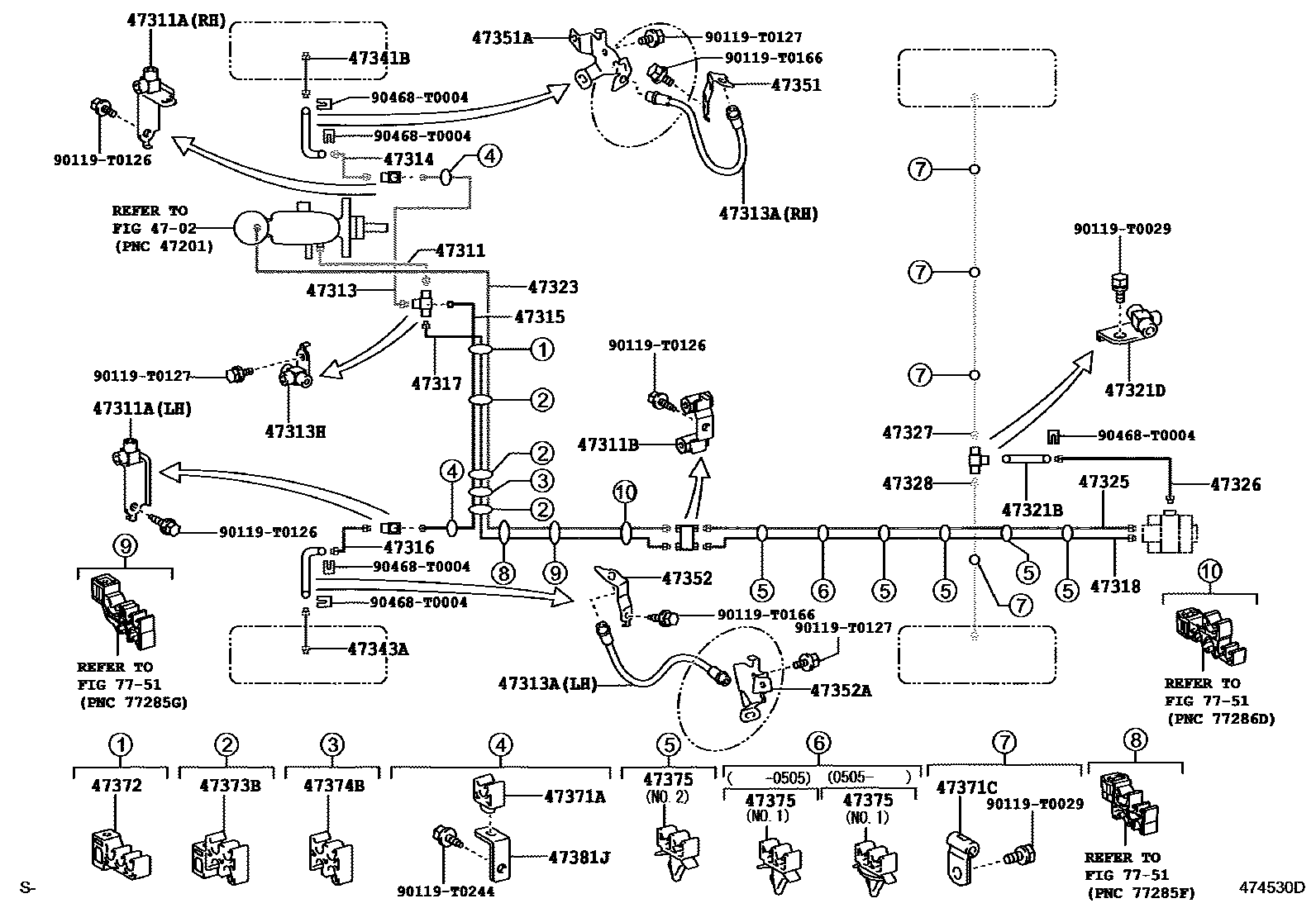

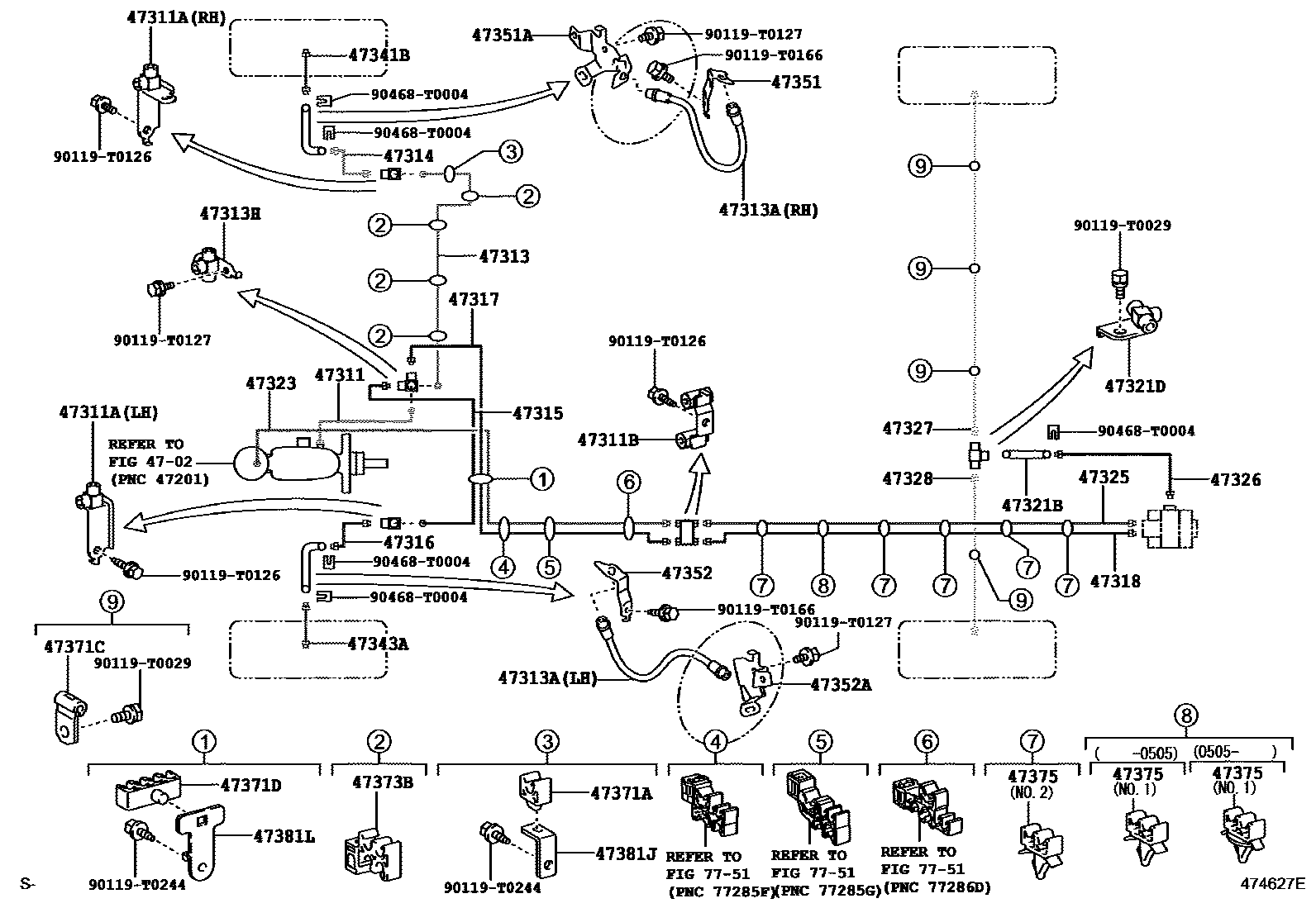

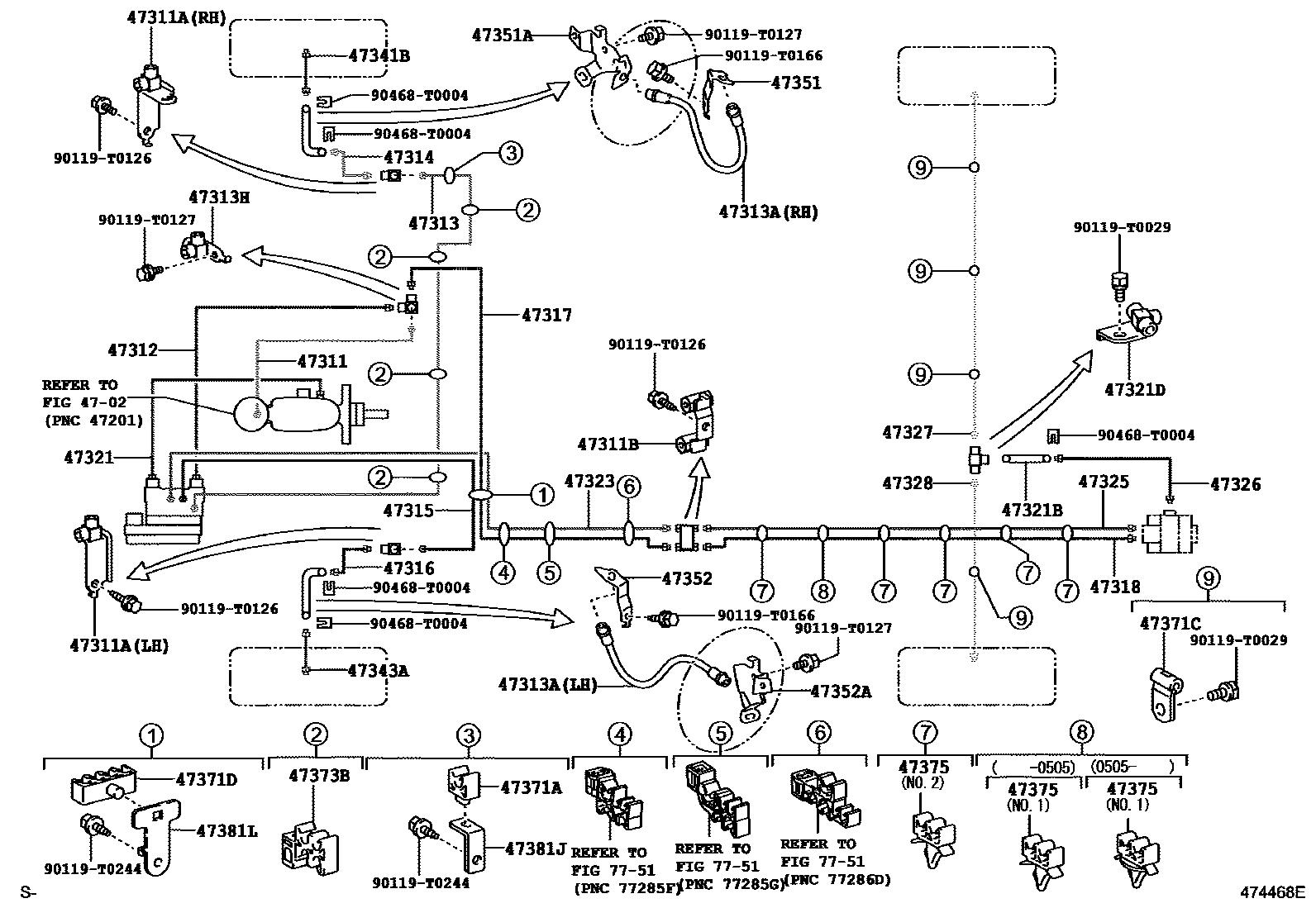

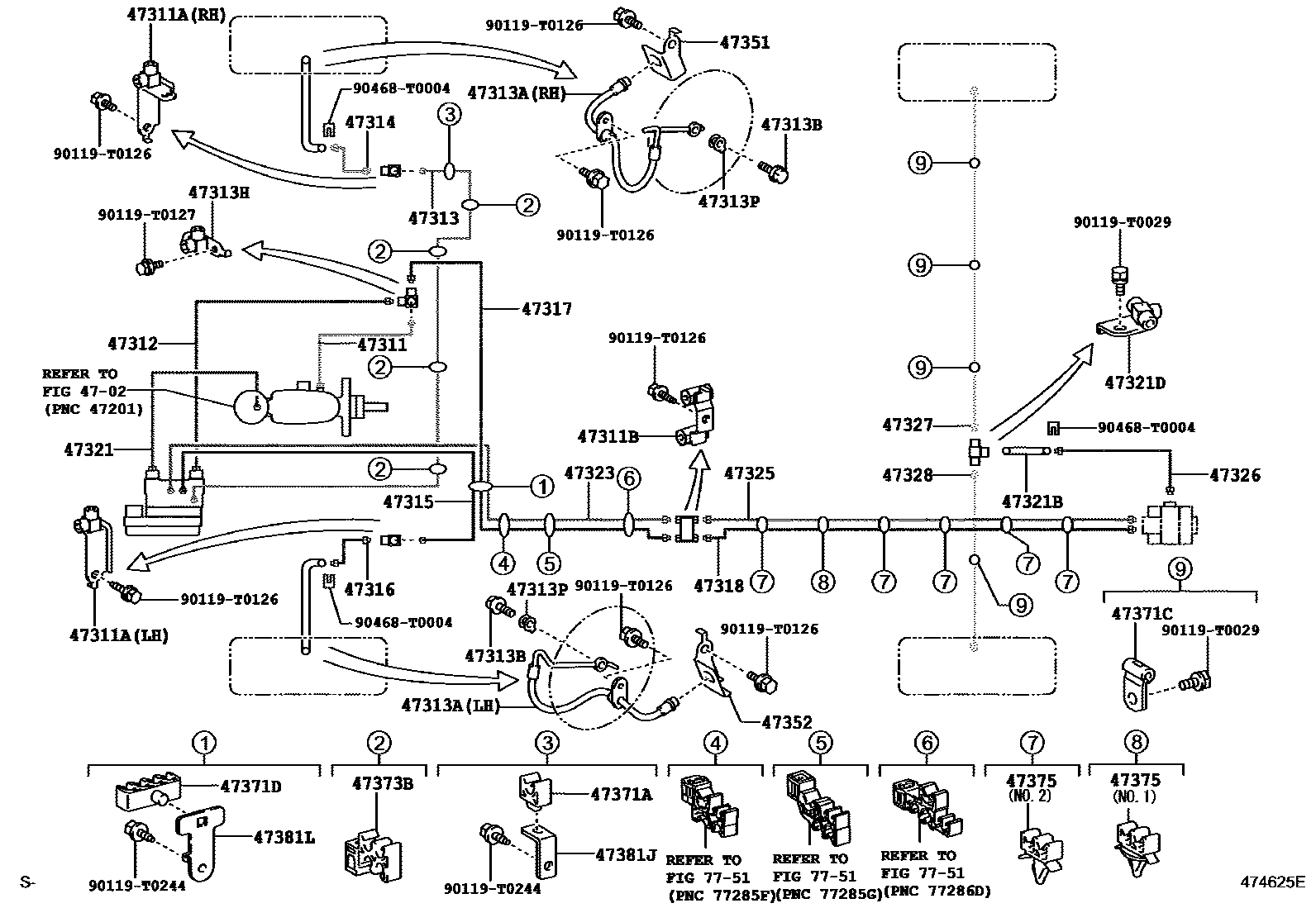

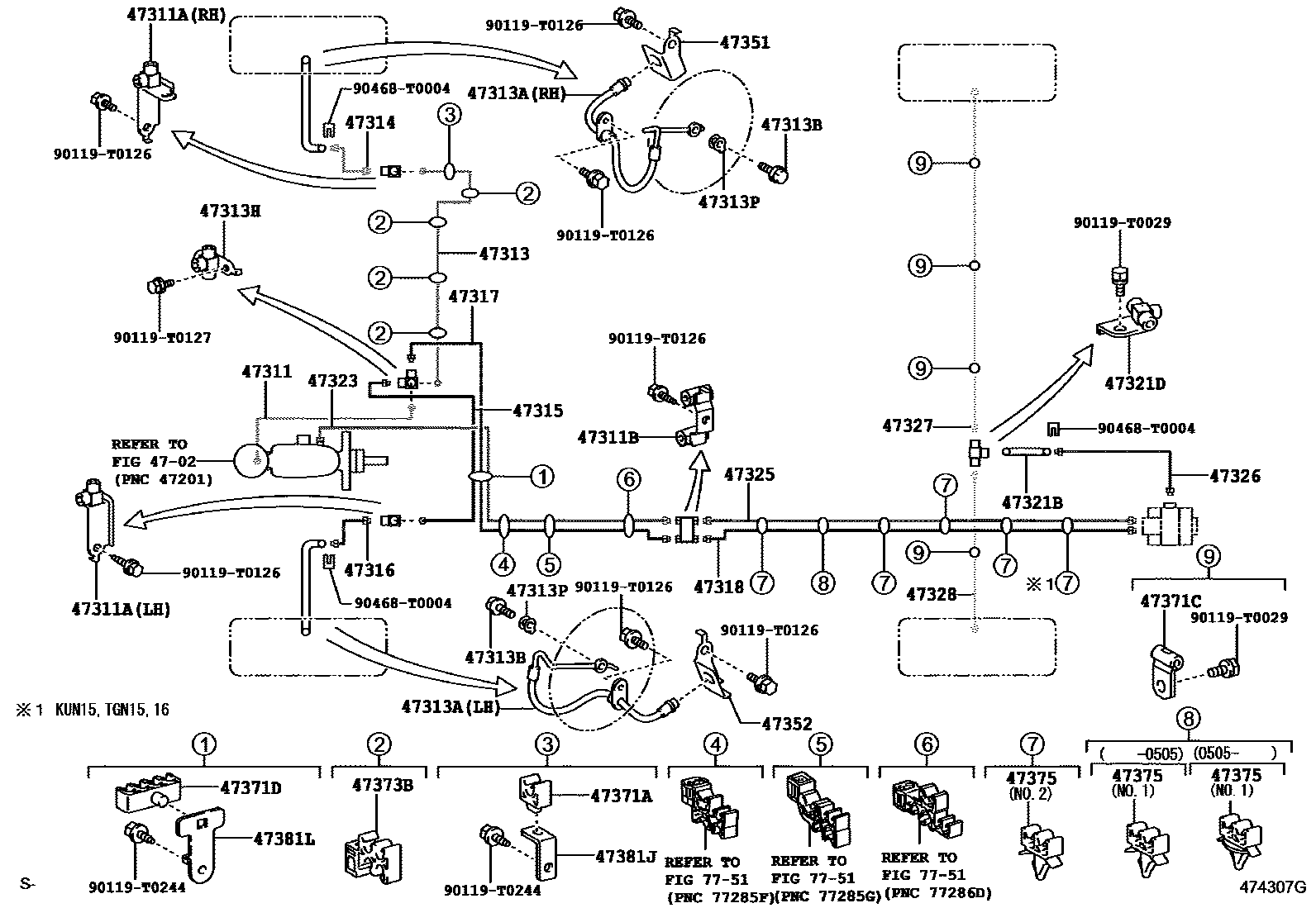

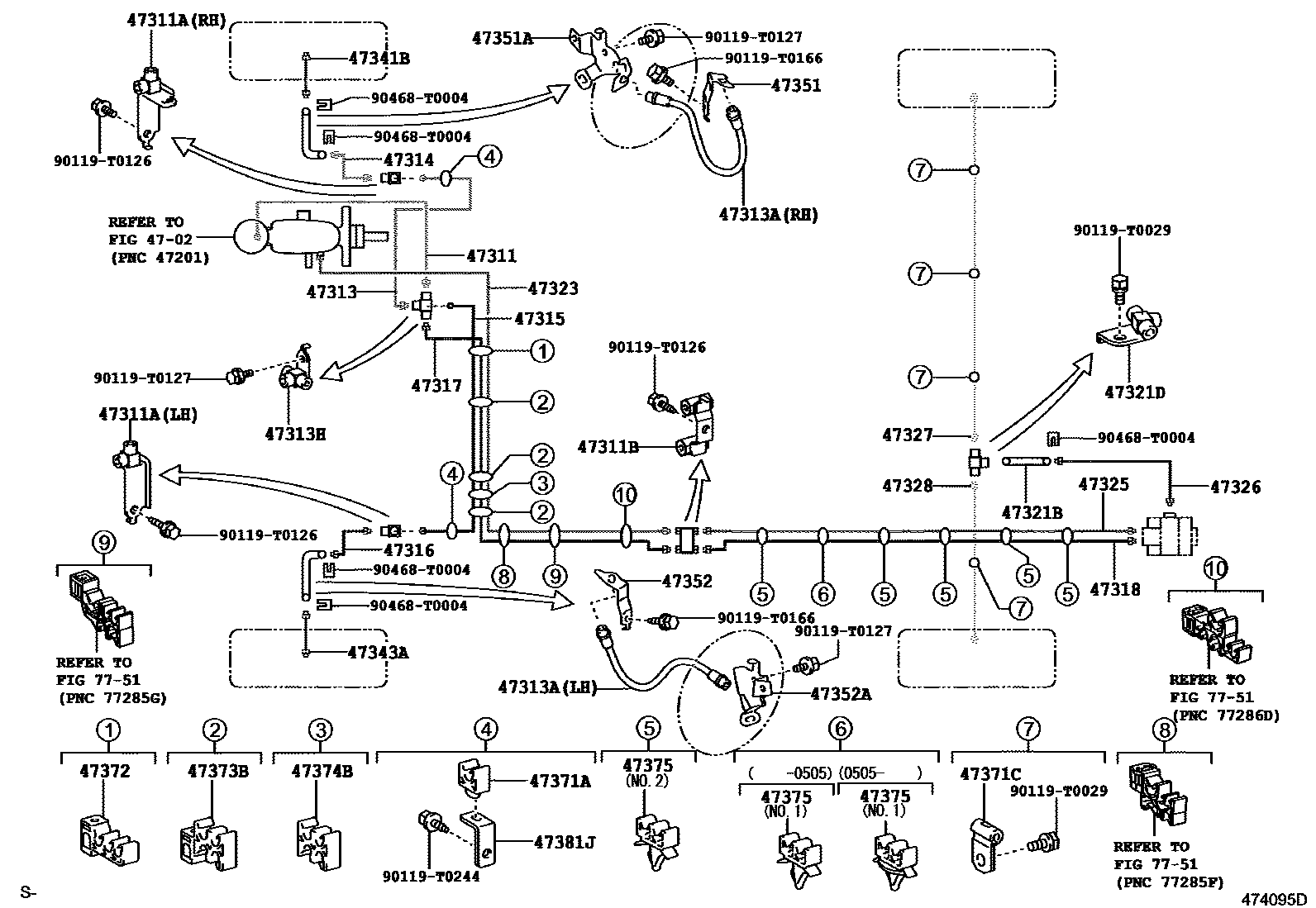

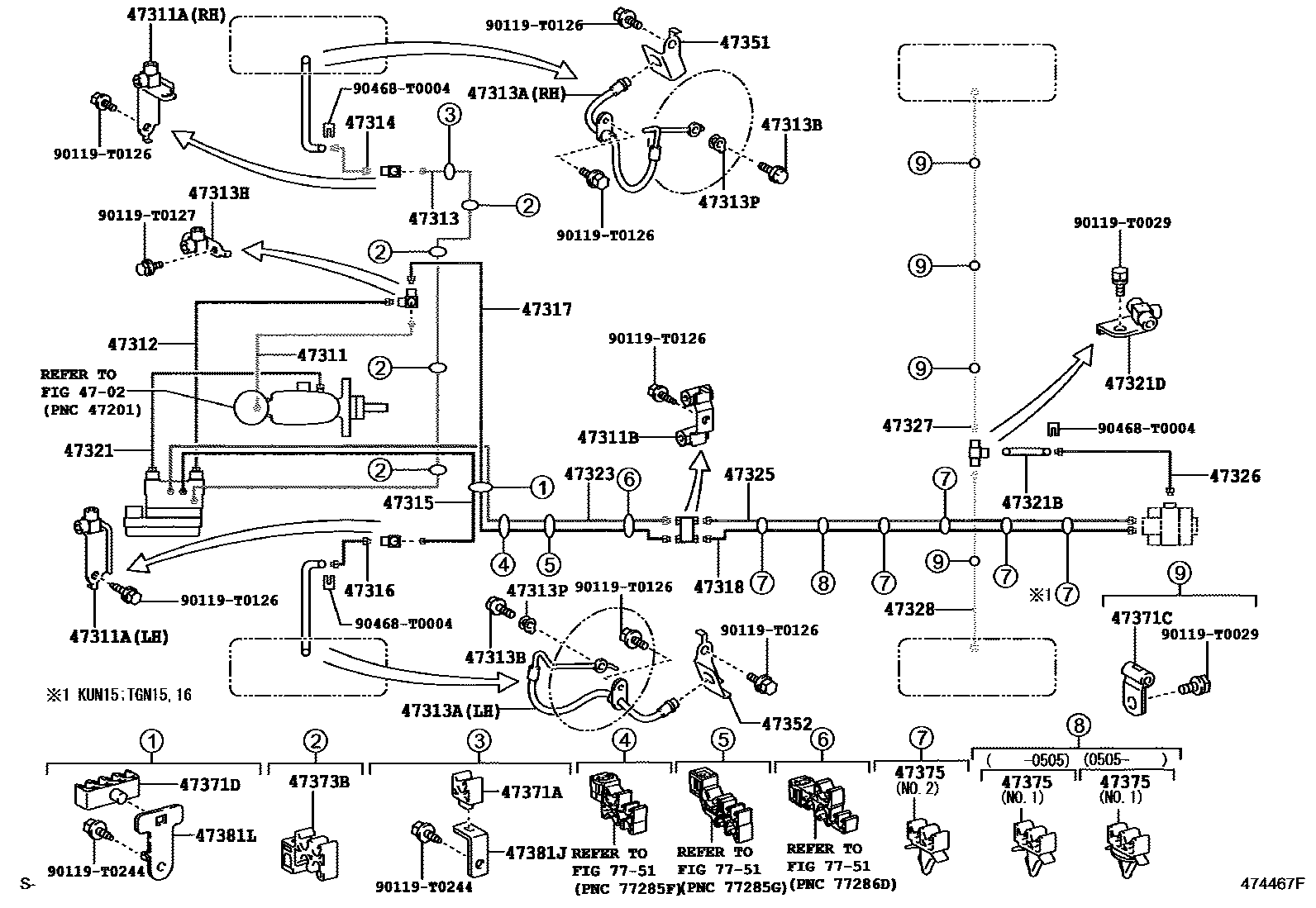

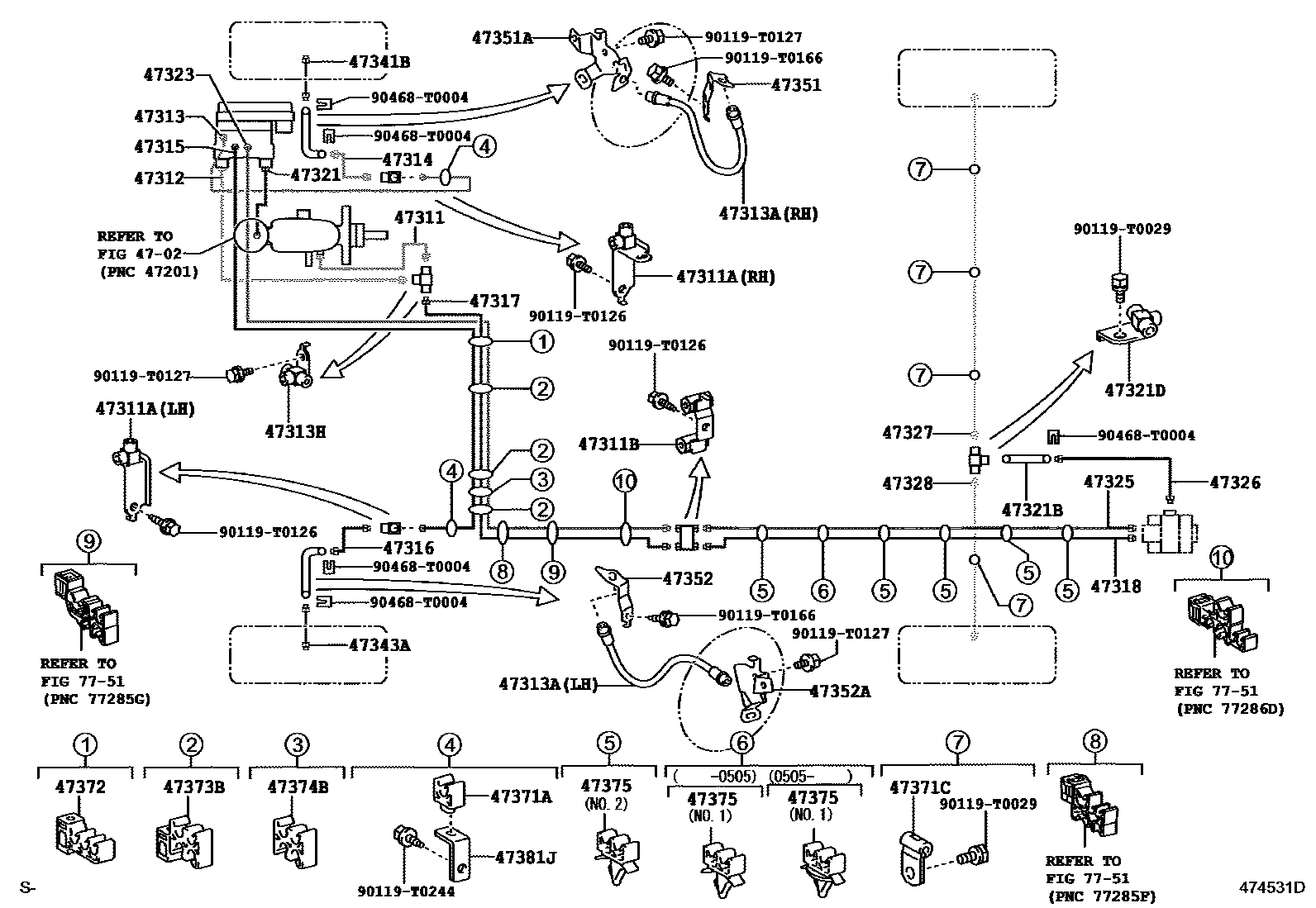

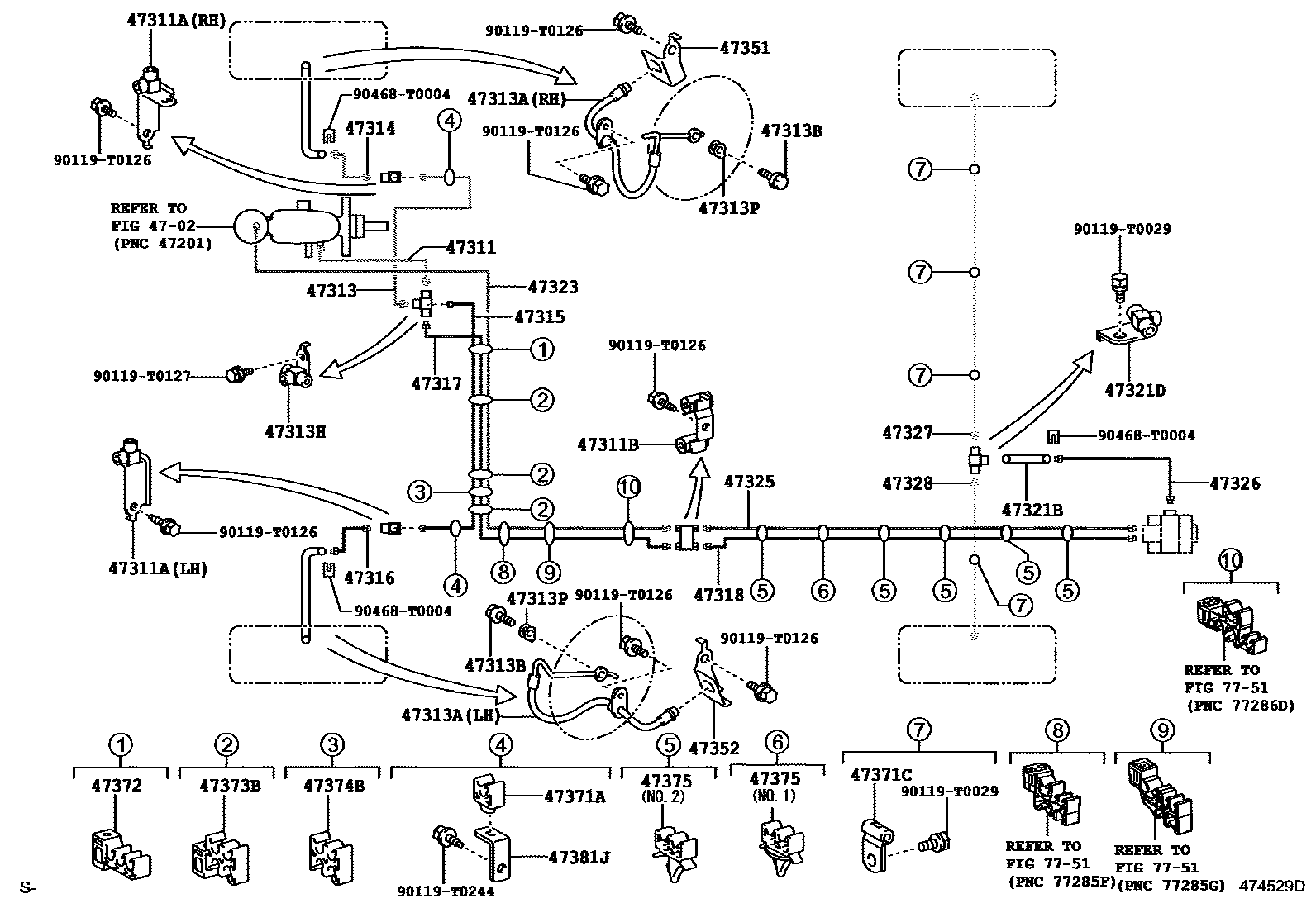

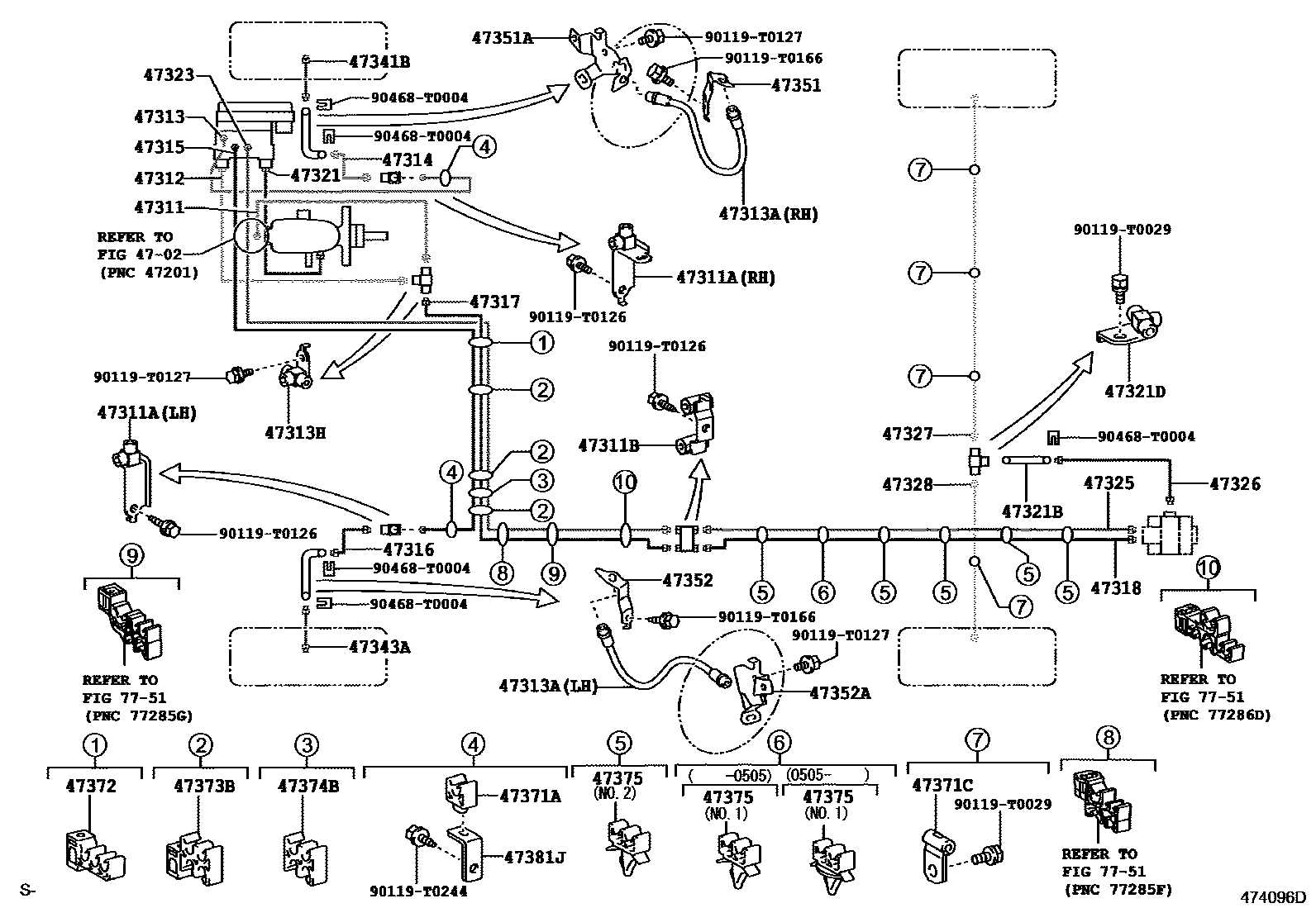

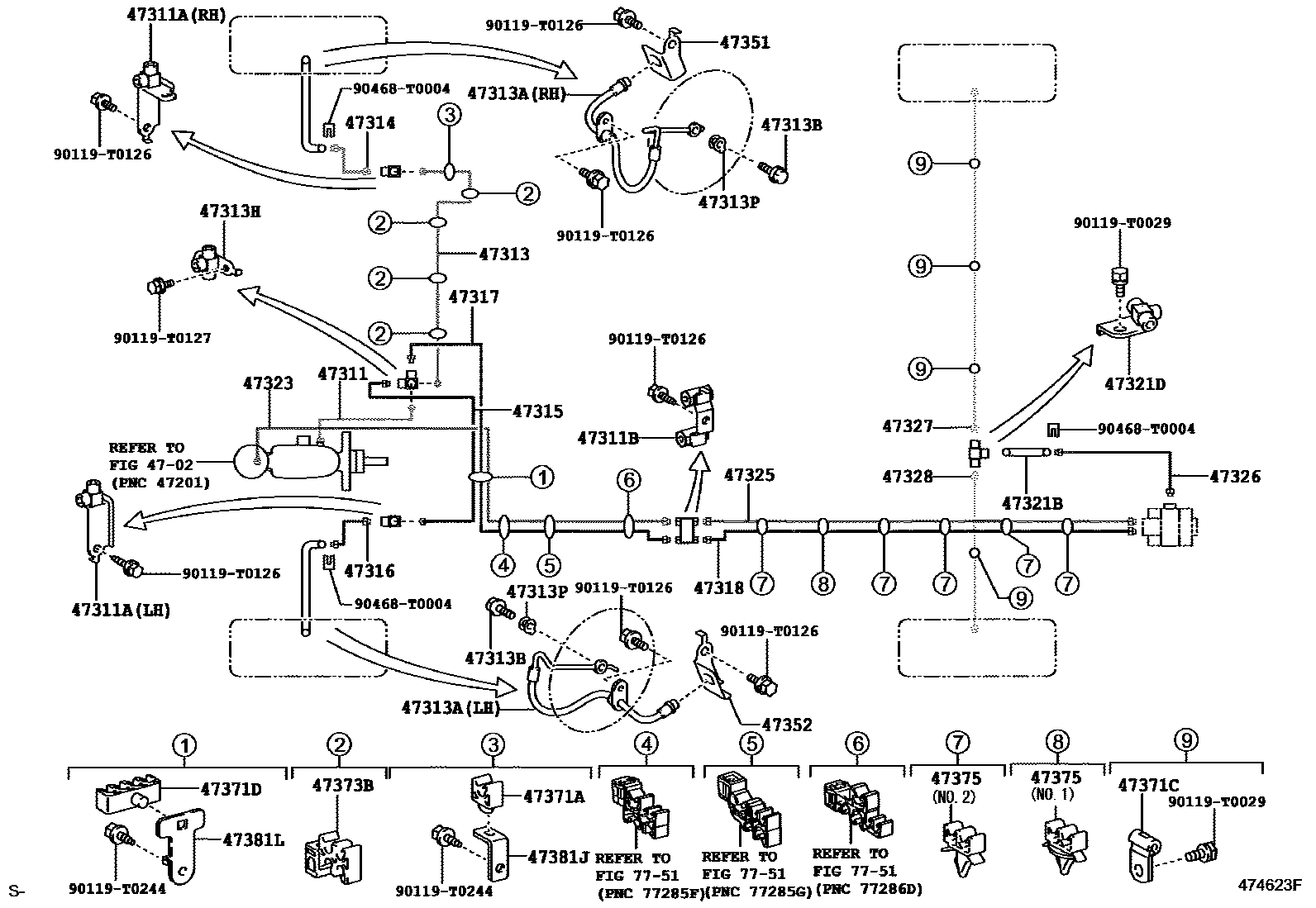

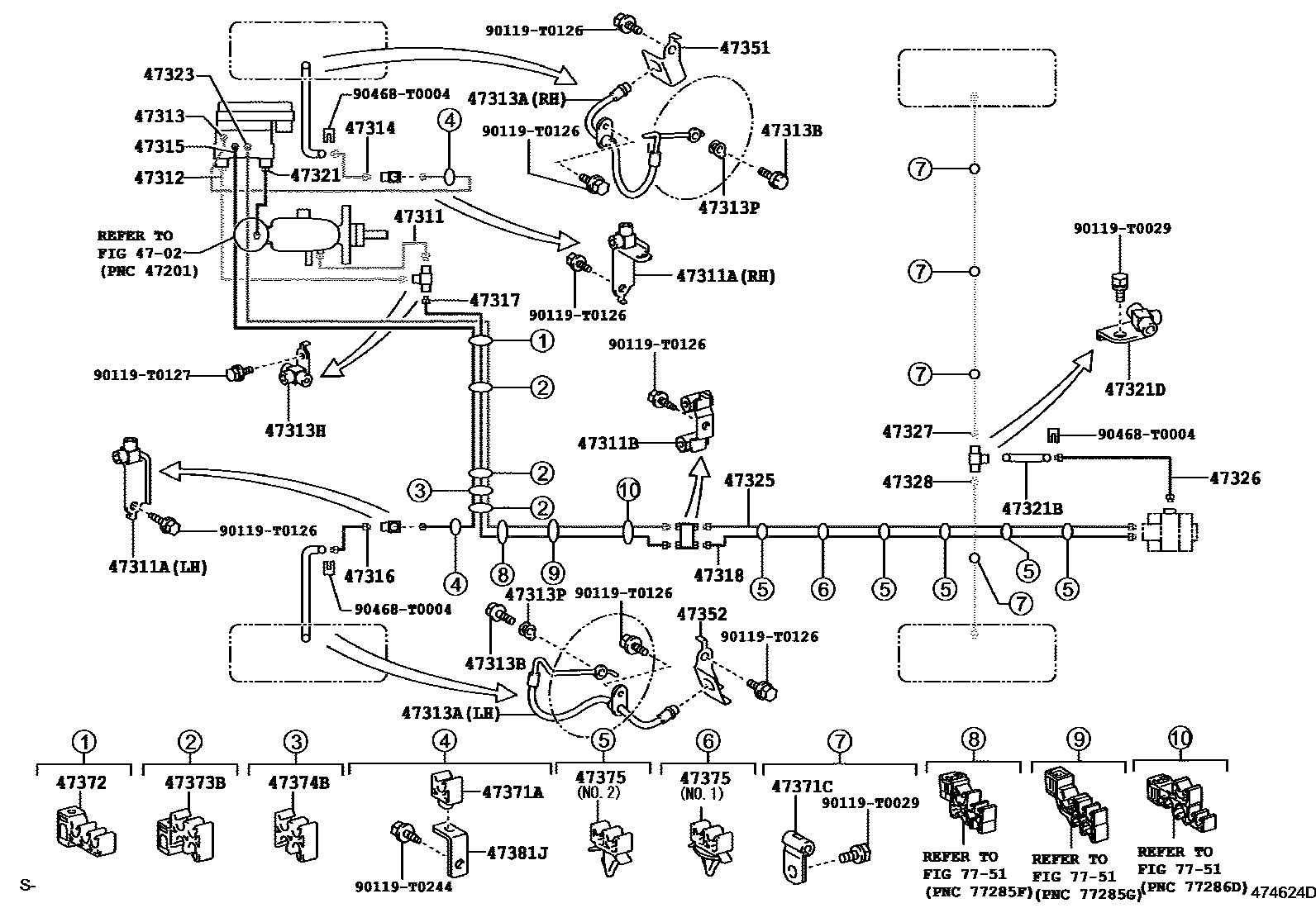

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 21 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04477 | Load sensing spring bushing and boot assembly | 04477-04010 |
| 31478D | Bleed plug cap (for LSPV) | 31478-0D040 · 31478-30010 |

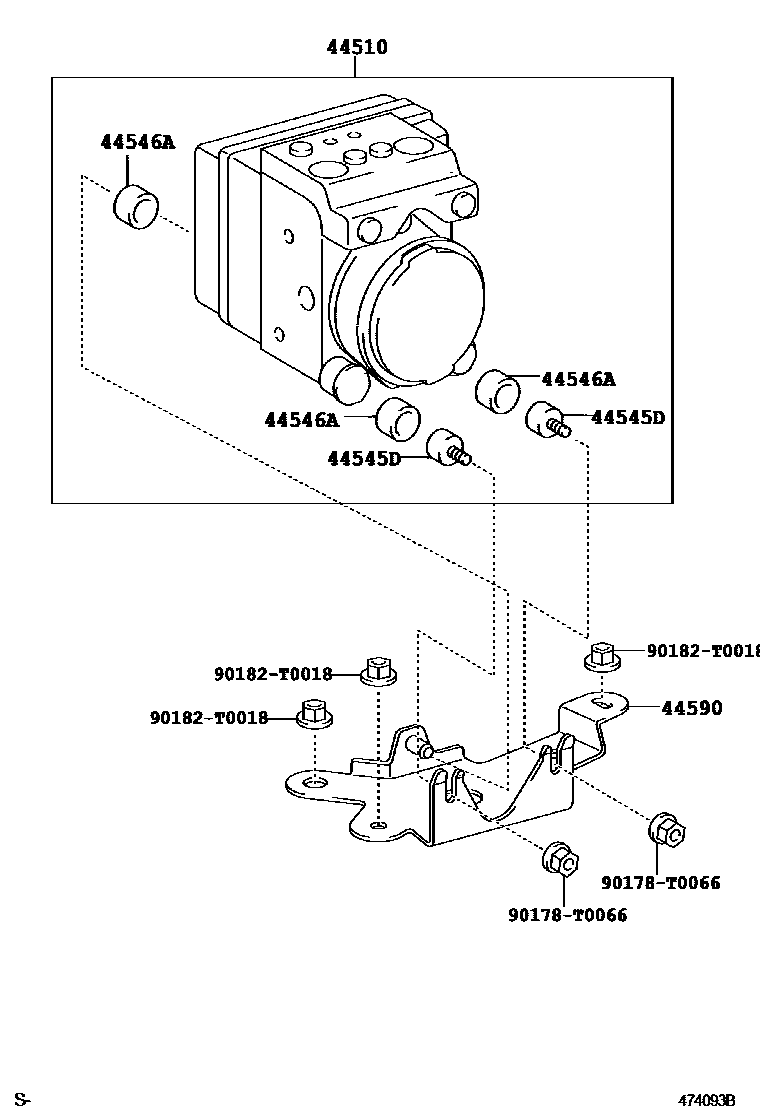

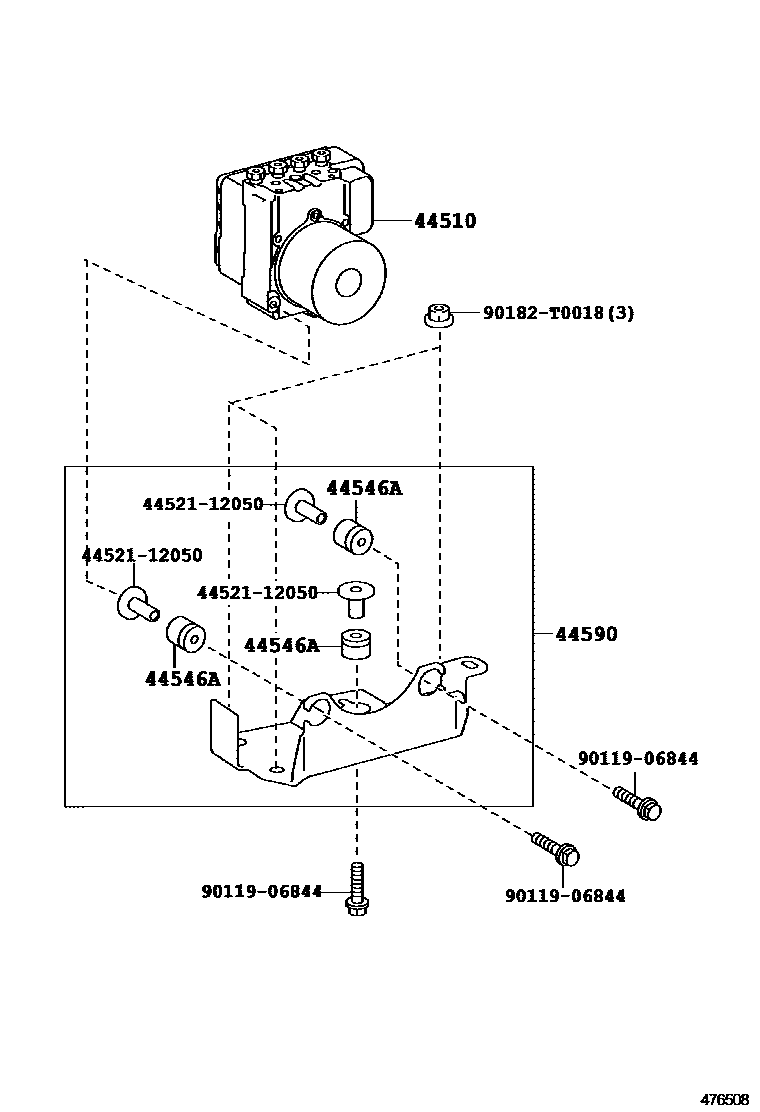

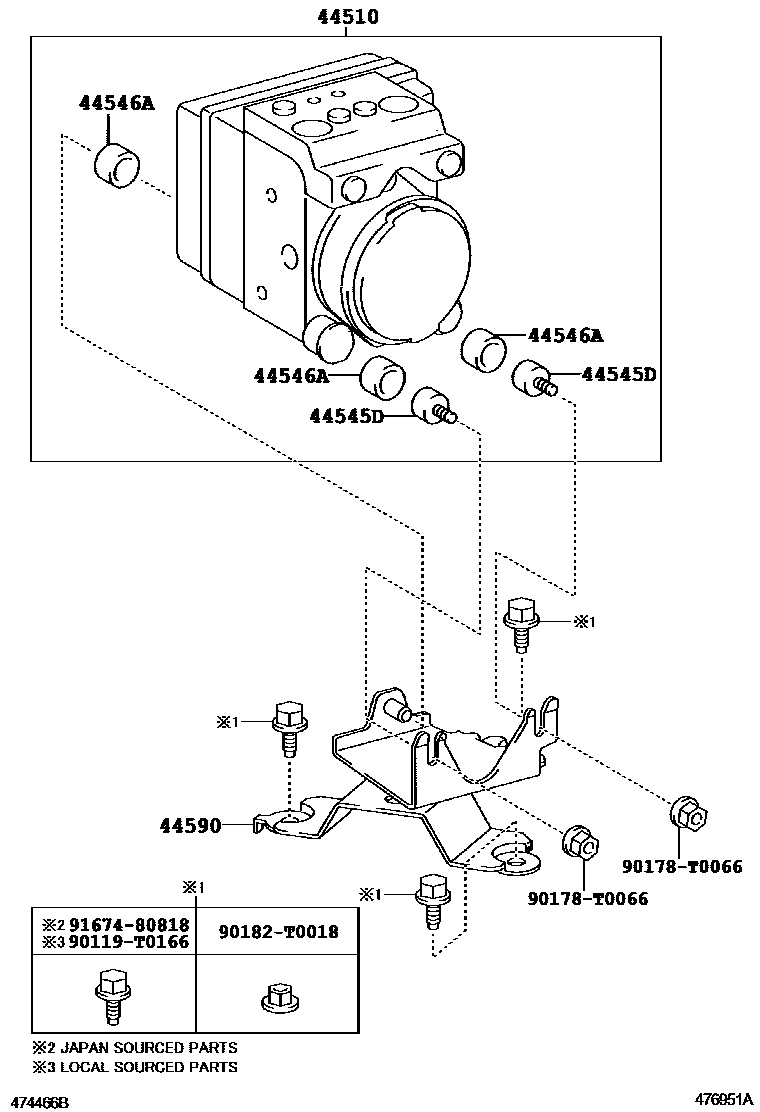

| 44510 | brake actuator assembly | 44050-71010 · 44050-71030 · 44050-71040 · 44050-71090 · 44050-71091 |
| 44545D | Brake actuator bolt mount | 44545-12010 |
| 44546A | Brake actuator bolt cushion | 44546-12130 · 44546-60060 · 44547-0K010 |
| 44590 | Brake actuator bracket assembly | 44590-0K010 · 44590-0K011 · 44590-0K030 · 44590-0K040 · 44591-0K020 |
| 4710B | Mixing proportional valve bracket sub-assembly | 4710B-71010 |
| 47190B | Mixing proportional valve assembly | 47150-71010 |
| 47311 | No. 1 front brake pipe | 47311-0K010 · 47311-0K020 · 47311-0K030 · 47311-0K040 · 47311-0K041 · 47311-0K050 · 47311-0K070 · 47311-0K150 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10251 · 90412-10252 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10253 |
| 47312 | No. 2 front brake pipe | 47312-0K010 · 47312-0K020 · 47312-0K030 · 47312-0K040 · 47312-0K050 · 47312-0K060 |
| 47313 | No. 3 front brake pipe | 47313-0K010 · 47313-0K020 · 47313-0K030 · 47313-0K040 · 47313-0K050 · 47313-0K060 · 47313-0K070 · 47313-0K080 · 47313-0K100 · 47313-0K110 · 47313-0K130 |
| 47313A | No. 1 front flexible hose | 90080-94029 · 90947-T2004 · 90947-T2005 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313H | No. 3 pipe joint (for front brake pipe) | 90413-10309 · 90413-10312 · 90414-10055 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-0K020 · 47314-0K030 · 47314-0K050 |
| 47315 | No. 5 front brake pipe | 47315-0K010 · 47315-0K020 · 47315-0K030 · 47315-0K040 · 47315-0K050 · 47315-0K060 · 47315-0K070 · 47315-0K080 · 47315-0K100 · 47315-0K110 · 47315-0K130 · 47315-0K150 |
| 47316 | No. 6 front brake pipe | 47316-0K020 · 47316-0K030 · 47316-0K050 |
| 47317 | No. 7 front brake pipe | 47317-0K010 · 47317-0K020 · 47317-0K030 · 47317-0K040 · 47317-0K050 · 47317-0K060 |
| 47318 | No. 8 front brake pipe | 47318-0K010 · 47318-0K020 · 47318-0K040 · 47318-0K070 |
| 47319 | No. 9 front brake pipe | 47319-0K020 |
| 47321 | No. 1 rear brake pipe | 47321-0K010 · 47321-0K020 · 47321-0K030 · 47321-0K040 · 47321-0K050 · 47321-0K060 · 47321-0K110 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-T2011 · 90947-T2015 · 90947-T2057 · 90947-T2058 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90413-10308 · 90413-10311 |
| 47322 | No. 2 rear brake pipe | 47322-0K010 |
| 47323 | No. 3 rear brake pipe | 47323-0K010 · 47323-0K020 · 47323-0K030 · 47323-0K040 · 47323-0K050 · 47323-0K060 · 47323-0K070 · 47323-0K080 · 47323-0K100 · 47323-0K110 · 47323-0K130 |
| 47324 | No. 4 rear brake pipe | 47324-0K010 |
| 47325 | No. 5 rear brake pipe | 47325-0K010 · 47325-0K020 · 47325-0K050 · 47325-0K090 · 47325-0K120 |
| 47326 | No. 6 rear brake pipe | 47326-0K010 · 47329-0K011 · 47329-0K021 · 47329-0K080 |
| 47327 | No. 7 rear brake pipe | 47327-0K010 · 47327-0K011 · 47327-0K020 · 47327-0K021 · 47327-0K030 · 47327-0K031 · 47327-0K090 · 47327-0K091 · 47327-0K100 · 47327-0K101 · 47327-0K120 · 47327-0K121 |
| 47328 | No. 8 rear brake pipe | 47328-0K010 · 47328-0K011 · 47328-0K020 · 47328-0K021 · 47328-0K030 · 47328-0K031 · 47328-0K090 · 47328-0K091 · 47328-0K100 · 47328-0K101 · 47328-0K140 · 47328-0K141 |
| 47329 | No. 9 rear brake pipe | 47329-0K090 |
| 47341B | No. 1 right front wheel cylinder brake pipe | 47341-0K010 · 47341-0K030 |
| 47343A | No. 1 left front wheel cylinder brake pipe | 47343-0K010 · 47343-0K030 |
| 47351 | Right front flex hose bracket | 47351-0K010 · 47353-0K010 |
| 47351A | No. 1 Right Front Flexible Hose Bracket | 47353-0K020 |
| 47351B | No. 1 Flexible Hose Bracket | 47355-71010 |
| 47352 | Left front flex hose bracket | 47352-0K030 · 47354-0K010 |
| 47352A | No. 1 Left Front Flexible Hose Bracket | 47354-0K020 |
| 47353 | Rear flex hose bracket | 47352-0K011 · 47352-0K021 |
| 47356 | No. 6 Flexible Hose Bracket | 47356-0K010 |
| 47371A | No. 1 brake pipe clamp | 90949-T1011 |
| 47371C | No. 7 brake pipe clamp | 90461-T0001 · 90461-T0002 |
| 47371D | No. 8 brake pipe clamp | 90949-T1010 |
| 47371E | No. 9 brake pipe clamp | 90949-T1005 · 90949-T1007 |
| 47372 | No. 2 brake pipe clamp | 90949-T1014 |
| 47373B | No. 3 brake pipe clamp | 90949-T1008 · 90949-T1012 |
| 47374B | No. 4 brake pipe clamp | 90949-T1009 |
| 47375 | No. 5 brake pipe clamp | 90469-T0006 · 90469-T0007 · 90949-T1004 · 90949-T1006 |
| 47381J | No. 2 brake pipe clamp bracket | 90949-T2001 |
| 47381L | No. 3 brake pipe clamp bracket | 90949-T2002 |
| 47391 | Brake pipe joint | 47391-0K010 · 47391-71020 |

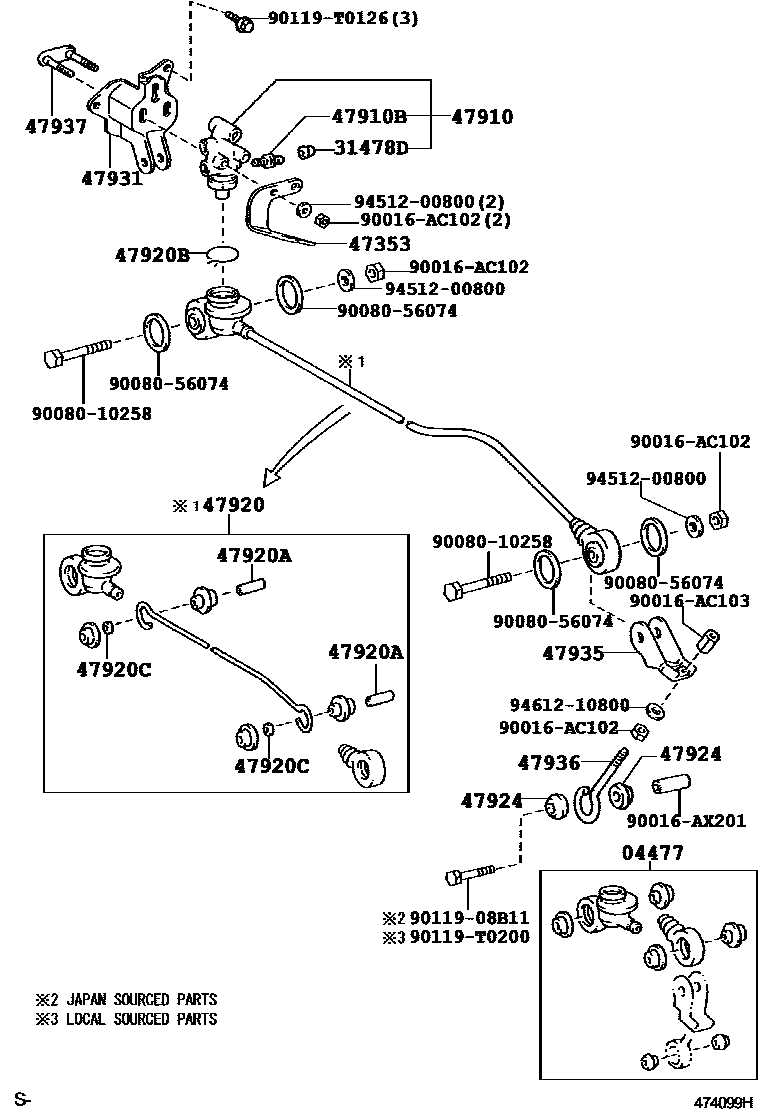

| 47910 | Load sensing proportional valve assembly | 47910-0K010 · 47910-0K020 |
| 47910B | Bleed plug | 47547-27030 |
| 47920 | Load sensing spring assembly | 47920-0K010 |
| 47920A | Collar (for load sensing spring) | 90016-AX201 |
| 47920B | Clamp (for load sensing valve dust cover) | 90080-46308 |
| 47920C | Washer (for load sensing spring) | 90016-AH101 |
| 47924 | Load sensing valve bushing | 47924-04010 |
| 47931 | Load sensing valve bracket | 47931-0K010 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-04010 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-04010 · 47936-0K020 |
| 47937 | Load sensing valve fixing plate | 47937-04010 |
