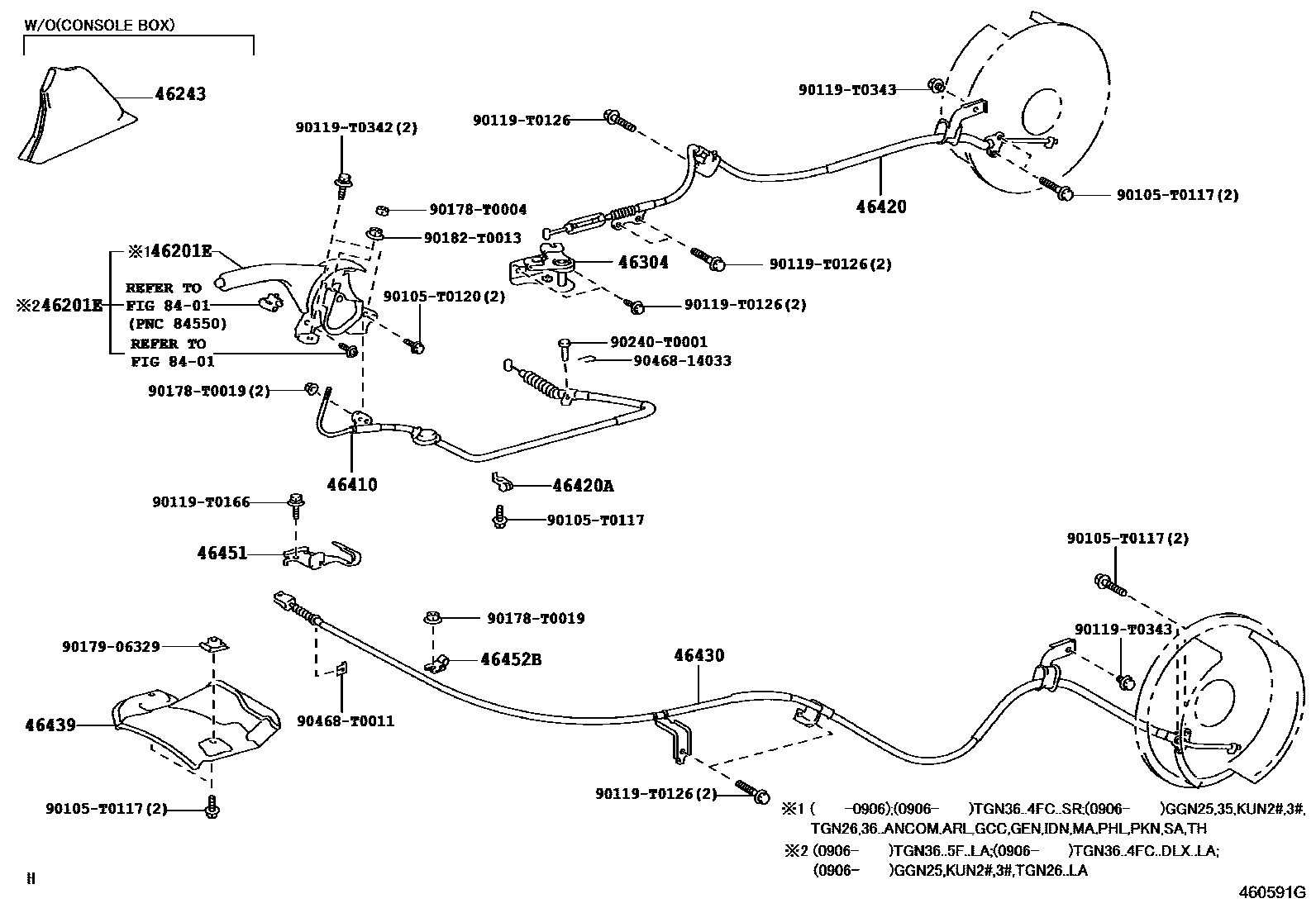

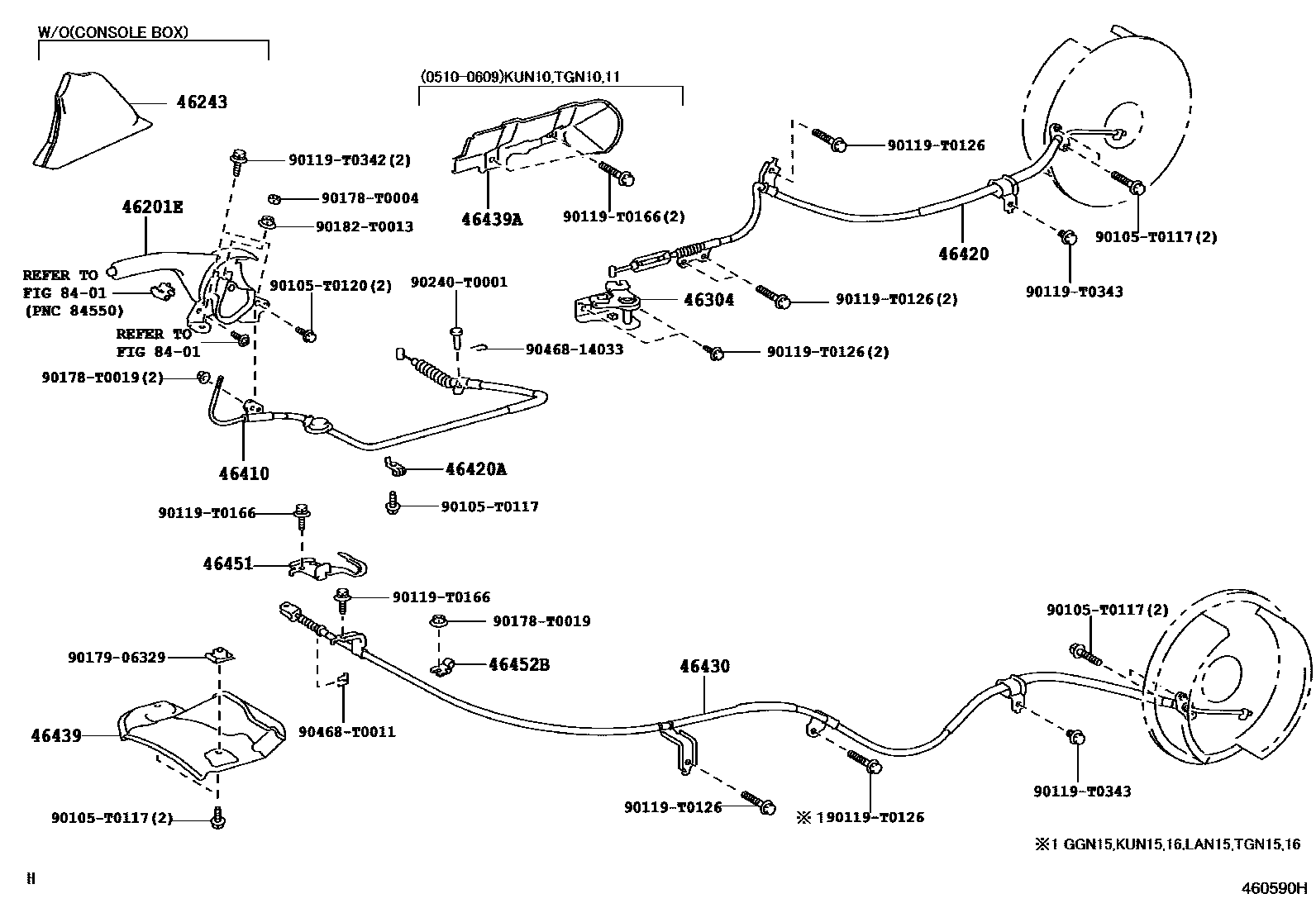

Toyota HILUX Parking Brake & Cable — Figure 4601
Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46304 | Parking brake balancer sub-assembly | 46304-0K010 · 46304-0K021 · 46304-0K030 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0K010 · 46410-0K040 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0K010 · 46420-0K011 · 46420-0K030 · 46420-0K040 · 46420-0K041 · 46420-0K090 · 46420-0K091 · 46420-0K100 · 46420-0K101 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01799 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0K010 · 46430-0K030 · 46430-0K040 · 46430-0K041 · 46430-0K090 · 46430-0K091 |
| 46439 | Parking brake cable insulation pad | 46439-0K010 |
| 46439A | Parking brake cable No. 2 insulation pad | 46439-0K020 |
| 46451 | cable bracket | 46451-0K040 |
| 46452B | No. 2 cable bracket | 46452-0K010 |
