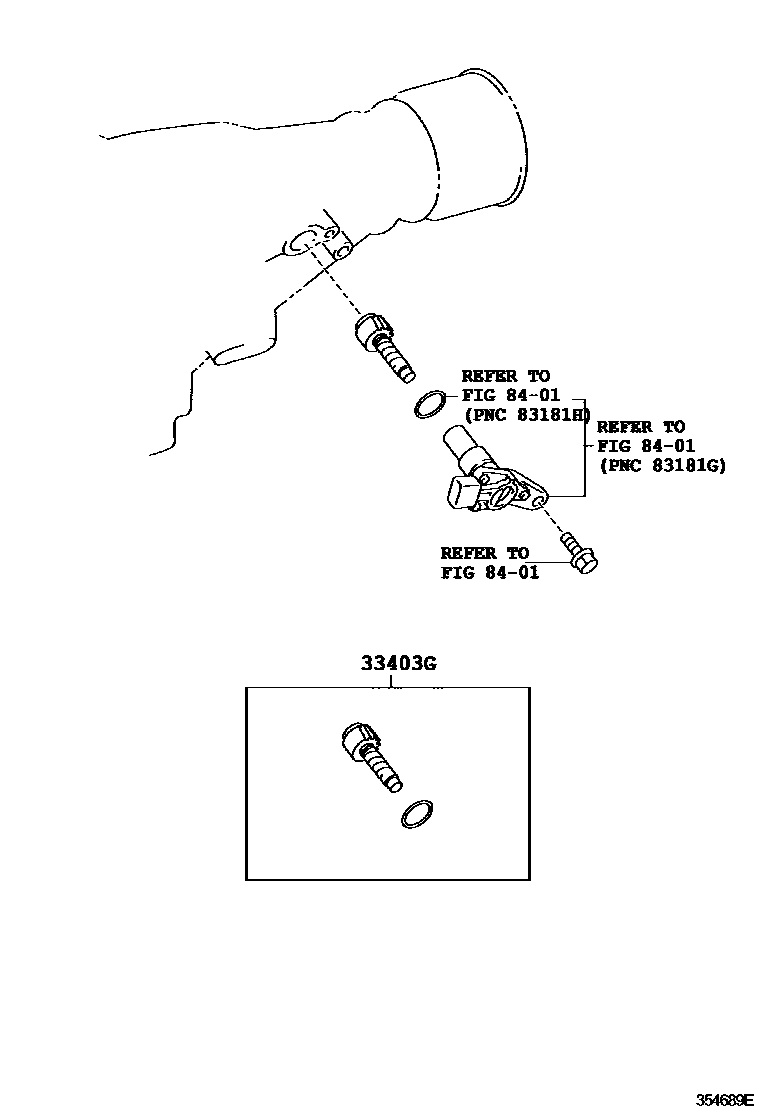

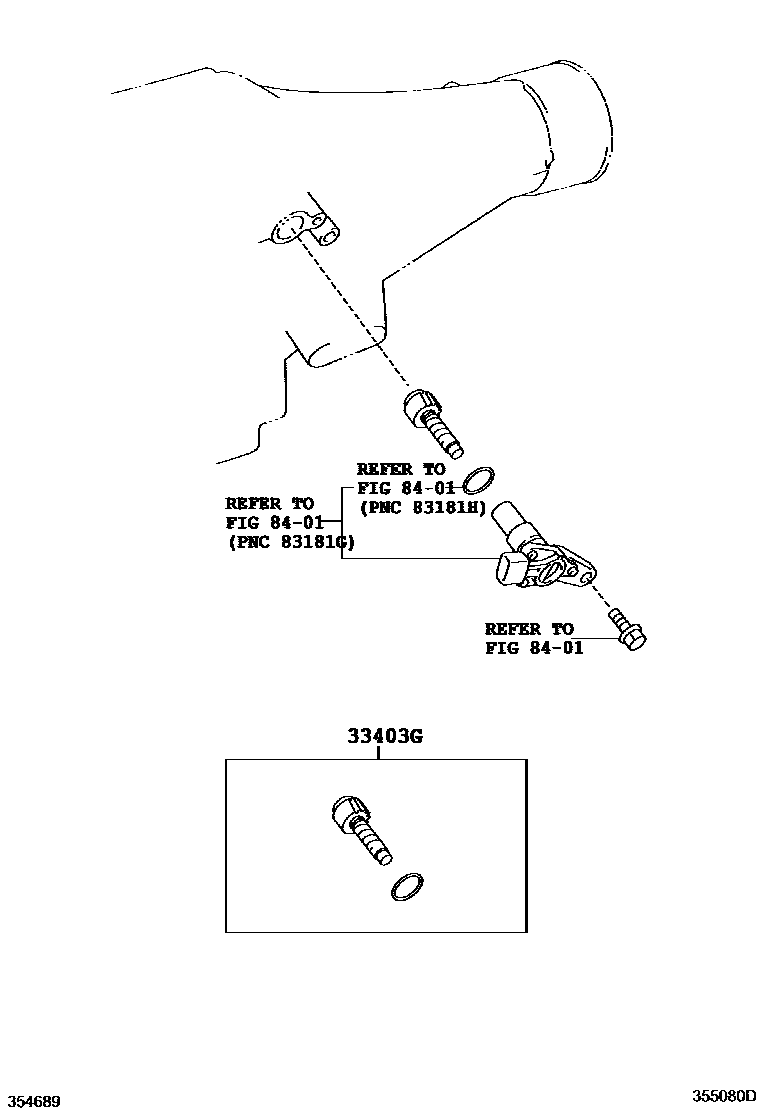

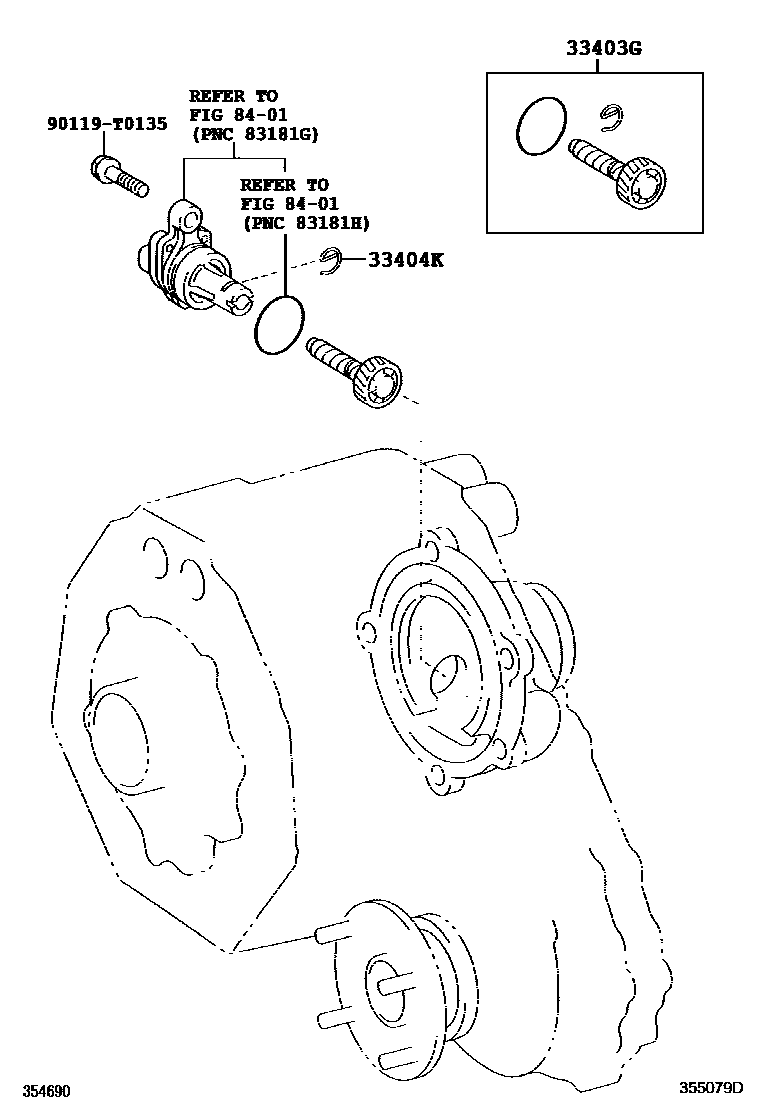

Toyota HILUX 速度表从动齿轮(ATM) — Figure 3505
Toyota HILUX EPC diagram 3505, 速度表从动齿轮(ATM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403G | Speedometer driven gear sub-assembly (ATM) | 33403-29315 · 33403-39355 · 33403-39365 · 33403-39515 · 33403-39575 · 33403-39585 · 33403-79015 · 33482-29205 · 33482-39405 · 33482-59015 · 33482-59025 · 33482-79015 · 33482-79025 |
| 33404K | Clamp (for automatic transmission speedometer shaft sleeve) | 90468-12005 |
