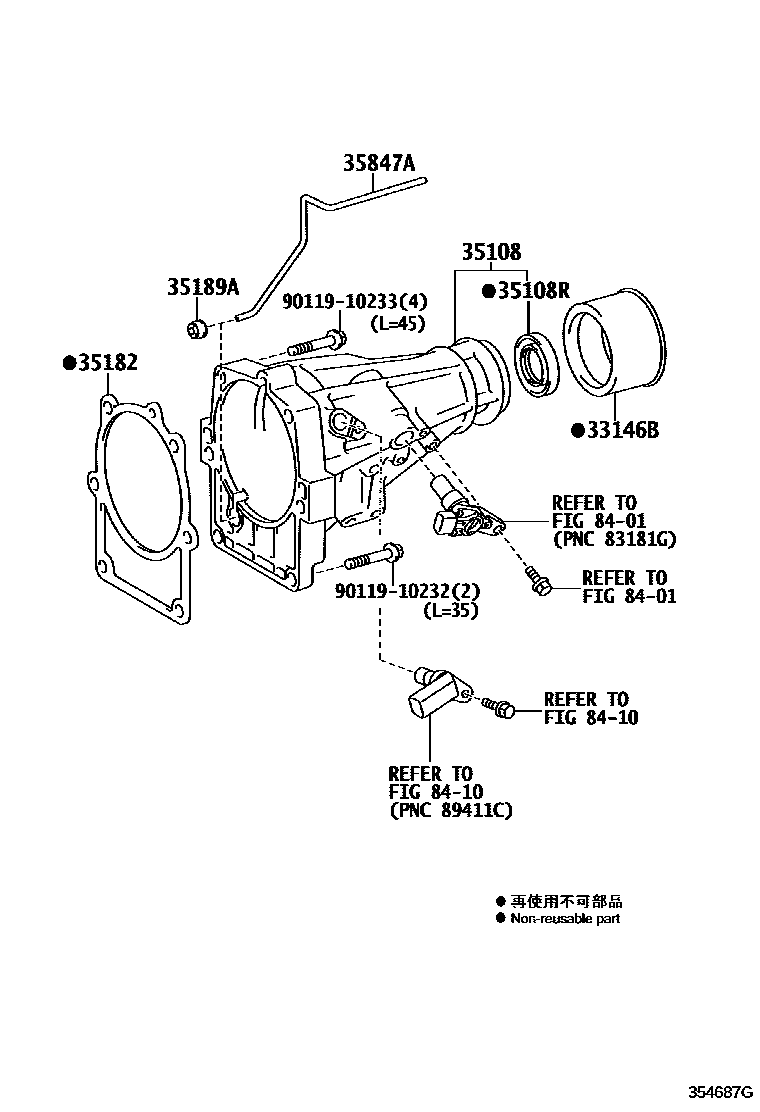

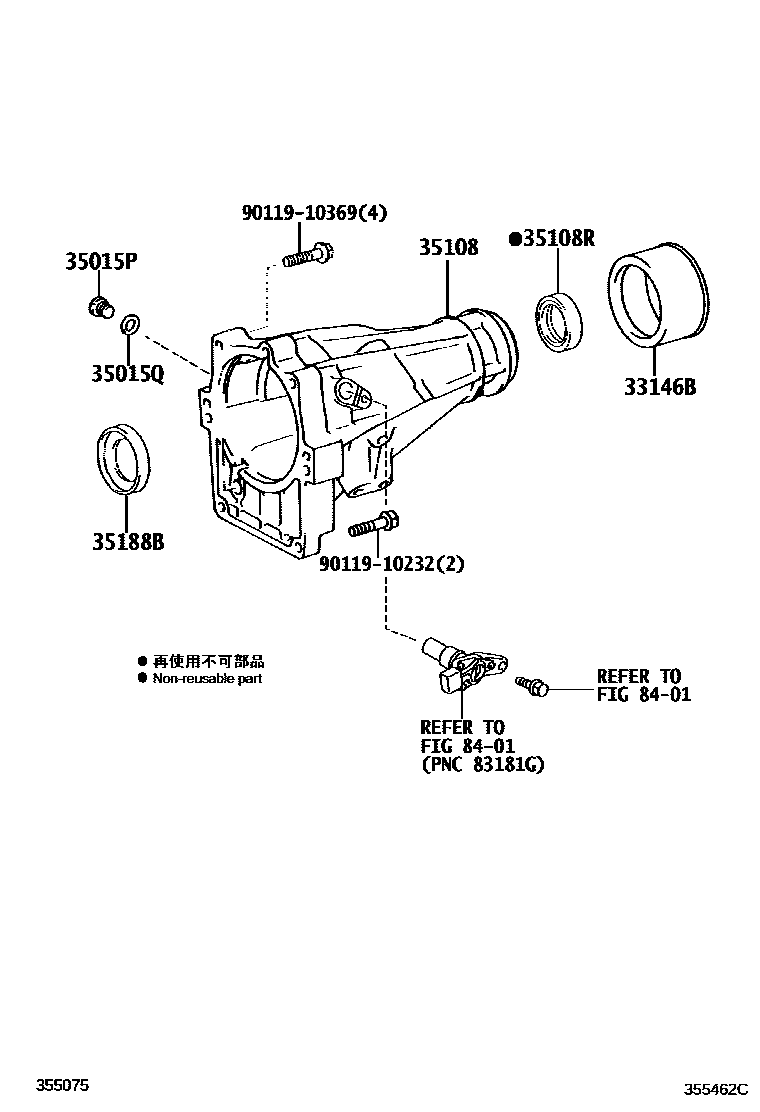

Toyota HILUX Extension shell (ATM) — Figure 3504
Toyota HILUX EPC diagram 3504, Extension shell (ATM), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33146B | Extended shell dust cover | 33146-30020 |
| 35015P | Headed straight thread plug (for transmission adapter) | 90341-18059 |
| 35015Q | O-ring (for gearbox adapter plug) | 90301-15004 |
| 35108 | Extended shell sub-assembly (ATM) | 35108-35060 · 35108-71020 |
| 35108R | Oil seal (for automatic transmission extension housing) | 90311-40001 · 90311-40034 |
| 35182 | Extension shell liner (ATM) | 35182-28010 |
| 35188B | Extended shell bushing retaining ring | 35188-35010 |
| 35189A | Extension housing bushing oil supply pipe gasket | 35189-30010 |
| 35847A | Extension housing bushing oil supply pipe | 35847-30020 |
