Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502

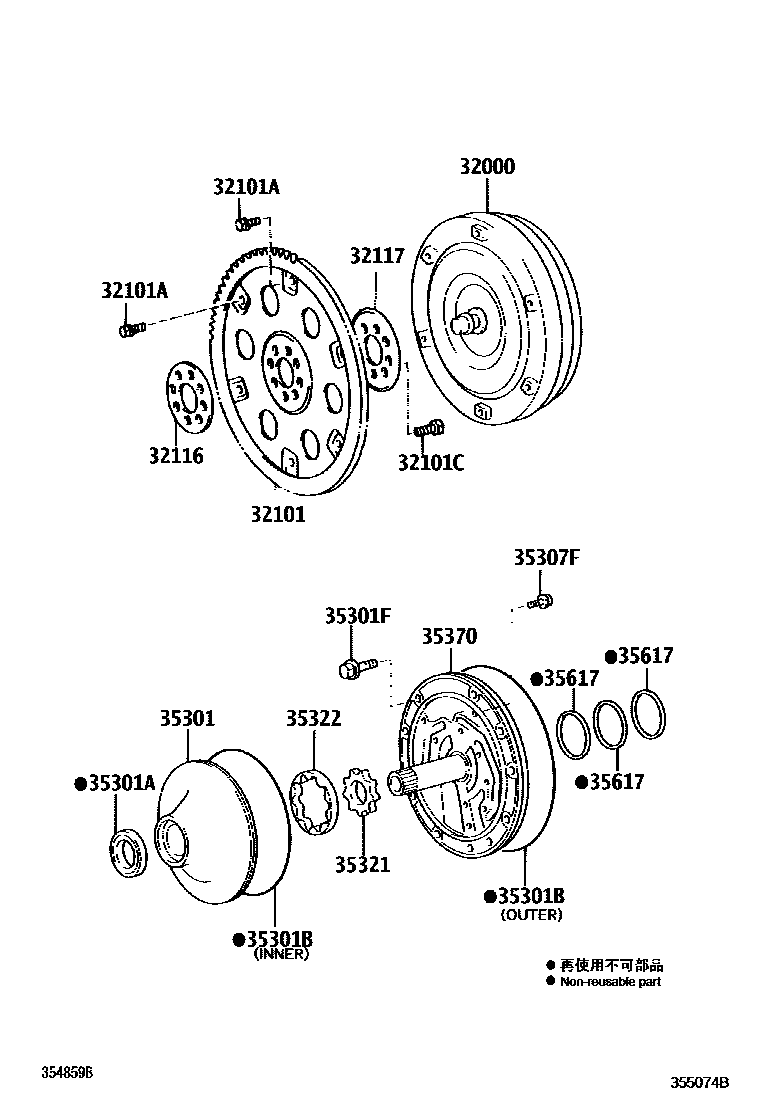

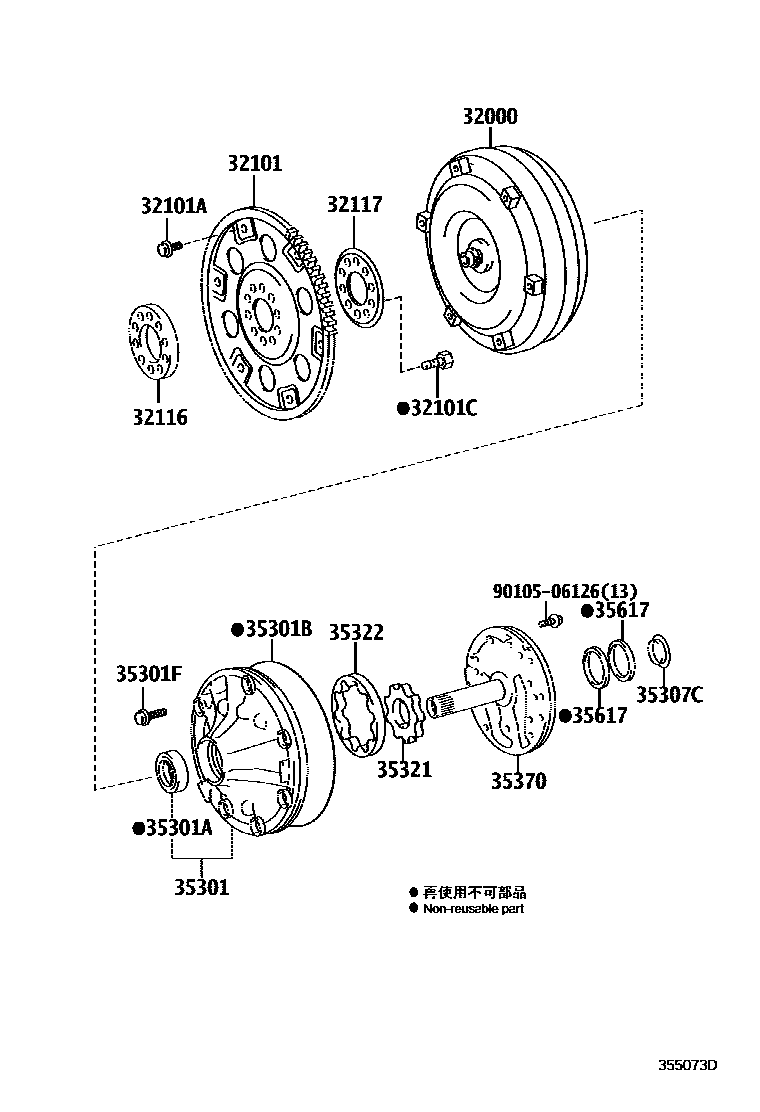

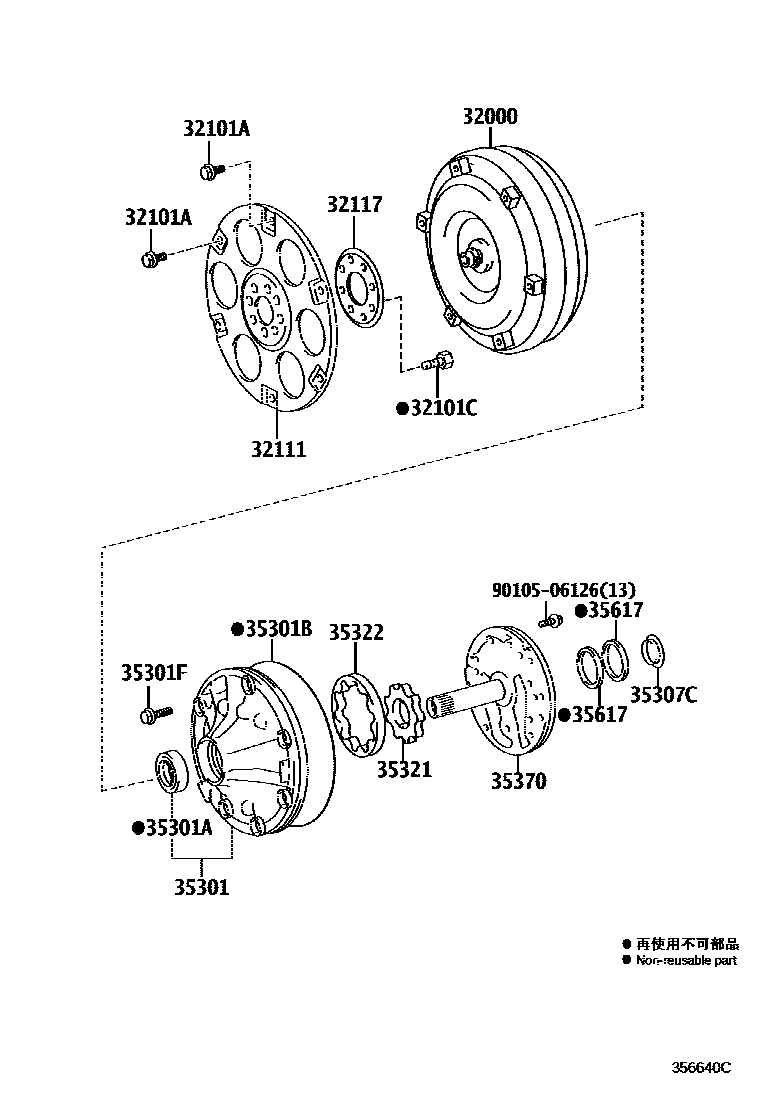

Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-35240 · 32000-60240 · 32000-71010 · 32000-71020 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-26010 · 32101-60060 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90105-10413 · 90105-10414 · 90105-10546 · 90119-09009 · 90119-09010 · 90119-09026 · 90119-09027 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10276 · 90105-10543 · 90105-T0113 |
| 32111 | Pump impeller drive plate | 32111-35030 · 32111-60050 · 32111-60080 |
| 32116 | Front transmission plate spacer | 32116-26010 · 32116-60050 |
| 32117 | Rear transmission plate spacer | 32117-26010 · 32117-60050 · 32117-60060 |
| 35301 | Front oil pump body sub-assembly | 35301-50020 · 35301-60030 |
| 35301A | Oil seal (for front oil pump) | 90311-38083 · 90311-38087 |
| 35301B | O-ring (for front oil pump body) | 90301-99033 · 90301-99139 · 90301-99148 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08091 · 90105-08451 · 91511-K0840 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-30340 |
| 35307F | Bolt (for stator shaft) | 90148-60079 |
| 35321 | Front oil pump driving gear | 35321-30030 · 35321-30040 · 35321-30050 · 35321-30060 · 35321-30070 · 35321-50010 · 35321-50020 · 35321-50030 · 35321-50040 · 35321-50050 · 35321-50060 · 35321-50070 |
| 35322 | Front oil pump driven gear | 35322-30020 · 35322-30030 · 35322-30040 · 35322-30050 · 35322-30060 · 35322-50010 · 35322-50020 · 35322-50030 · 35322-50040 · 35322-50050 · 35322-50060 · 35322-50070 |
| 35370 | stator shaft assembly | 35370-30060 · 35370-50030 |
| 35617 | Clutch drum oil ring | 35617-30020 · 35617-50030 · 35617-60020 |
