Toyota HILUX 离合器总泵 — Figure 3103

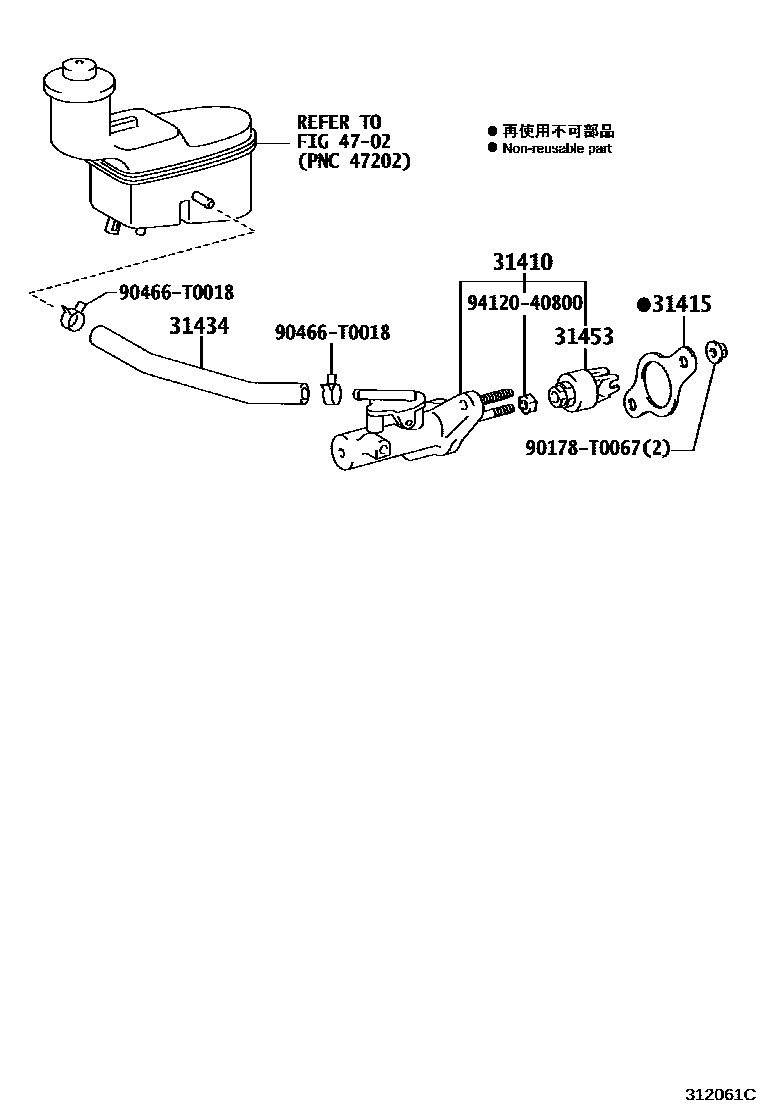

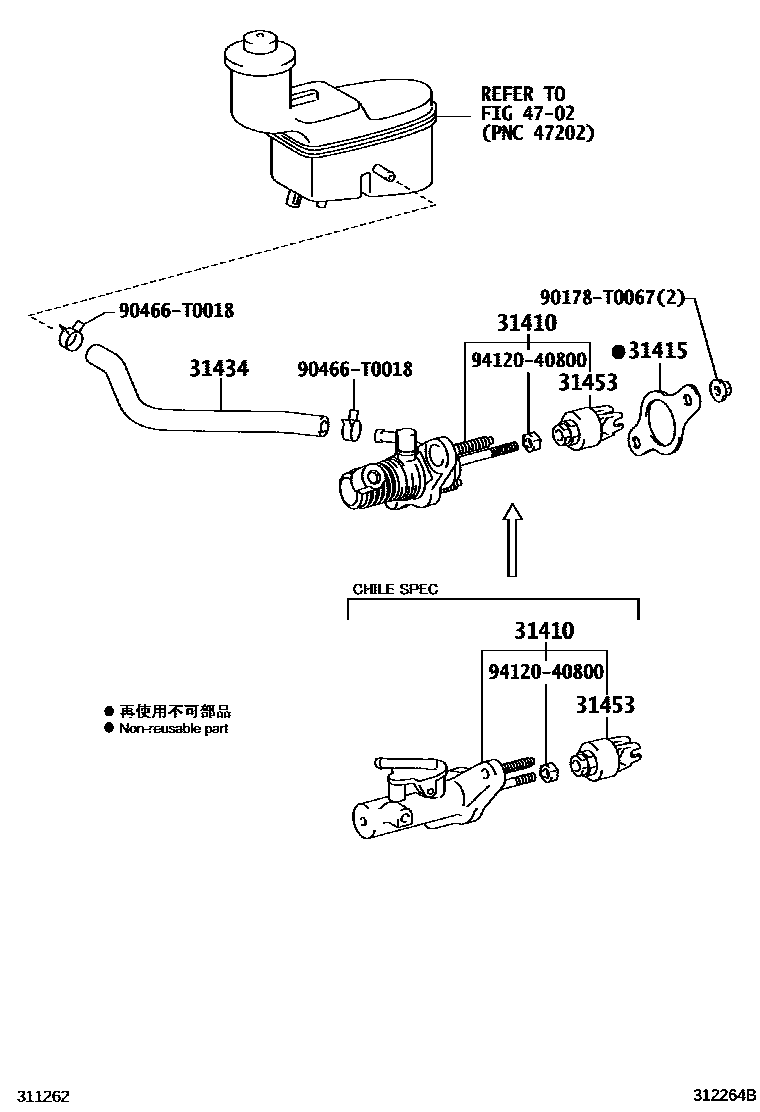

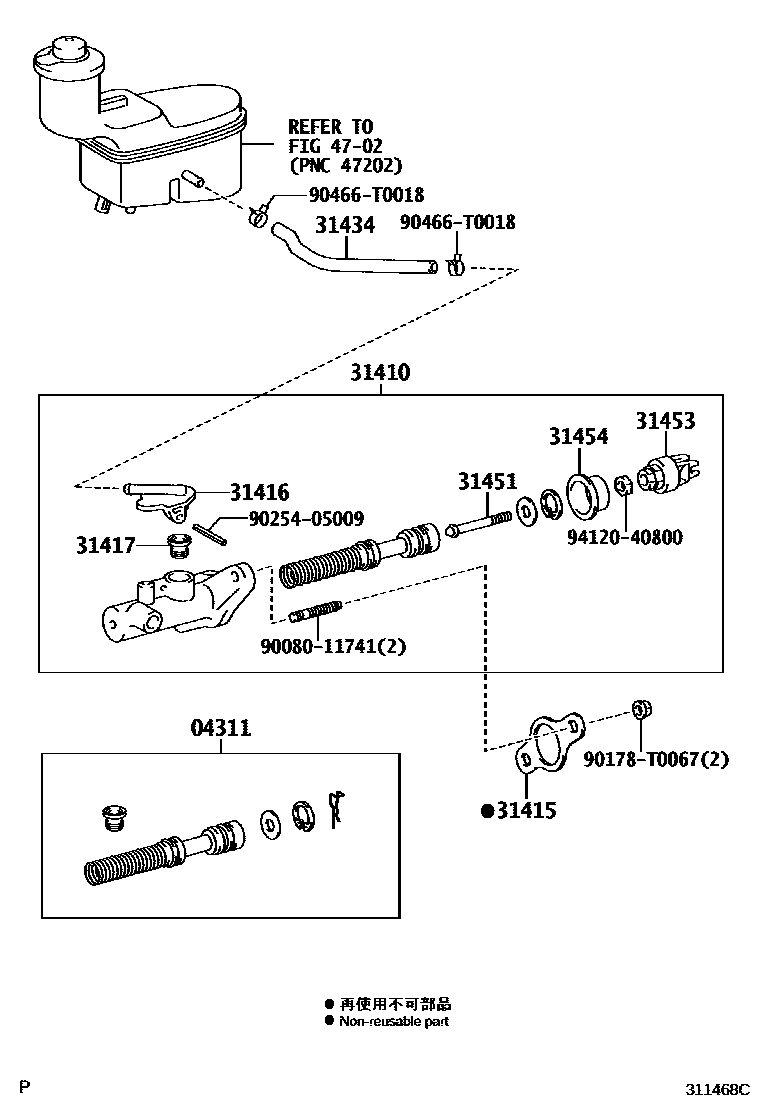

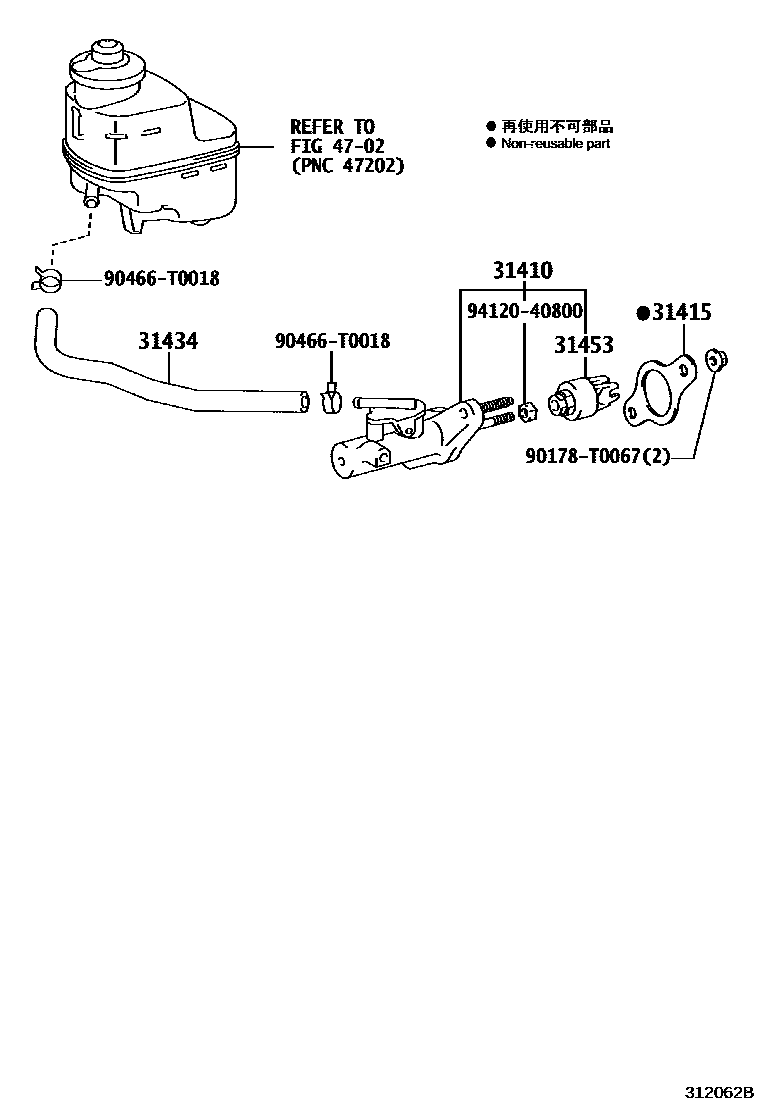

Toyota HILUX EPC diagram 3103, 离合器总泵, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-0K010 |
| 31410 | Clutch master cylinder assembly | 31420-0K011 · 31420-0K012 · 31420-0K013 · 31420-0K021 · 31420-0K030 · 31420-0K040 |
| 31415 | Clutch master cylinder gasket | 31415-0K010 |
| 31416 | Clutch master cylinder oil inlet joint | 31416-0A010 |
| 31417 | Clutch reservoir retaining ring | 31417-0A010 |
| 31434 | Clutch reservoir connecting pipe | 31434-71010 · 31434-71011 · 31434-71020 · 31434-71030 · 31434-71040 · 31434-71070 |
| 31451 | Clutch master cylinder push rod | 31451-0A010 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-0K010 · 31453-52010 |
| 31454 | Clutch master cylinder dust boot | 31454-0K010 |
