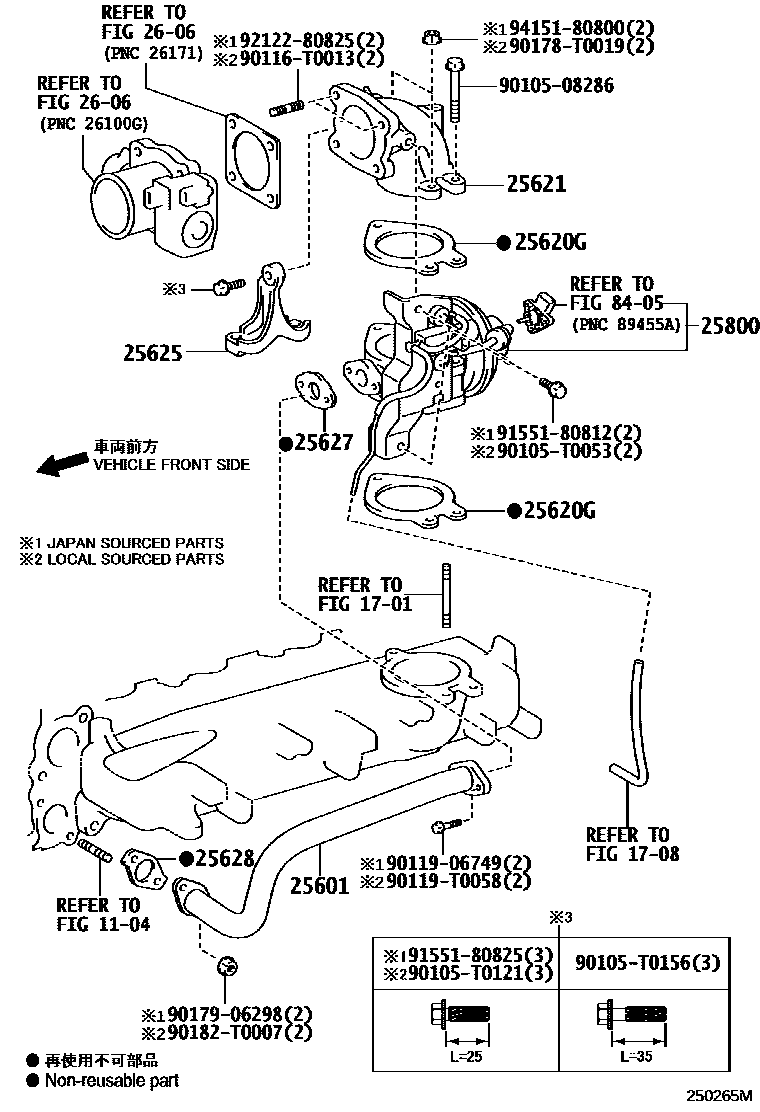

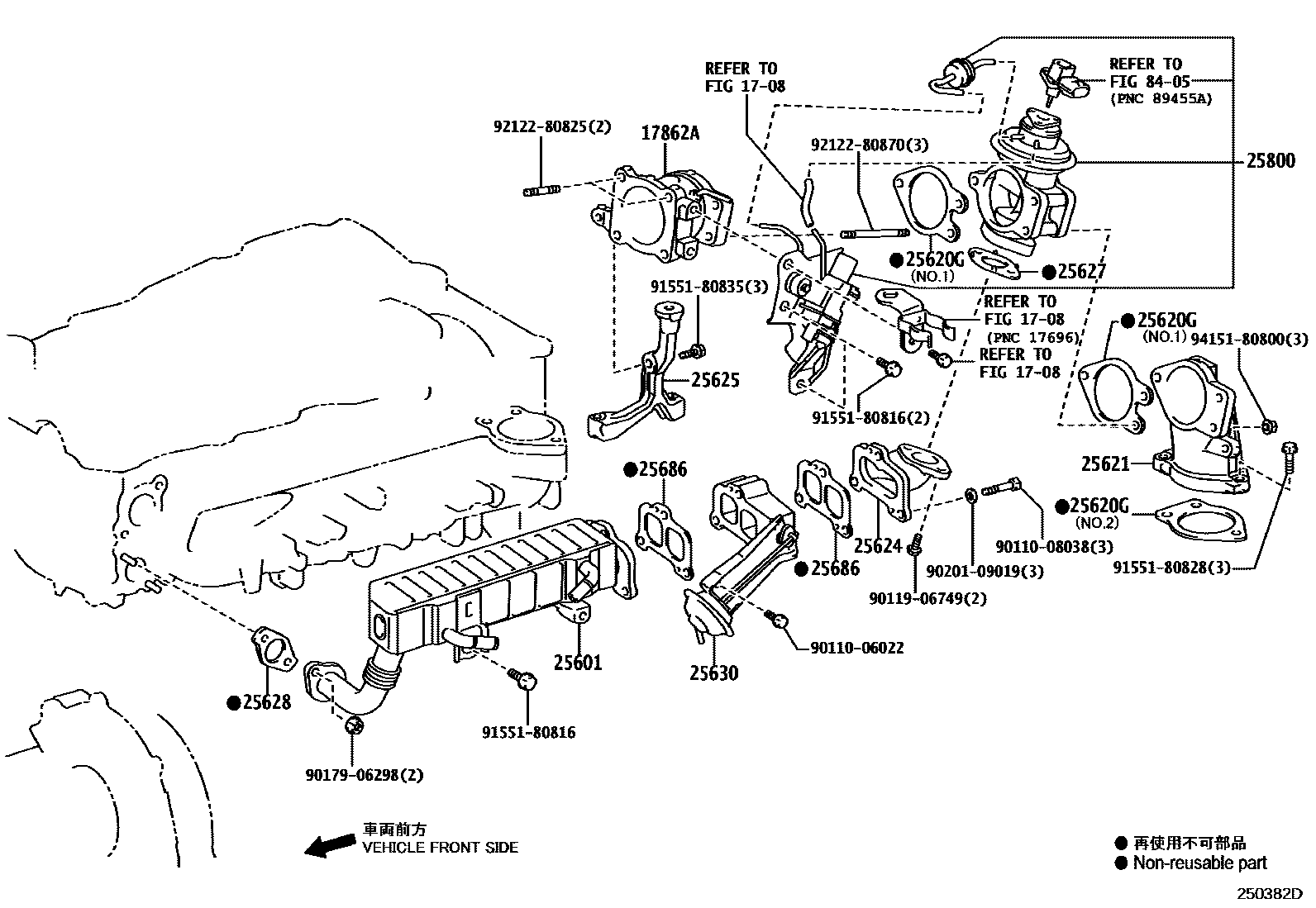

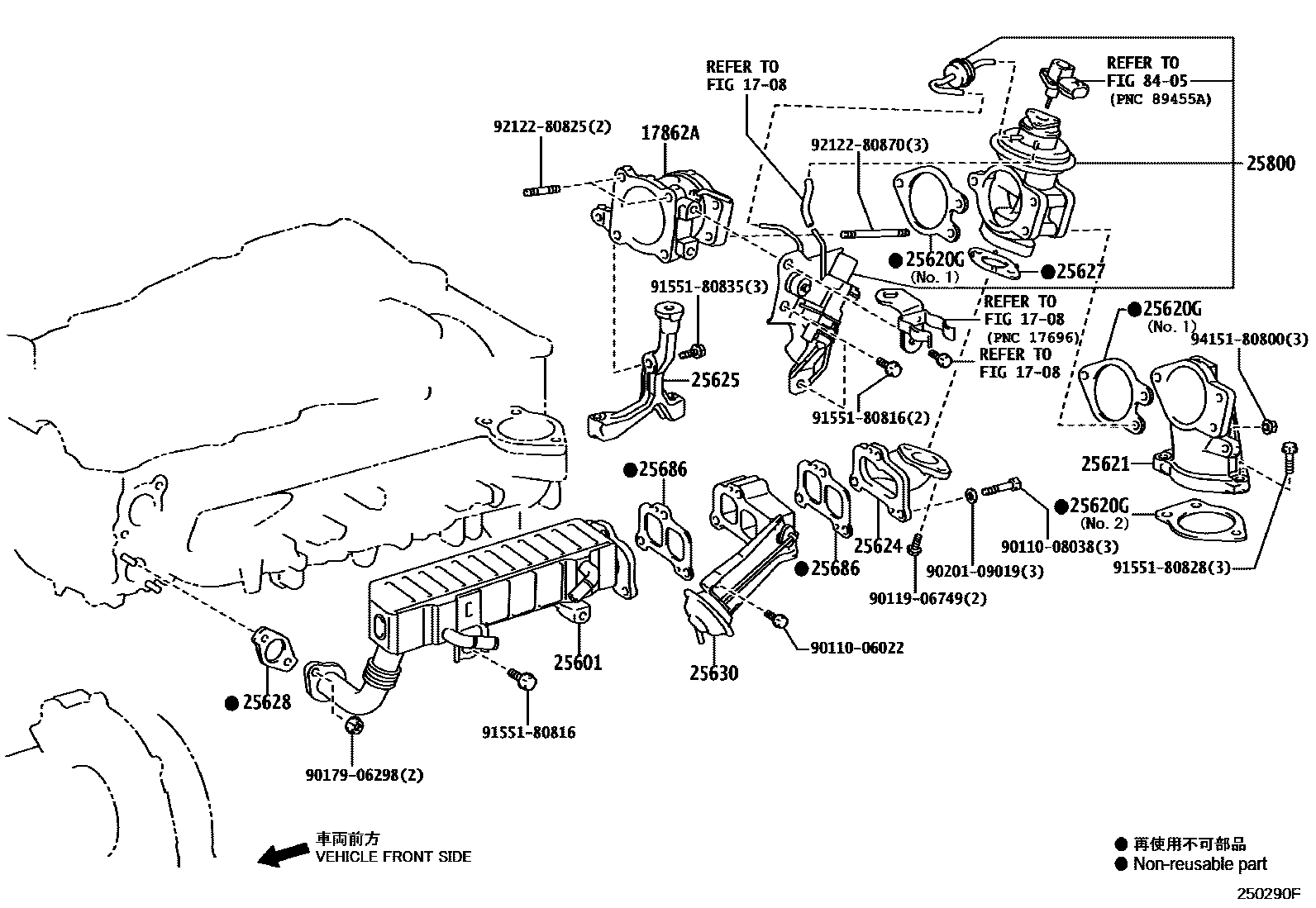

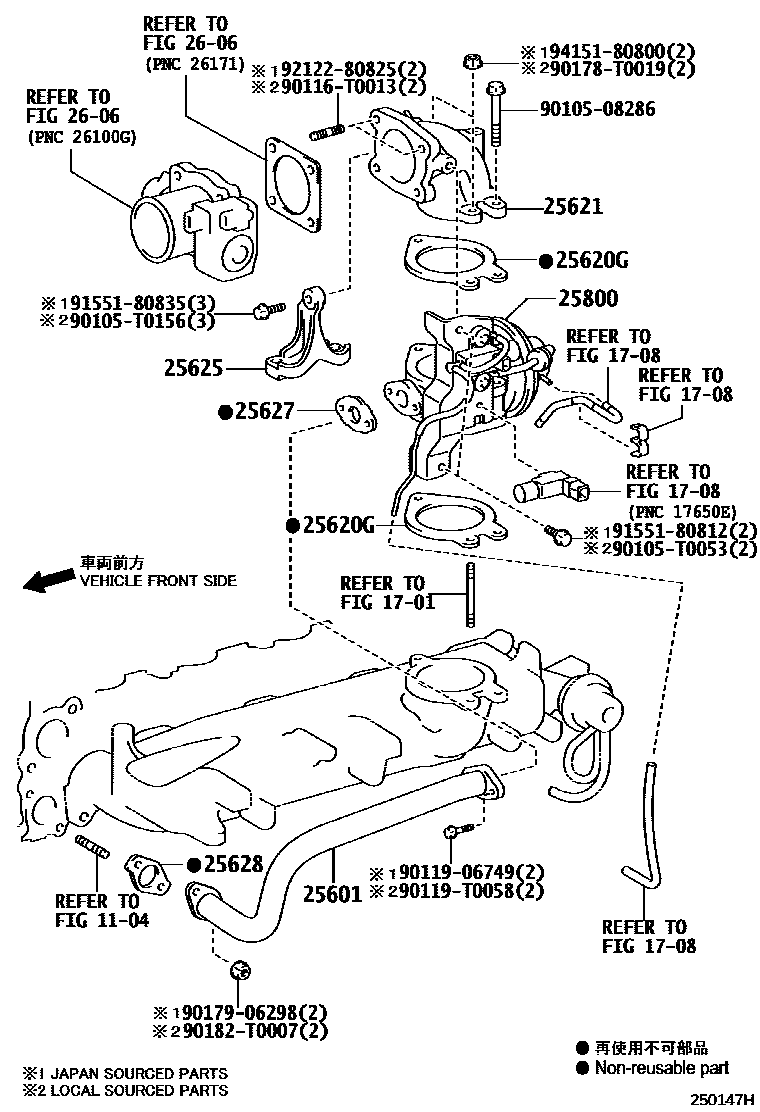

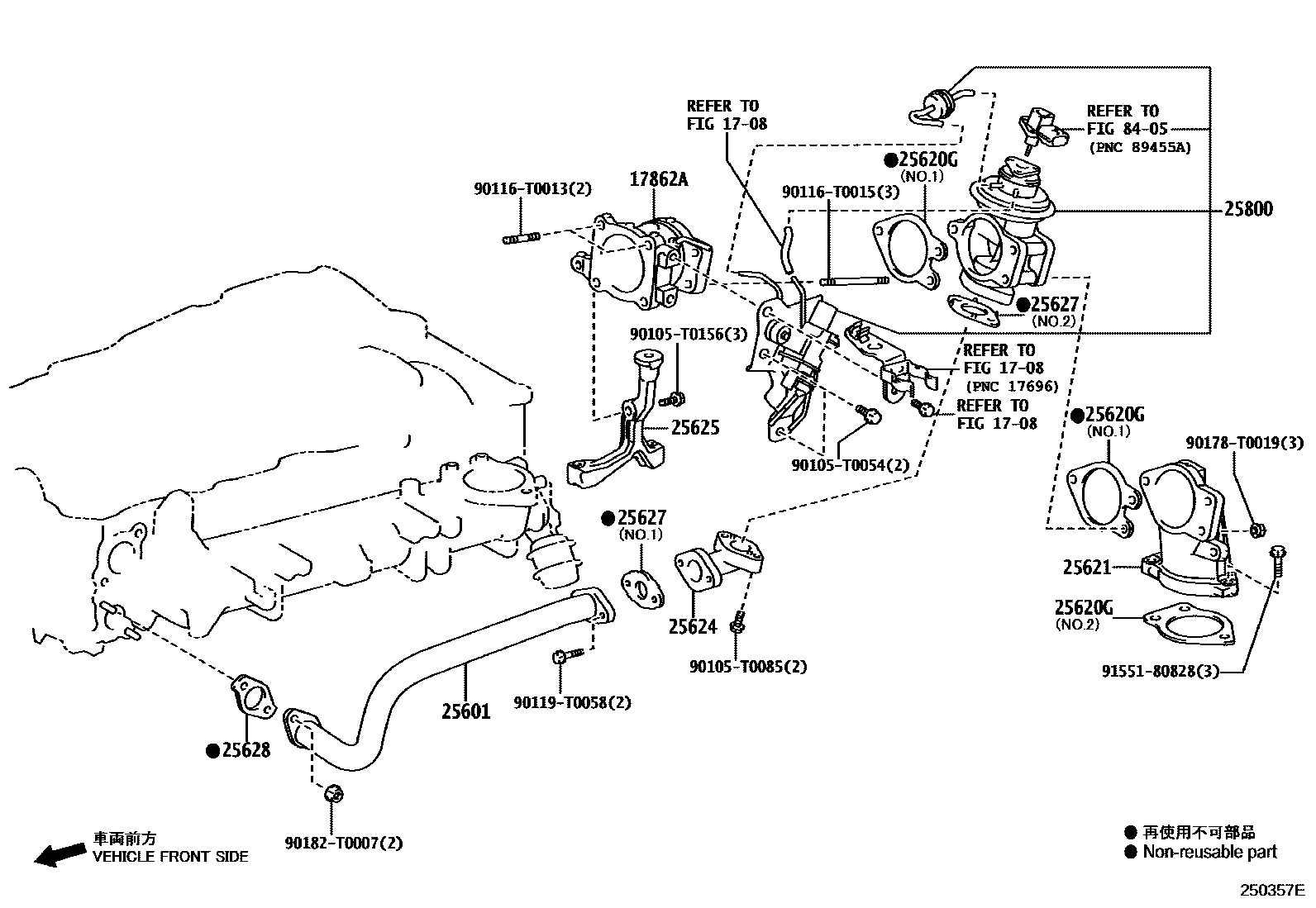

Toyota HILUX 废气再循环系统 — Figure 2501
Toyota HILUX EPC diagram 2501, 废气再循环系统, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17862A | No. 2 air intake connecting pipe | 17862-0L010 · 17862-30020 |
| 25601 | No. 1 EGR pipe assembly | 25601-0L010 · 25601-30070 · 25601-30080 |
| 25620G | Diesel engine throttle gasket | 26171-0L010 · 26171-0L030 · 26171-30030 · 26171-30050 |
| 25621 | Air intake connection pipe (for gasket) | 17861-0L010 · 17861-0L030 · 17861-30070 · 17861-30090 |
| 25624 | EGR valve adapter | 25611-0L020 · 25611-30010 |
| 25625 | EGR valve bracket | 26127-0L010 · 26127-0L020 · 26127-30010 · 26127-30020 · 26127-30030 |
| 25627 | EGR valve gasket | 25627-0L010 · 25627-30010 · 25627-30030 · 25627-30060 |
| 25628 | EGR air intake gasket | 25628-0L010 · 25628-30020 · 25628-30030 · 25628-30031 |
| 25630 | No. 2 EGR valve assembly | 25630-30020 |
| 25686 | No. 2 EGR Cooler Gasket | 25686-30010 · 25686-30020 |
| 25800 | Electronic EGR control valve assembly | 25800-0L010 · 25800-0L020 · 25800-0L040 · 25800-0L050 · 25800-0L080 · 25800-30120 · 25800-30180 |
