Toyota HILUX fuel filter — Figure 2302

Toyota HILUX EPC diagram 2302, fuel filter, with 2 images and 6 PNC and OE references.

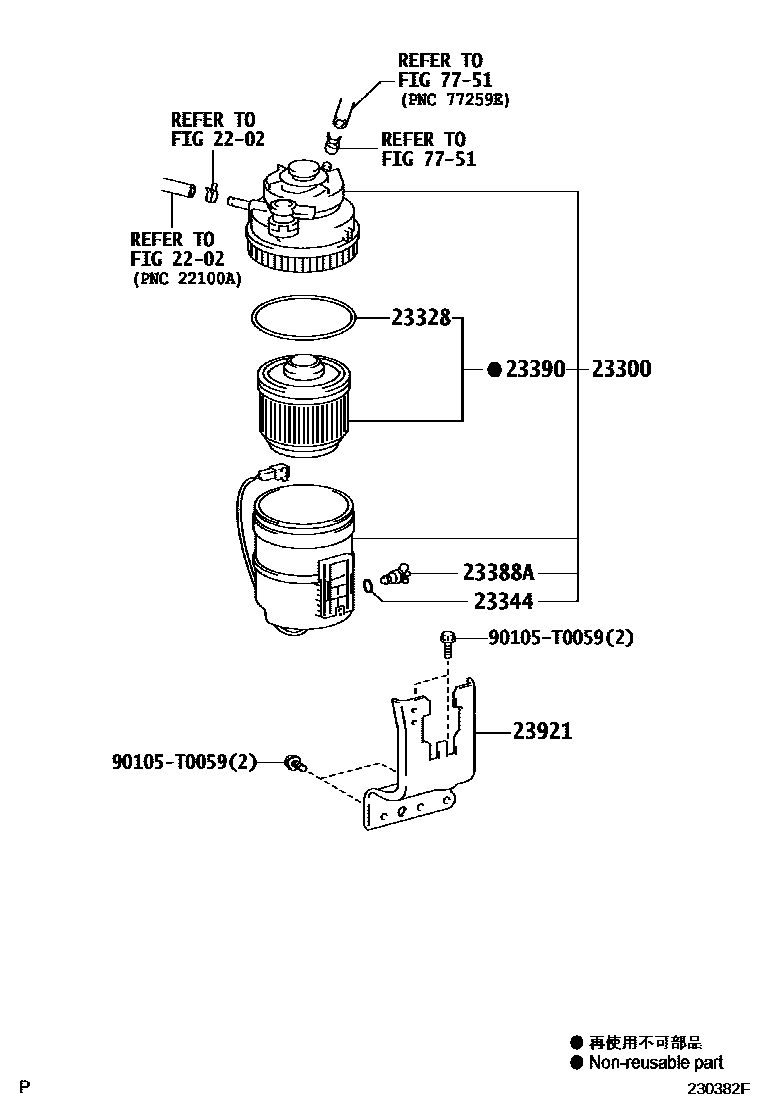

Toyota HILUX fuel filter EPC diagram — 230382F
fuel filter — 230382F (200507 – 999999)

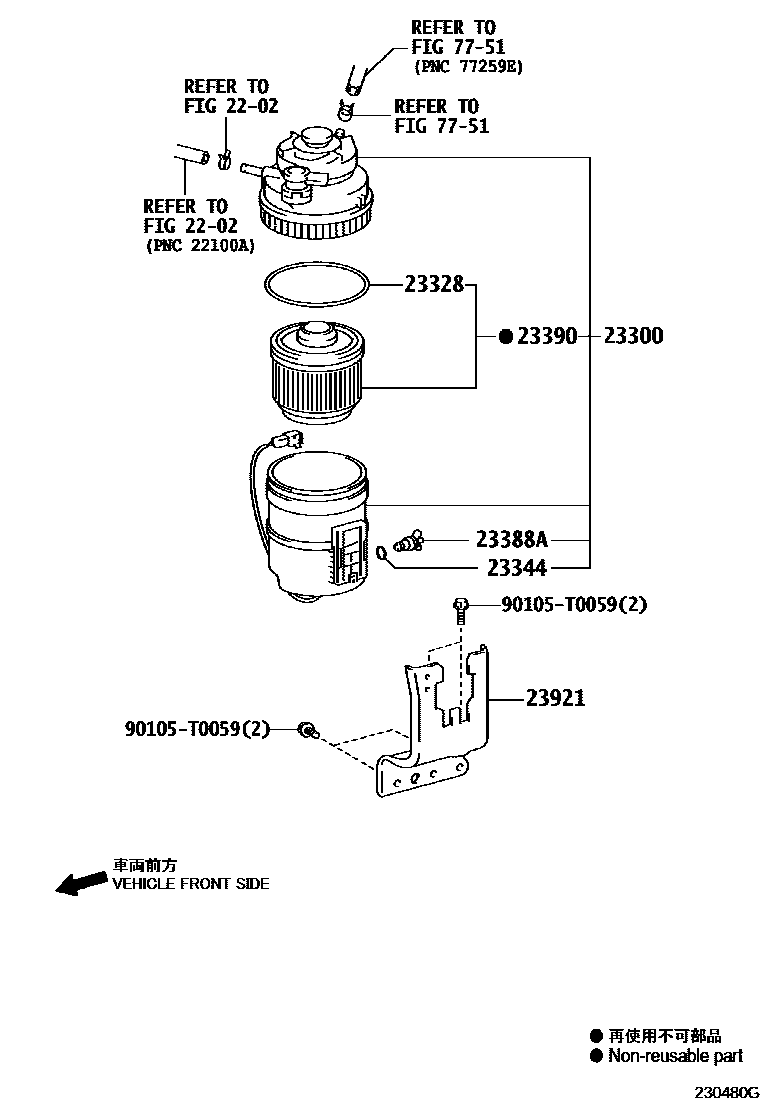

Toyota HILUX fuel filter EPC diagram — 230480G
fuel filter — 230480G (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
23300fuel filter assembly23300-0L020 · 23300-0L040 · 23300-0L041
23328Gasket (for fuel filter)23344-0L010
23344Clamp nut gasket (for fuel filter)23344-0L041
23388AFuel filter drain plug23388-0L041
23390Fuel filter element assembly23390-0L010 · 23390-0L040 · 23390-0L041
23921Fuel filter support23921-0L010 · 23921-0L040 · 23921-0L050 · 23921-0L080
