Toyota HILUX 歧管喷气系统 — Figure 1706

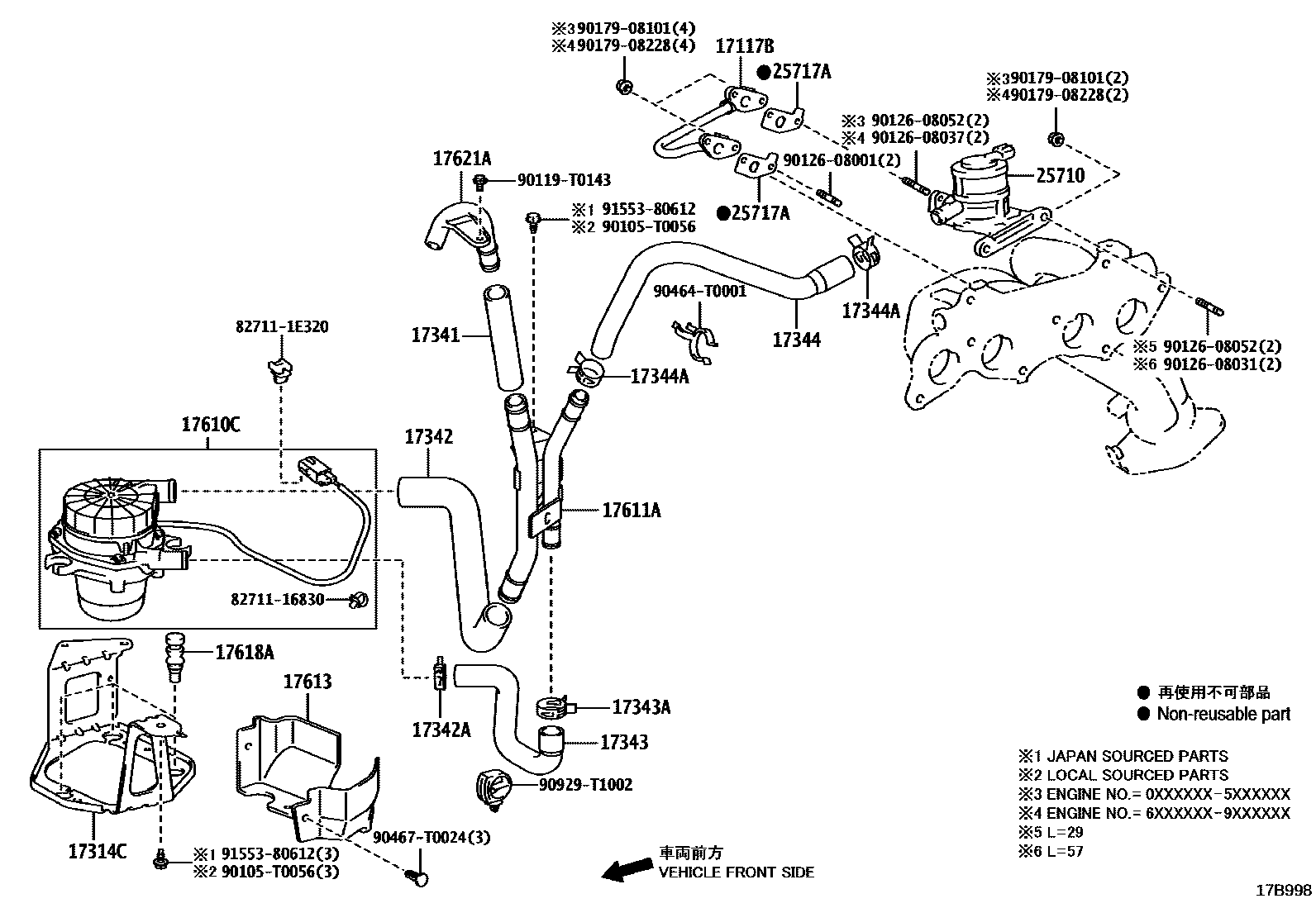

Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17117B | No. 4 intake pipe | 17117-0C010 · 17117-0C011 · 17117-75010 · 17117-75011 |
| 17314C | air pump bracket | 17314-0C010 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-0C010 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-0C010 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90466-T0034 |
| 17343 | No. 3 hose (for air injection system) | 17343-0C010 |
| 17343A | No. 3 clip or clip (for No. 3 air injection system hose) | 90466-T0034 |
| 17344 | No. 4 hose (for air injection system) | 17344-0C010 |
| 17344A | No. 4 clamp or clip (for No. 4 air injection system hose) | 90466-T0034 |
| 17610C | air pump assembly | 17610-0C020 |
| 17611A | air pump intake pipe | 17611-0C010 |
| 17613 | air pump cover | 17613-0C010 |
| 17618A | Air pump vibration isolation pad | 17618-0C010 |
| 17621A | air pump air inlet | 17621-0C020 |
| 25710 | Air switch valve assembly | 25710-75020 · 25710-75021 · 25710-75022 |
| 25717A | air switch valve gasket | 25717-75010 |
