Toyota HILUX V-Belt — Figure 1605

Toyota HILUX EPC diagram 1605, V-Belt, with 2 images and 3 PNC and OE references.

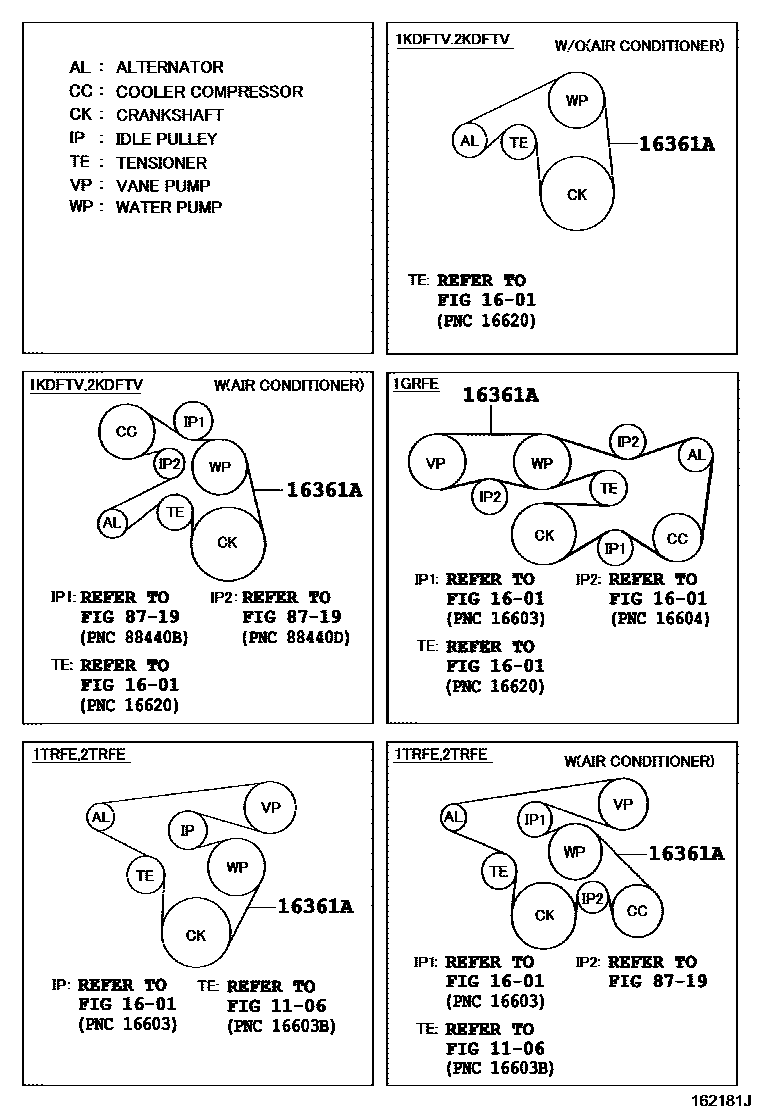

Toyota HILUX V-Belt EPC diagram — 162181J
V-Belt — 162181J (200408 – 999999)

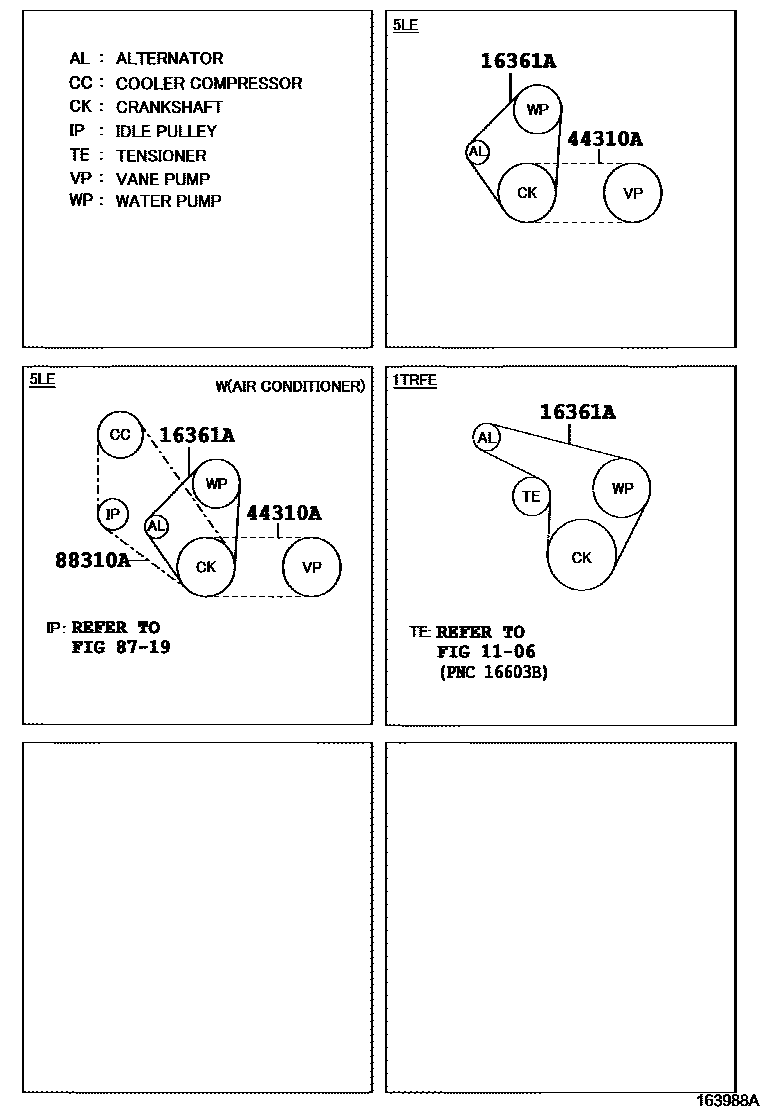

Toyota HILUX V-Belt EPC diagram — 163988A
V-Belt — 163988A (200507 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02211 · 90916-02571 · 90916-02636 · 90916-02639 · 90916-T2005 · 90916-T2006 · 90916-T2017 · 90916-T2019 · 90916-T2021 · 90916-T2022 · 90916-T2024
44310AV-belt (for vane pump)90916-T2020
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90916-T2008
