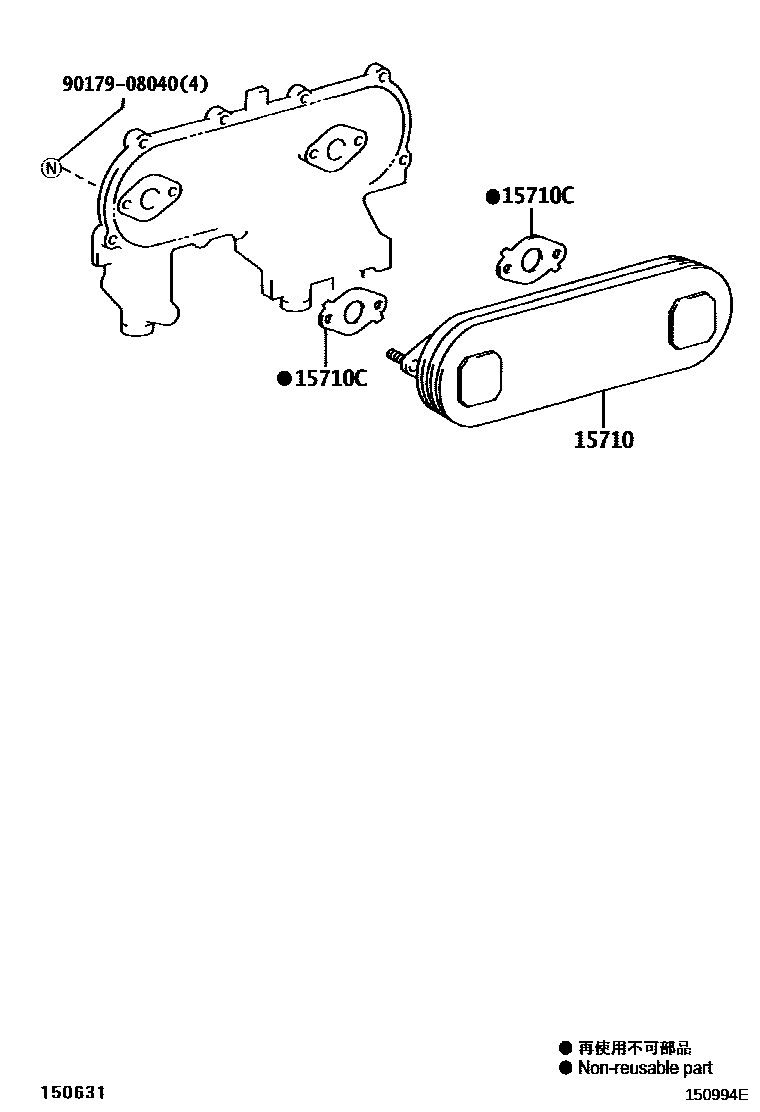

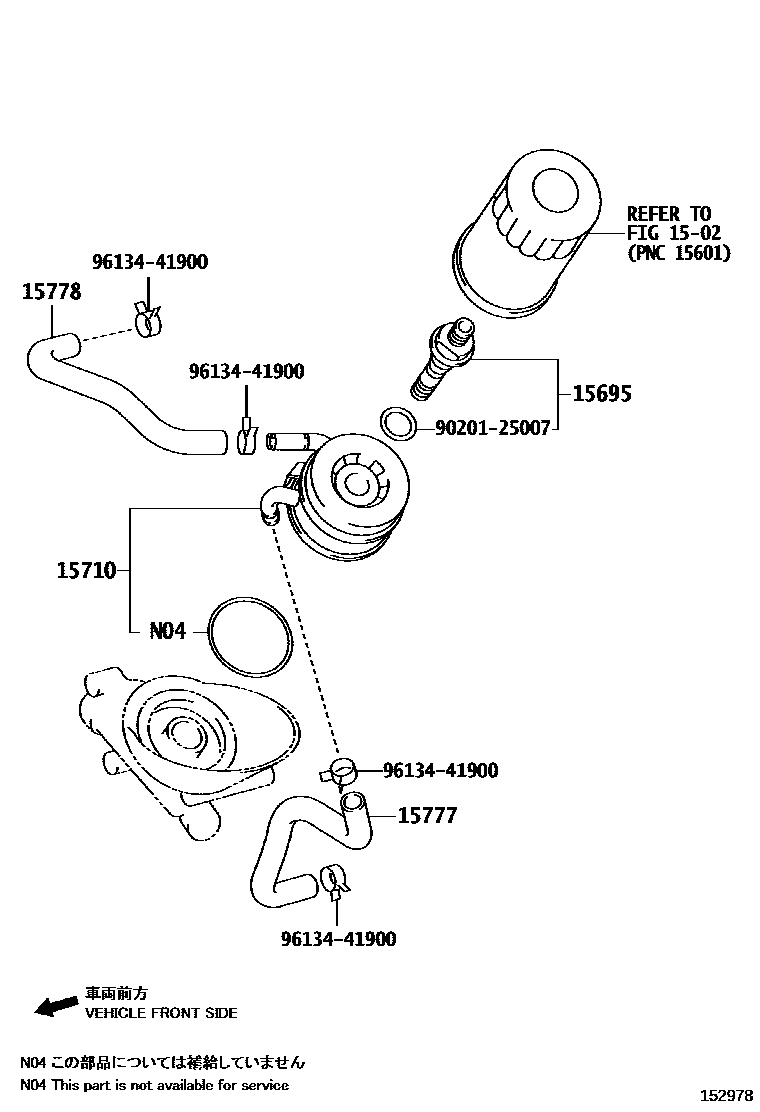

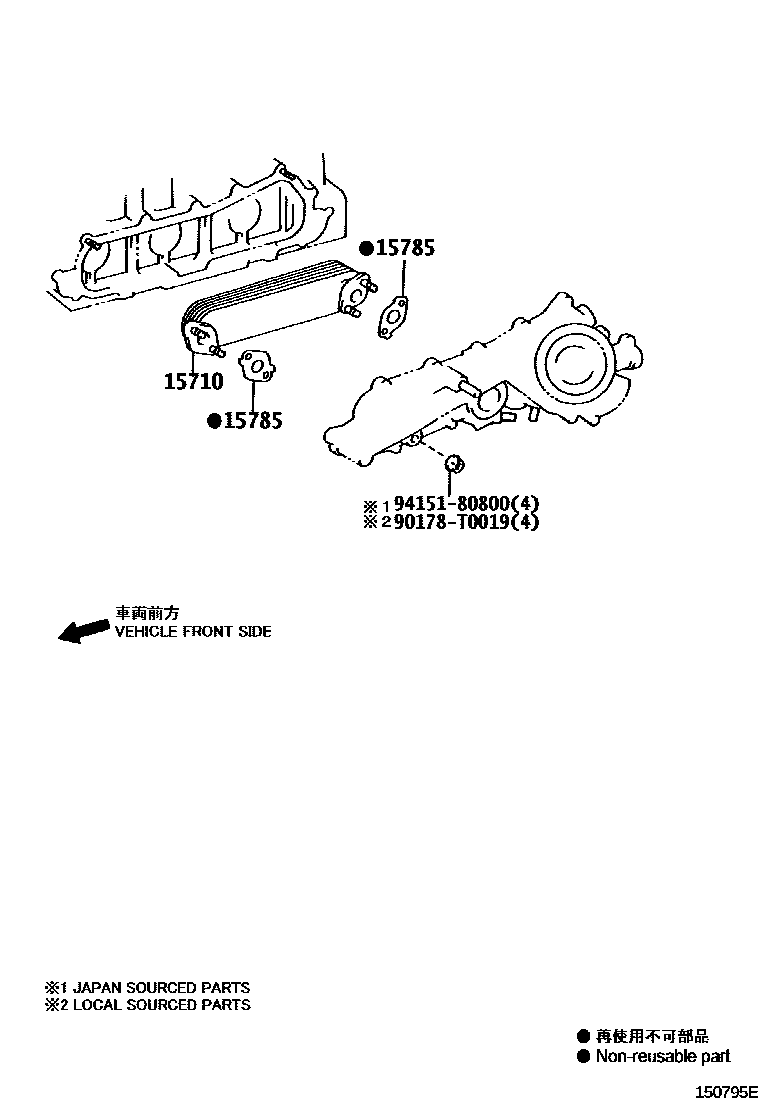

Toyota HILUX Engine Oil Cooler — Figure 1503
Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15695 | Oil cooler joint bolts | 15695-22010 |
| 15710 | Oil cooler assembly | 15710-0L010 · 15710-0L020 · 15710-0L030 · 15710-0L040 · 15710-0L050 · 15710-0L060 · 15710-30010 · 15710-30030 · 15710-30040 · 15710-31010 · 15710-54050 |
| 15710C | Gasket (for oil cooler) | 15785-54010 |
| 15777 | oil cooler hose | 15777-0P020 · 15777-31010 |
| 15778 | No. 2 oil cooler hose | 15778-0P020 · 15778-31010 |
| 15785 | oil cooler gasket | 15785-0L010 · 15785-30010 |
