Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 8 images and 11 PNC and OE references.

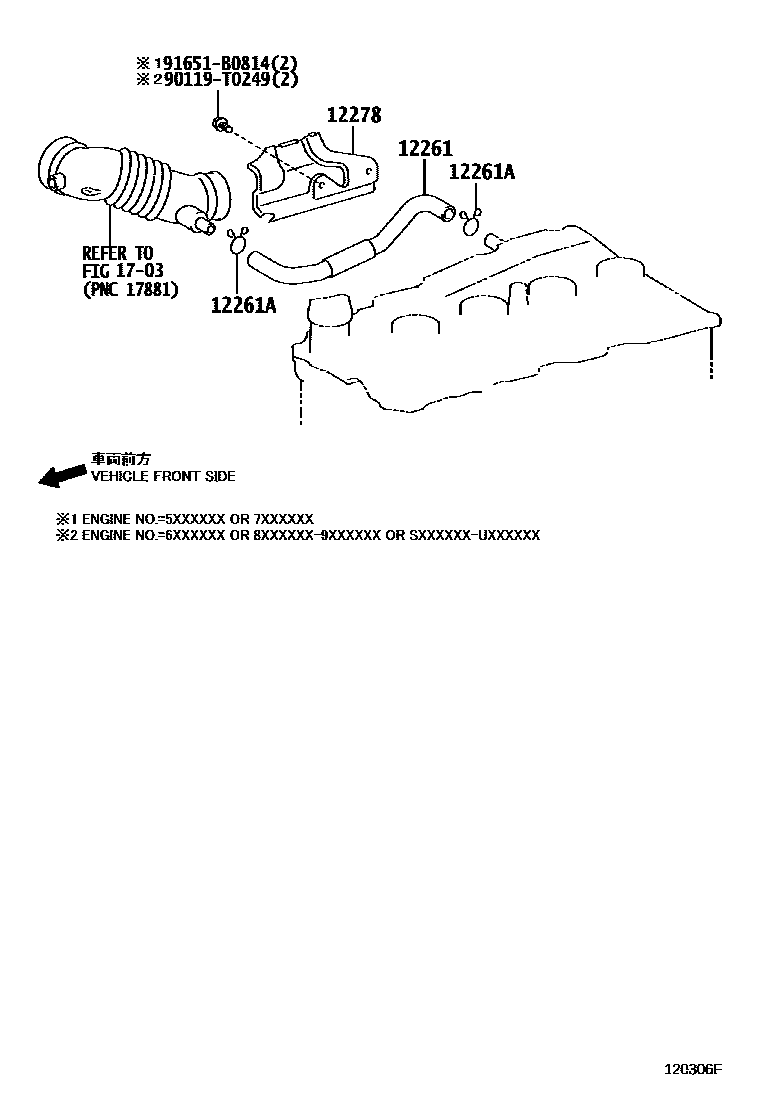

Toyota HILUX Ventilation Hose EPC diagram — 120306F
Ventilation Hose — 120306F (200408 – 999999)

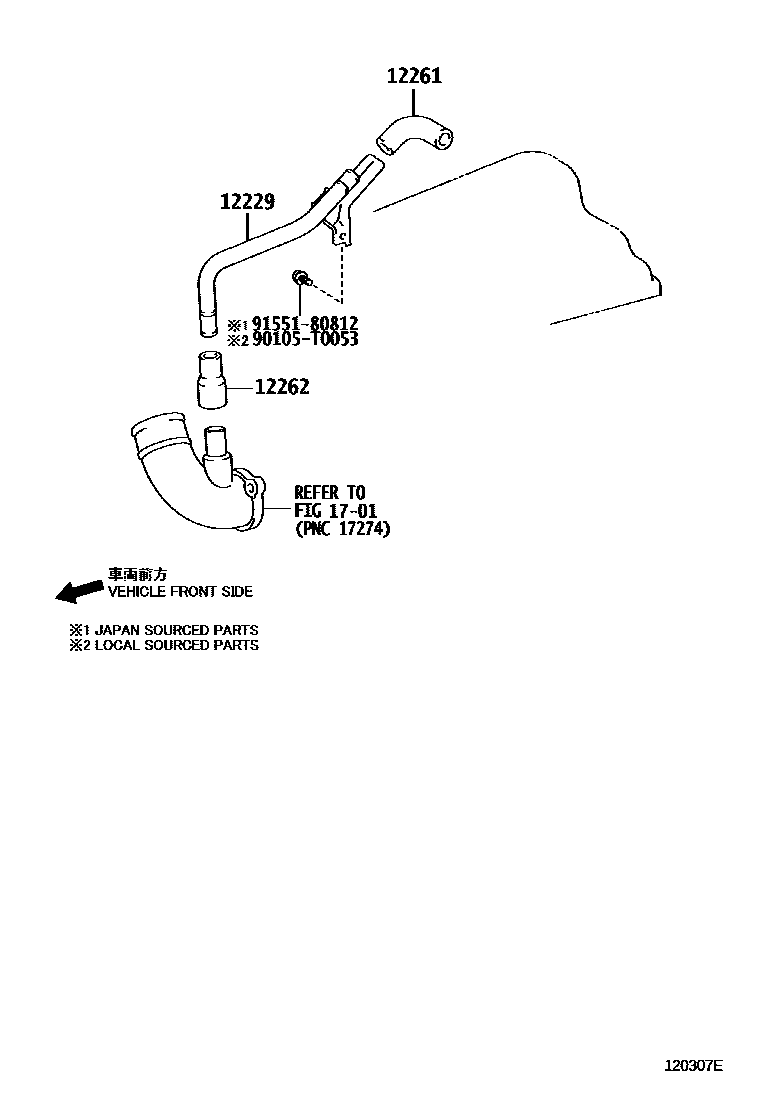

Toyota HILUX Ventilation Hose EPC diagram — 120307E
Ventilation Hose — 120307E (200408 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 120442A
Ventilation Hose — 120442A (200507 – 999999)

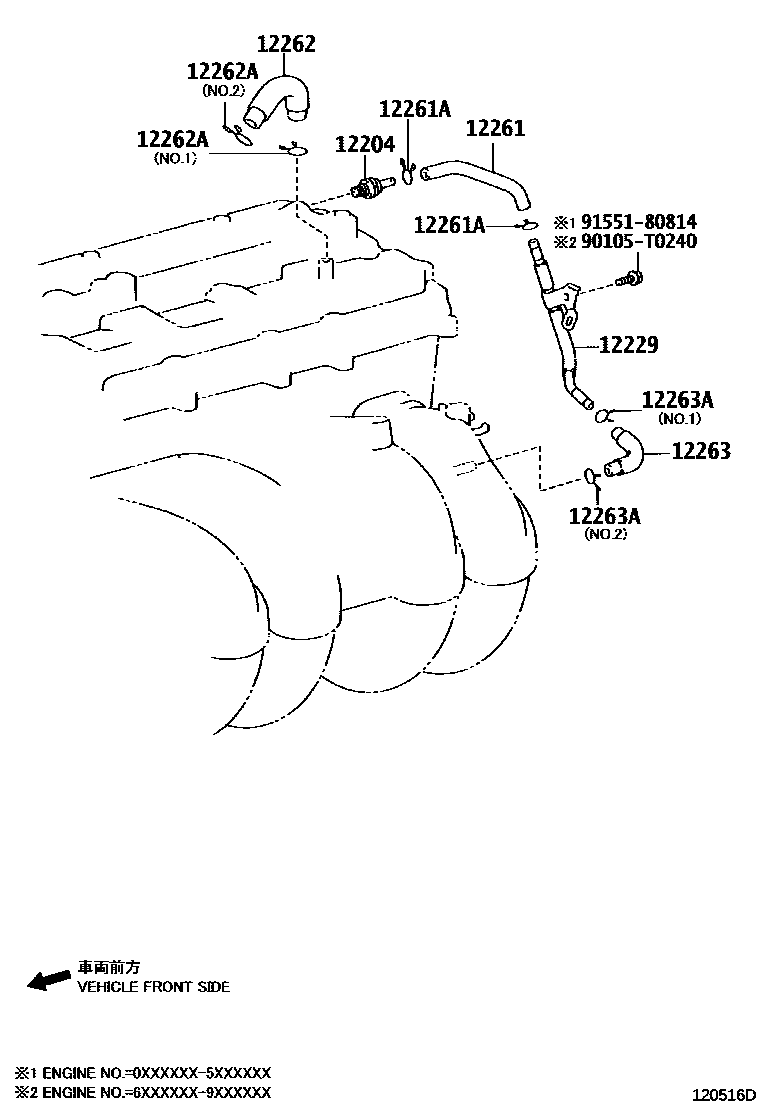

Toyota HILUX Ventilation Hose EPC diagram — 120516D
Ventilation Hose — 120516D (200501 – 999999)

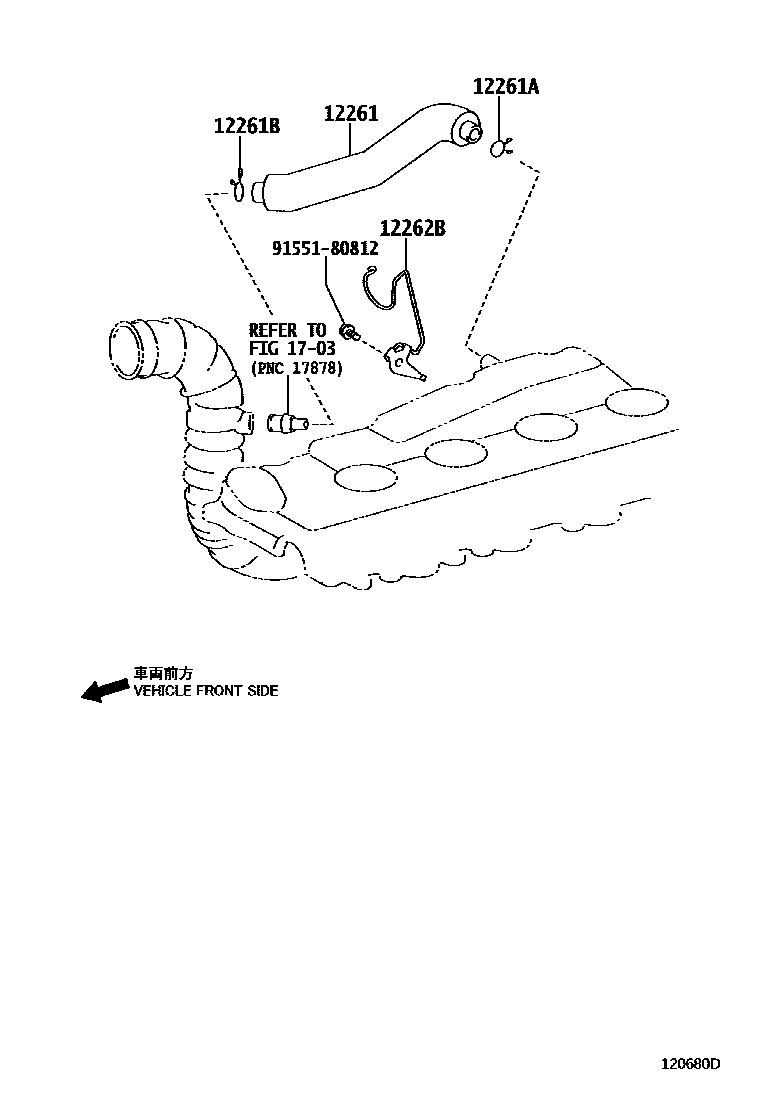

Toyota HILUX Ventilation Hose EPC diagram — 120680D
Ventilation Hose — 120680D (200908 – 201008)
Toyota HILUX Ventilation Hose EPC diagram — 120716B
Ventilation Hose — 120716B (200910 – 201005)
Toyota HILUX Ventilation Hose EPC diagram — 120759A
Ventilation Hose — 120759A (201005 – 999999)

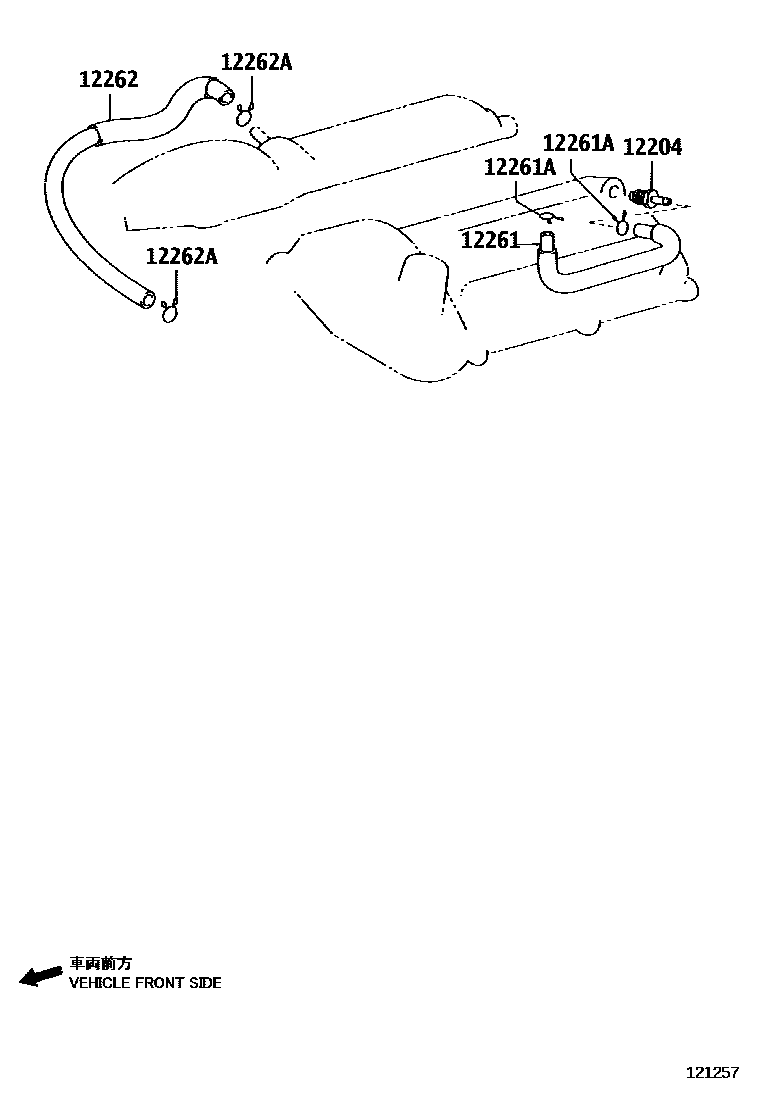

Toyota HILUX Ventilation Hose EPC diagram — 121257
Ventilation Hose — 121257 (200502 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0C010 · 12204-31030
12229ventilation duct12229-0C010 · 12229-0C020 · 12229-0L010 · 12229-0L020 · 12229-30040
12261Ventilation Hose12261-0C010 · 12261-0C020 · 12261-0L020 · 12261-0L021 · 12261-0L030 · 12261-0P060 · 12261-30040 · 12261-30090 · 12261-31030 · 12261-54200 · 12261-75090
12261AClip or clip (for vent hose)90466-T0026 · 90466-T0032 · 90467-14001 · 90467-14017 · 90467-22010
12261BClip or clip (for vent hose)90467-21006
12262Ventilation hose No. 212262-0C010 · 12262-0C020 · 12262-0L010 · 12262-0P050 · 12262-30040 · 12262-31030
12262AClamp (for vent hose No. 2)90466-T0027 · 90467-18003 · 90467-21152 · 90467-24038
12262BClamp (for ventilation hose)16581-30180
12263No. 3 ventilation hose12263-0C010 · 12263-0C020 · 12263-75060
12263AClip (for ventilation hose)90466-T0021 · 90466-T0026 · 90467-14001 · 90467-16035 · 90467-17012
12278Ventilation hose insulation pad12278-0L010 · 12278-30020
