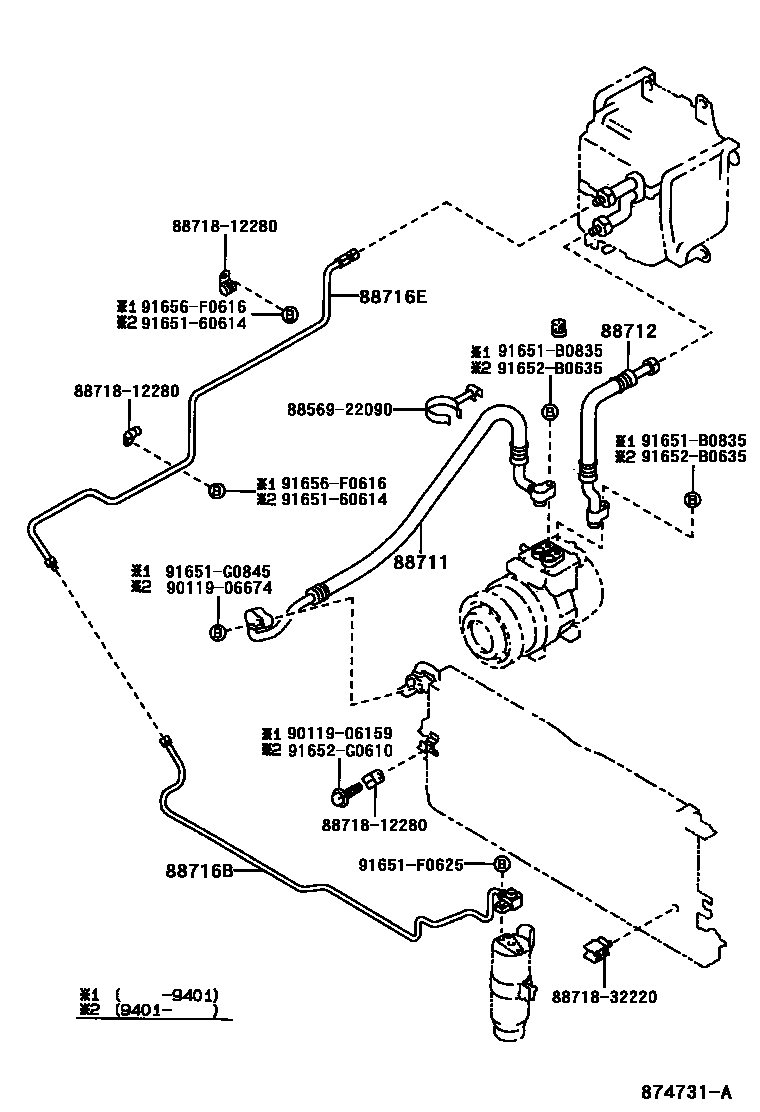

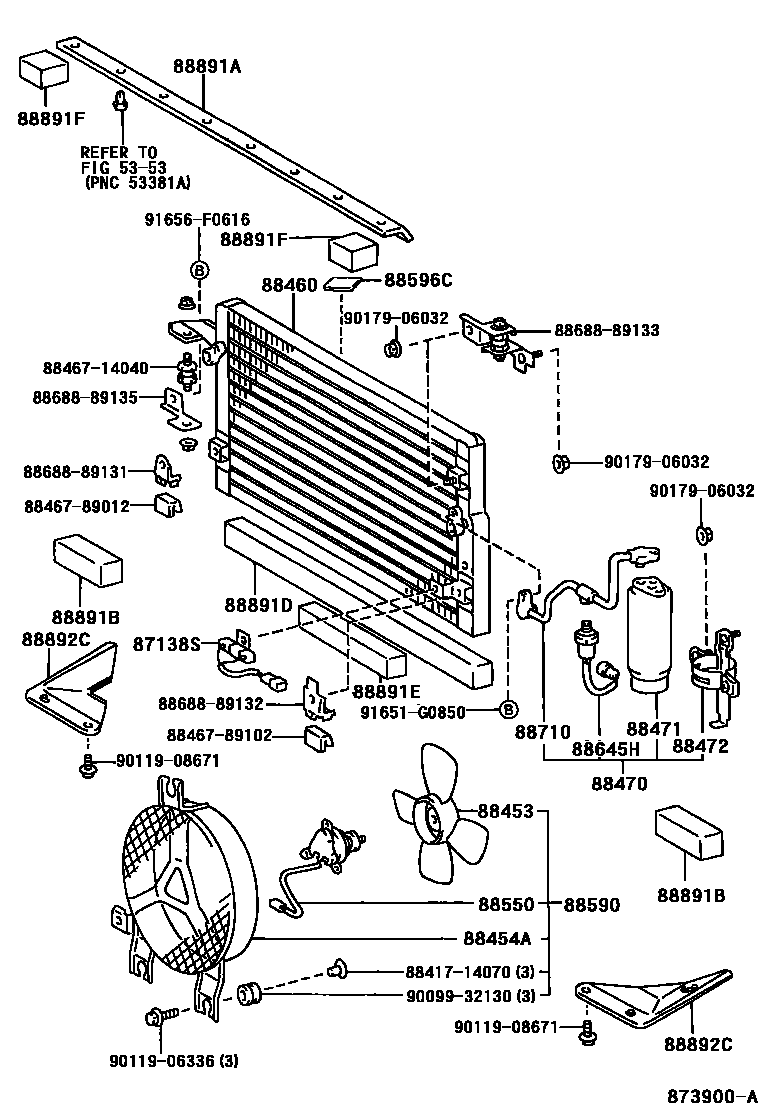

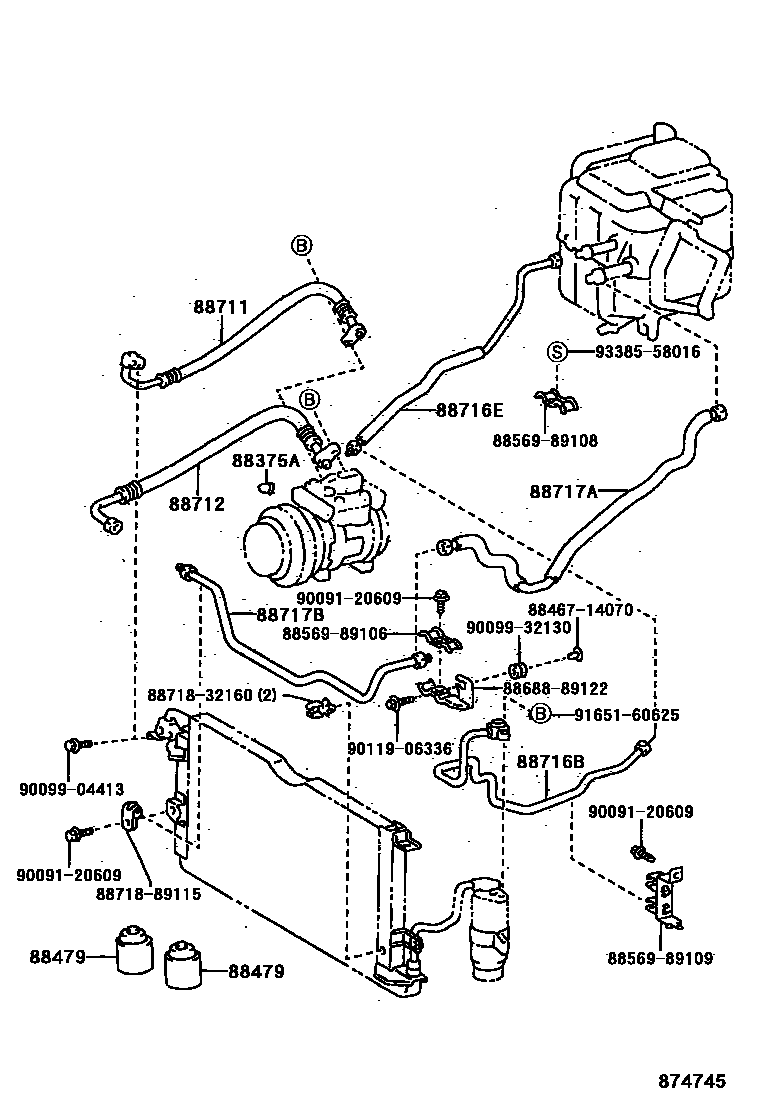

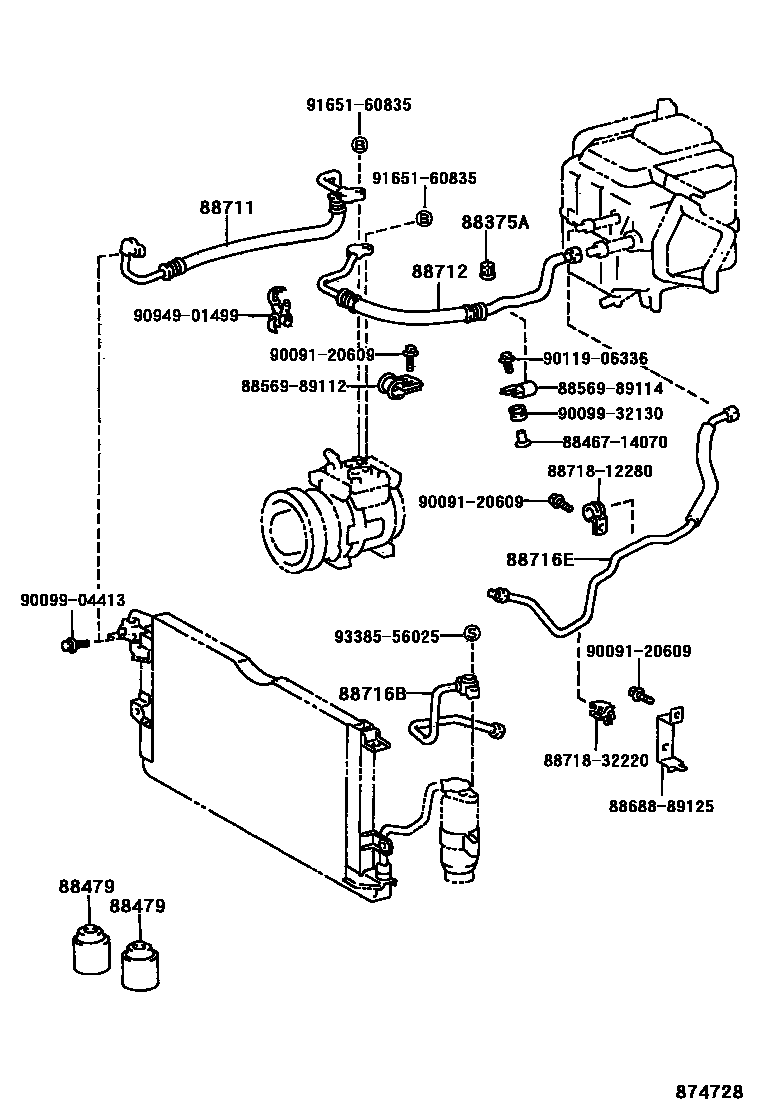

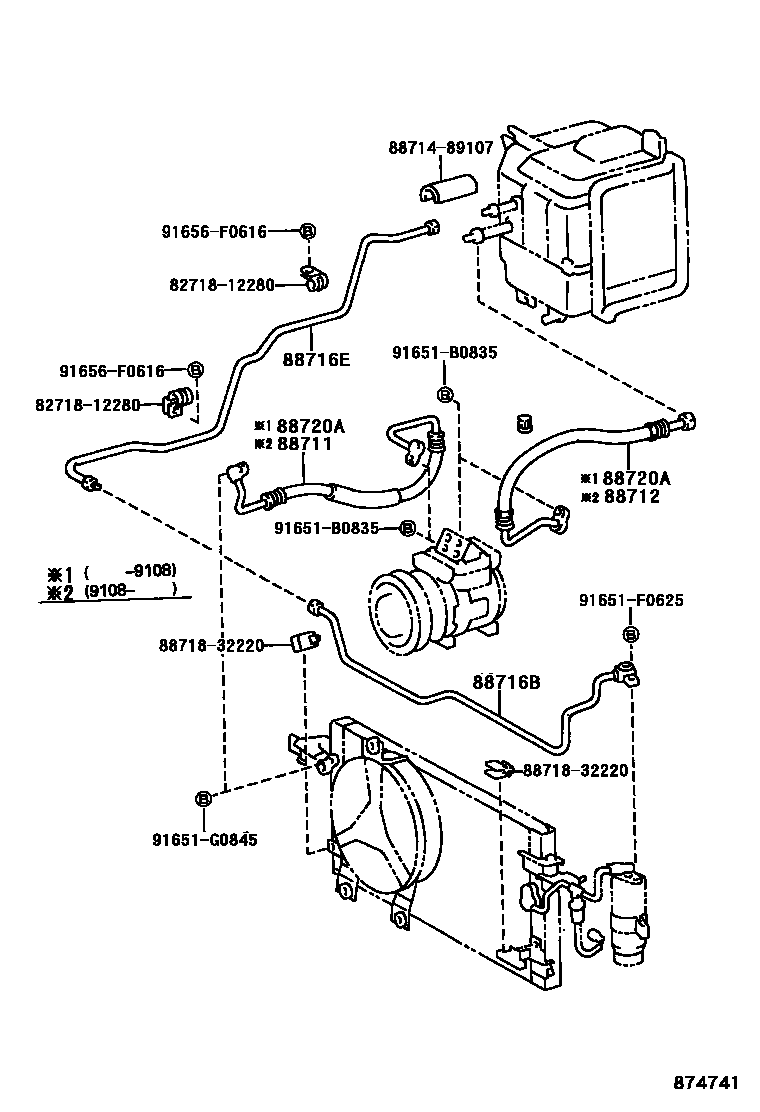

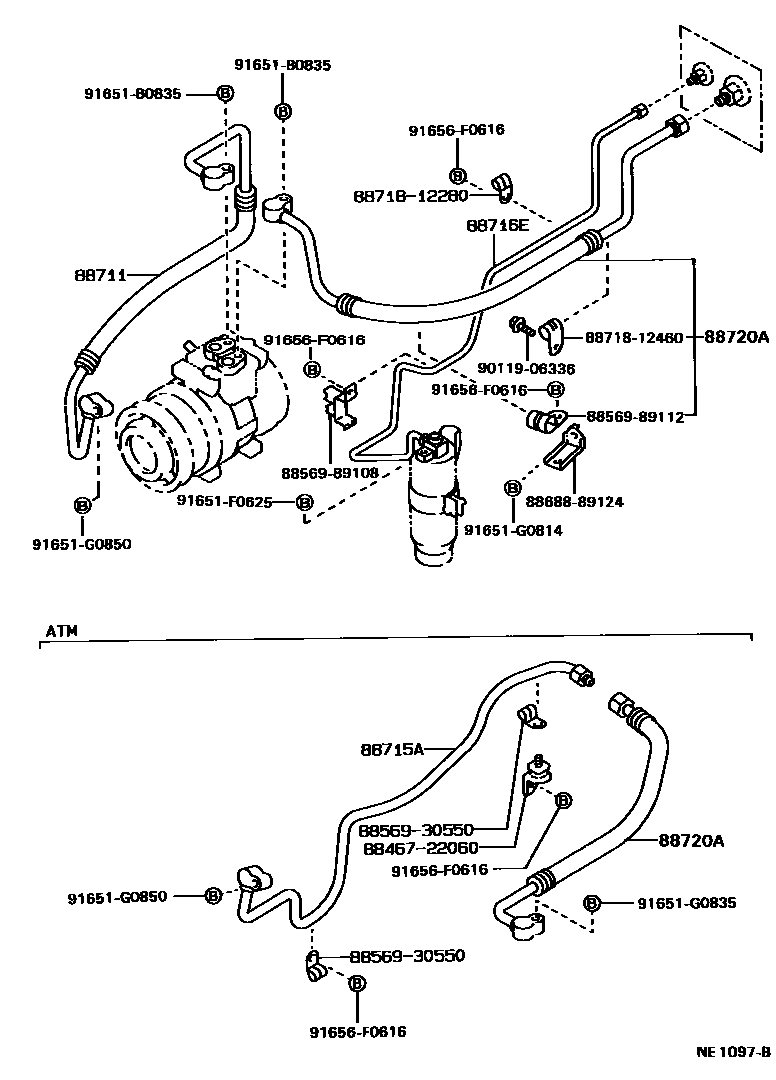

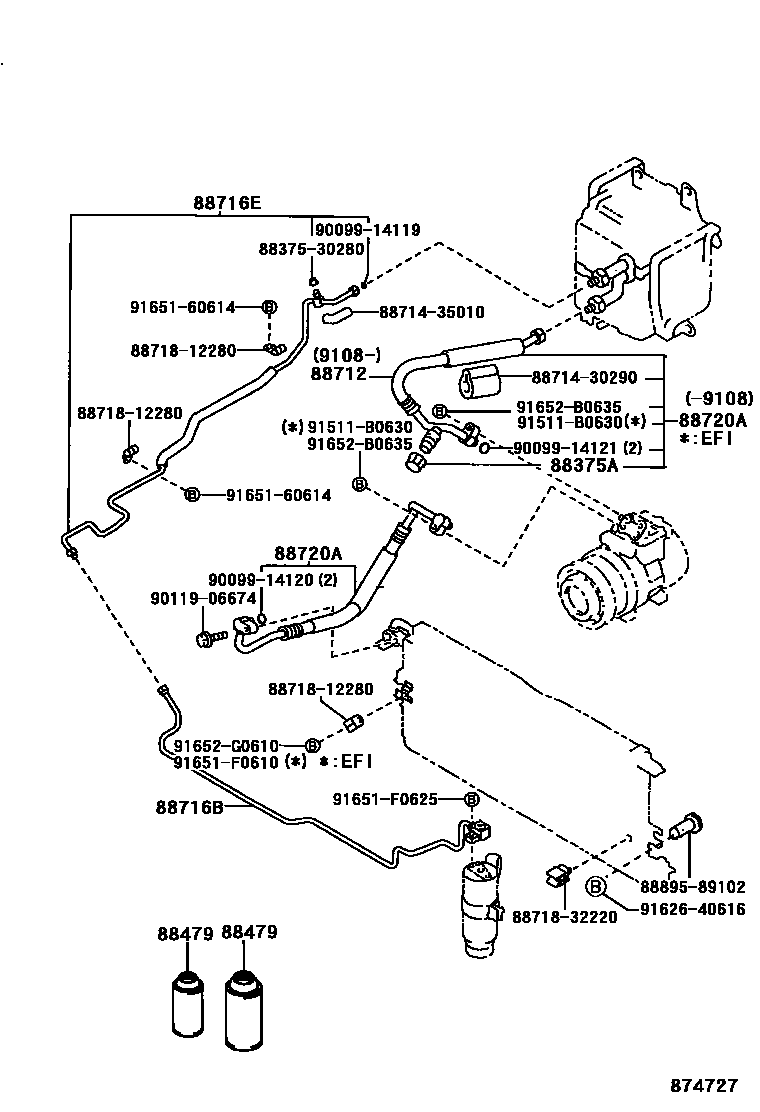

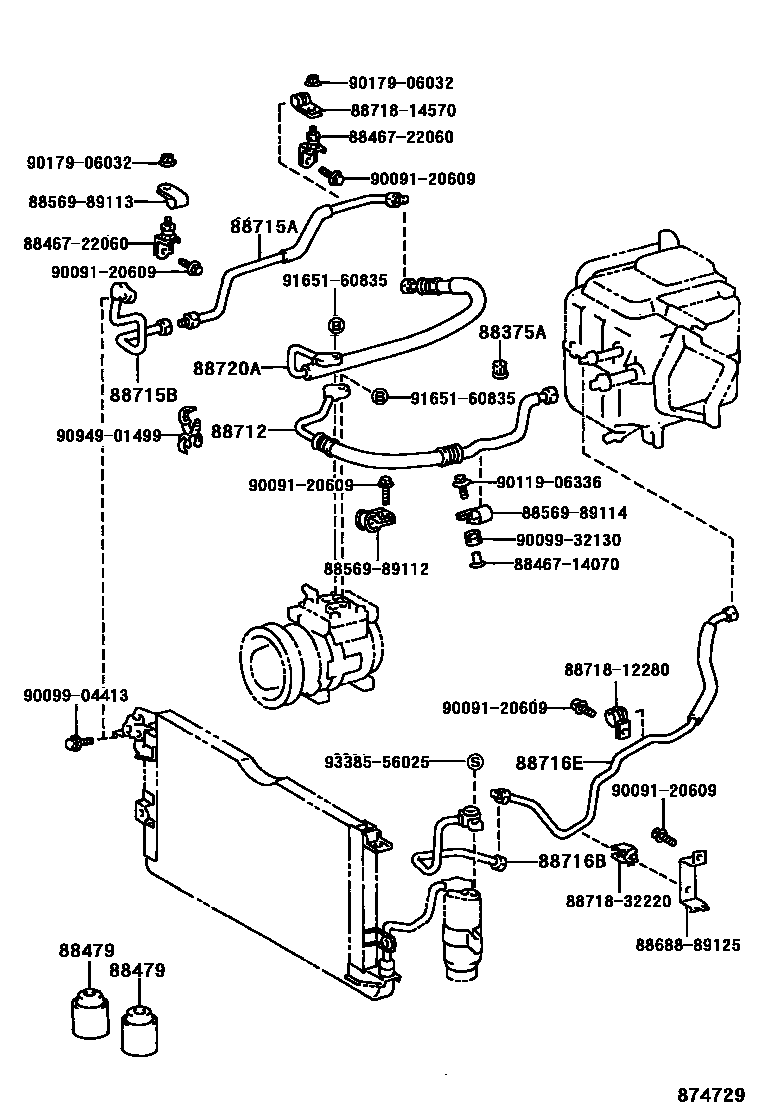

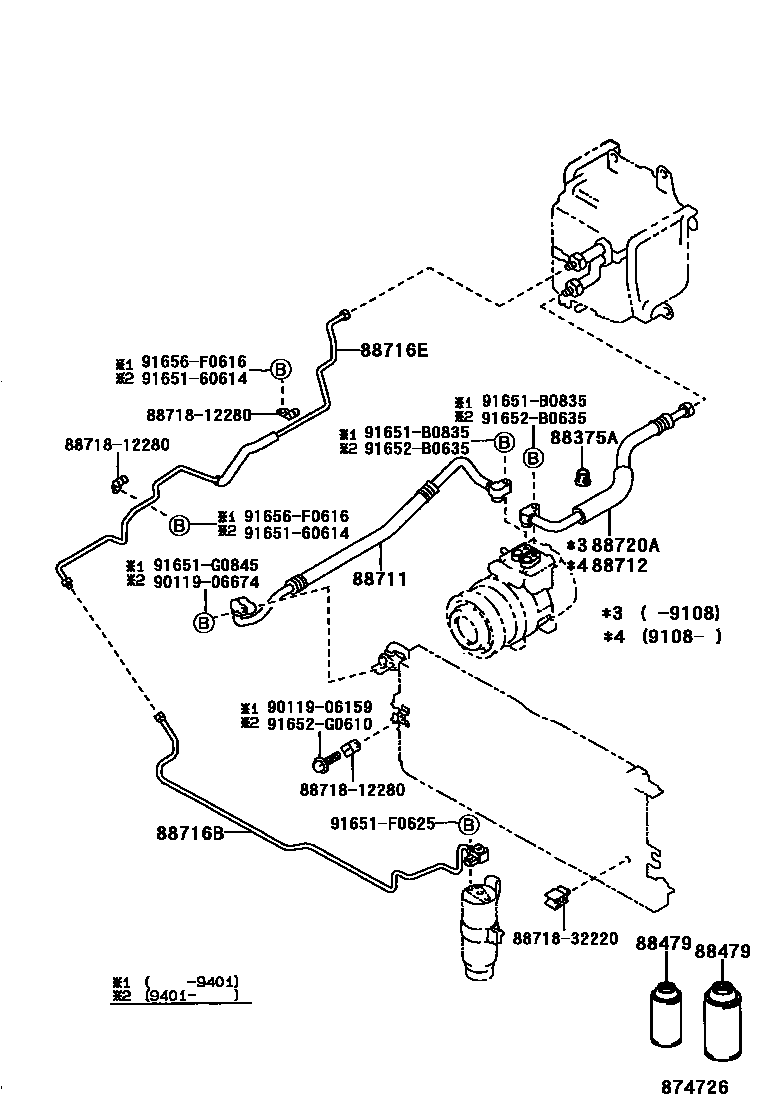

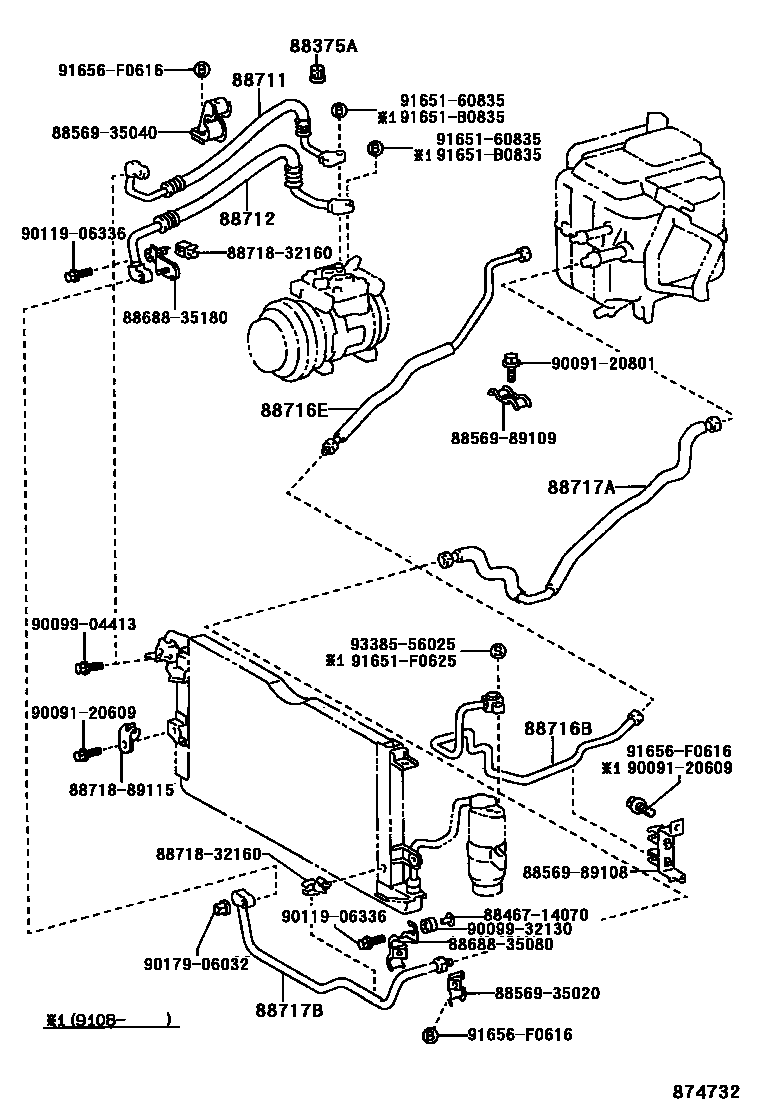

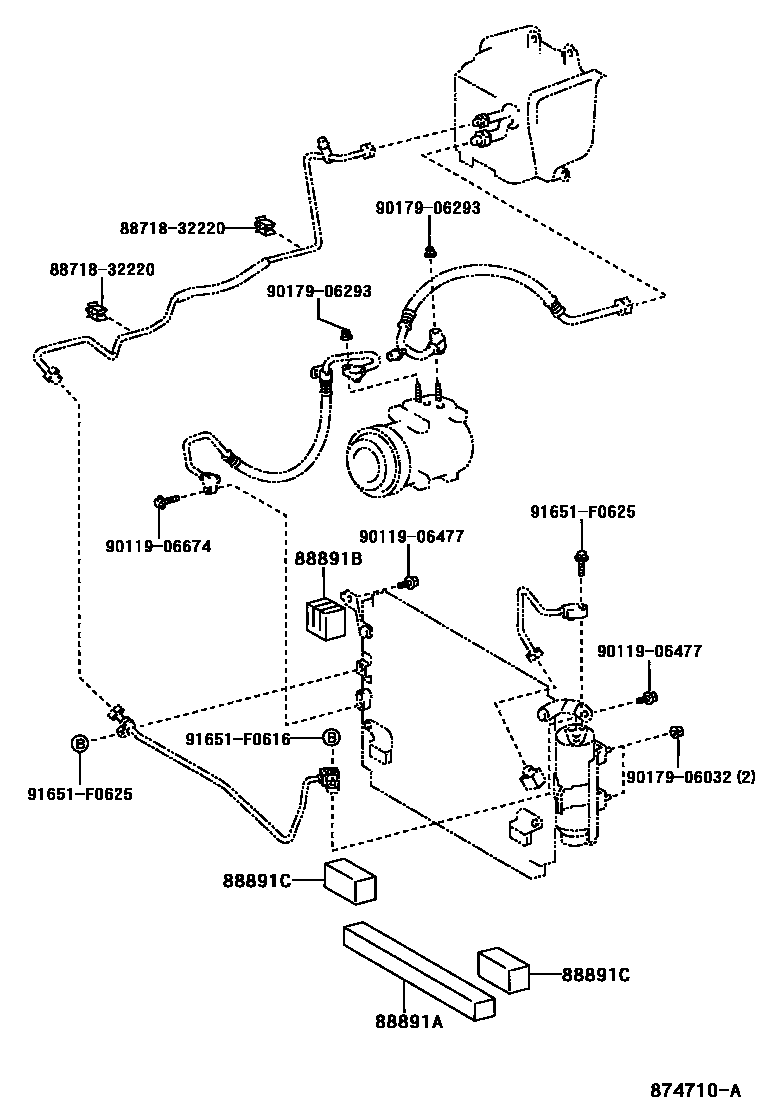

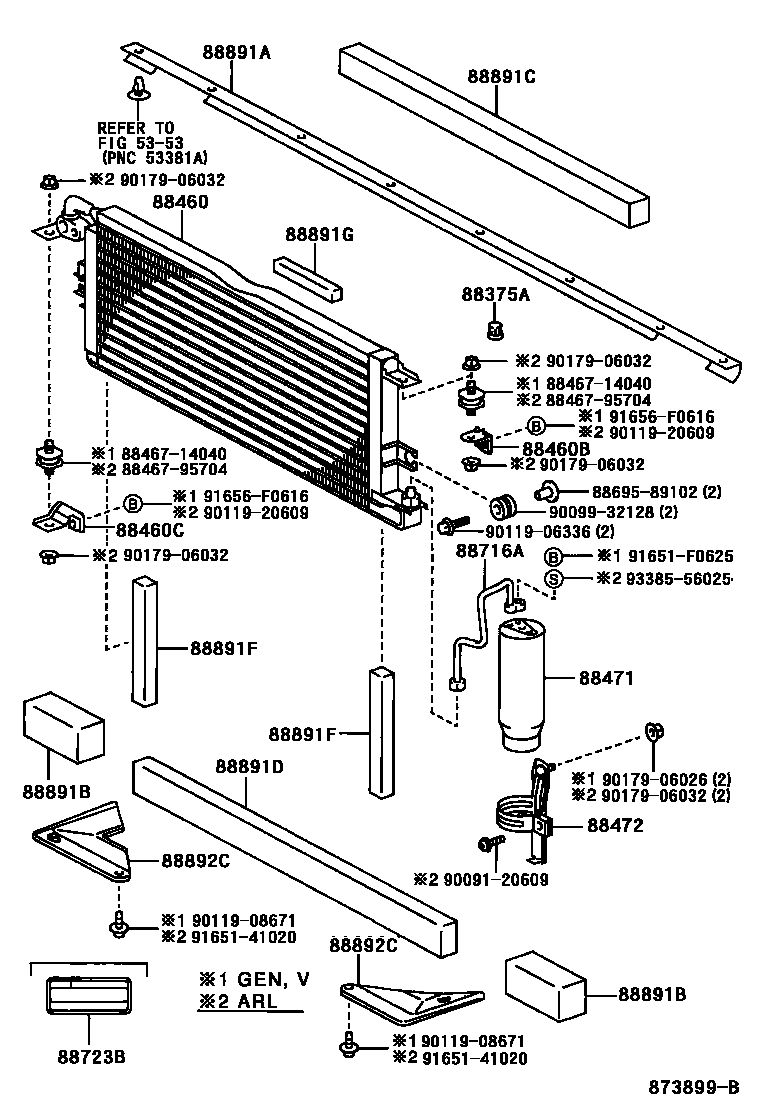

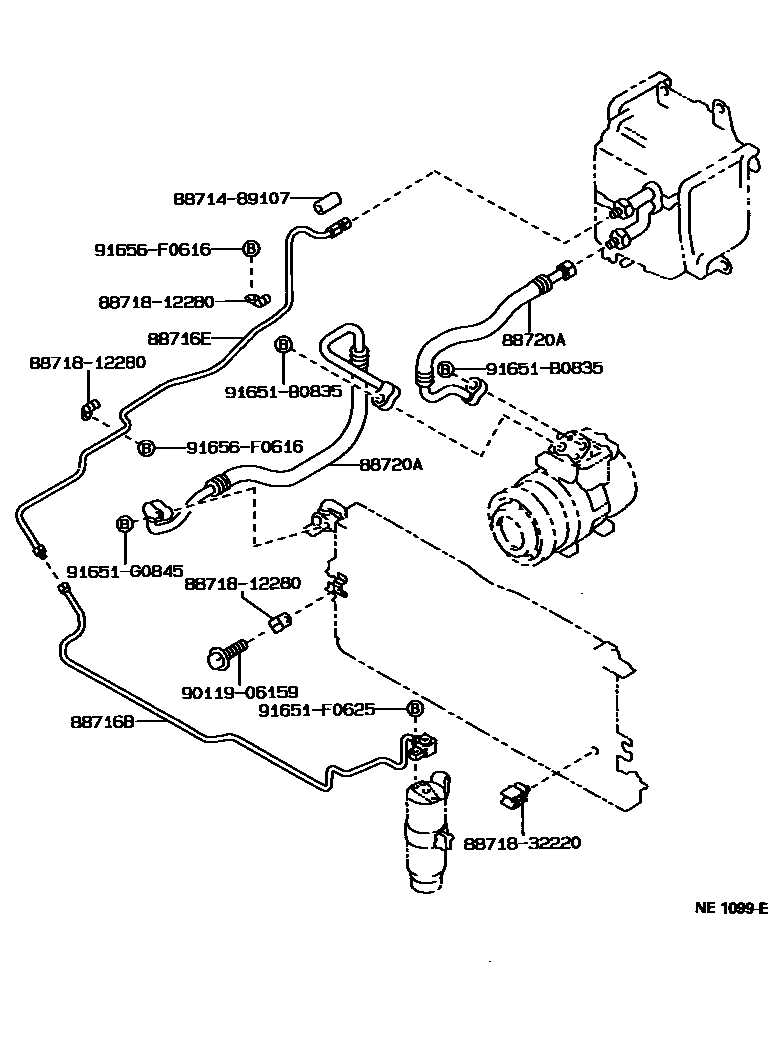

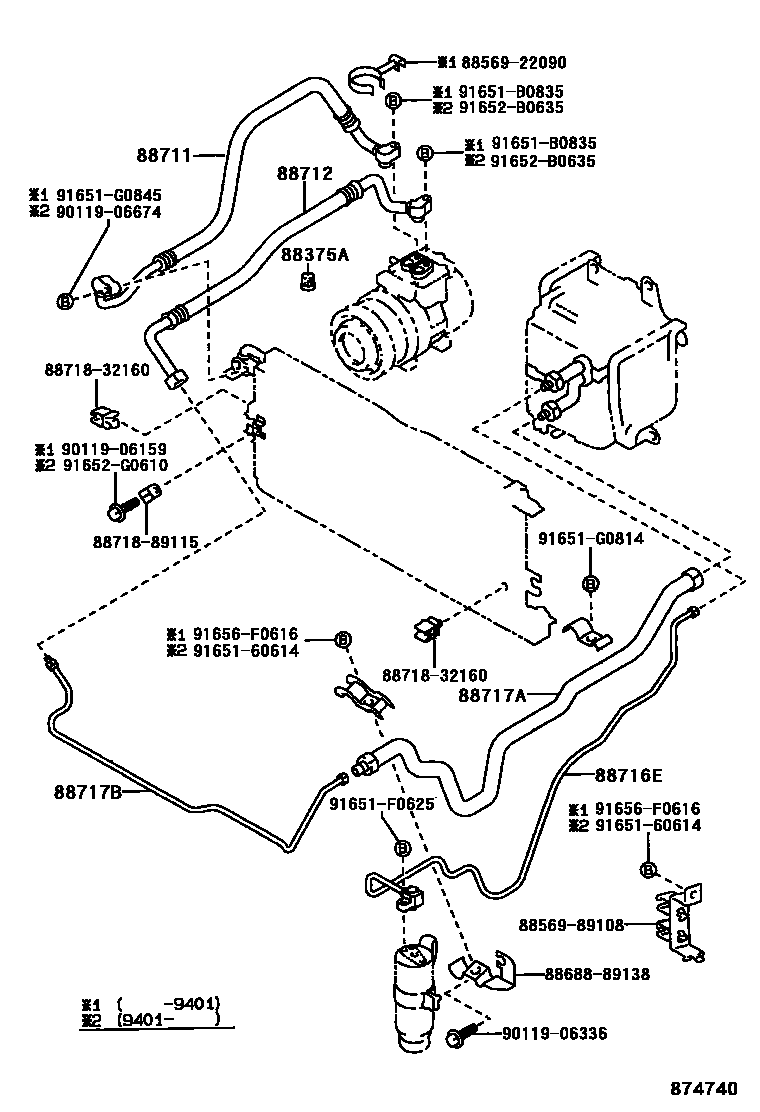

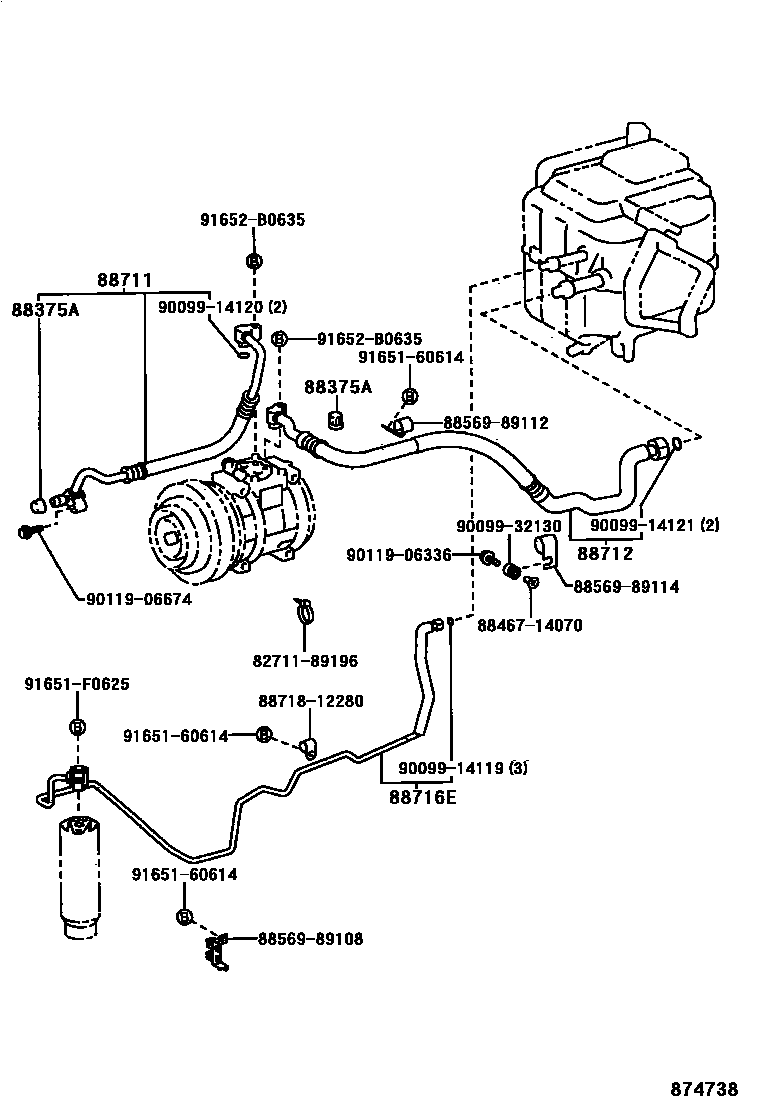

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 15 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87138S | Blower resistor | 88635-35010 · 88635-89107 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88453 | Cooling fan (for condenser) | 88453-12030 · 88453-28010 |
| 88454A | fan cover | 88454-35030 |
| 88460 | Air conditioning condenser assembly | 88460-35130 · 88460-35150 · 88460-89115 · 88460-89117 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-89120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-89121 |
| 88470 | Cooler reservoir and dryer assembly | 88470-89103 |
| 88471 | Air conditioning fluid storage tank | 88471-16040 · 88471-20050 · 88471-50010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-35010 · 88472-89110 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02004 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-89101 |
| 88590 | Blower assembly with hood | 88590-89101 |
| 88596C | No. 2 warning nameplate | 88723-12010 · 88723-17030 |
| 88645H | No. 1 pressure switch | 88645-12030 · 88645-20010 |
| 88710 | Air conditioning pipe assembly | 88710-35010 · 88710-89121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35090 · 88711-35100 · 88711-35150 · 88711-35300 · 88711-35310 · 88711-35311 · 88711-35320 · 88711-35340 · 88711-89137 · 88711-89141 · 88711-89142 · 88711-89145 · 88720-35030 · 88720-35080 · 88720-89139 · 88720-89141 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-35060 · 88712-35130 · 88712-35140 · 88712-35170 · 88712-35200 · 88712-35300 · 88712-35320 · 88712-35330 · 88712-35350 · 88712-89139 · 88712-89140 · 88712-89144 · 88712-89145 · 88720-35090 · 88720-35100 · 88720-35310 · 88720-89125 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-35020 · 88715-89107 · 88715-89109 |
| 88715B | Cooler refrigerant discharge pipe B | 88715-35030 · 88715-89108 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-35100 · 88716-35230 · 88716-89163 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-35061 · 88716-35240 · 88716-35300 · 88716-35320 · 88716-89162 · 88716-89172 · 88716-89175 · 88716-89177 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-35041 · 88716-35250 · 88716-35260 · 88716-35270 · 88716-35280 · 88716-35290 · 88716-35310 · 88716-89159 · 88716-89160 · 88716-89167 · 88716-89173 · 88716-89176 · 88716-89178 · 88716-89181 |
| 88717A | Cooler refrigerant suction pipe A | 88717-35090 · 88717-35100 · 88717-89114 · 88717-89115 |
| 88717B | Cooler refrigerant suction pipe B | 88717-35080 · 88717-89113 |
| 88720A | Air conditioning hoses and accessories | 88711-35270 · 88711-35290 · 88711-35320 · 88712-35200 · 88712-89145 · 88720-35010 · 88720-35020 · 88720-35090 · 88720-35100 · 88720-35140 · 88720-35230 · 88720-35310 · 88720-35340 · 88720-35360 · 88720-89120 · 88720-89122 · 88720-89125 · 88720-89130 · 88720-89131 · 88720-89132 |
| 88723B | Cooler maintenance warning label | 88723-17030 · 88723-20010 · 88723-20020 · 88723-20040 · 88723-35050 |
| 88891A | Seal A (for cooler) | 53381-89104 · 88578-89112 |
| 88891B | Seal B (for cooler) | 88578-35120 · 88578-89103 · 88578-89111 |
| 88891C | Seal C (for cooler) | 88578-89111 · 88578-89118 · 88892-89115 |
| 88891D | Seal D (for cooler) | 88578-89119 · 88578-89127 |
| 88891E | Seal E (for cooler) | 88578-89112 |
| 88891F | Seal F (for cooler) | 88578-89122 · 88578-89123 · 88578-89128 |
| 88891G | Seal G (for cooler) | 88578-89107 · 88578-89129 |
| 88892C | Condenser plate No. 1 | 88892-89114 · 88892-89115 · 88892-89116 · 88892-89117 |
