Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

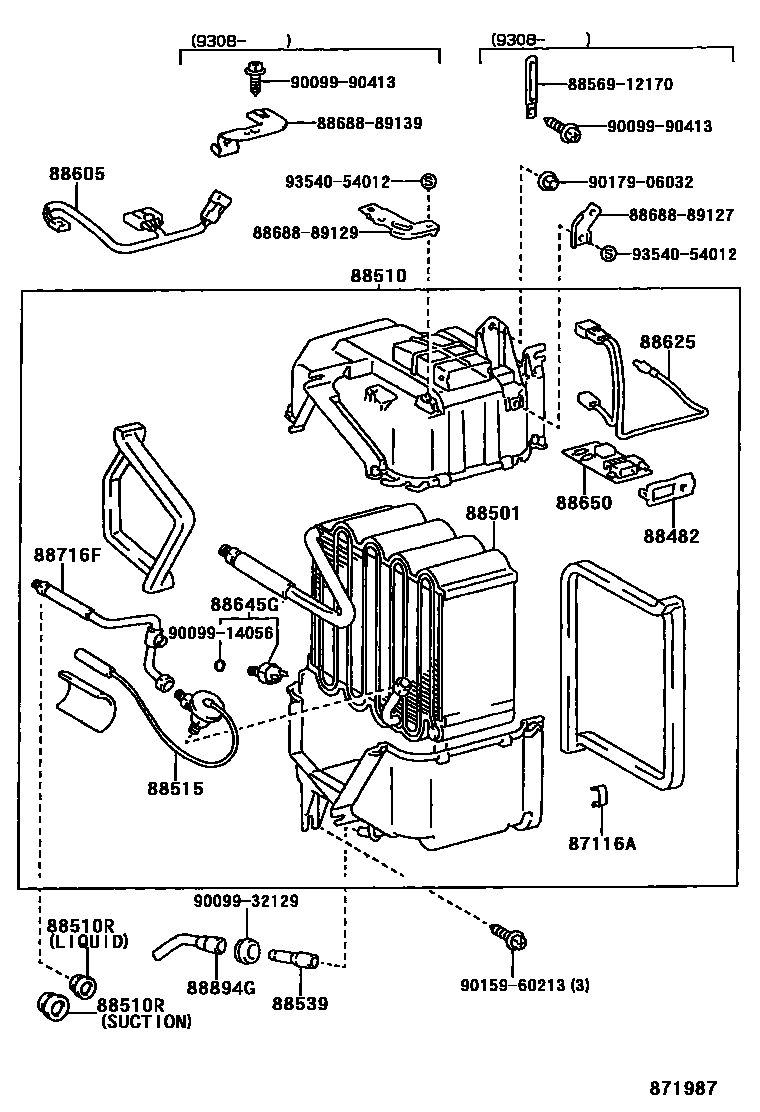

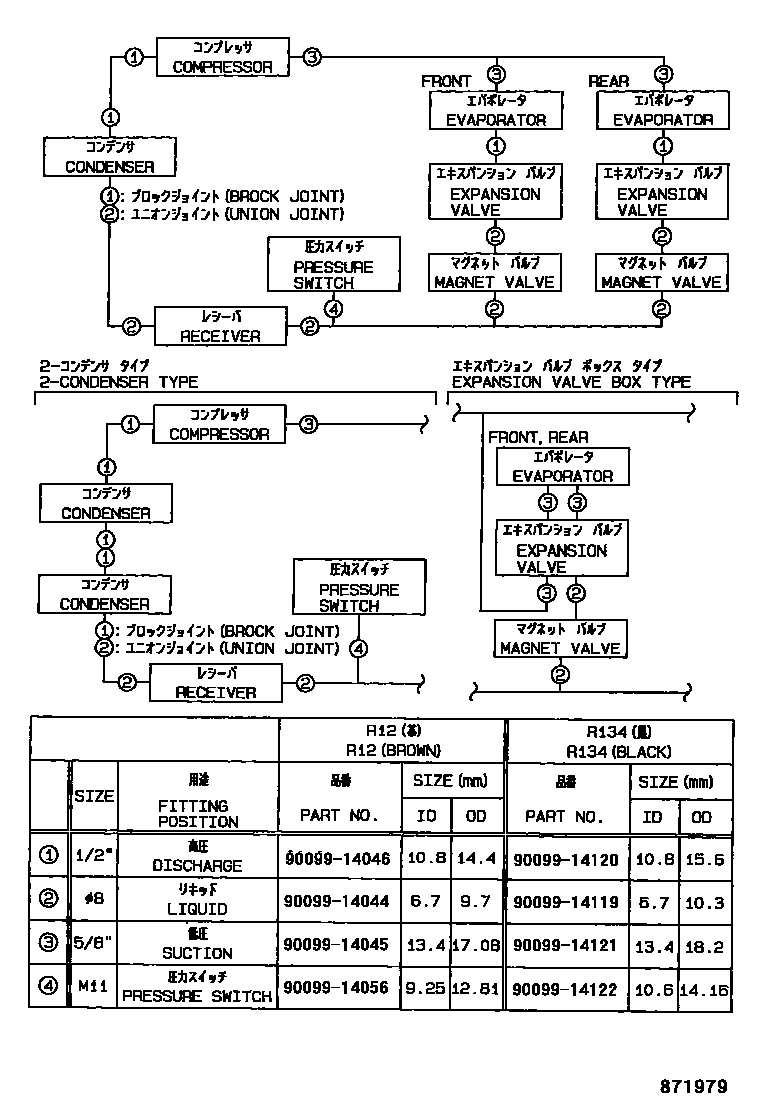

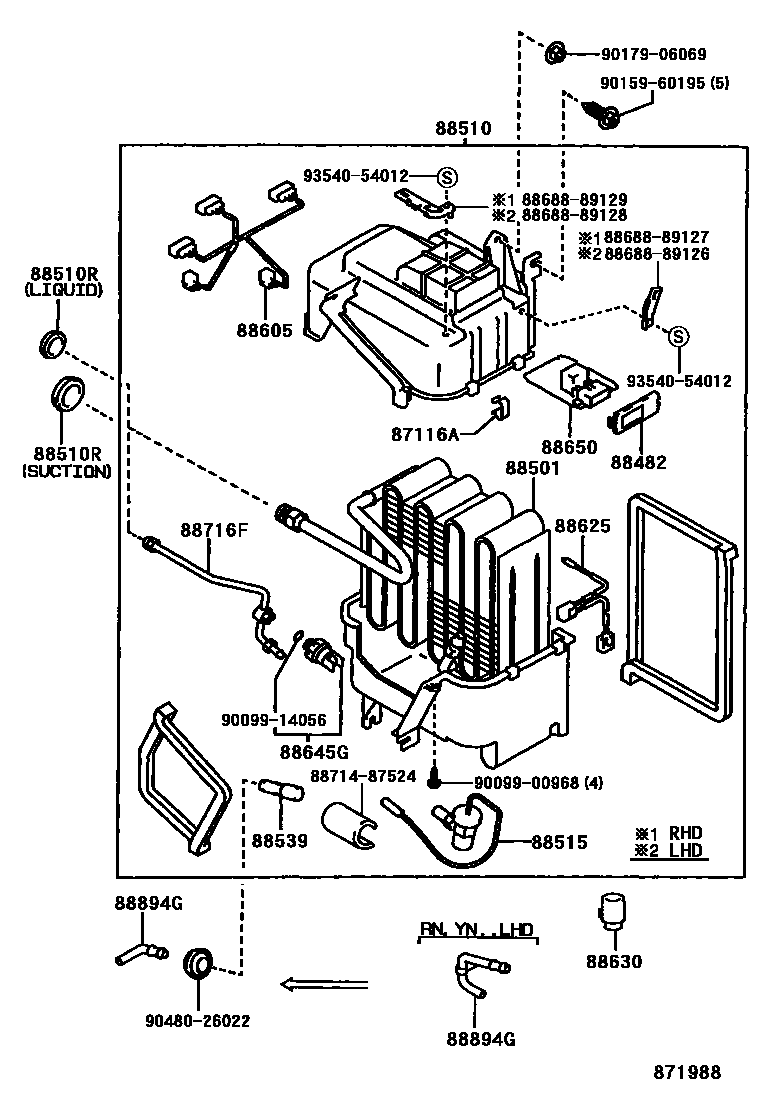

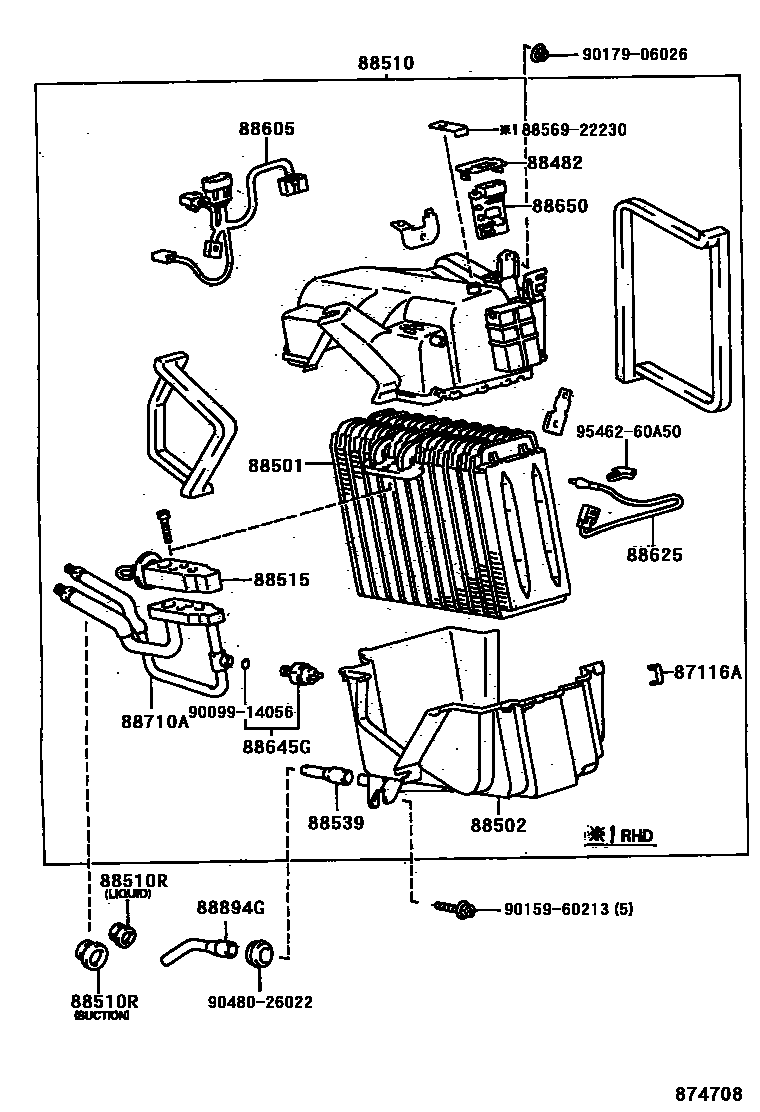

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 88482 | cooler cover | 88482-60010 · 88482-60020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-34010 · 88501-35030 · 88501-89111 · 88501-89112 · 88501-89113 |
| 88502 | Cooling device shell sub-assembly | 88521-89106 |
| 88510 | Cooler device assembly | 88510-35020 · 88510-35330 · 88510-35370 · 88510-35410 · 88510-35430 · 88510-35440 · 88510-35460 · 88510-35470 · 88510-35480 · 88510-35510 · 88510-89143 · 88510-89144 · 88510-89147 · 88510-89148 · 88510-89153 · 88510-89155 · 88510-89158 · 88510-89163 |
| 88510R | Seals (for cooler units) | 90480-26003 · 90480-26027 · 90480-36003 · 90480-36019 |
| 88515 | Cooler expansion valve | 88515-14061 · 88515-14062 · 88515-16040 · 88515-34010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-89113 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-35010 · 88605-35200 · 88605-89151 · 88605-89154 · 88605-89156 · 88605-89157 · 88605-89161 |
| 88625 | Cooler No. 1 Thermistor | 88625-34010 · 88625-89102 · 88625-89103 |
| 88630 | Cooler relay assembly | 88630-95702 |
| 88645G | pressure switch | 88645-10020 · 88645-16020 · 88645-34010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-35060 · 88650-89105 · 88650-89106 · 88650-89107 · 88650-89108 · 88650-89109 |
| 88710A | Air conditioning pipe assembly | 88710-89122 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-34010 · 88716-35220 · 88716-89156 · 88716-89157 |
| 88894G | Drain hose connector | 88894-89108 · 88894-89109 · 88894-89112 |
