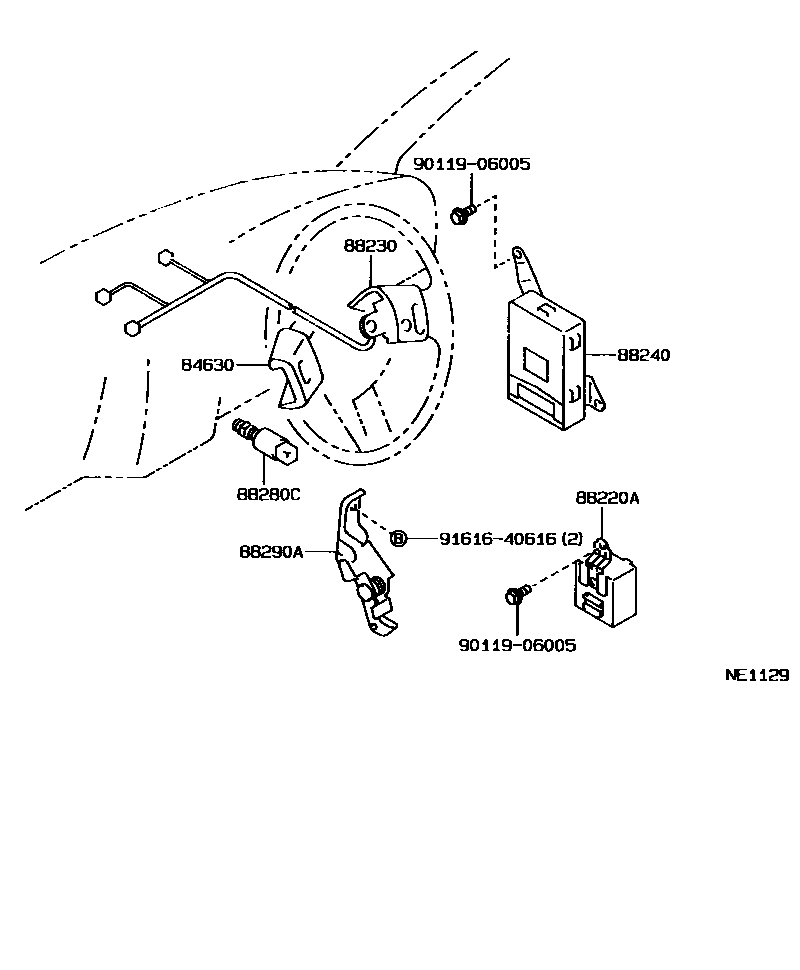

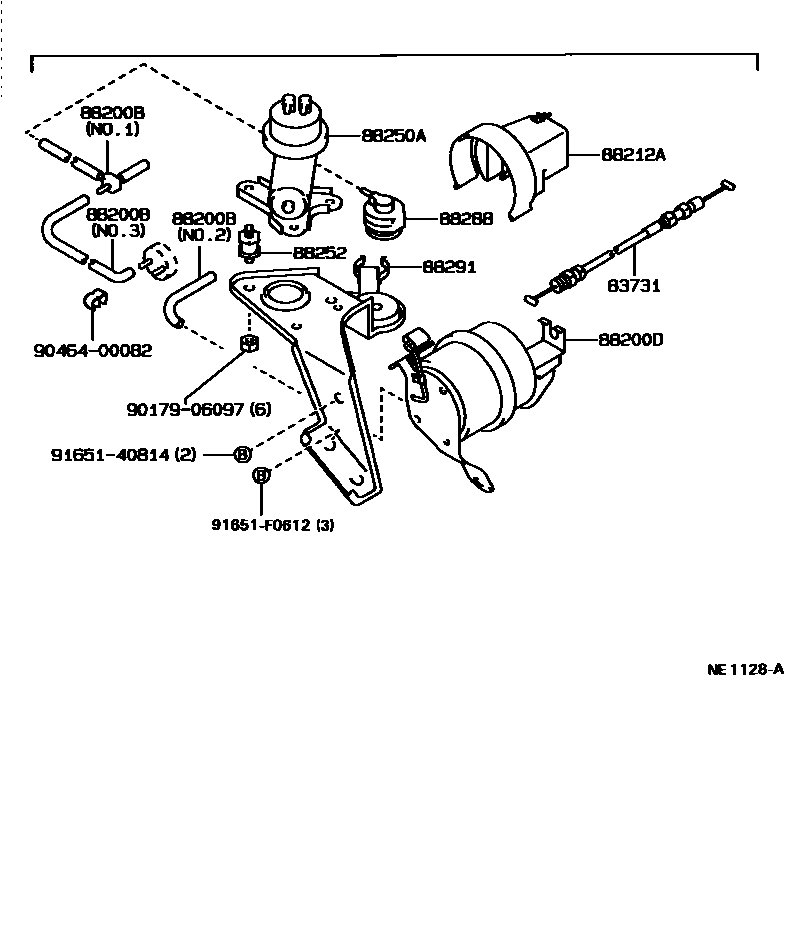

Toyota HILUX 巡航控制(自动行驶) — Figure 8408
Toyota HILUX EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83731 | cruise control cable | 83731-35150 |
| 88200B | cruise control vacuum hose | 88283-35040 |
| 88200D | Cruise control actuator assembly | 88200-35160 · 88200-35161 |
| 88212A | cruise control actuator cover | 88212-12070 |
| 88220A | Speed control main relay assembly | 88220-35010 |
| 88240 | Cruise control ECU assembly | 88240-35130 |
| 88250A | cruise control pump assembly | 88251-35070 |
| 88252 | Vacuum pump cushion | 88252-30130 |
| 88280C | Clutch switch assembly | 88280-20010 |
| 88288 | Vacuum speed control switch | 88288-22010 |
| 88290A | Cruise control right angle lever assembly | 88290-89104 |
| 88291 | No. 1 cruise control (automatic driving) bracket | 88291-35040 |
