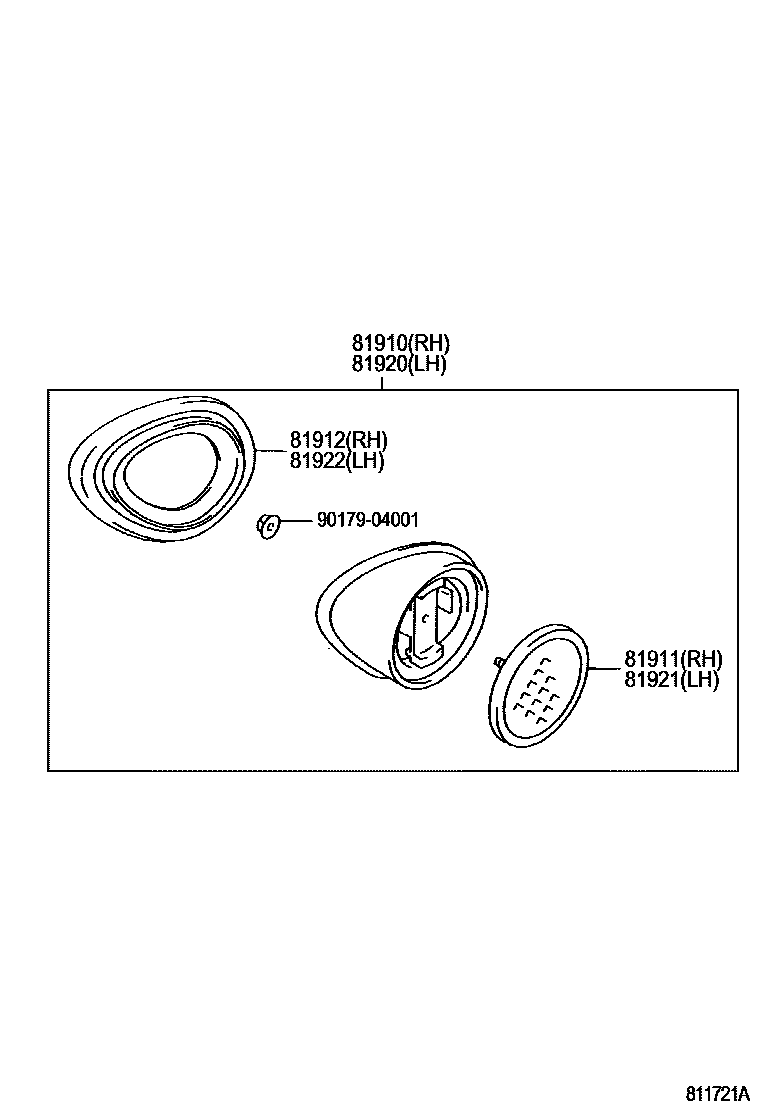

Toyota HILUX reflector — Figure 8115
Toyota HILUX EPC diagram 8115, reflector, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81910 | Right reflector assembly | 81910-35020 · 81910-35030 |
| 81911 | Right rear reflector lamp cover | 81910-89105 · 81910-95A01 · 81911-35020 · 81911-35030 |
| 81912 | Right reflector shade gasket | 81912-89108 · 81912-89109 |
| 81920 | Left reflector assembly | 81920-35010 · 81920-35020 |
| 81921 | Left rear reflector lampshade | 81910-89105 · 81910-95A01 · 81921-35010 · 81921-35020 |
| 81922 | Reflector shade pad, left | 81922-89105 · 81922-89106 |
