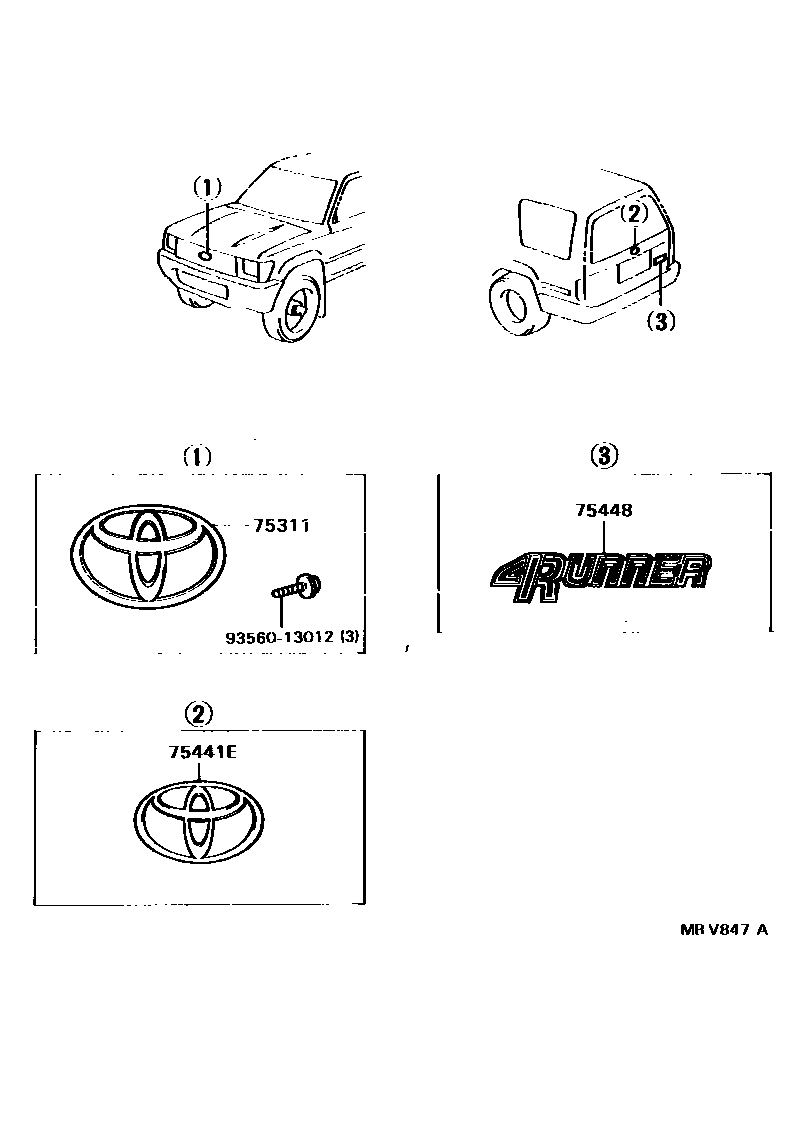

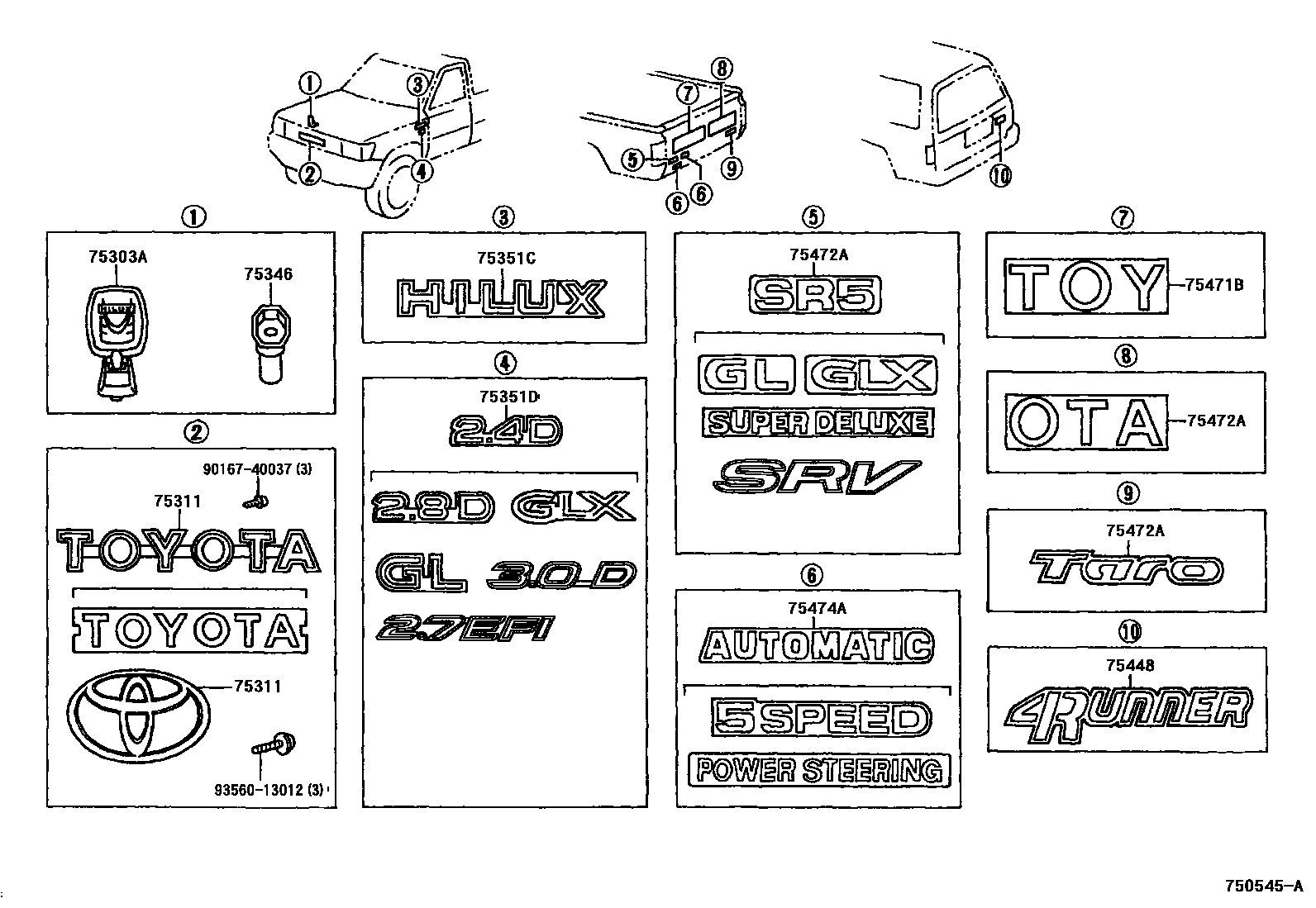

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75303A | Engine cover plate sub-assembly | 75303-35010 · 75303-35020 · 75303-89102 |
| 75311 | Radiator grille (or front panel) plate | 75311-35040 · 75311-35050 · 75311-35090 · 75311-35120 · 75311-35150 · 75311-35180 · 75311-89117 · 75311-89118 · 75311-89119 · 75311-89121 · 75311-89122 · 75311-89123 · 75311-89125 · 75311-89127 · 75311-89129 · 75350-32010 |
| 75346 | Engine trim part 2 gasket | 75346-22020 |
| 75351C | fender markings | 75351-35010 · 75351-89125 · 75351-89126 · 75361-35010 |
| 75351D | No. 2 fender mark | 75351-35020 · 75351-89126 · 75351-89127 · 75351-89128 · 75362-35030 · 75362-35070 · 75443-22650 · 75443-35030 |
| 75441E | Back door No. 1 nameplate | 75441-35010 |
| 75448 | No. 8 nameplate on back door | 75448-89101 |
| 75471B | No. 1 nameplate on rear body | 75471-35020 |
| 75472A | No. 2 nameplate on rear body | 75351-35020 · 75443-35030 · 75472-35011 · 75472-35040 · 75472-35090 · 75472-35110 · 75472-89126 · 75472-89128 · 75472-89129 · 75472-89133 |
| 75474A | No. 4 nameplate on rear body | 75474-35010 · 75474-89112 · 75474-89113 |
