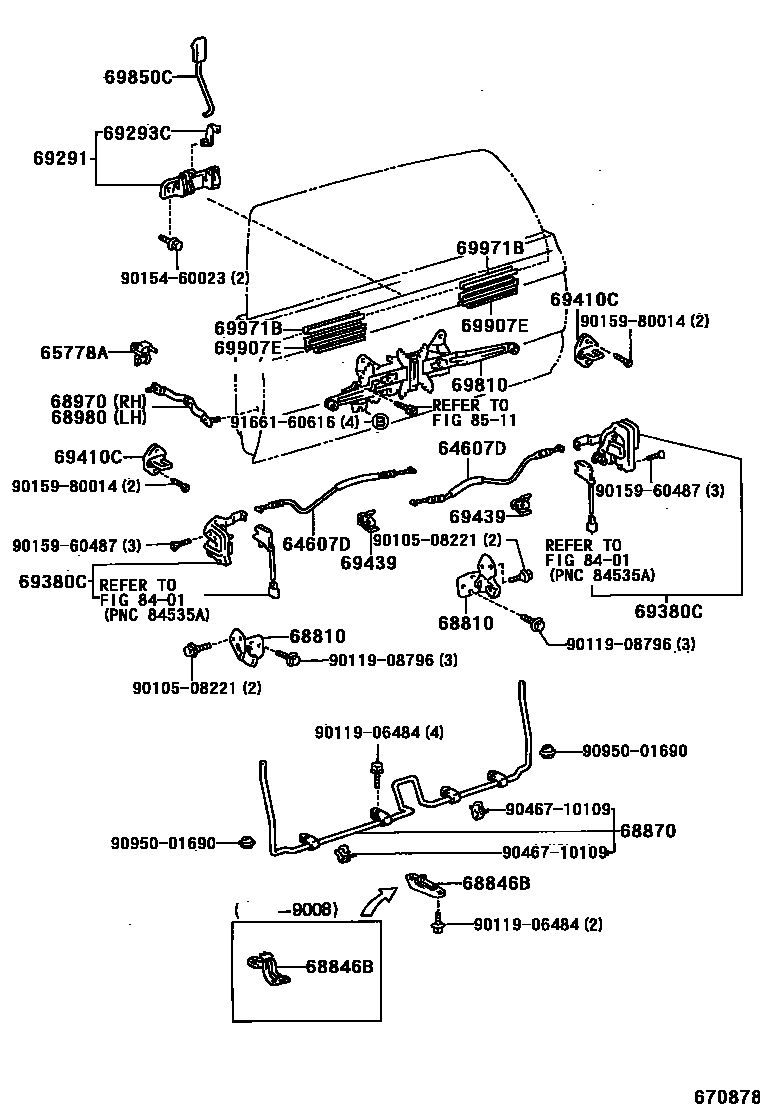

Toyota HILUX 背门锁和合页 — Figure 6762
Toyota HILUX EPC diagram 6762, 背门锁和合页, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64607D | Rear door lock control cable sub-assembly | 64607-89103 · 64607-89104 |
| 65778A | Back door support rod stop | 65778-89106 |
| 68810 | Back door upper hinge assembly | 68810-89102 · 68820-89102 |
| 68846B | Rear door torsion bar duct | 68846-35010 · 68846-89102 |
| 68870 | Back door lower torsion bar assembly | 68870-35010 · 68870-89102 |
| 68970 | Back door right support rod assembly | 68950-89102 |
| 68980 | Back door support rod assembly | 68950-89102 |
| 69293C | Rear door handle buckle | 69293-12040 |
| 69380C | Back door lower lock assembly | 69380-35010 · 69380-35011 · 69380-89105 · 69390-35010 · 69390-35030 · 69390-35031 · 69390-89104 |
| 69410C | Back door lock plate assembly | 69410-87001 |
| 69439 | Rear door lock control cable clip | 69439-89101 |
| 69810 | Right door electric window lift sub-assembly | 69801-89122 |
| 69907E | Rear door glass slot sub-assembly | 69907-89103 · 69907-89104 |
| 69971B | Rear door glass channel filler | 69971-89104 |
