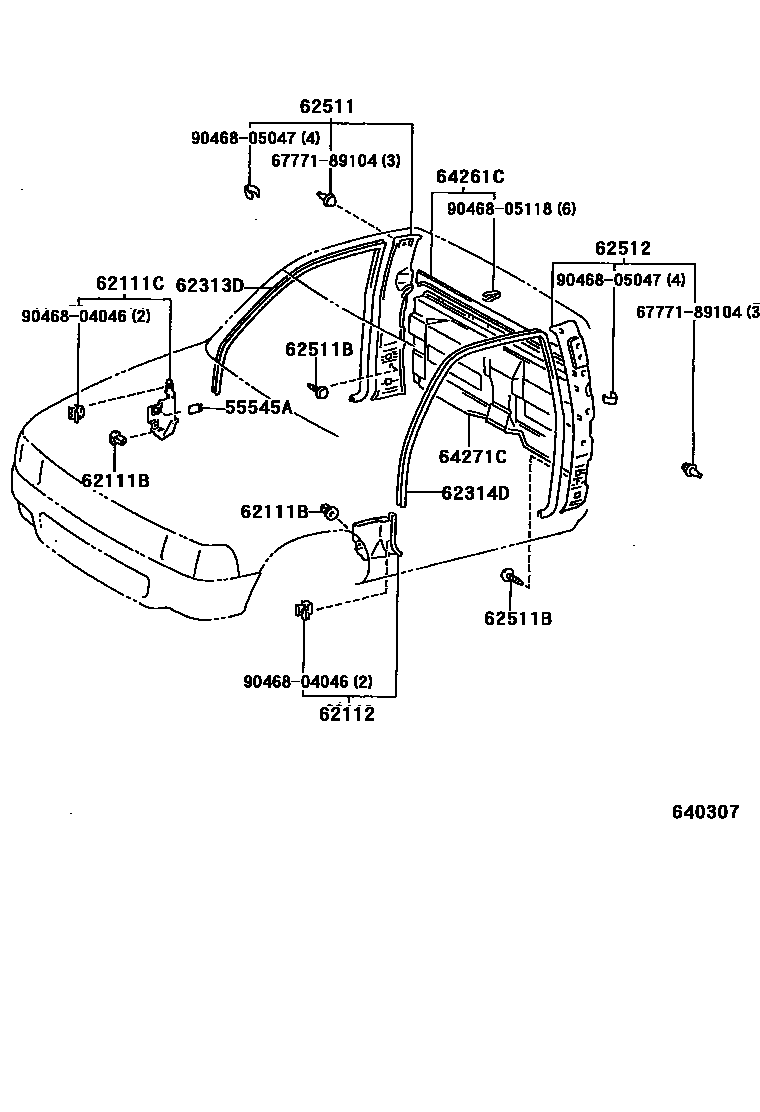

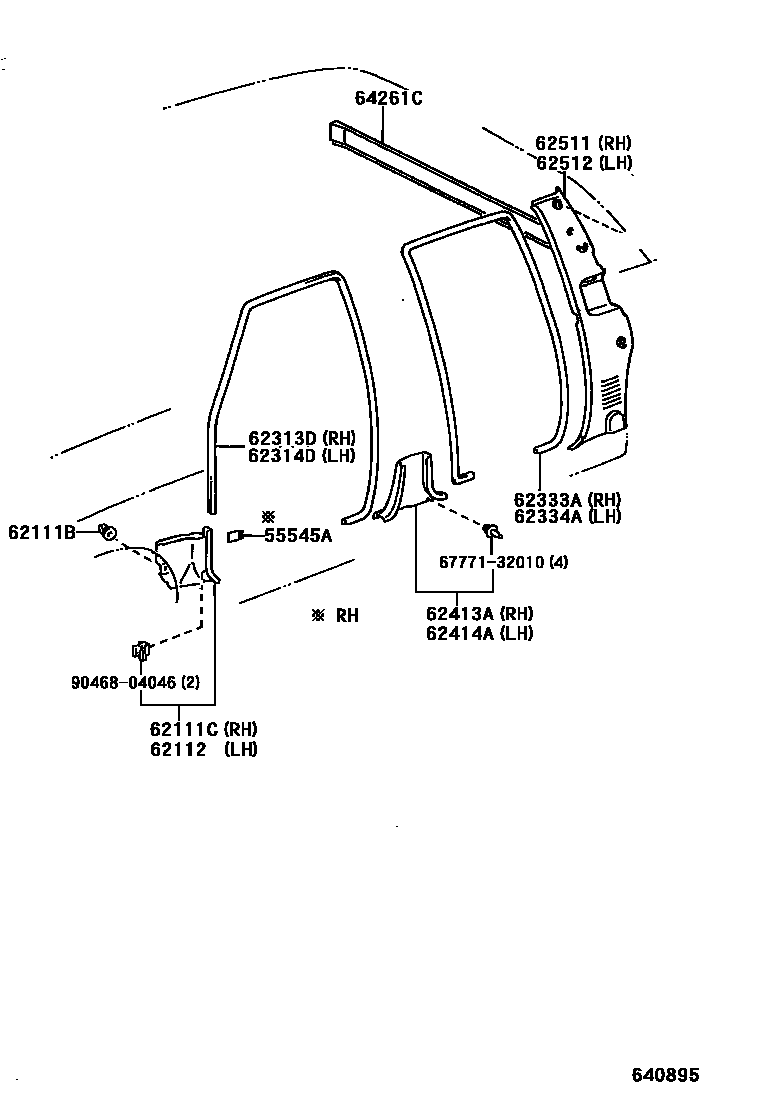

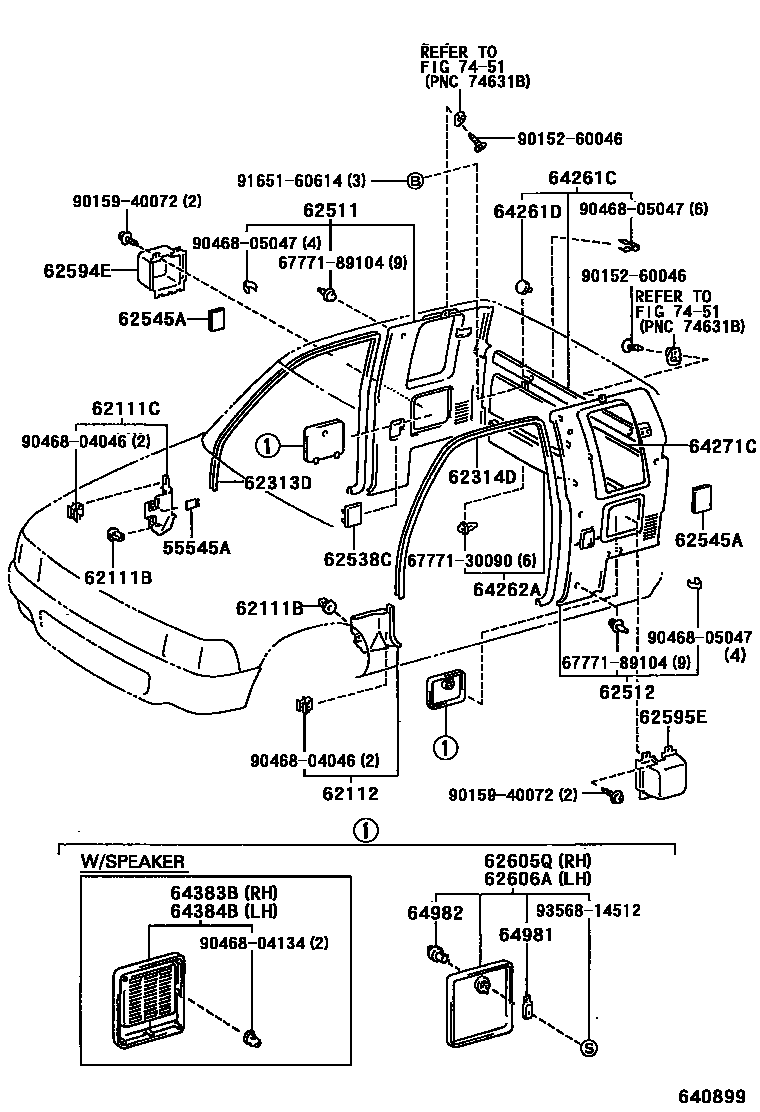

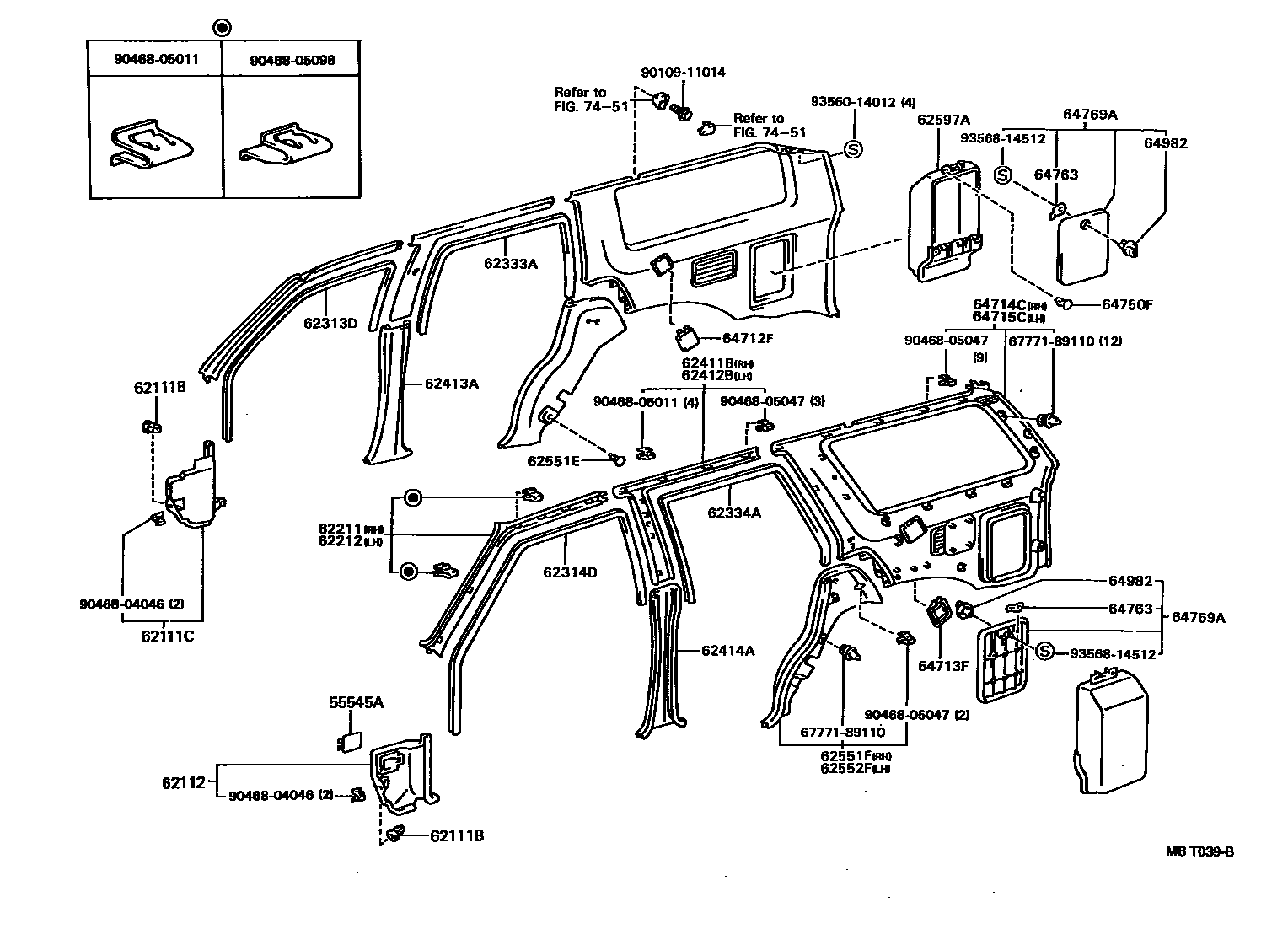

Toyota HILUX 车内装饰板 — Figure 6451
Toyota HILUX EPC diagram 6451, 车内装饰板, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62313D | Right front door waterproof strip | 62313-89114 |
| 62314D | Left front door waterproof strip | 62313-89114 |
| 62333A | Right rear door waterproof strip | 62333-89105 |
| 62334A | Left rear door waterproof strip | 62333-89105 |
| 62545A | Side decorative panel sound attenuator | 62545-89101 |
| 62597A | Side decorative box | 62580-89101 · 62590-89101 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-07096 |
| 64763 | Tool cover stop | 64763-89102 |
| 64981 | Washer water tank cover stopper | 64981-16021 |
