Toyota HILUX 天窗板和背板 — Figure 6153

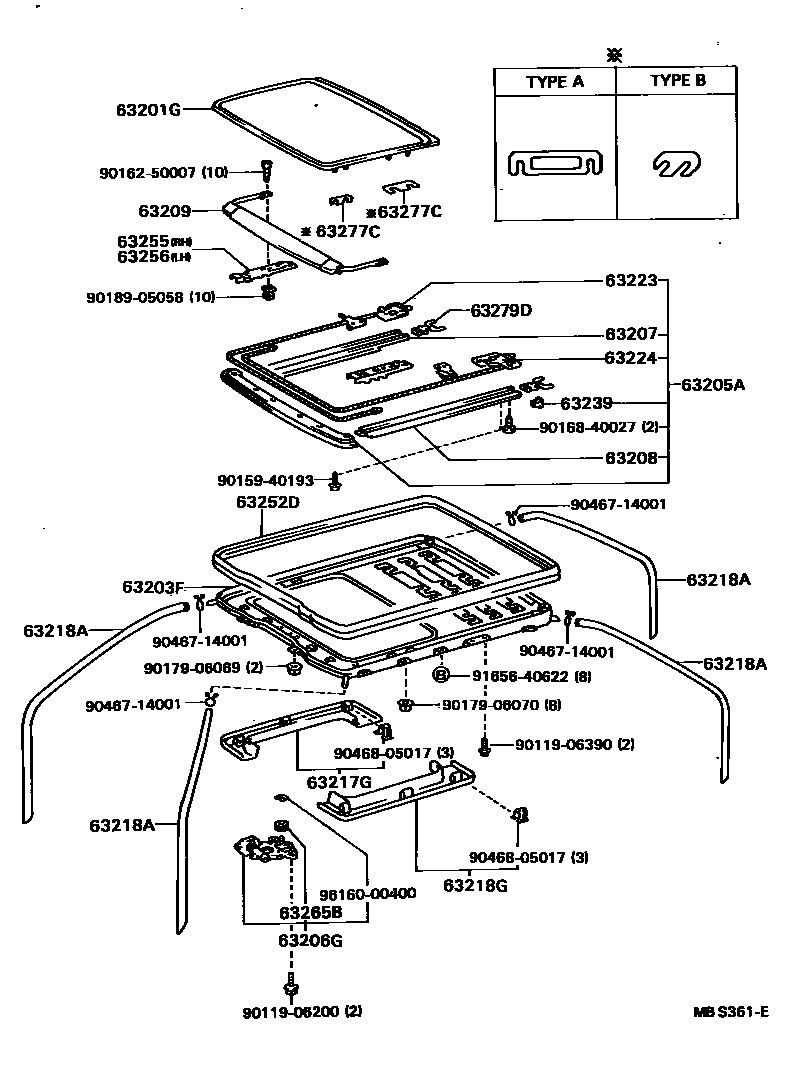

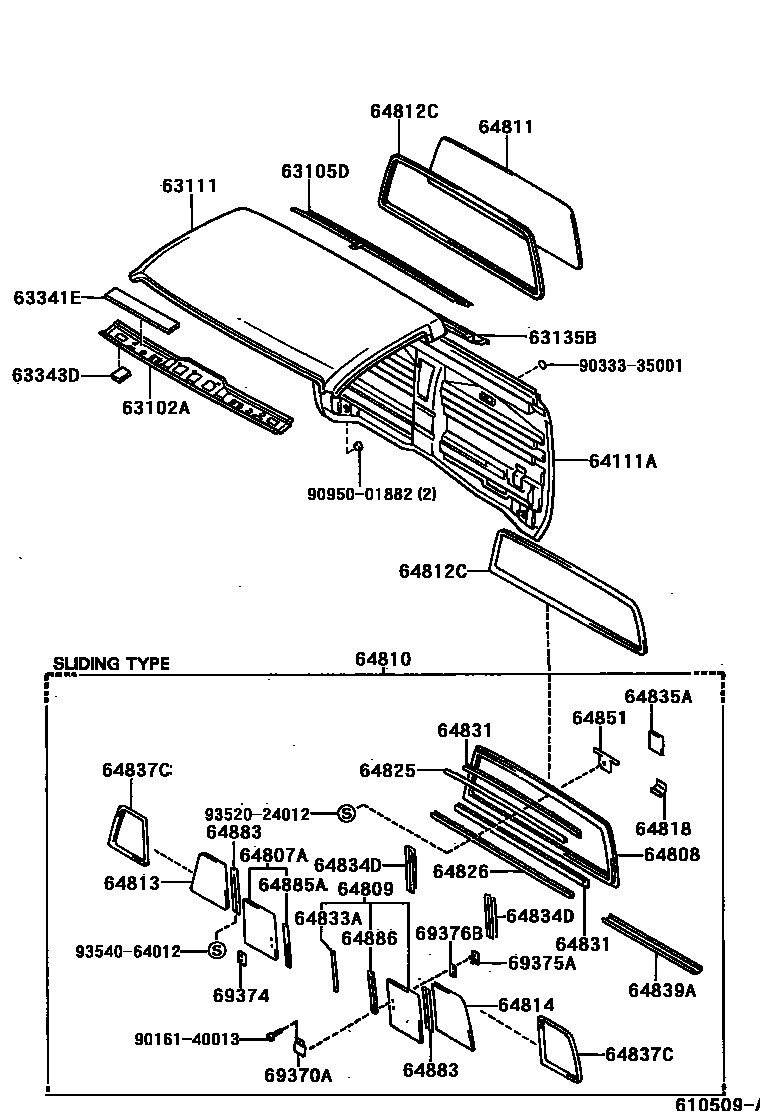

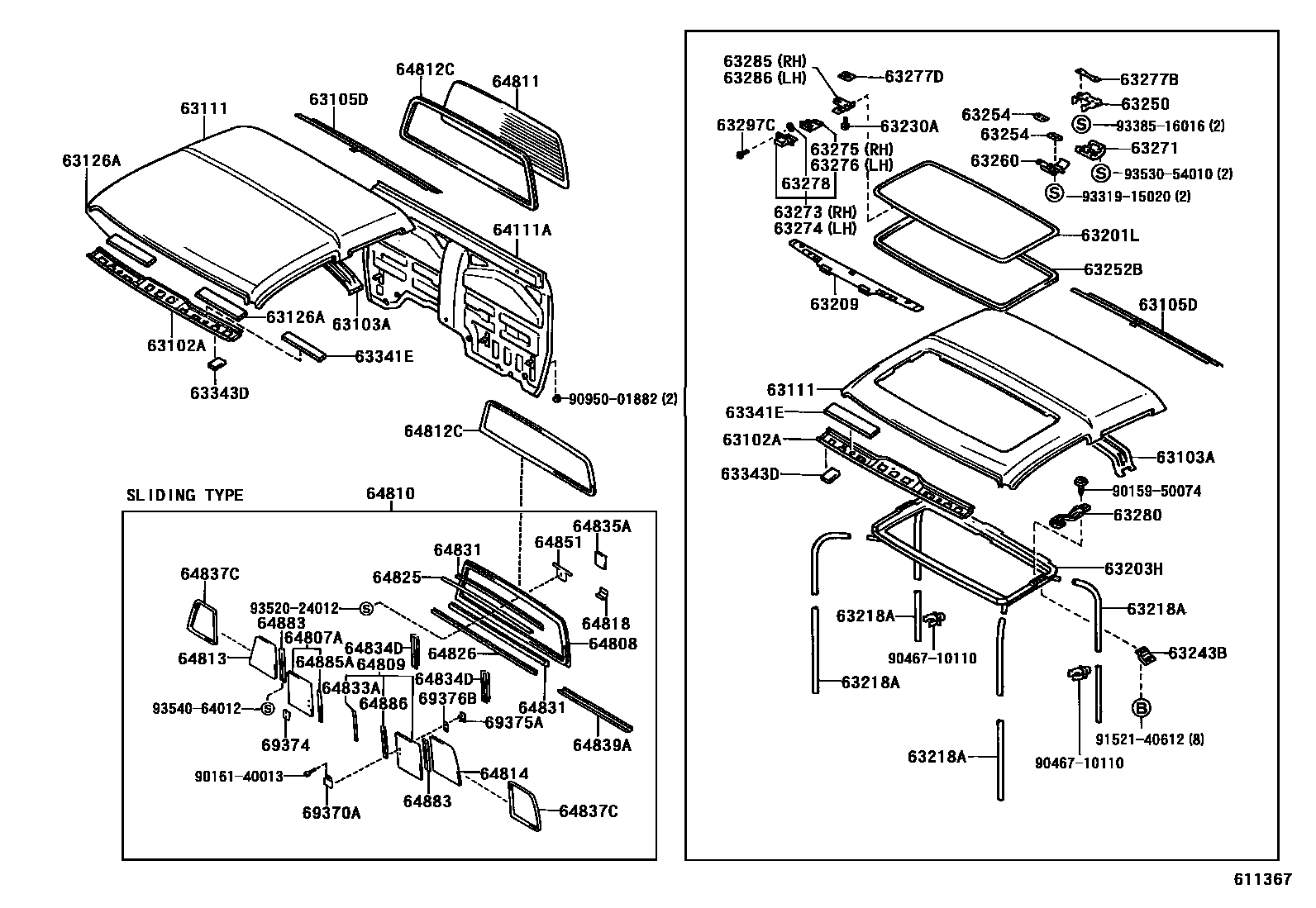

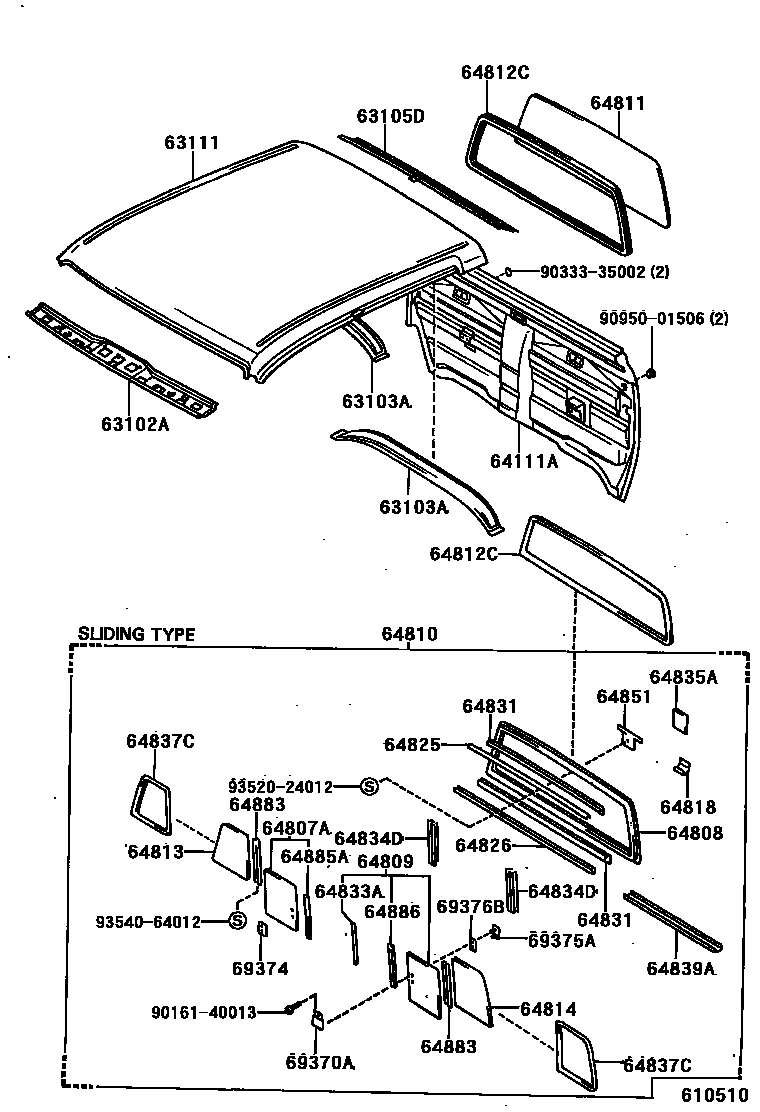

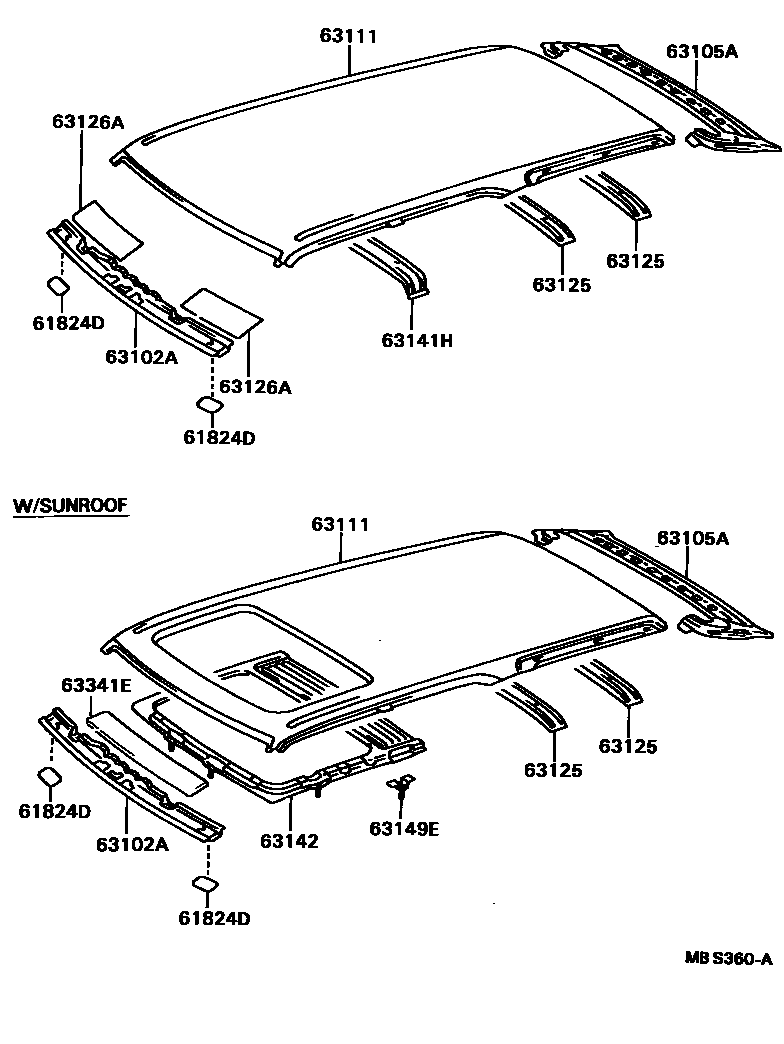

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 5 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61824D | Noise Control Panel No. 1 | 61824-89106 · 61825-20100 |
| 63102A | Windshield roof sub-assembly | 63102-89107 · 63102-89108 · 63102-89109 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-89106 · 63103-89107 |
| 63105A | Back door opening frame sub-assembly | 63105-35010 · 63105-35011 · 63105-89111 |
| 63105D | Rear window upper frame sub-assembly | 63105-35020 · 63105-35050 · 63105-89106 · 63105-89109 · 63105-89110 |
| 63111 | roof panel | 63111-89118 · 63111-89120 · 63111-89121 · 63111-89122 · 63111-89123 · 63111-89124 · 63111-89125 · 63111-89126 |
| 63125 | No. 2 roof panel reinforcement | 63125-89101 |
| 63126A | Windshield roof shock absorber | 63126-16010 |
| 63135B | Upper panel inside the back window | 63135-35020 · 63135-89102 |
| 63141H | Center roof panel reinforcement | 63141-89106 |
| 63142 | No. 2 roof panel reinforcement | 63142-89102 |
| 63149E | No. 2 roof panel reinforcement bracket | 63149-89103 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-89107 |
| 63201L | Removable sunroof glass sub-assembly | 63201-89106 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-89109 |
| 63203H | Removable skylight frame sub-assembly | 63203-89108 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-35010 · 63205-89101 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-35020 · 63260-89106 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-35010 · 63207-89101 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-35010 · 63208-89102 |
| 63209 | Roof deflector sub-assembly | 63209-89102 · 63209-89103 |
| 63217G | Right sliding sunroof trim | 63217-89102 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-16070 · 63249-89101 · 63249-89102 · 63249-89104 · 63249-89105 · 63249-89109 |
| 63218G | Sliding sunroof trim, left | 63218-89103 |
| 63223 | Right sliding sunroof transmission cable | 63223-35010 · 63223-35020 · 63223-89101 |
| 63224 | Left sliding sunroof transmission cable | 63224-35010 · 63224-35020 · 63224-89101 |
| 63230A | Removable skylight bolt assembly | 63230-89101 |
| 63239 | Sliding roof panel stop | 63239-24010 |
| 63243B | Removable sunroof frame right side mounting bracket | 63243-89105 |
| 63250 | Detachable sunroof lock base assembly | 63250-12010 · 63250-17011 |
| 63252B | Removable sunroof rear seal | 63252-89103 |
| 63252D | Sliding skylight frame sealing strip | 63252-89105 |
| 63254 | Removable sunroof glass inner rear fixing bracket | 63254-89103 · 63254-89104 |
| 63255 | Right sliding sunroof guide cover | 63255-89101 |
| 63256 | Left sliding sunroof guide cover | 63255-89101 |
| 63265B | Sliding sunroof driving gear | 63265-89101 |
| 63273 | Removable sunroof right hinge shell | 63273-12010 · 63273-17010 |
| 63274 | Removable sunroof left hinge shell | 63274-12010 · 63274-17010 |
| 63275 | Removable sunroof right hinge fixing bracket | 63275-12010 · 63275-17010 |
| 63276 | Removable sunroof left hinge fixing bracket | 63276-12010 · 63276-17010 |
| 63277B | Removable sunroof lock base spacer | 63277-89101 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 · 63277-32010 · 63277-32020 |
| 63277D | Removable skylight hinge spacer | 63277-89102 |
| 63278 | Removable sunroof hinge housing seal | 63278-12010 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 · 63279-35010 |
| 63280 | Removable sunroof left auxiliary hook assembly | 63280-89101 |
| 63285 | Removable sunroof hinge, right | 63285-89102 |
| 63286 | Removable sunroof hinge, left | 63286-89102 |
| 63297C | Removable sunroof hinge housing bolts | 63297-12010 |
| 63341E | Roof right side muffler | 63341-89125 |
| 63343D | No. 3 roof muffler pad | 63343-89106 |
| 64111A | backplane | 64101-35160 · 64101-89133 · 64101-89135 · 64101-89136 · 64101-89138 · 64101-89139 · 64101-89140 · 64101-89142 · 64101-89143 · 64101-89144 · 64101-89149 · 64101-89150 · 64101-89151 · 64101-89152 |
| 64807A | Sliding glass sub-assembly on the right side of the back window | 64807-89135 · 64807-89137 · 64807-89141 · 64807-89147 |
| 64808 | Rear window sliding glass channel sub-assembly | 64808-89105 · 64808-89106 |
| 64809 | Rear window left sliding glass sub-assembly | 64809-89101 · 64809-89102 · 64809-89103 · 64809-89105 |
| 64810 | Rear window assembly | 64810-89109 · 64810-89110 · 64810-89112 · 64810-89115 |
| 64811 | back window glass | 64811-04030 · 64811-35020 · 64811-89119 · 64811-89120 · 64811-89138 · 64811-89139 · 64811-89140 · 64811-89141 · 64811-89157 |
| 64812C | Back window glass seal strip | 64812-35020 · 64812-89108 · 64812-89109 · 64812-89110 · 64812-89111 |
| 64813 | Back window right corner glass | 64813-89101 · 64813-89102 · 64813-89107 · 64813-89110 |
| 64814 | Back window left corner glass | 64814-89101 · 64814-89102 · 64814-89108 · 64814-89111 |
| 64818 | Back window glass spacer | 64818-89101 |
| 64825 | Rear window lift chute | 64825-89101 |
| 64826 | Lift chute under rear window | 64826-89101 |
| 64831 | Back window glass seal strip | 64831-89110 |
| 64833A | Center sealing strip of rear window trough | 64833-89114 · 64833-89115 |
| 64834D | Rear window sliding glass seal | 64834-89101 · 64834-89102 |
| 64835A | Center sealing strip of back window glass | 64835-89101 |
| 64837C | Back window corner glass seal strip | 64837-89101 · 64837-89105 |
| 64839A | Rear window seal | 64839-89105 |
| 64851 | Rear window sliding glass stop | 64851-89103 |
| 64883 | back window frame | 64881-89104 · 64881-89115 |
| 64885A | Rear window right glass slot | 64885-89101 · 64885-89102 |
| 64886 | Rear window left glass slot | 64886-89101 · 64886-89102 |
| 69370A | Rear window lock assembly | 69370-35010 · 69370-89103 |
| 69374 | Back window latch | 69374-89103 |
| 69375A | Rear window lock fastener | 69375-89103 |
| 69376B | Rear window lock seal | 69376-89103 |
