Toyota HILUX 侧梁 — Figure 6151

Toyota HILUX EPC diagram 6151, 侧梁, with 4 images and 110 PNC and OE references.

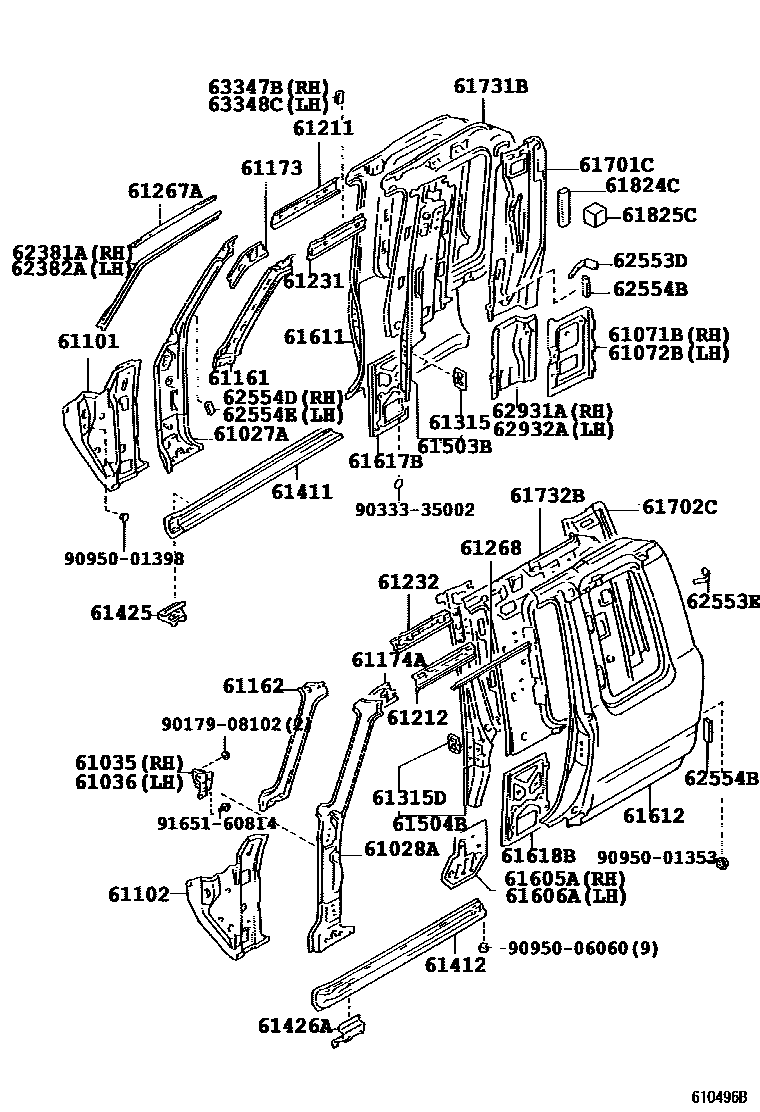

Toyota HILUX 侧梁 EPC diagram — 610496B
侧梁 — 610496B (198808 – 999999)

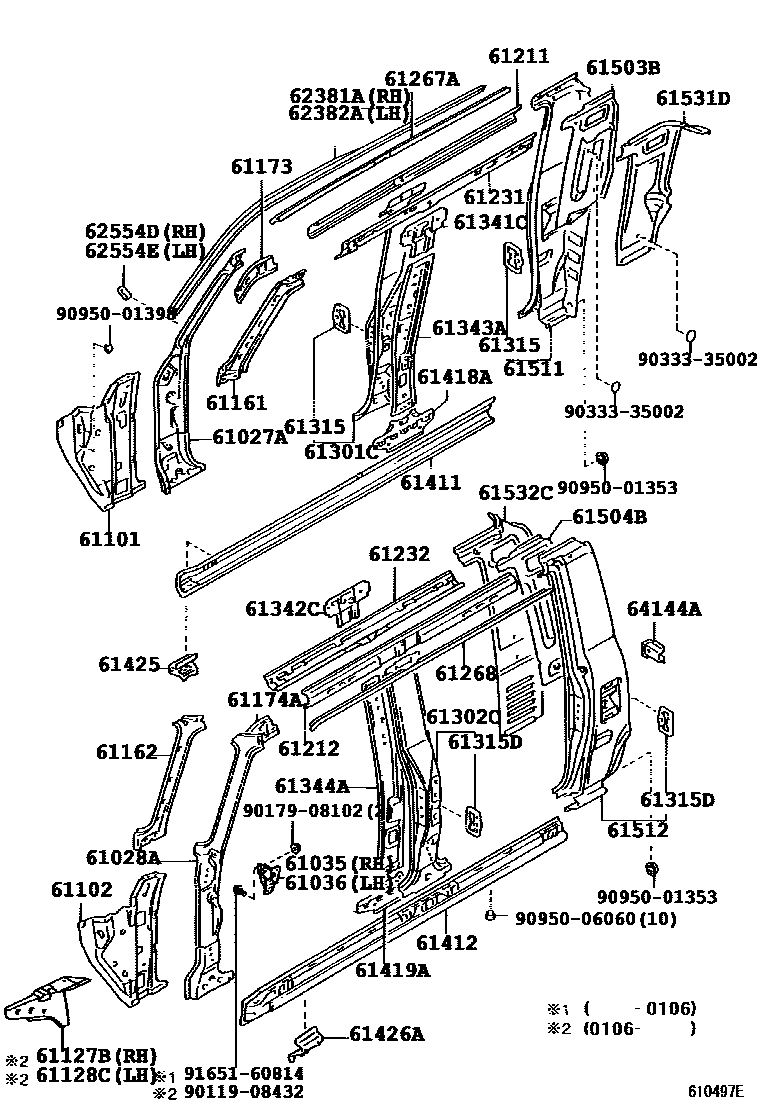

Toyota HILUX 侧梁 EPC diagram — 610497E
侧梁 — 610497E (198808 – 999999)

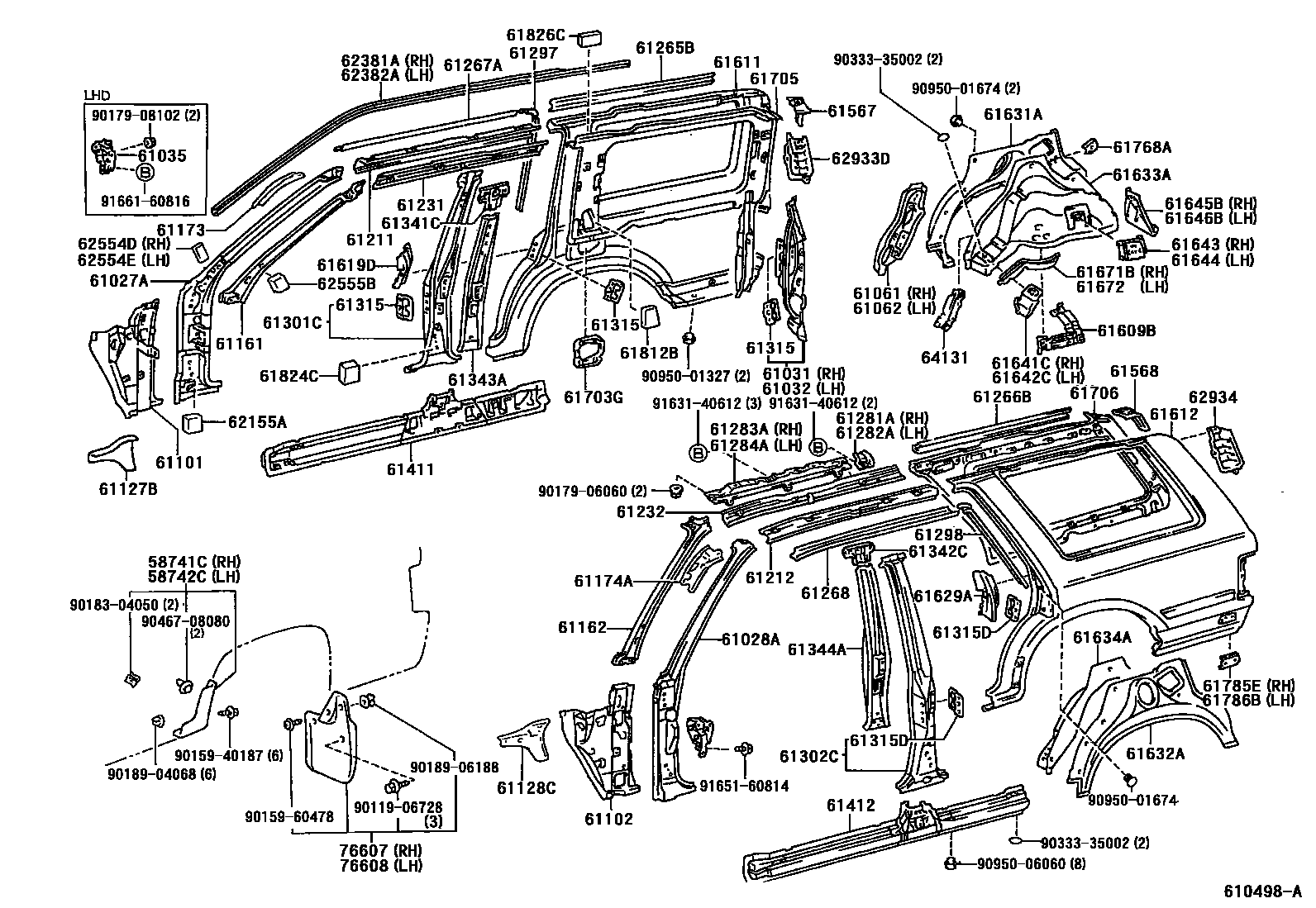

Toyota HILUX 侧梁 EPC diagram — 610498A
侧梁 — 610498A (198907 – 199308)

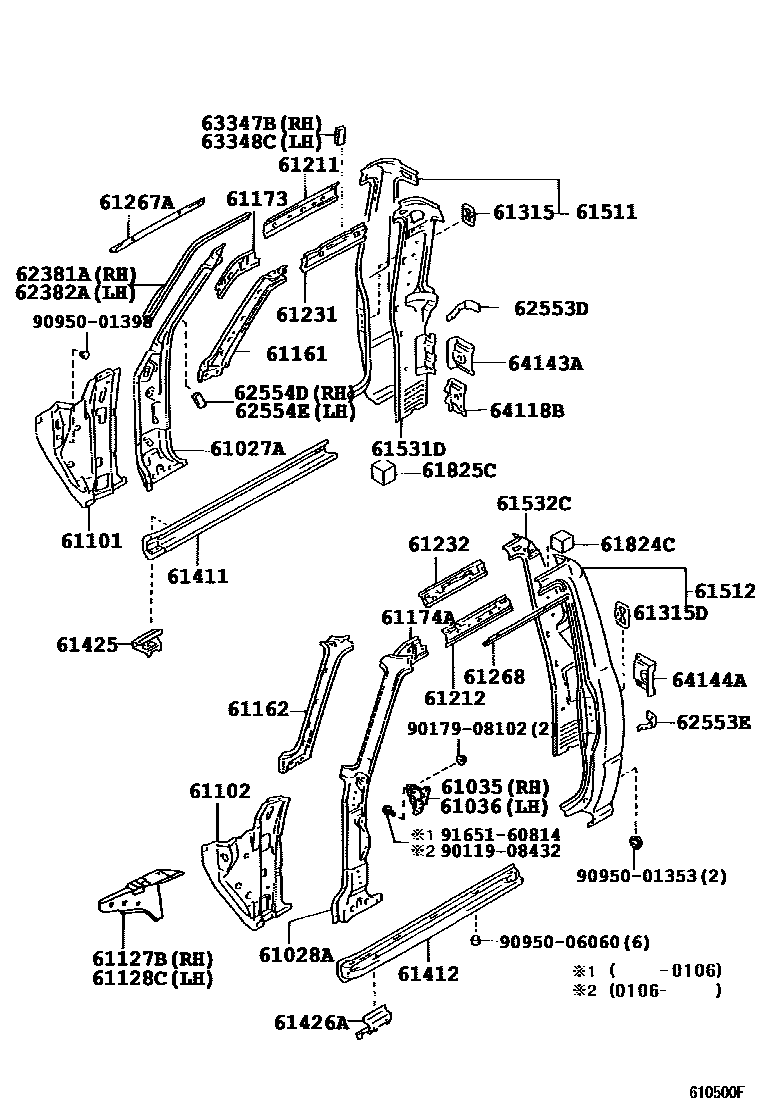

Toyota HILUX 侧梁 EPC diagram — 610500F
侧梁 — 610500F (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
61027ARight body outer front pillar sub-assembly61027-89115 · 61027-89901
61028ALeft body outer front pillar sub-assembly61028-89115 · 61028-89901
61031Right rear side panel lower extension sub-assembly61031-89101
61032Left rear side panel lower extension sub-assembly61032-89101
61035Instrument panel to right front wall side bracket sub-assembly61035-89101
61036Instrument panel to left front wall side bracket sub-assembly61036-89101
61061Right wheel cover reinforcement sub-assembly61061-89102
61062Left wheel cover reinforcement sub-assembly61062-89102
61071BRight rear roof inner panel sub-assembly61071-89101
61072BLeft rear roof inner panel sub-assembly61072-89101
61101Right front wall side panel sub-assembly61101-35150 · 61101-35160 · 61101-89135 · 61101-89136 · 61101-89137 · 61101-89141 · 61101-89901
61102Left front wall side panel sub-assembly61102-35120 · 61102-89130 · 61102-89132 · 61102-89135 · 61102-89902
61127BNo. 2 right front wall side panel reinforcement61127-89102
61128CNo. 2 left front wall side panel reinforcement61128-89101
61161Right upper body inner front pillar61023-35020 · 61161-89108
61162Left side inner front upper pillar61024-35020 · 61162-89108
61173Reinforcements on the front pillars inside the vehicle body61173-35020 · 61173-89103 · 61173-89104
61174AReinforcement member on the left inner front pillar of the body61174-35020 · 61174-89102 · 61174-89103
61211Roof right outer longitudinal beam61211-89107 · 61211-89108 · 61211-89109
61212Roof left outer longitudinal beam61212-89107 · 61212-89108 · 61212-89109
61231Inner longitudinal beam on the right side of the roof61231-89113 · 61231-89114 · 61231-89115 · 61231-89117
61232Roof left inner longitudinal beam61232-89113 · 61232-89114 · 61232-89117
61265BDrainage channel on the right rear corner of the roof61265-89102
61266BDrainage channel on the left rear corner of the roof61265-89102
61267ARoof right rear gutter61267-89101 · 61267-89102 · 61267-89103
61268Roof left rear gutter61268-89101 · 61268-89102 · 61268-89103
61281ASliding sunroof frame No. 1 side mounting bracket61281-89101
61282ASliding sunroof frame No. 2 side mounting bracket61281-89101
61283ASliding sunroof frame No. 3 right side mounting bracket61283-89101
61284ASliding sunroof frame No. 3 left mounting bracket61284-89101
61297No. 2 roof right rear drain channel61297-89101
61298No. 2 roof left rear drain channel61298-89101
61301CRight body outer center pillar sub-assembly61301-35010 · 61301-35020 · 61301-89105 · 61301-89107
61302CLeft body outer center pillar sub-assembly61302-35010 · 61302-35030 · 61302-89107 · 61302-89112
61315Door latch plate fixing parts61315-22020
61315DLeft door latch fastener61315-22020
61341CRight inner middle pillar61341-89102
61342CLeft side inner center pillar61342-89102
61343ARight body inner center pillar61307-35010 · 61307-35020 · 61307-89105
61344ALeft body inner center pillar61308-35010 · 61308-35020 · 61308-89105
61411Right door outer sill panel61401-89103 · 61411-35010 · 61411-35020 · 61411-89109 · 61411-89110
61412Left door outer sill panel61402-89103 · 61412-35010 · 61412-35020 · 61412-89109 · 61412-89110
61418ARight side door sill panel reinforcement61418-35010
61419ALeft side rocker panel reinforcement61419-35010
61425Right side door sill panel No. 4 reinforcement61425-35010
61426ALeft side door sill panel No. 4 reinforcement61426-35010
61503BRight side locking column reinforcement sub-assembly61503-89111 · 61503-89112 · 61503-89113
61504BLeft side locking column reinforcement sub-assembly61504-89111 · 61504-89112 · 61504-89113
61511Right side locking post61501-89122 · 61501-89125
61512Left side locking post61502-35010 · 61502-89127 · 61502-89129
61531DRight inner rear pillar panel of cab61531-35070 · 61531-89121 · 61531-89124 · 61531-89125 · 61531-89126 · 61531-89127
61532CCab left inner rear pillar panel61532-35070 · 61532-89121 · 61532-89124 · 61532-89125 · 61532-89126 · 61532-89127 · 61532-89128 · 61532-89129
61567Right side hoarding end panel61567-89101
61568Left side hoarding end panel61568-89101
61605ARight side panel reinforcement sub-assembly61605-89101
61606ALeft side enclosure reinforcement sub-assembly61606-89101
61609BSide panel bracket sub-assembly61609-89101
61611Right side hoarding61611-89110 · 61611-89111 · 61611-89113
61612left side panel61612-89114 · 61612-89115 · 61612-89116
61617BInner lower panel of right side enclosure61617-35010 · 61617-89102
61618BInner lower panel of left side enclosure61618-35010 · 61618-89102
61619DRight side panel reinforcement61619-89103
61629ALeft side panel reinforcement61629-89102
61631ARight wheel cover outer panel61631-89102
61632ALeft side wheel cover outer panel61632-89102
61633ARight wheel housing lining panel61633-89102
61634ALeft side wheel housing lining panel61634-89102
61641CRight front side wheel housing corner panel61641-89101
61642CLeft front side wheel housing corner panel61642-89101
61643Right wheel housing center corner panel61643-89102
61644Left side wheel housing center corner panel61644-89102
61645BRight rear side wheel housing corner panel61645-89102
61646BLeft rear side wheel housing corner panel61646-89101
61671BRight wheel cover reinforcement61671-89101
61672Rear left seat back hinge bracket61672-89101
61701CRoof right side outer panel sub-assembly61701-89102 · 61701-89103
61702CRoof left outer panel sub-assembly61702-89102 · 61702-89103
61703GRight side enclosure inner panel sub-assembly61703-89110
61705Roof right inner panel sub-assembly61705-89104
61706Roof left inner panel sub-assembly61706-89104
61731BRoof right inner panel61731-89101
61732BRoof left inner panel61732-89101
61768ASeat belt anchor reinforcement for seat No. 2, right61768-89103
61785ERear bumper right side bracket61786-89101
61786BRear bumper left bracket61786-89101
61812BRight noise control panel61812-89101
61824CNo. 1 silencer panel gasket61824-12110 · 61824-89104 · 61824-89105 · 61824-89108 · 62151-20170
61825CNo. 2 silencer panel gasket61825-89102 · 62151-20170
61826CNo. 3 silencer panel gasket61826-89102
62155AFront and lower side muffler pads62155-89101
62381ARoof right side rail seal strip62381-89101 · 62381-89102 · 62381-89103
62382ARoof left side rail seal strip62382-89101 · 62382-89102 · 62382-89103
62553DNo. 3 column pad62553-89101 · 62553-89102
62553ENo. 3 column pad62553-89101 · 62553-89102
62554BNo. 4 column pad62554-89101
62554Dfront pillar pad62554-89102
62554ENo. 4 column pad62554-89102
62555BNo. 5 column pad62555-89101
62931ARight side ventilation duct62931-89109
62932ALeft side ventilation duct62932-89105
62933DSide ventilation ducts62903-89103
62934Roof side ventilation hose seal62904-89101
63347BRoof right longitudinal beam muffler pad63347-89102
63348CRoof left side rail silencer pad63347-89102
64118BCab right rear reinforcement64118-89103
64131Right side enclosure outer lower panel64131-89101
64143ARight rear corner panel reinforcement64143-89104 · 64143-89106 · 64144-89104
64144ALeft rear quarter panel reinforcement64143-89104 · 64144-89103 · 64144-89104
76607Right rear side fender sub-assembly76607-39015
76608Left rear side fender sub-assembly76608-39015
