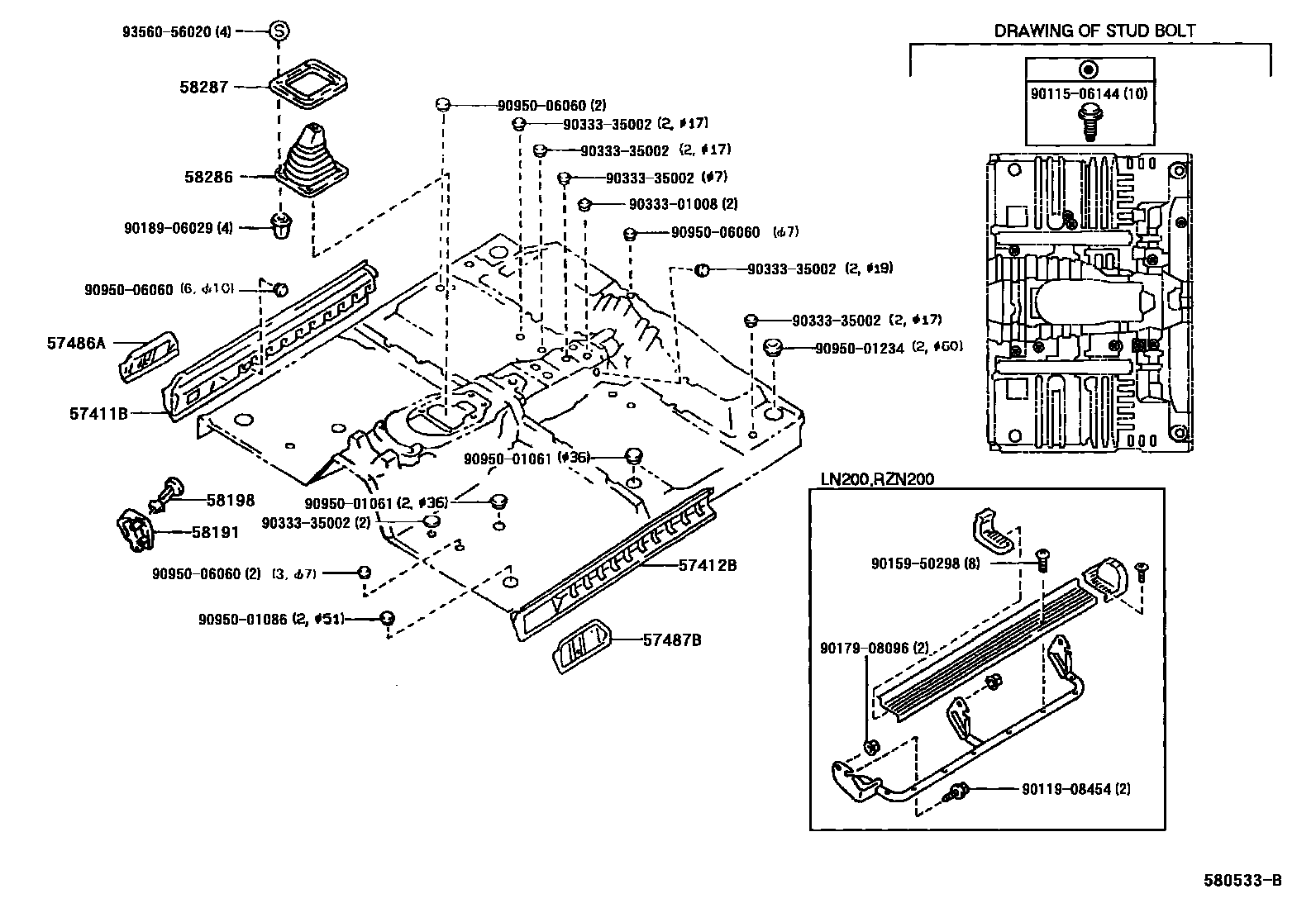

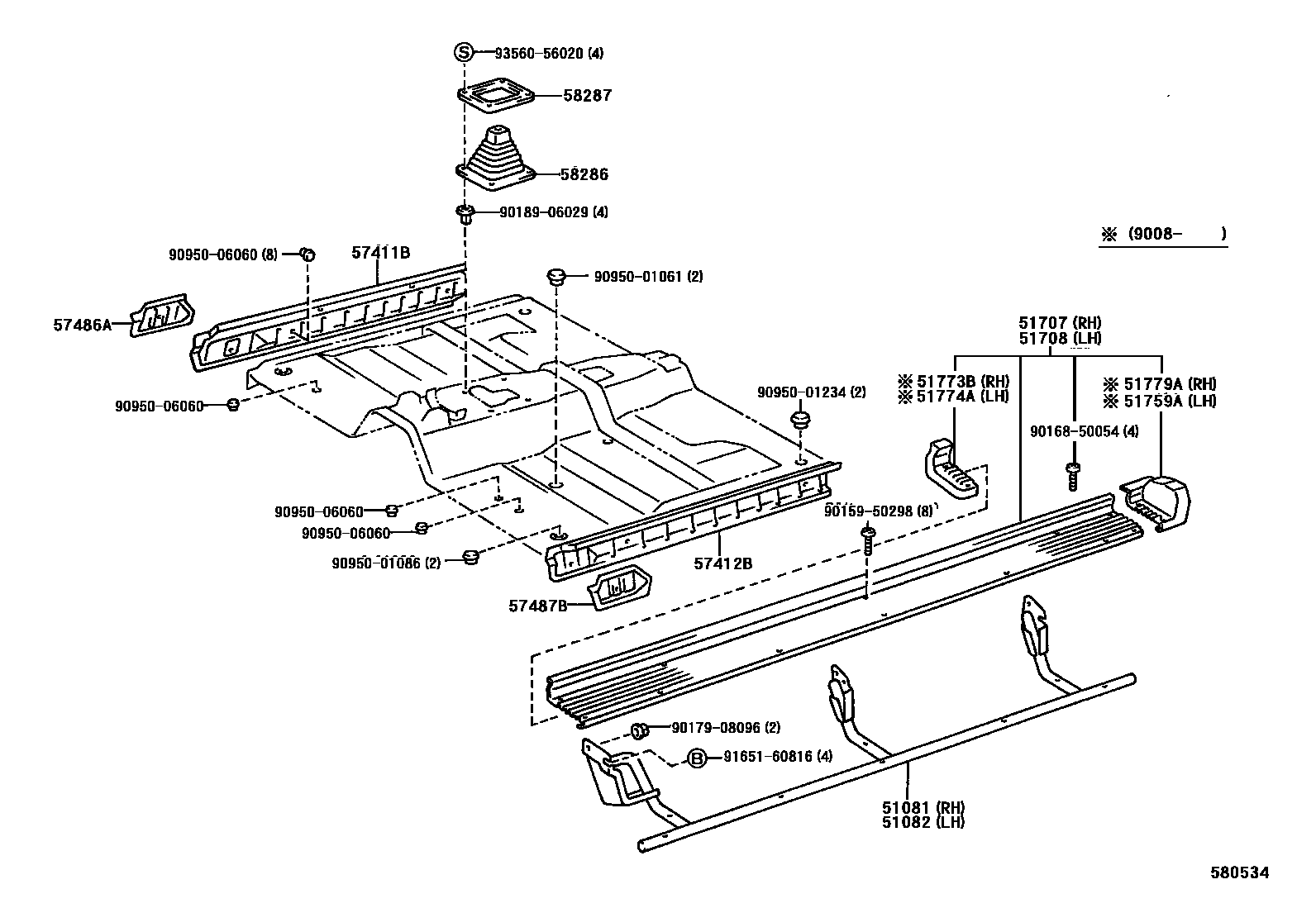

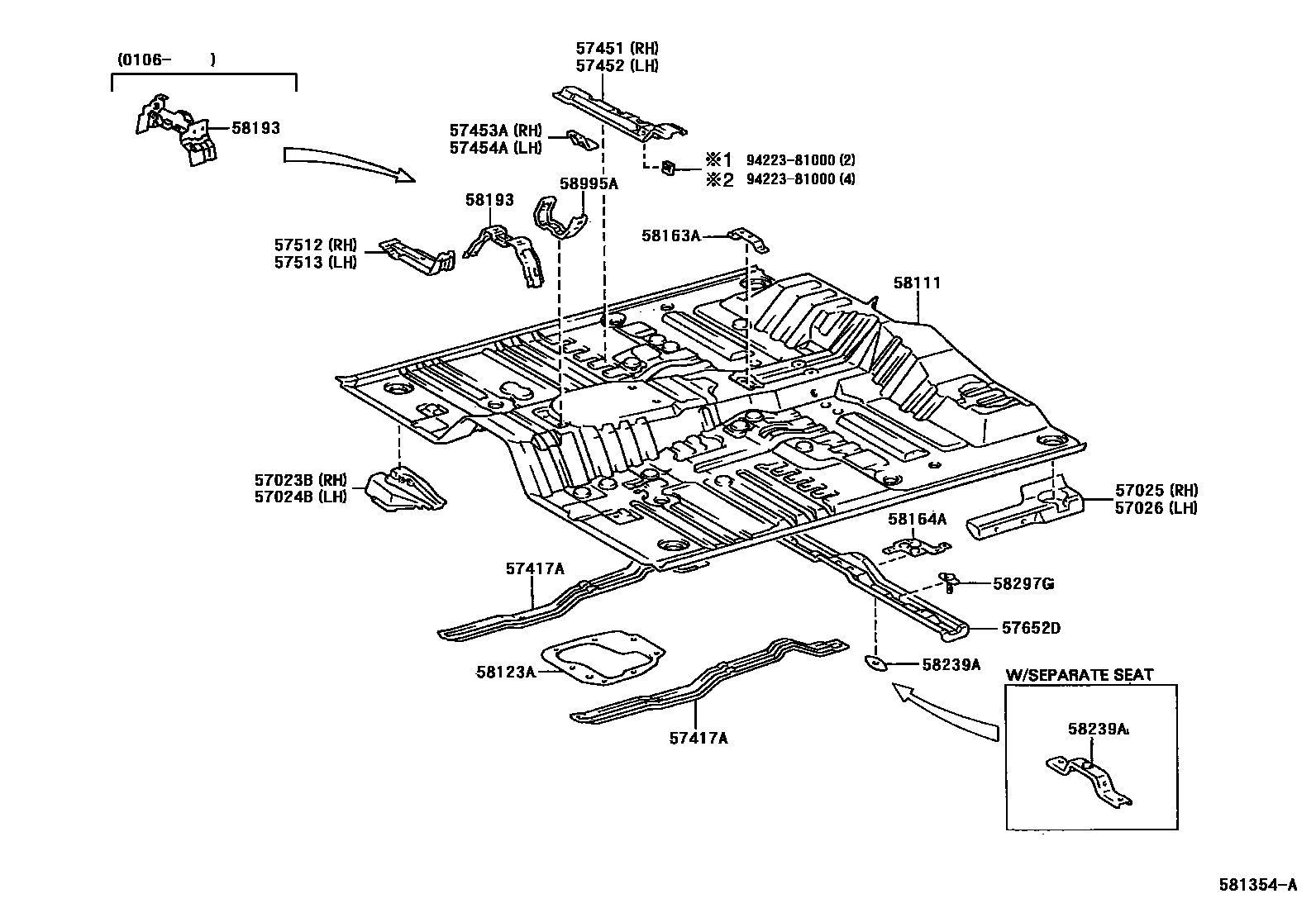

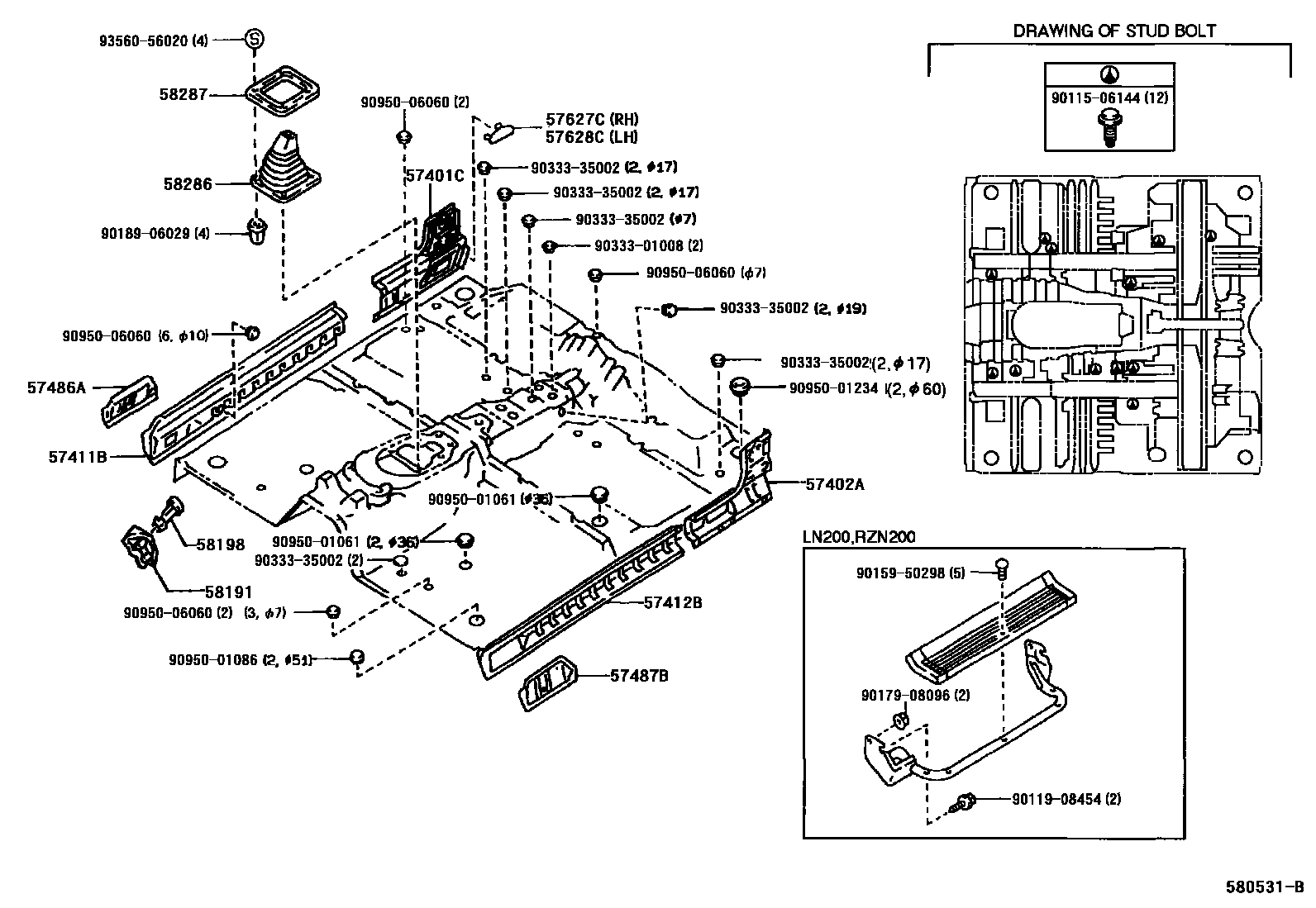

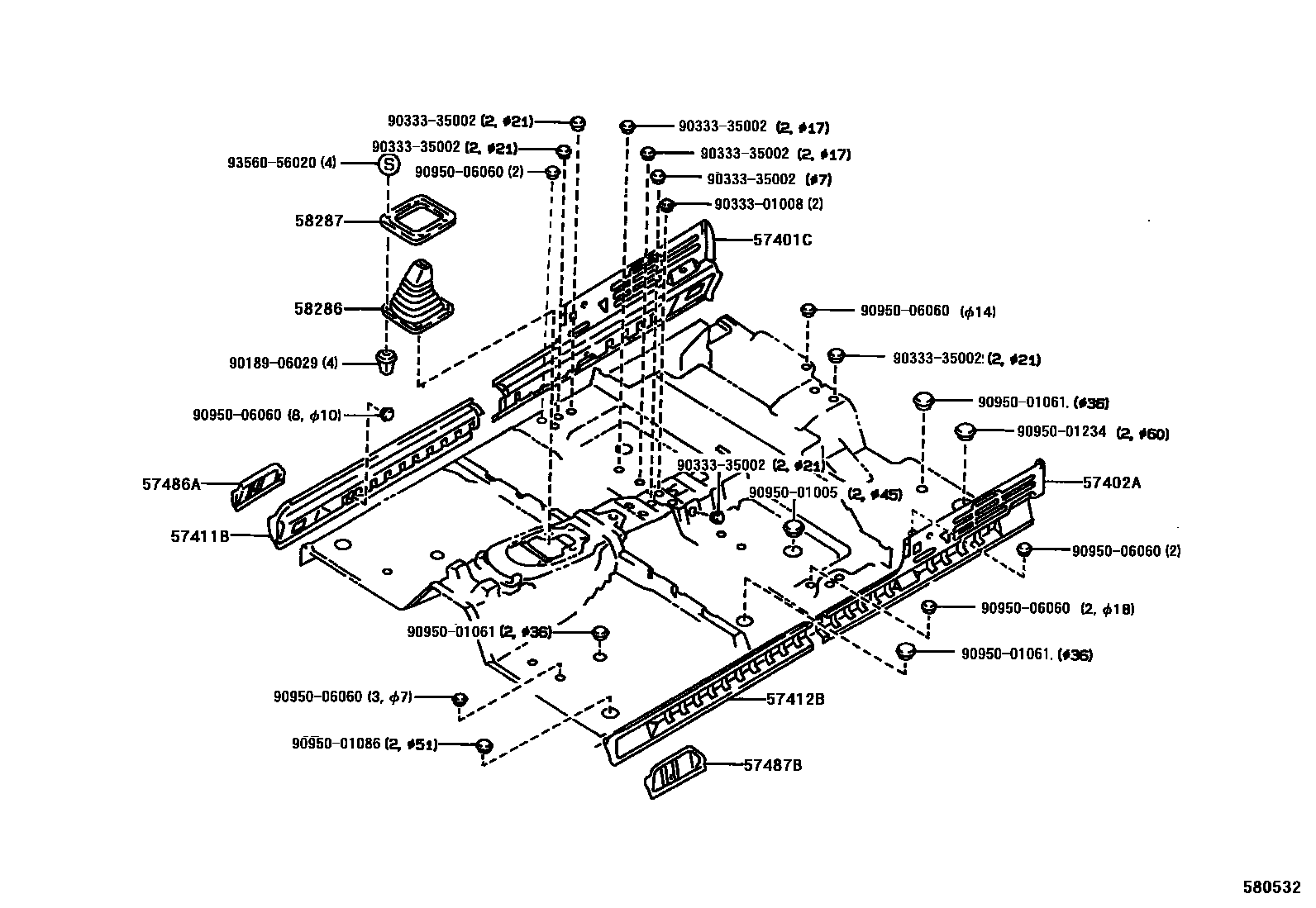

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51081 | Right foot plate No. 1 stay sub-assembly | 51081-89103 |
| 51082 | Left foot plate No. 1 stay sub-assembly | 51082-89103 |
| 51707 | Right pedal sub-assembly | 51083-35010 · 51083-35040 · 51083-89101 |
| 51708 | Left pedal sub-assembly | 51084-35010 · 51084-35040 · 51084-89101 |
| 51759A | Left rear door step panel cover | 51759-89101 |
| 51773B | Right front door side step panel lining cover | 51773-89102 |
| 51774A | Left front door side step panel lining cover | 51774-89102 |
| 51779A | Right rear door step panel cover | 51779-89101 |
| 57023B | Right body No. 2 mounting bracket sub-assembly | 57023-89101 · 57023-89103 |
| 57024B | Left body No. 2 mounting bracket sub-assembly | 57024-89101 · 57024-89103 |
| 57025 | Right body No. 3 mounting bracket sub-assembly | 57025-89101 · 57025-89103 · 57025-89111 |
| 57026 | Left body No. 3 mounting bracket sub-assembly | 57026-89101 · 57026-89103 · 57026-89112 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-89114 · 57401-89115 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-89114 · 57402-89115 |
| 57411B | Floor right inner longitudinal beam | 57411-35010 · 57411-89104 |
| 57412B | Floor left inner longitudinal beam | 57412-35010 · 57412-89106 |
| 57417A | Front underfloor reinforcement | 57417-89103 · 57417-89104 · 57417-89105 |
| 57451 | front floor cross member | 57451-89108 |
| 57452 | Front floor left cross member | 57452-35010 · 57452-89105 |
| 57453A | Front floor right cross member reinforcement | 57453-89101 |
| 57454A | Front floor left cross member reinforcement | 57454-89101 |
| 57486A | Floor No. 1 right longitudinal beam reinforcement | 57486-89104 |
| 57487B | Floor No. 1 left longitudinal beam reinforcement | 57487-89102 |
| 57512 | Front floor right reinforcement | 57512-89105 |
| 57513 | Front floor left reinforcement | 57513-89104 |
| 57627C | Rear floor right longitudinal member cover | 57627-89101 |
| 57628C | Rear floor left longitudinal member cover | 57627-89101 |
| 57652D | Rear floor beam No. 1 | 57652-89118 · 57652-89119 · 57652-89122 |
| 58111 | front floor pan | 58111-35210 · 58111-35220 · 58111-89349 · 58111-89351 · 58111-89362 · 58111-89364 |
| 58123A | shift lever bracket | 58123-89101 |
| 58163A | Armrest Box No. 1 Installation Fixing Bracket | 58163-89101 |
| 58164A | Armrest box installation fixing bracket | 58164-89101 |
| 58191 | Front floor footrest | 58191-35010 · 58191-89103 · 58192-89101 |
| 58193 | Dashboard bracket mounting bracket | 58109-35020 · 58193-35010 · 58193-89102 |
| 58198 | Footrest clip | 58198-89101 · 58198-89102 |
| 58239A | Seat belt anchor nut piece | 58239-34010 · 58239-89111 · 58239-89112 · 58239-89114 |
| 58286 | No. 1 shift lever dust cover | 58280-89111 · 58286-89124 · 58286-89125 |
| 58287 | Shift lever dust cover retaining ring | 58287-04010 · 58287-89113 |
| 58297G | Floor clip fasteners | 58297-89108 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-89104 |
