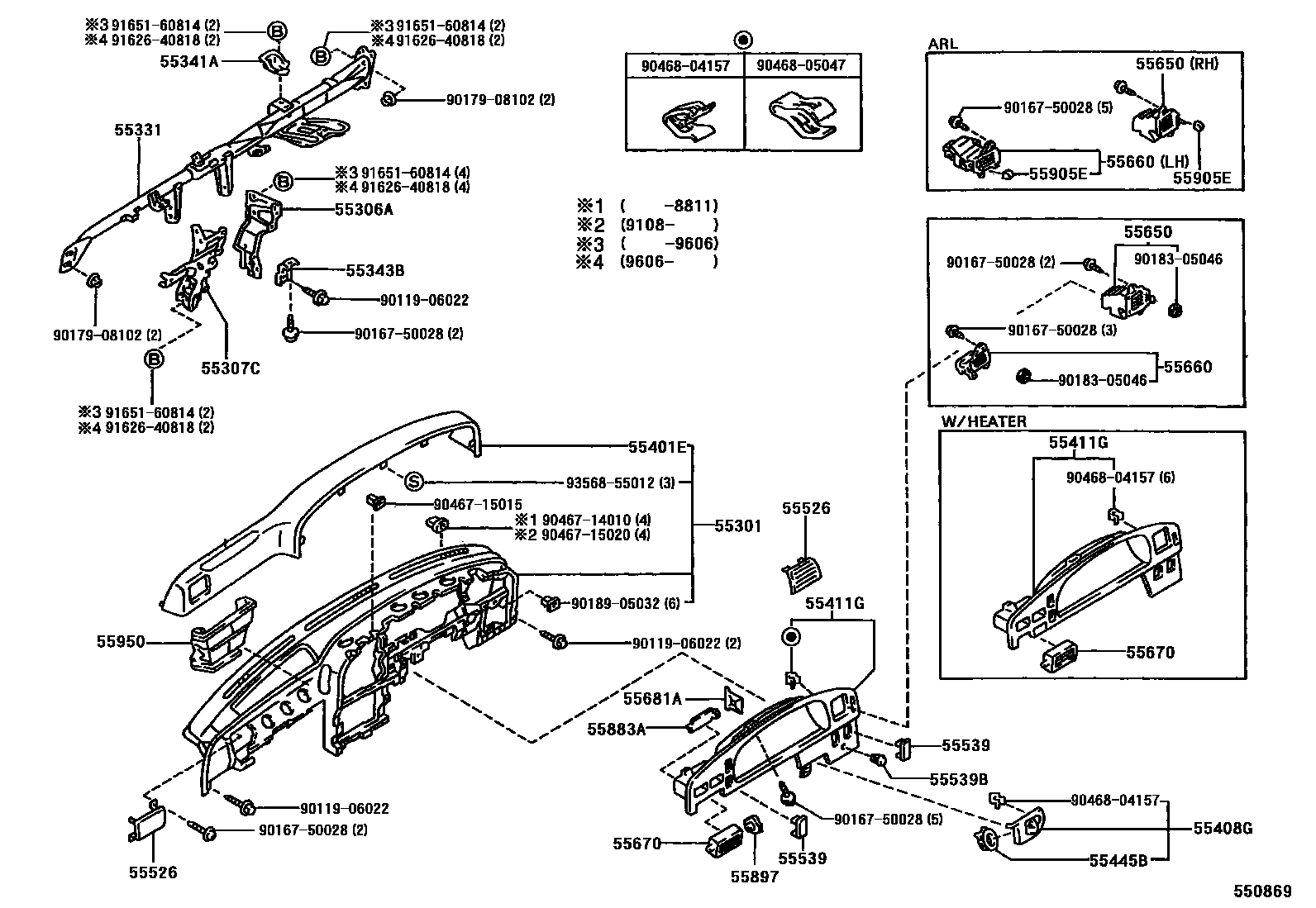

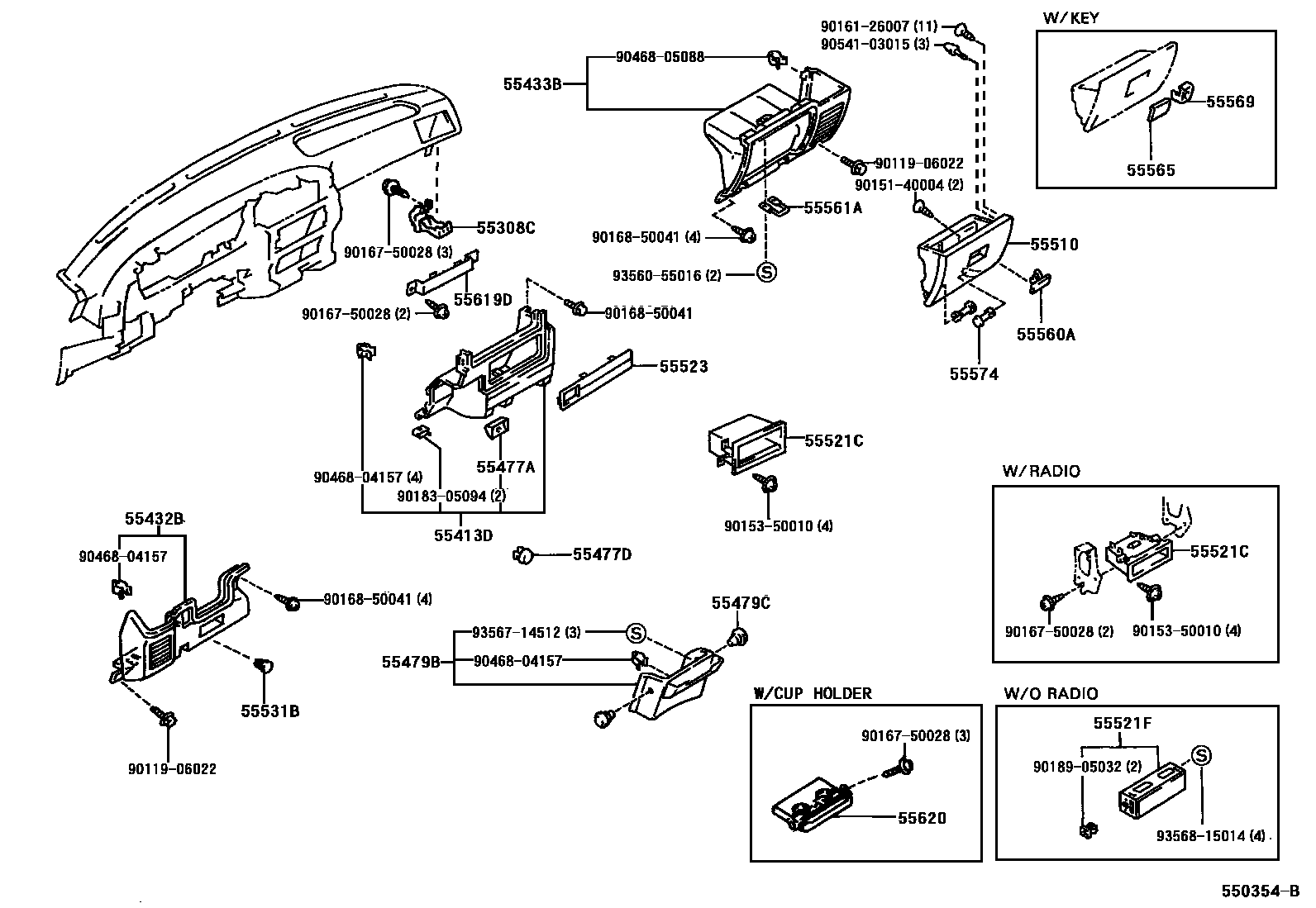

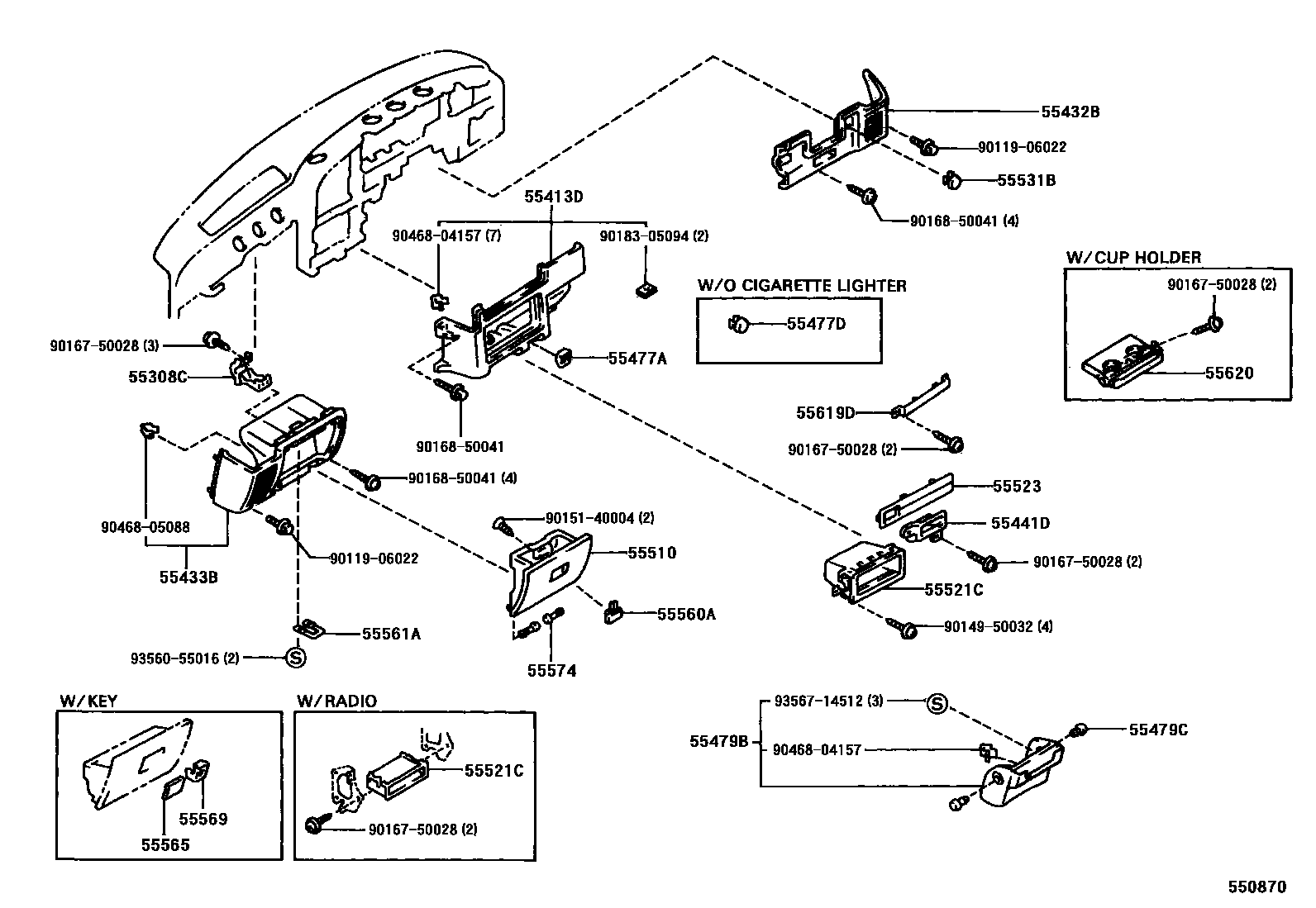

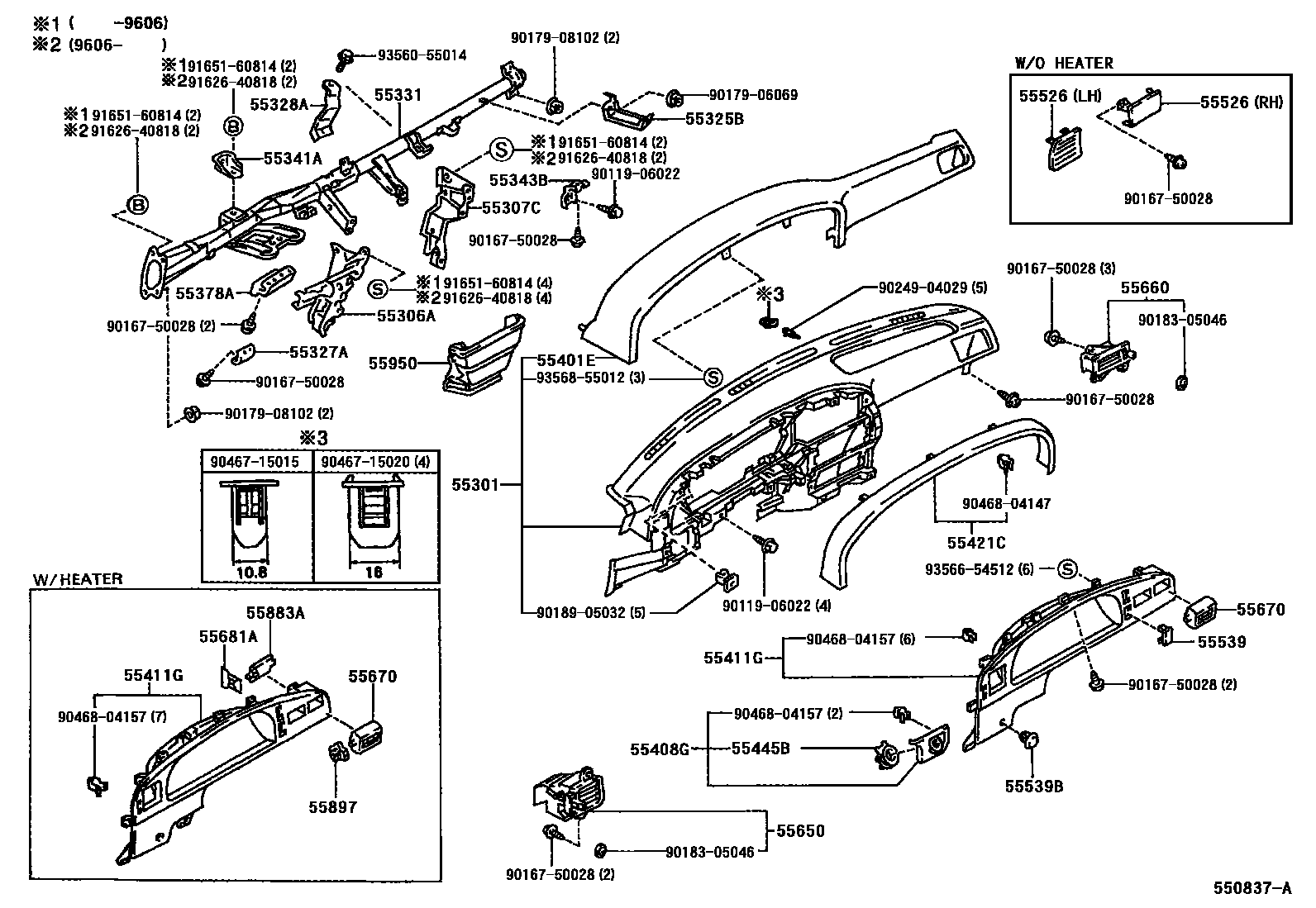

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-35010 · 55306-35110 · 55306-89105 · 55306-89106 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-35010 · 55307-89107 · 55307-89108 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-89109 |
| 55325B | Instrument panel bracket No. 5 | 55325-35020 |
| 55327A | Instrument panel support No. 2 | 55327-89104 |
| 55328A | Dashboard No. 3 stay | 55328-35020 · 55328-89102 |
| 55331 | Dashboard reinforcement | 55330-35020 · 55330-89118 · 55330-89119 · 55330-89120 · 55330-89121 |
| 55341A | Upper bracket (dashboard to front wall) | 55341-89103 · 55341-89104 |
| 55343B | Center bracket (dashboard to cowl) | 55343-89101 · 55343-89102 |
| 55378A | Glovebox lid lock mounting bracket | 55378-89102 |
| 55408G | Starter switch frame sub-assembly | 55408-89101 · 55408-89104 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-35040 · 55411-89109 · 55411-89110 · 55411-89111 · 55411-89114 |
| 55441D | Dashboard coin box | 55441-89109 |
| 55445B | Dashboard decorative panel | 55445-89103 |
| 55477A | Cigarette lighter hole frame | 55477-89105 |
| 55521C | stereo system hole cover | 55521-89102 · 55521-89103 |
| 55521F | Stereo system hole cover No. 2 | 55521-89104 |
| 55523 | Heater control opening cover | 55523-89114 · 55523-89115 · 55523-89116 · 55523-89117 |
| 55526 | Dashboard air register opening cover | 55526-89108 · 55526-89110 |
| 55539 | Spare switch hole cover | 55539-89105 |
| 55539B | No. 2 spare switch hole cover | 55539-89104 |
| 55561A | Glove box lid lock | 55561-89104 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55619D | Coaster hole cover | 55619-89101 |
| 55620 | Dashboard cup holder assembly | 55620-89101 · 55620-89103 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-89112 · 55650-89113 · 55650-89114 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-89115 · 55670-89116 · 55670-89117 · 55670-89118 |
| 55681A | Dashboard air register bracket | 55681-89101 · 55681-89102 |
| 55883A | choke | 55883-89101 · 55883-89102 |
| 55897 | Choke control lever button | 55897-89105 · 55897-89108 |
| 55950 | Defroster nozzle assembly | 55950-89108 · 55950-89109 |
