Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

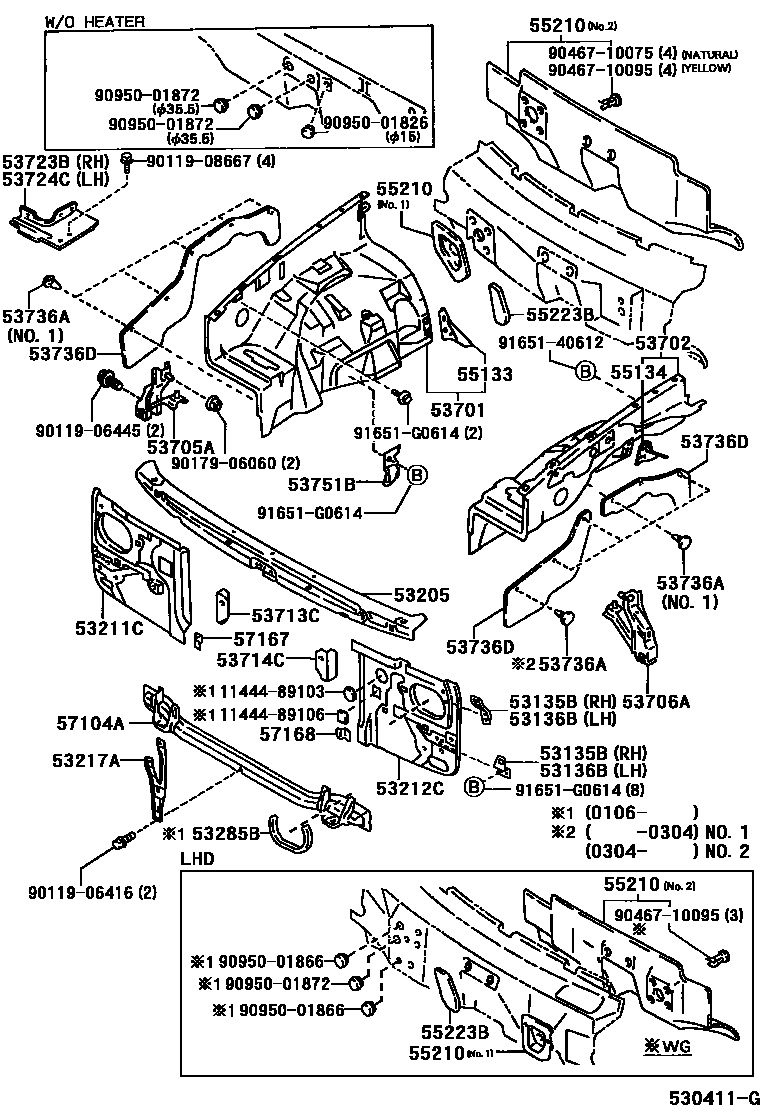

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53135B | Right headlight lampshade bracket | 53135-89101 · 53135-89102 |
| 53136B | Left headlight lampshade bracket | 53136-89105 · 53136-89106 |
| 53205 | Radiator upper bracket sub-assembly | 53216-35010 · 53216-35011 · 53216-89110 |
| 53211C | Radiator right side support | 53202-35020 · 53202-35080 · 53211-35040 · 53211-89123 · 53211-89124 |
| 53212C | Radiator left support | 53203-35020 · 53203-35090 · 53212-35020 · 53212-89120 · 53212-89121 |
| 53217A | engine cover lock bracket | 53217-89108 · 53217-89109 |
| 53285B | Radiator side 1 air seal | 53285-35040 |
| 53701 | Right front fender fender sub-assembly | 53701-35090 · 53701-35110 · 53701-35140 · 53701-35150 · 53701-35290 · 53701-35300 · 53701-35860 · 53701-35870 · 53701-35880 · 53701-89205 · 53701-89207 · 53701-89208 · 53701-89209 · 53701-89213 · 53701-89215 · 53701-89217 · 53701-89220 · 53701-89247 · 53701-89266 |
| 53702 | Left front fender fender sub-assembly | 53702-35100 · 53702-35110 · 53702-35150 · 53702-35220 · 53702-35590 · 53702-35790 · 53702-35800 · 53702-35810 · 53702-89230 · 53702-89234 · 53702-89247 · 53702-89272 · 53702-89287 |
| 53705A | Right fender fender bracket sub-assembly | 53705-89102 · 53705-89103 |
| 53706A | Left fender fender bracket sub-assembly | 53706-89102 · 53706-89103 |
| 53713C | Right front fender fender front extension | 53707-89102 · 53713-89104 |
| 53714C | Left front fender fender front extension | 53708-89101 · 53714-89104 |
| 53723B | Right hot air baffle bracket | 53723-35010 |
| 53724C | Left hot air baffle bracket | 53724-35010 |
| 53736A | Clip (for front fender fender seal) | 64479-35010 · 90467-10107 |

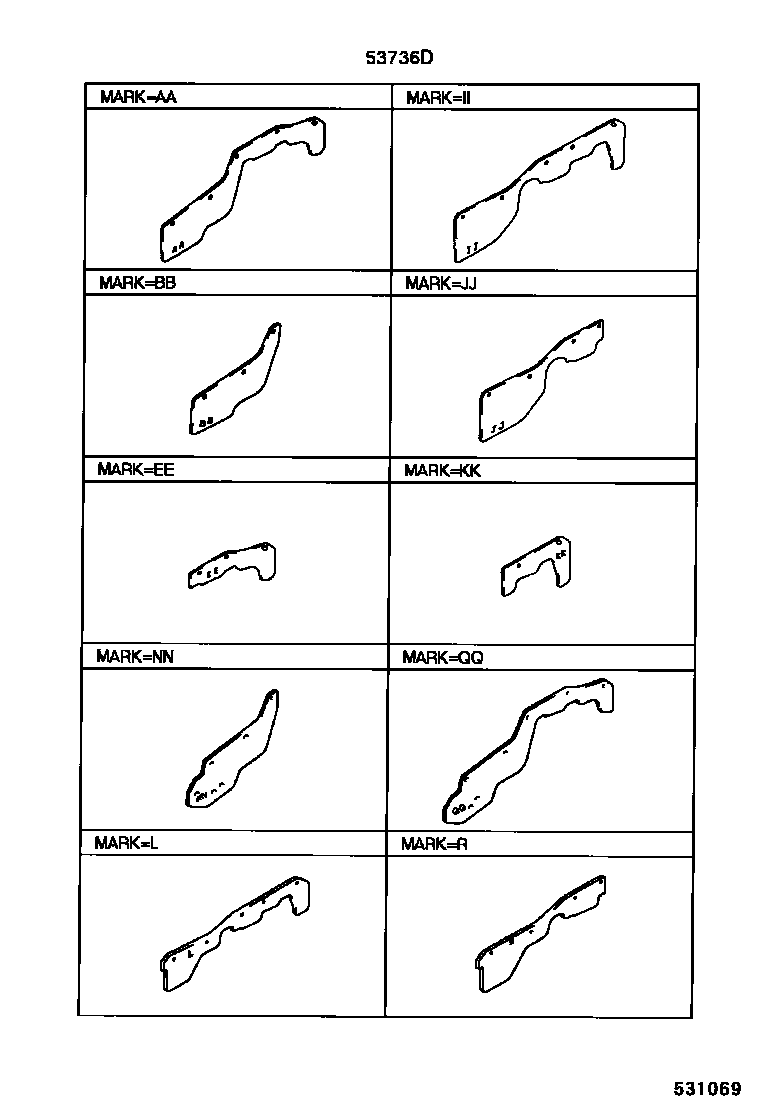

| 53736D | fender fender seal | 53734-35020 · 53736-35070 · 53736-35090 · 53736-89118 · 53736-89119 · 53736-89120 · 53736-89126 · 53736-89127 · 53736-89128 · 53736-89132 · 53736-89133 · 53738-35050 |
| 53751B | Carbon canister mounting bracket | 53751-89102 |
| 55101 | Front apron sub-assembly | 55111-89236 · 55111-89242 |
| 55127 | Parking brake reinforcement | 55127-89102 |
| 55131 | Front apron reinforcement | 55131-89104 |
| 55133 | Right front fender fender lower fixing plate | 55133-89103 |
| 55134 | Left front fender fender lower fixing plate | 55134-89103 |
| 55141 | Footrest mounting bracket | 55141-89103 · 55141-89106 |
| 55143 | Front wall side trim panel No. 1 mounting bracket | 55143-89102 · 55143-89103 |
| 55161A | Heater mounting bracket on the right side | 55161-89106 · 55161-89107 · 55161-89108 · 55161-89109 |
| 55210 | Front wall insulation pad assembly | 55210-35100 · 55210-35110 · 55210-35111 · 55210-35120 · 55210-35130 · 55210-35131 · 55210-89149 · 55210-89151 · 55210-89153 · 55210-89154 · 55210-89155 · 55210-89156 · 55210-89157 · 55210-89158 |
| 55217A | Front apron muffler fixings | 55217-89103 |
| 55223B | No. 1 insulation pad for front wall panel | 55225-35020 · 55225-89103 · 55225-89104 |

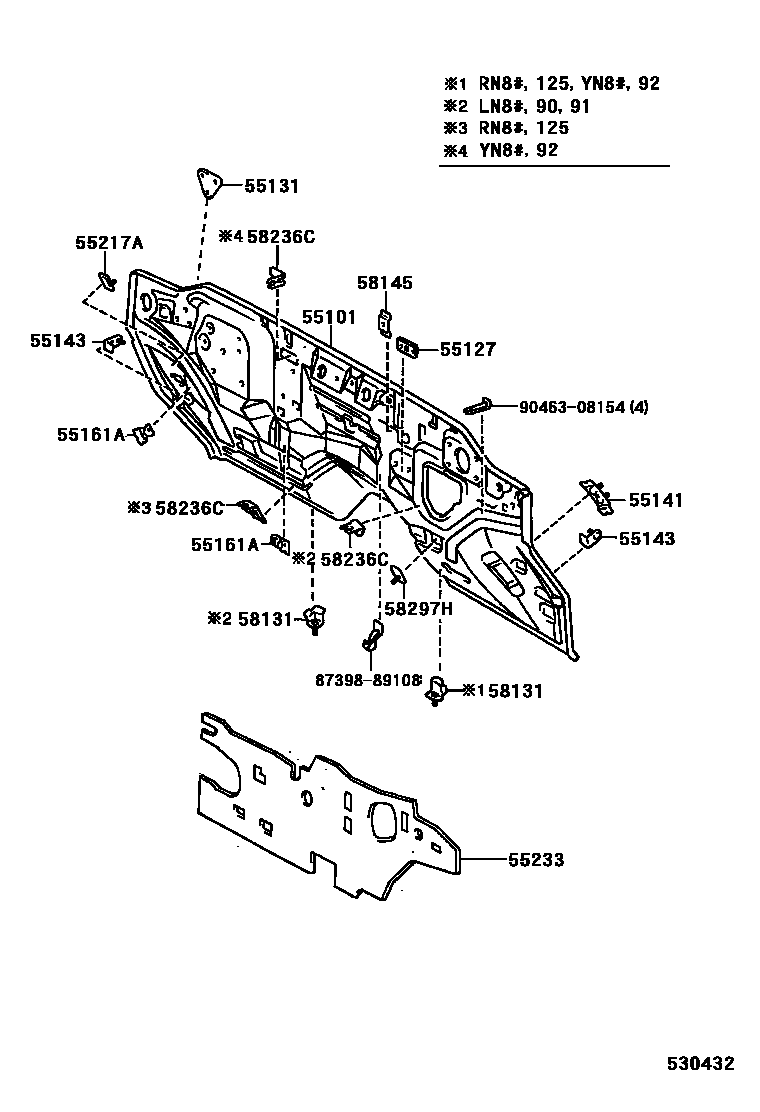

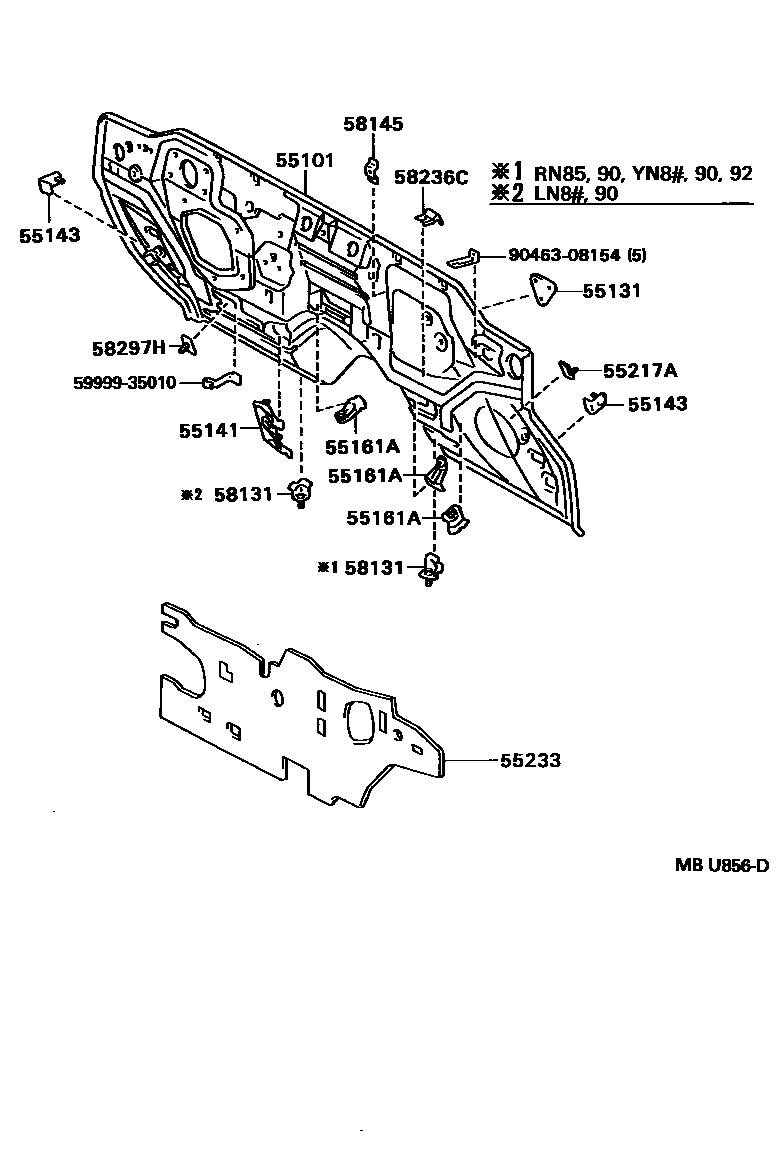

| 55233 | cowl heat insulation sheet | 55233-89110 · 55233-89111 · 55233-89112 · 55233-89113 |
| 57104A | Front cross member sub-assembly | 57104-35010 · 57104-89109 · 57104-89113 |
| 57167 | Front cross member upper right corner panel | 57167-89101 · 57167-89102 |
| 57168 | Front cross member upper left corner panel | 57168-89101 · 57168-89102 |
| 58131 | Front floor insulation pad bracket No. 1 | 58131-89116 · 58131-89117 |
| 58145 | Front floor insulation pad bracket fixing No. 1 | 58145-89101 |
| 58236C | clutch tube bracket | 58236-89104 · 58236-89105 · 58236-89106 · 58236-89107 · 58236-89108 |
| 58297H | Floor clip fasteners | 58297-89107 |
