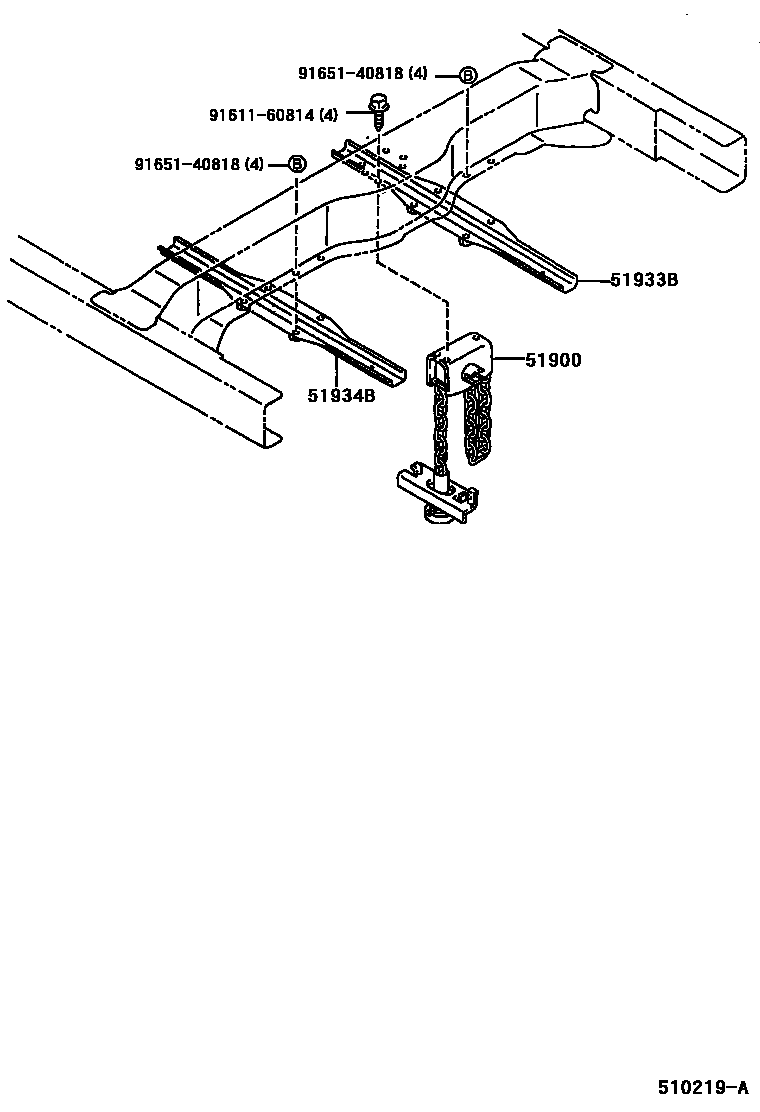

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35101 · 51900-35121 · 51900-35210 · 51900-35220 |
| 51933B | Spare tire rack right block | 51903-35070 · 51933-34010 · 51933-35050 |
| 51934B | Spare tire rack left block | 51904-35060 · 51933-34010 · 51933-35050 |
