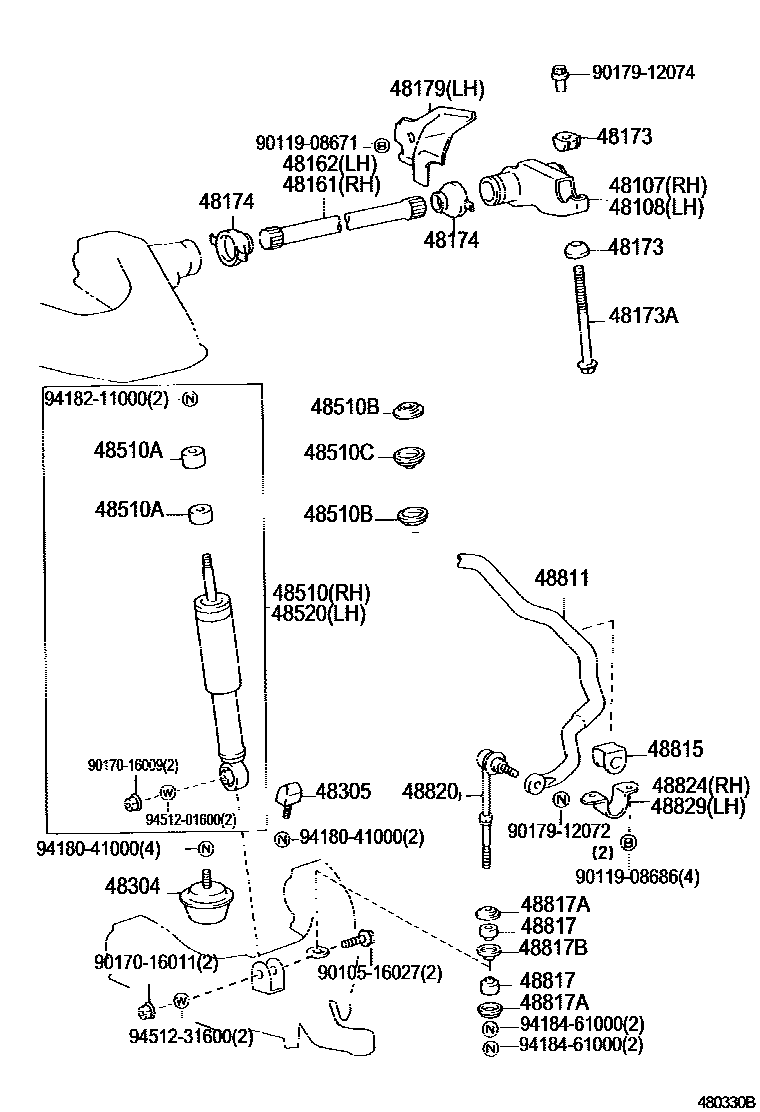

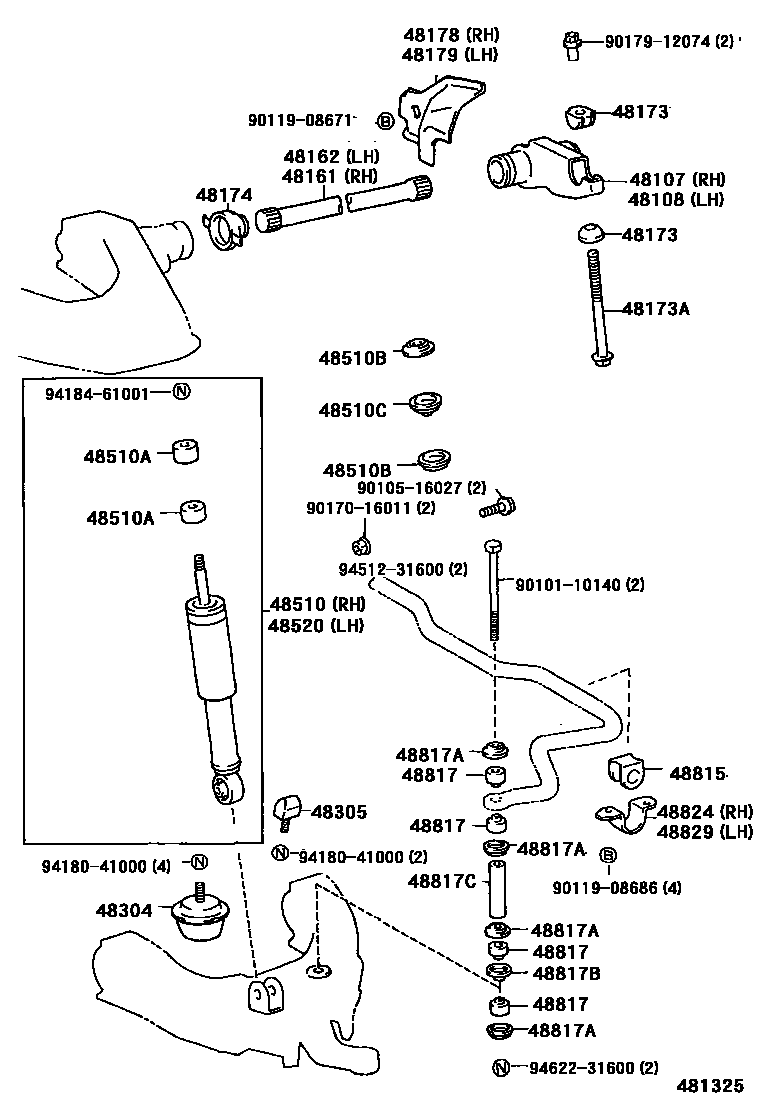

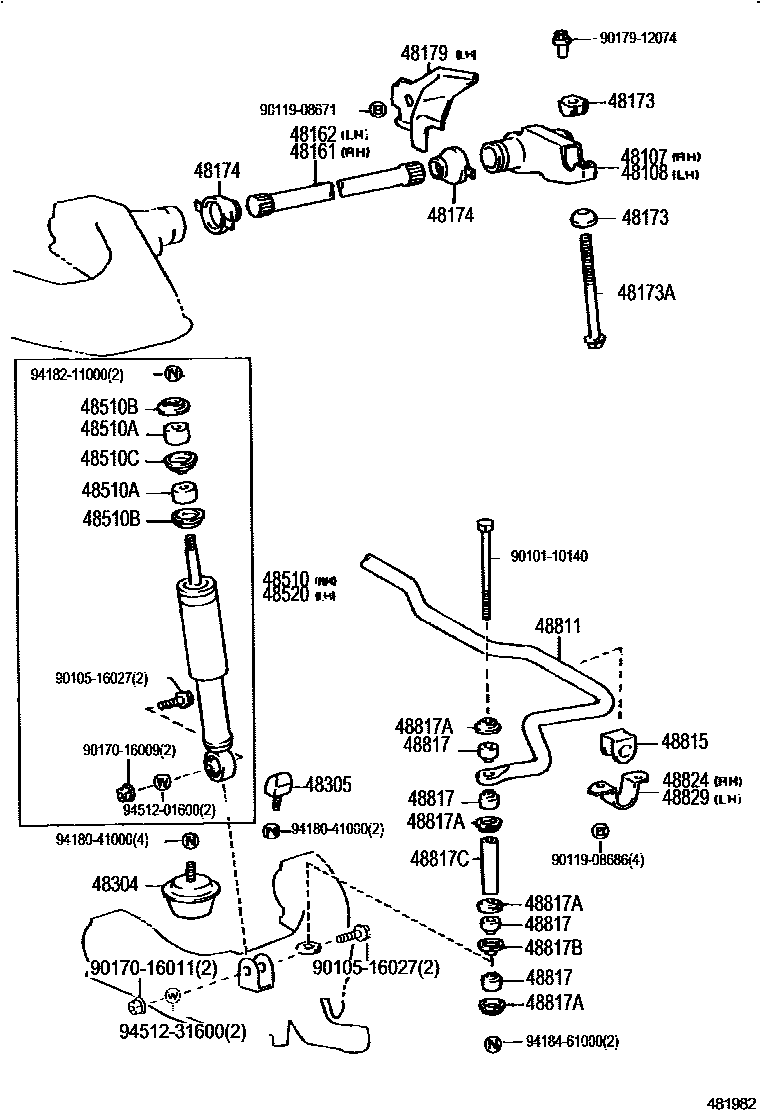

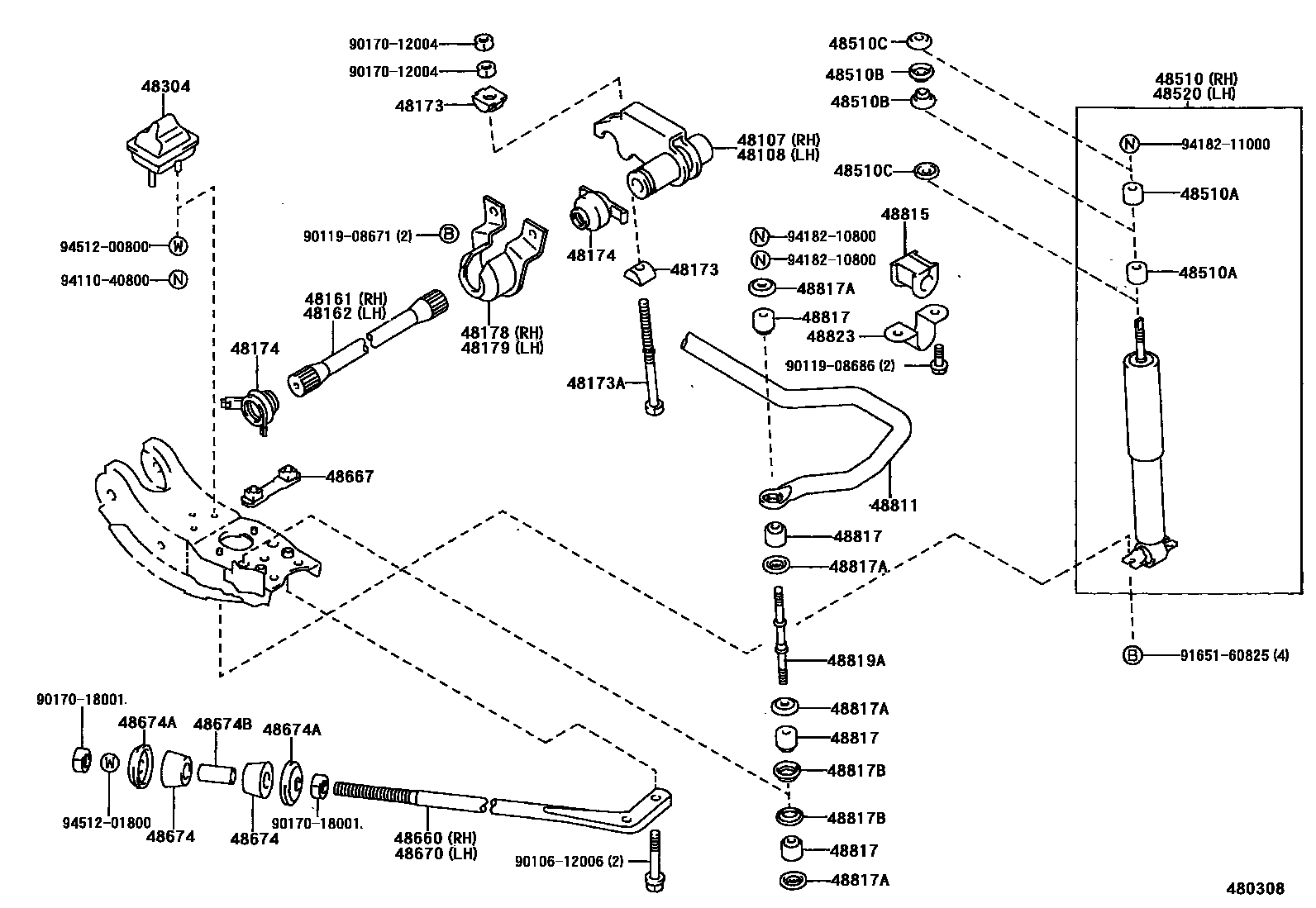

Toyota HILUX Front Spring & Shock Absorber — Figure 4803
Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48107 | Right fixed arm sub-assembly | 48107-35040 · 48107-35050 · 48107-35060 |
| 48108 | Left fixed arm sub-assembly | 48108-35040 · 48108-35050 · 48108-35060 |
| 48161 | Right torsion bar spring | 48161-35040 · 48161-35110 · 48161-35130 · 48161-35160 · 48161-35170 · 48161-35210 · 48161-35220 · 48161-35250 |
| 48162 | Left torsion bar spring | 48162-35040 · 48162-35110 · 48162-35130 · 48162-35160 · 48162-35170 · 48162-35210 · 48162-35220 · 48162-35250 |
| 48173 | fixed arm adjuster seat | 48173-35010 · 48173-35020 · 48173-35030 |
| 48173A | Hexagonal bolt (for adjusting the fixed arm) | 90101-12104 · 90101-12159 |
| 48174 | Torsion bar dust cover | 48174-26010 · 48174-35010 · 48174-35020 · 48174-35030 |
| 48178 | Right torsion bar dust cover protection device | 48178-35020 |
| 48179 | Left torsion bar dust cover protector | 48178-35020 · 48179-35030 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-04010 · 48304-35120 · 48304-35130 · 48304-35170 |
| 48305 | No. 2 front spring buffer block sub-assembly | 48305-35020 |
| 48510 | Right front shock absorber assembly | 48511-39675 · 48511-39685 · 48511-39686 · 48511-39695 · 48511-39696 · 48511-39765 · 48511-80061 · 48511-80065 · 48511-80066 · 48511-80089 · 48511-80111 · 48511-80112 |
| 48510A | Front shock absorber cushion | 90948-01002 · 90948-01003 · 90948-01045 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02005 · 90948-02131 |
| 48510C | No. 2 buffer pad block (for front shock absorber) | 90948-02069 · 90948-02119 |
| 48520 | Left front shock absorber assembly | 48511-39675 · 48511-39685 · 48511-39686 · 48511-39695 · 48511-39696 · 48511-39765 · 48511-80061 · 48511-80065 · 48511-80066 · 48511-80089 · 48511-80111 · 48511-80112 |
| 48660 | Right support rod assembly | 48661-35030 |
| 48667 | Support rod retaining ring | 48667-35020 · 48667-35030 |
| 48670 | Left support rod assembly | 48671-35030 |
| 48674 | Support rod cushion | 48674-22021 |
| 48674A | Bumper stop (for support rod bumper) | 90948-02030 |
| 48674B | Collar (for support rod cushion) | 90387-18002 |
| 48811 | front stabilizer bar | 48811-35180 · 48811-35210 · 48811-35230 · 48811-35290 · 48811-35330 · 48811-35350 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-14160 · 48815-24010 |
| 48817 | Front stabilizer bar cushion | 48817-30010 · 90948-01002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02004 · 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 · 90948-02034 |
| 48817C | Collar (for stabilizer bar) | 90440-14003 |
| 48819A | front stabilizer bar bolt | 48819-35020 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-35010 |
| 48823 | Stabilizer bar linkage cover (for front) | 48823-35050 |
| 48824 | front stabilizer bar bracket | 48824-35080 |
| 48829 | Stabilizer bar bracket | 48829-35050 |
