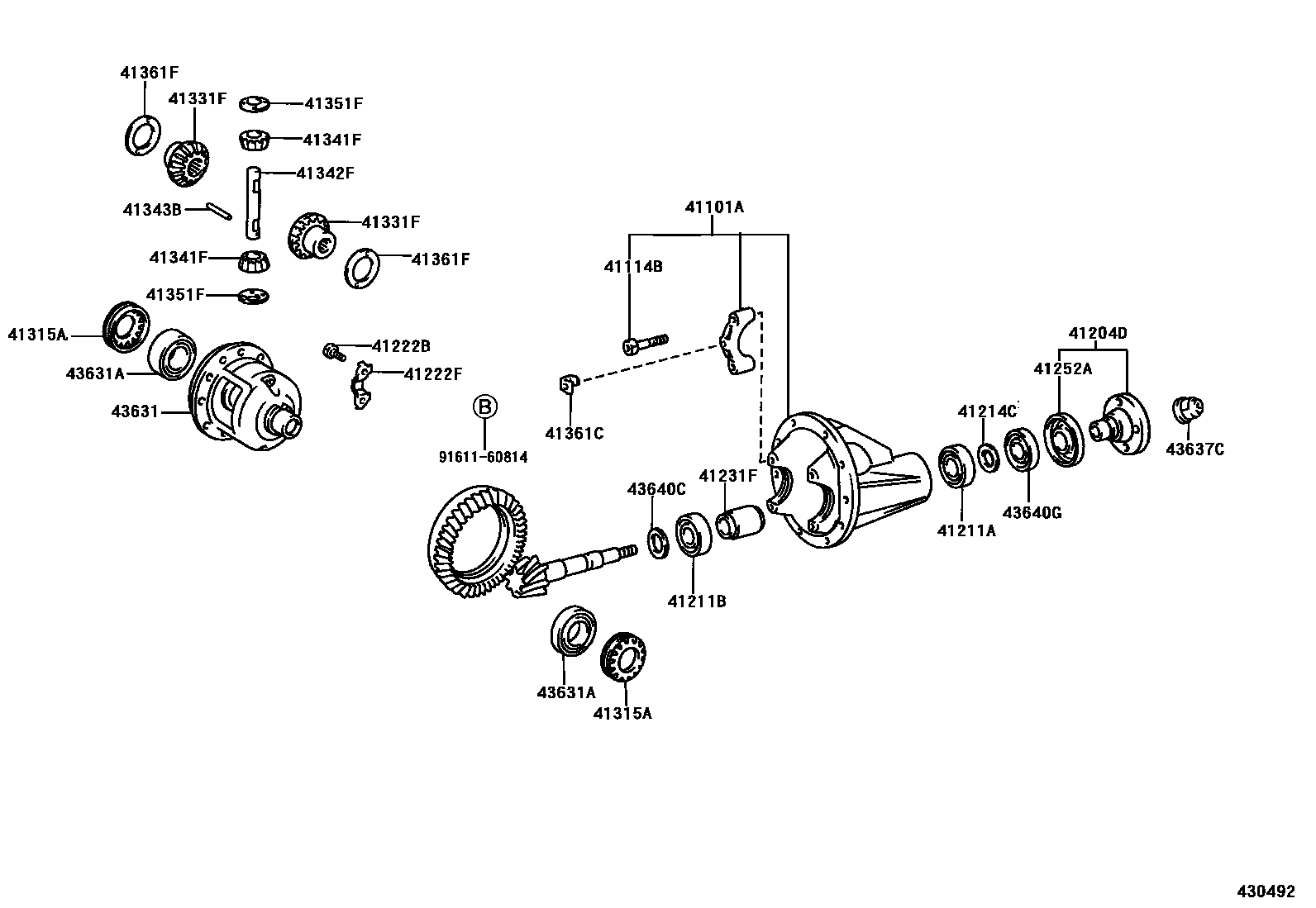

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41101A | Front differential housing sub-assembly | 41101-35031 |
| 41114B | Front differential bearing cap bolts | 90105-12053 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-35040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30022 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-35044 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-26010 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-35020 |
| 41231F | Front differential drive pinion bearing spacer | 41231-40011 |
| 41252A | Dust cover (for front differential) | 41252-35020 |
| 41315A | Front differential bearing adjusting nut | 41315-35010 |
| 41331F | Front differential side gear | 41331-35011 |
| 41341F | Front differential planetary gear | 41341-35020 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-39610 |
| 41343B | Front differential planetary gear pin | 90250-06085 |
| 41351F | Front differential planetary gear thrust washer | 41351-30052 |
| 41361C | Front differential bearing adjustment nut locking piece | 41316-35010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-40021 · 41362-40021 · 41363-40021 |
| 43631 | Front axle differential housing | 41311-40020 |
| 43631A | Front axle differential bearing | 90368-45066 |
| 43637C | Castle nut (for front axle drive pinion) | 90179-20018 |
| 43640C | Front axle driving pinion thrust spacer or washer | 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-38047 |
