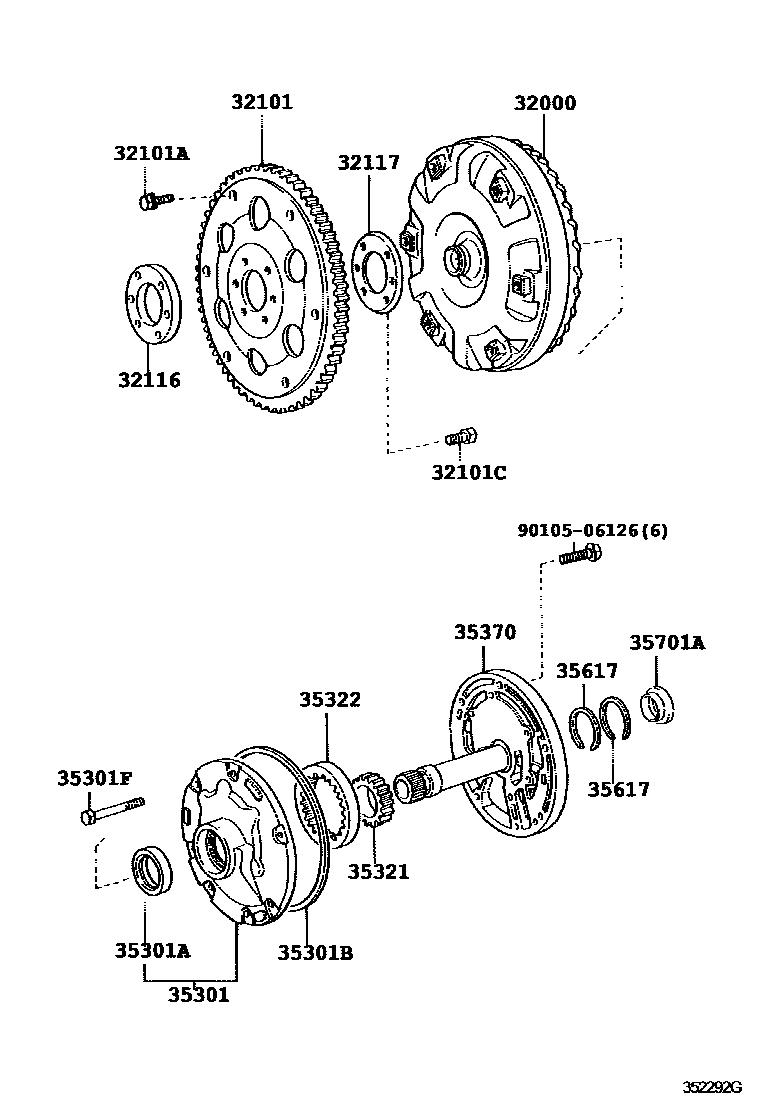

Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-30101 · 32000-35070 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-20050 · 32101-35020 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 · 90119-09009 · 90119-09010 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-12014 · 90913-01011 |
| 32116 | Front transmission plate spacer | 32116-20011 · 32116-35010 |
| 32117 | Rear transmission plate spacer | 32117-20021 · 32117-35010 |
| 35301 | Front oil pump body sub-assembly | 35301-30030 |
| 35301A | Oil seal (for front oil pump) | 90311-38020 |
| 35301B | O-ring (for front oil pump body) | 90301-99010 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08137 |
| 35321 | Front oil pump driving gear | 35321-22010 · 35321-22070 · 35321-22080 · 35321-22090 · 35321-22100 · 35321-22110 |
| 35322 | Front oil pump driven gear | 35322-22010 · 35322-22070 · 35322-22080 · 35322-22090 · 35322-22100 · 35322-22110 |
| 35370 | stator shaft assembly | 35370-30023 |
| 35617 | Clutch drum oil ring | 35617-16010 · 35617-32010 |
| 35701A | Front thrust bearing (for input shaft) | 90374-25003 |
