Toyota HILUX 变速器齿轮(MTM) — Figure 3305

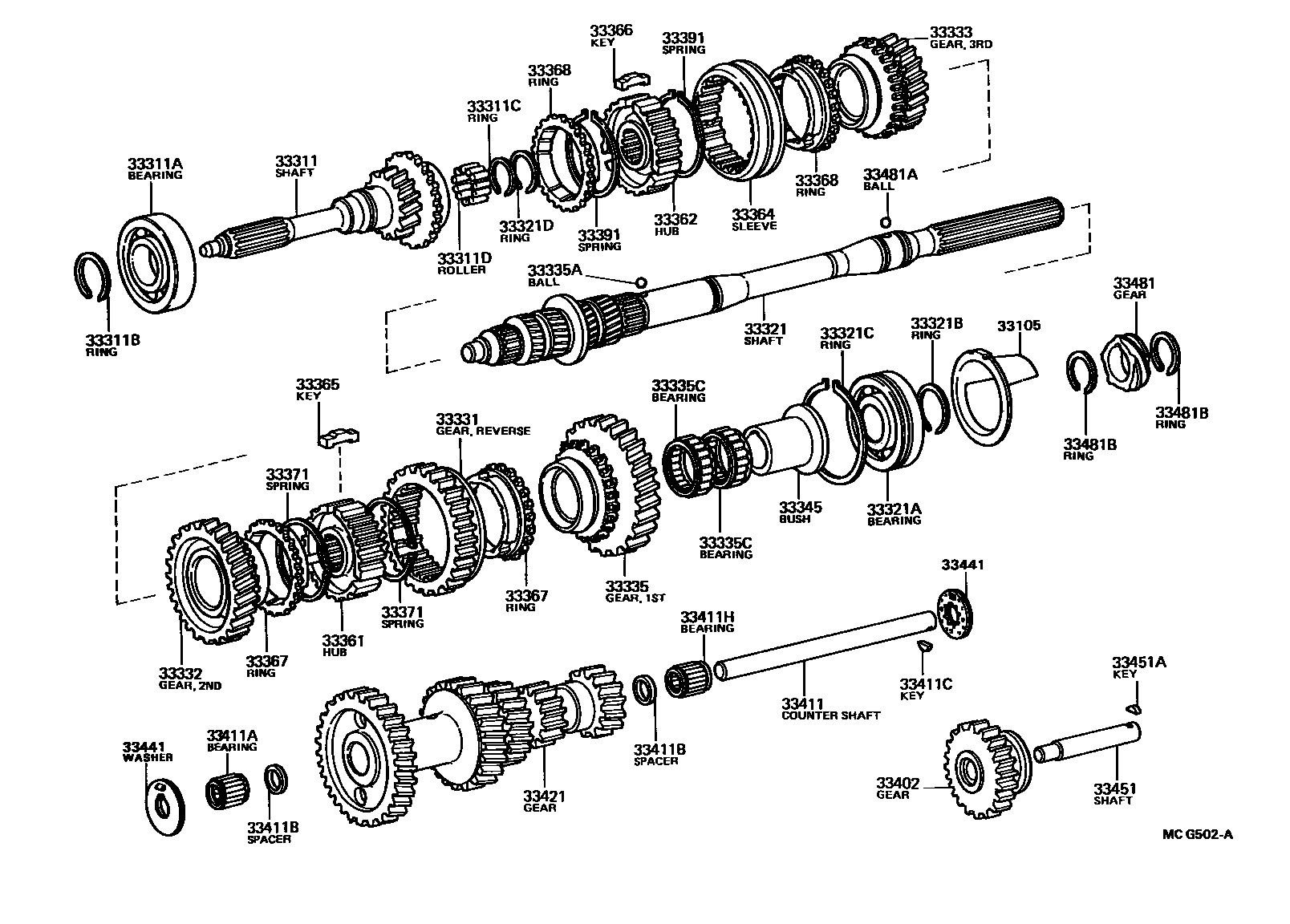

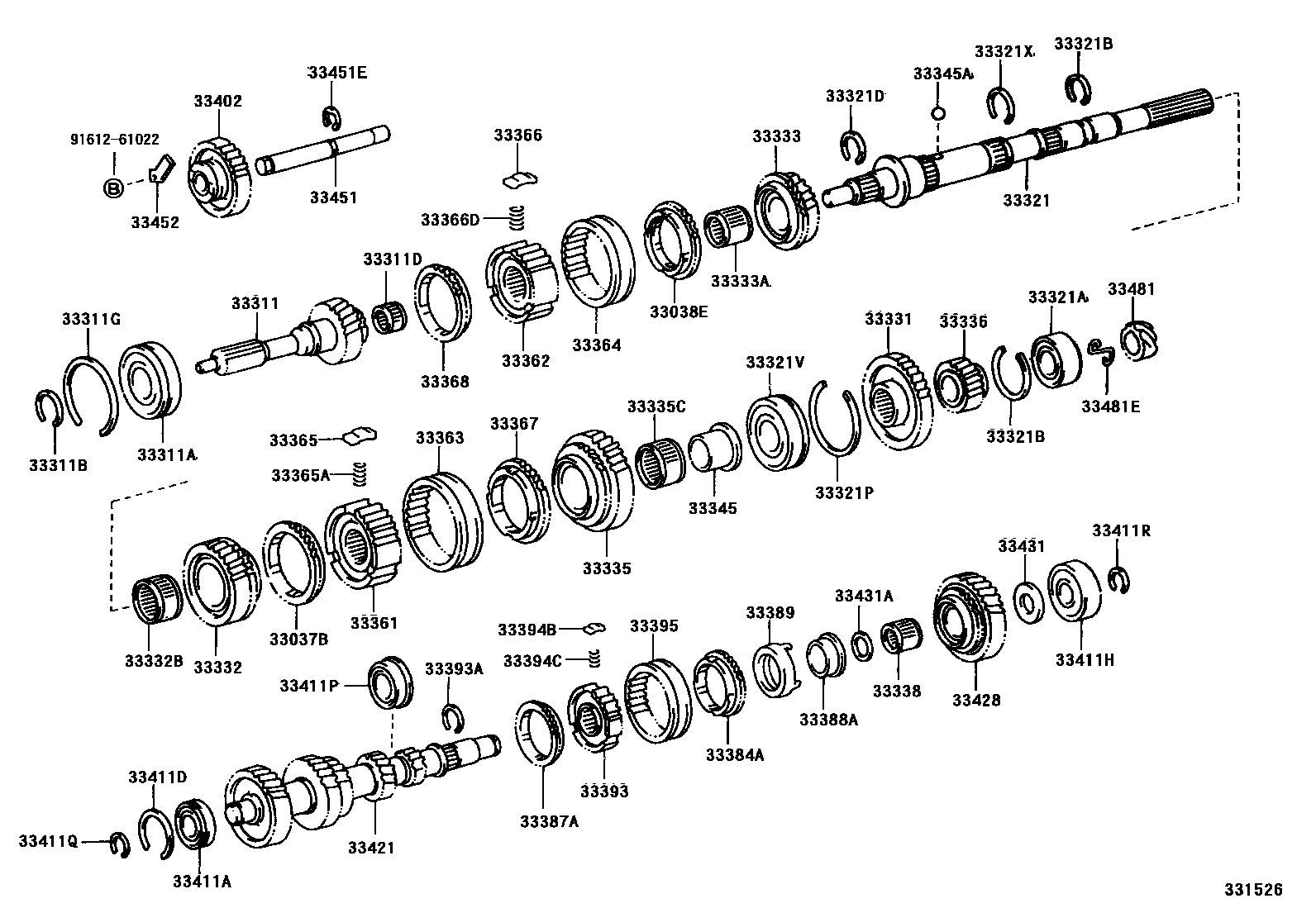

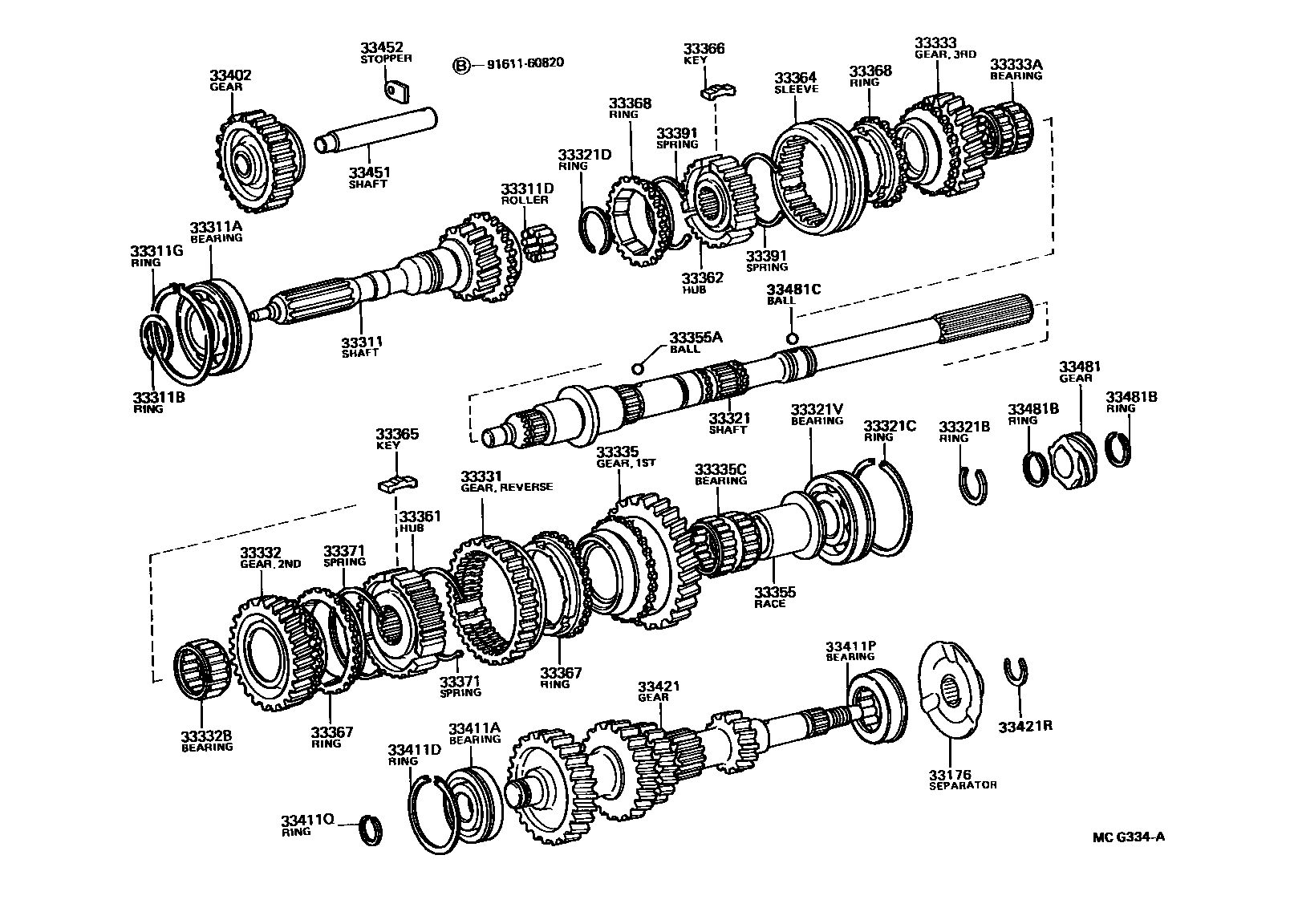

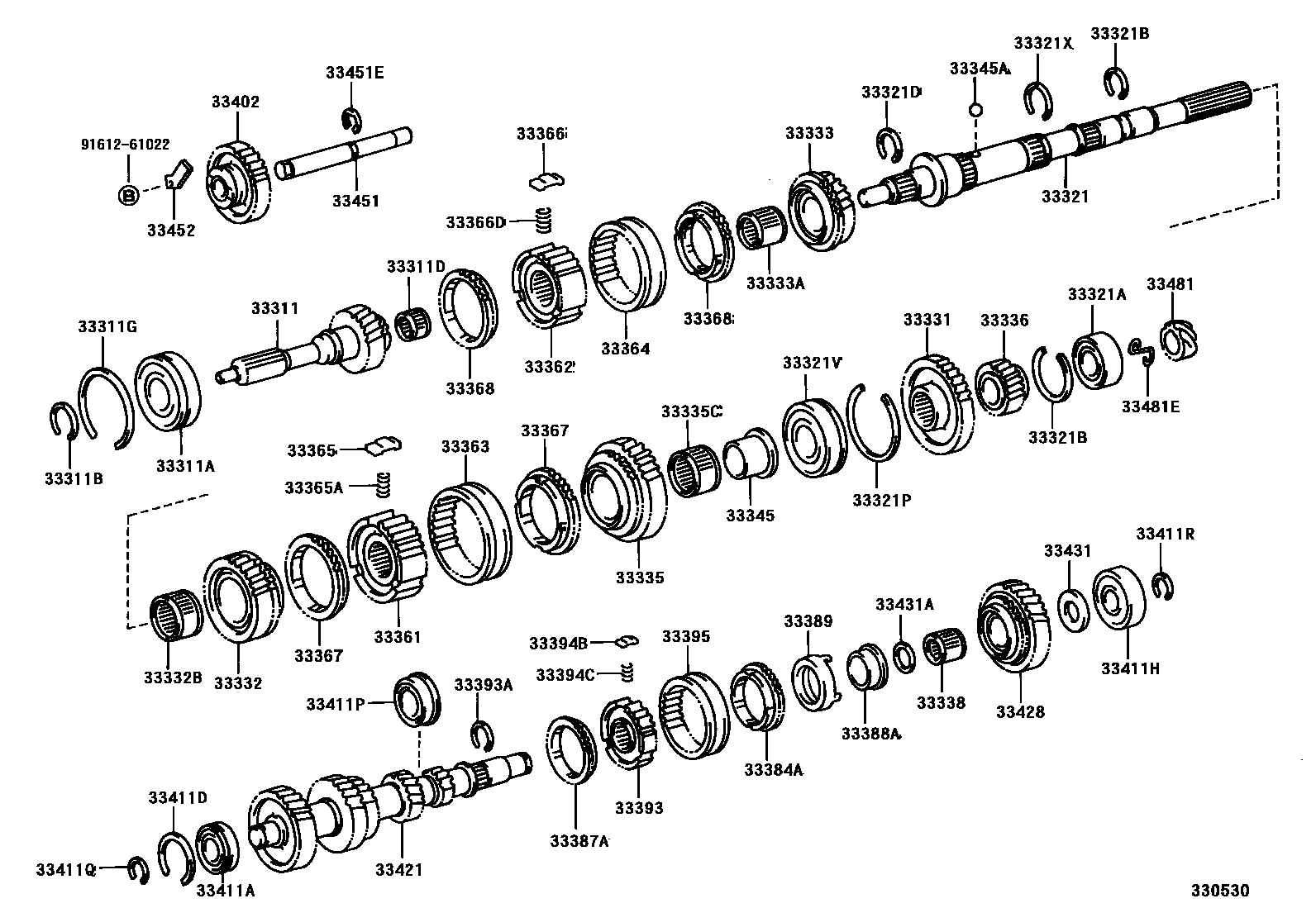

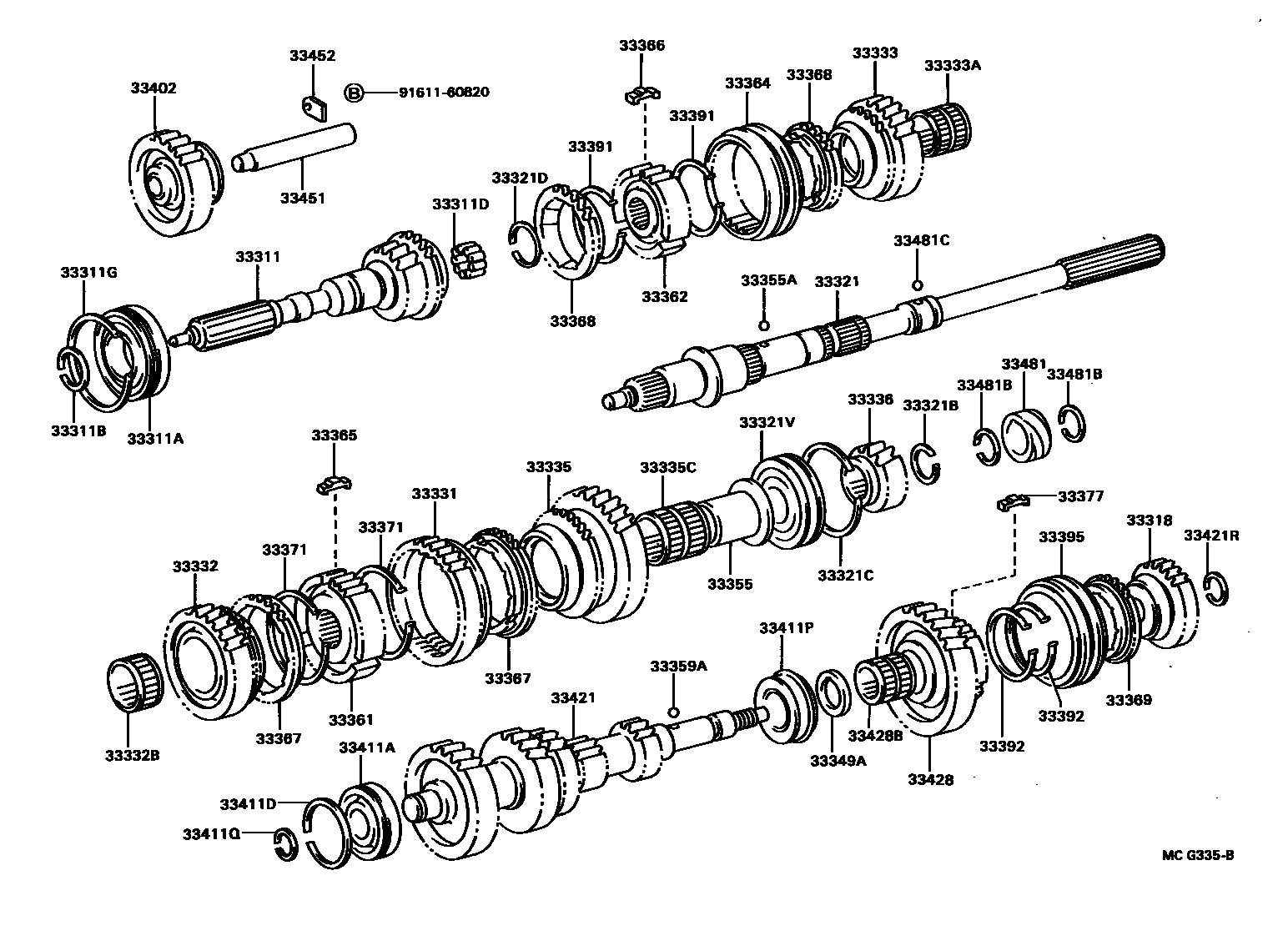

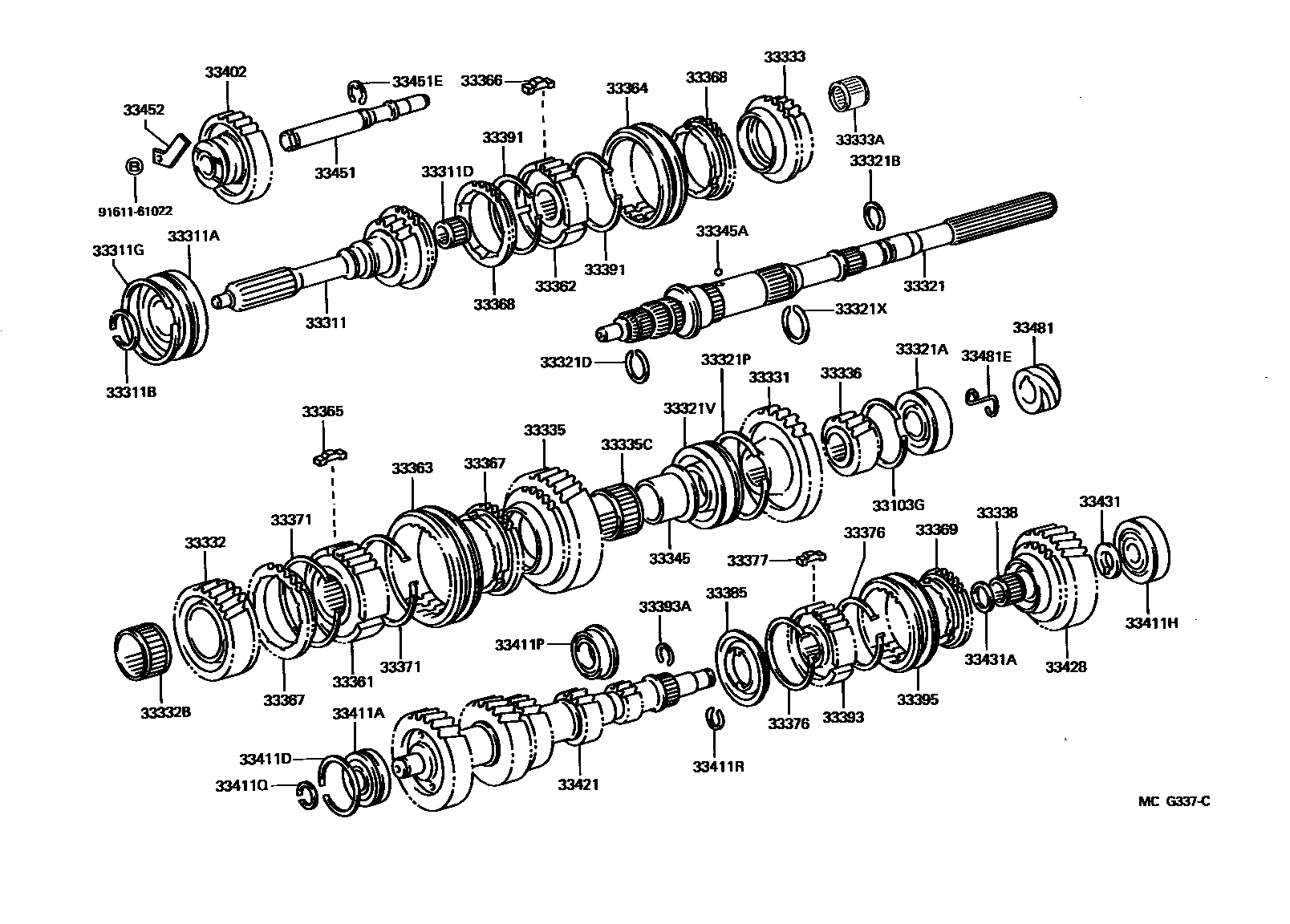

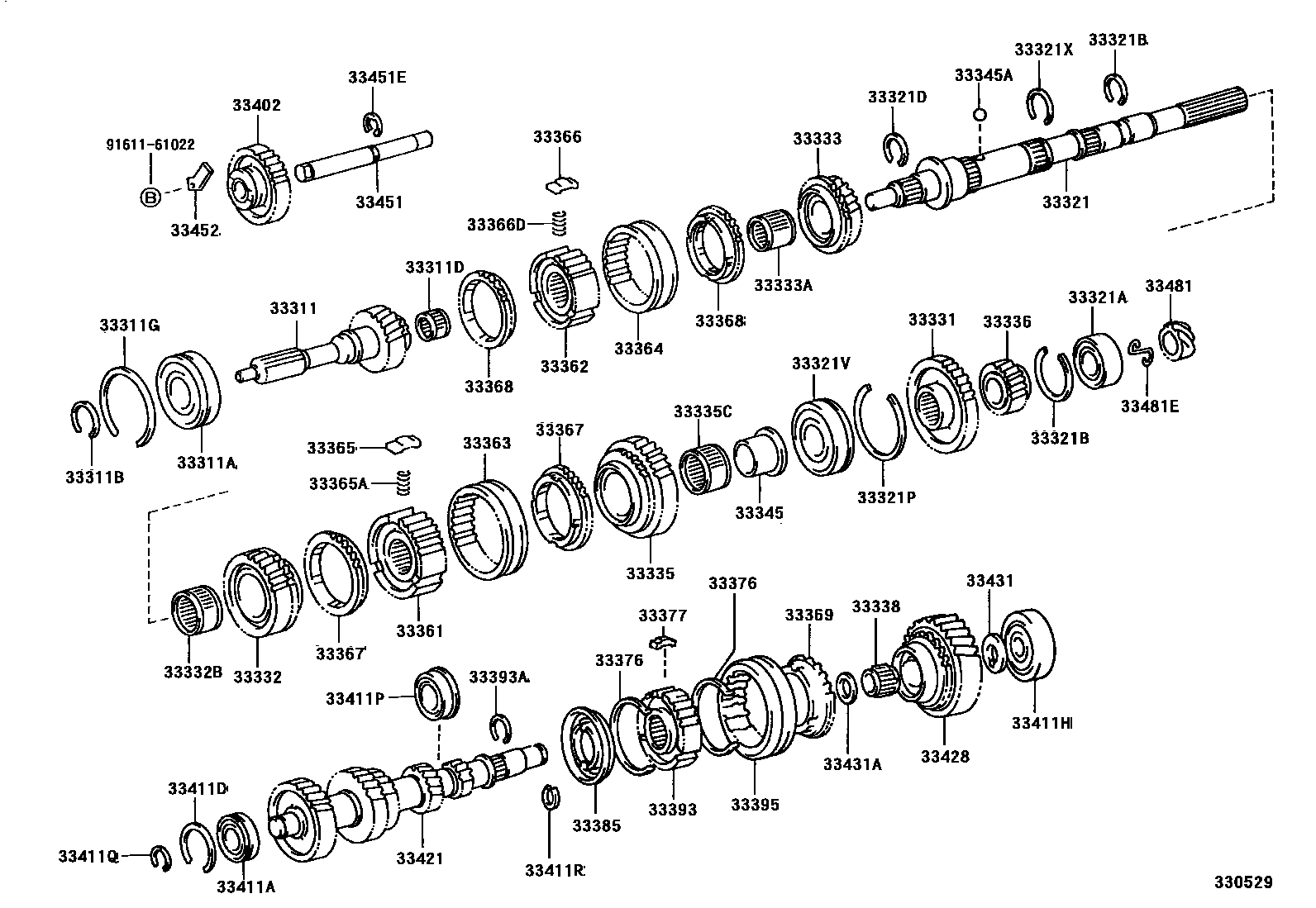

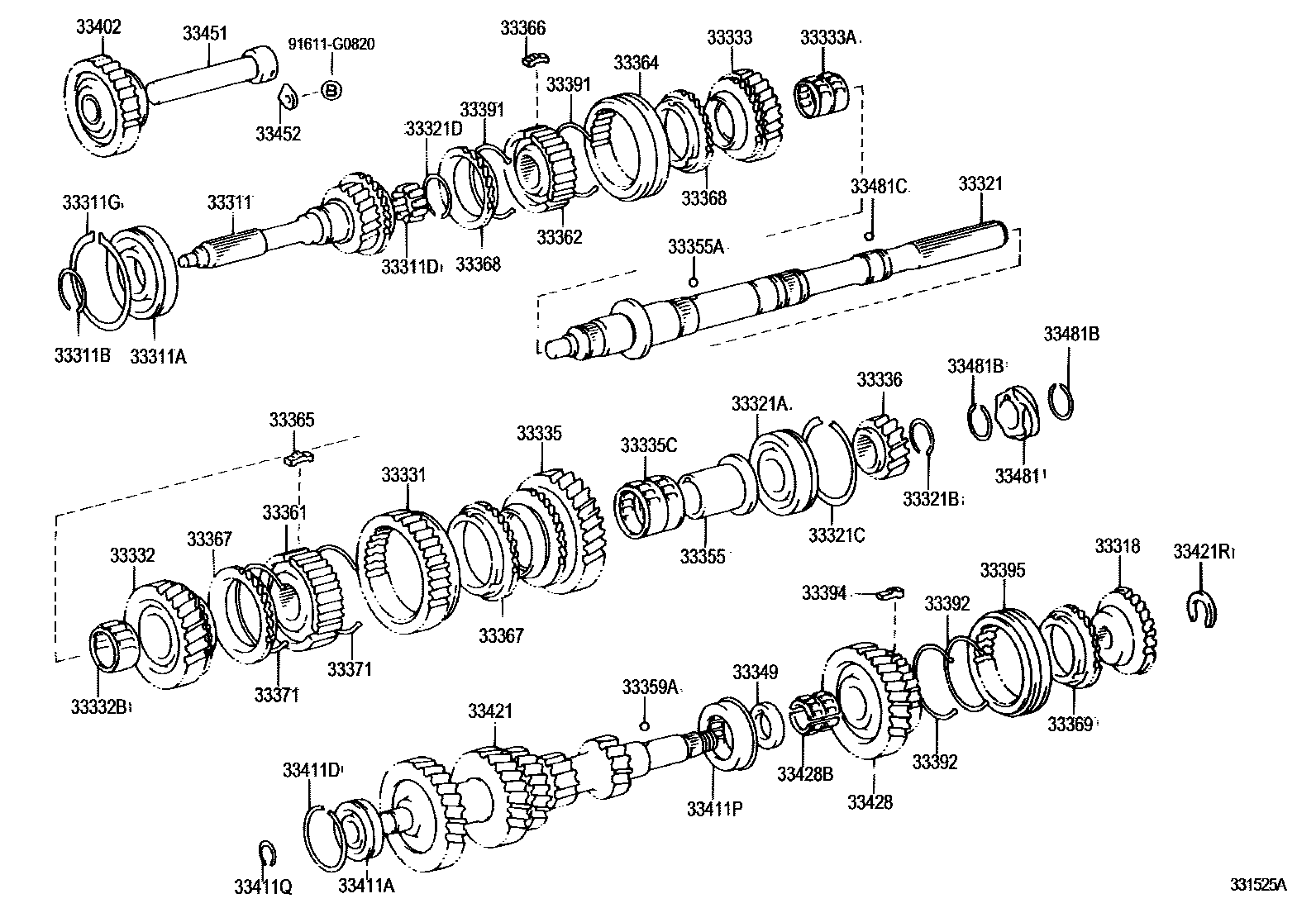

Toyota HILUX EPC diagram 3305, 变速器齿轮(MTM), with 8 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-30011 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-30012 |
| 33103G | Hole snap ring (for securing rear bearing) | 90521-66002 |
| 33105 | Extension shell oil baffle sub-assembly | 33143-26020 |
| 33176 | No. 1 manual transmission oil separator | 33176-35011 |
| 33311 | input shaft | 33301-22024 · 33301-26030 · 33301-30080 · 33301-30081 · 33301-35060 · 33301-35070 · 33301-35080 · 33311-35040 |
| 33311A | Bearing (for front input shaft) | 90363-32024 · 90363-35007 · 90363-35026 · 90363-35033 |
| 33311B | Shaft snap ring (for front bearing) | 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 · 90520-33107 · 90520-33132 · 90520-33168 · 90520-33169 · 90520-33170 · 90520-33171 · 90520-33172 |
| 33311C | Hole snap ring (for needle rollers) | 90521-33006 |
| 33311D | Input shaft bearing | 90361-06002 · 90361-06047 · 90364-19006 · 90364-19043 |
| 33311G | Shaft snap ring (for front bearing) | 90520-76001 · 90520-76002 |
| 33318 | No. 5 gear spline | 33318-35030 |
| 33321 | output shaft | 33321-22050 · 33321-30120 · 33321-35071 · 33321-35092 |
| 33321A | Bearings (for rear output shaft) | 33350-22010 · 33350-30010 · 90363-30059 · 97183-06306 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-25003 · 90520-25004 · 90520-25005 · 90520-25006 · 90520-25009 · 90520-25010 · 90520-25011 · 90520-25012 · 90520-25013 · 90520-25014 · 90520-25015 · 90520-25016 · 90520-25017 · 90520-25270 · 90520-25271 · 90520-25272 · 90520-25273 · 90520-25284 · 90520-25285 · 90520-28242 · 90520-28243 · 90520-28244 · 90520-28245 · 90520-28246 · 90520-54003 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-68181 · 90520-68182 · 90520-68183 · 90520-68184 · 90520-68185 · 90520-71221 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-28010 · 90520-28011 · 90520-28012 · 90520-28013 · 90520-28014 · 90520-28015 · 90520-28016 · 90520-28017 · 90520-28018 · 90520-28242 · 90520-28243 · 90520-28244 · 90520-28245 · 90520-28246 · 90520-28248 |
| 33321P | Snap ring (for output shaft center bearing) | 90520-76001 |
| 33321V | Bearings (for center output shaft) | 90363-30059 · 90363-35009 · 90363-35036 |
| 33321X | Shaft snap ring (for output shaft center bearing) | 90520-33001 · 90520-33002 · 90520-33003 · 90520-33004 · 90520-33005 · 90520-33006 · 90520-33007 · 90520-33107 · 90520-33108 · 90520-33109 · 90520-33132 · 90520-33133 · 90520-33134 · 90520-33172 |
| 33331 | reverse gear | 33331-22030 · 33331-26010 · 33331-28010 · 33331-28011 · 33331-30060 · 33331-30061 · 33331-35061 |
| 33332 | Second gear | 33033-0W010 · 33033-22030 · 33033-26021 · 33033-28011 · 33033-35011 · 33033-35090 · 33332-35030 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-38002 · 90364-43004 · 90364-43006 |
| 33333 | Third gear | 33034-22021 · 33034-28020 · 33034-30011 · 33034-35030 · 33034-35050 · 33034-35070 · 33333-26010 |
| 33333A | Needle roller bearing (for third gear) | 90364-32023 · 90364-35005 |
| 33335 | first gear | 33032-0W010 · 33032-22030 · 33032-26020 · 33032-28030 · 33032-28031 · 33032-35050 · 33032-35060 · 33335-35010 |
| 33335A | First gear shift positioning steel ball | 90360-06004 |
| 33335C | Needle roller bearing (for first gear) | 90364-37050 · 90364-39011 · 90364-43004 · 90364-43006 |
| 33336 | fifth gear | 33336-0W010 · 33336-22021 · 33336-28020 · 33336-30030 |
| 33338 | Fifth gear bushing or bearing | 90364-27002 |
| 33345 | First gear bushing | 33345-22010 · 33345-26011 · 33345-30020 |
| 33345A | Steel ball (for first gear bushing) | 90360-06004 |
| 33349 | Fifth gear thrust washer | 33349-35010 |
| 33349A | Fourth gear gear washer | 33349-35010 |
| 33355 | First gear bearing inner race | 33355-35020 |
| 33355A | First gear bearing inner race locking key or steel ball | 90360-06004 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-06004 |
| 33361 | No. 1 transmission clutch hub | 33361-22020 · 33361-26012 · 33361-30030 · 33361-35020 |
| 33362 | No. 2 transmission clutch hub | 33362-22020 · 33362-26011 · 33362-30050 · 33362-30051 · 33362-35040 |
| 33363 | No. 1 transmission hub sleeve | 33363-22021 · 33363-30031 · 33363-35030 |
| 33364 | No. 2 transmission hub sleeve | 33364-22021 · 33364-26010 · 33364-26020 · 33364-30031 · 33364-35030 · 33364-35040 |
| 33365 | No. 1 synchromesh shift key | 33365-26010 · 33365-30060 · 33365-35020 · 33365-35021 · 33366-20011 |
| 33365A | compression spring | 90501-08134 |
| 33366 | No. 2 synchromesh shift key | 33365-30060 · 33366-20011 · 33366-26010 · 33366-35040 · 33366-35041 |
| 33366D | compression spring | 90501-08134 |
| 33367 | Synchronizer lock ring No. 1 | 33367-14010 · 33367-22021 · 33367-26023 · 33367-30060 · 33367-35020 · 33367-53030 · 33368-20012 |
| 33368 | Synchronizer lock ring No. 2 | 33367-14010 · 33367-26023 · 33368-20012 · 33368-20013 · 33368-30120 |
| 33369 | No. 3 synchronizer lock ring | 33367-14010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-14010 · 33371-14031 · 33371-22033 |
| 33376 | Synchronizer shift key spring (for No. 3 clutch hub) | 33371-14010 · 33392-22010 |
| 33377 | Synchronizer shift key (for clutch hub No. 3) | 33366-14010 · 33394-30011 |
| 33384A | No. 3 synchronizer outer locking ring | 33384-30010 |
| 33385 | shift key block | 33385-22010 |
| 33387A | Reverse synchronizer lock ring | 33387-30010 · 33387-30011 |
| 33388A | Reverse synchronizer extension ring | 33388-30010 · 33388-30011 |
| 33389 | synchronizer cone ring | 33389-30010 · 33389-30011 |
| 33391 | No. 2 synchromesh shift key spring | 33371-14010 · 33391-22030 |
| 33392 | No. 3 synchromesh shift key spring | 33371-14010 |
| 33393 | No. 3 transmission clutch hub | 33393-22020 · 33393-30040 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-24002 · 90520-24003 · 90520-24004 · 90520-24005 |
| 33394 | No. 3 synchromesh shift key | 33394-30011 |
| 33394B | No. 3 synchromesh shift key | 33394-30020 · 33394-30021 |
| 33394C | compression spring | 90501-07104 |
| 33395 | No. 3 transmission hub sleeve | 33395-22011 · 33395-26020 · 33395-28010 · 33395-30020 · 33395-30021 · 33395-35020 |
| 33402 | Reverse idler gear sub-assembly | 33402-22023 · 33402-26010 · 33402-28011 · 33402-30030 · 33402-30031 · 33402-30032 · 33402-35050 · 33402-53020 |
| 33411 | intermediate shaft | 33411-30021 |
| 33411A | Bearing or roller (for front countershaft gear) | 90364-19068 · 90365-25014 · 90365-25023 · 90365-25025 |
| 33411B | Spacers (for countershaft gear bearings) | 90560-19450 |
| 33411C | Half-moon pin (for intermediate shaft) | 90280-03005 |
| 33411D | No. 1 countershaft gear front bearing snap ring | 90520-49222 |
| 33411H | Bearing or roller (for countershaft rear gear) | 90363-22003 · 90363-22007 · 90364-19068 |
| 33411P | intermediate shaft intermediate bearing | 33430-22010 · 33430-30010 · 90365-31004 · 90365-31006 |
| 33411Q | No. 2 countershaft gear front bearing snap ring | 90520-23057 · 90520-23058 · 90520-23059 · 90520-23060 · 90520-23061 · 90520-23062 · 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23146 |
| 33411R | Countershaft gear rear bearing snap ring | 90520-20008 · 90520-20009 · 90520-20010 · 90520-20011 · 90520-20012 · 90520-20013 · 90520-20014 |
| 33421 | countershaft gear | 33421-22050 · 33421-26120 · 33421-28050 · 33421-28051 · 33421-28052 · 33421-28053 · 33421-35051 · 33421-35140 · 33421-35160 · 33421-35170 |
| 33421R | Shaft snap ring (for countershaft rear gear) | 90520-19008 · 90520-19009 · 90520-19010 · 90520-19011 · 90520-19012 · 90520-19013 · 90520-19014 |
| 33428 | Countershaft fifth gear | 33046-0W010 · 33046-22013 · 33046-35061 · 33046-35062 · 33046-35080 · 33428-30040 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-26002 |
| 33431 | No. 1 countershaft gear spacer | 33431-22030 |
| 33431A | No. 2 countershaft gear spacer | 33431-22020 |
| 33441 | No. 1 countershaft gear cover side thrust washer | 33441-26012 · 33441-26022 · 33441-26032 · 33441-26042 · 33441-26052 · 33441-26061 |
| 33451 | Reverse gear idler shaft | 33451-22021 · 33451-28010 · 33451-30020 · 33451-30060 |
| 33451A | Half-moon pin (for reverse idler shaft) | 90280-03005 |
| 33451E | E-ring (for reverse idler shaft) | 90523-17001 |
| 33452 | Reverse gear idler shaft stop | 33452-22020 · 33452-30020 · 33452-30021 · 33452-36030 |
| 33481 | Speedometer driving gear (MTM) | 33481-20070 · 33481-22010 · 33481-22030 · 33481-25020 · 33481-26010 · 33481-30040 |
| 33481A | Speedometer driving gear key or steel ball (MTM) | 90360-06004 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-26061 · 90520-26179 · 90520-28009 |
| 33481C | Reverse gear shift positioning steel ball | 90360-06004 |
| 33481E | Catch (for speedometer drive gear) | 90467-25001 |
